AVSL : Product : Cable (Reels) : Loudspeaker : CCA : 801.818UK

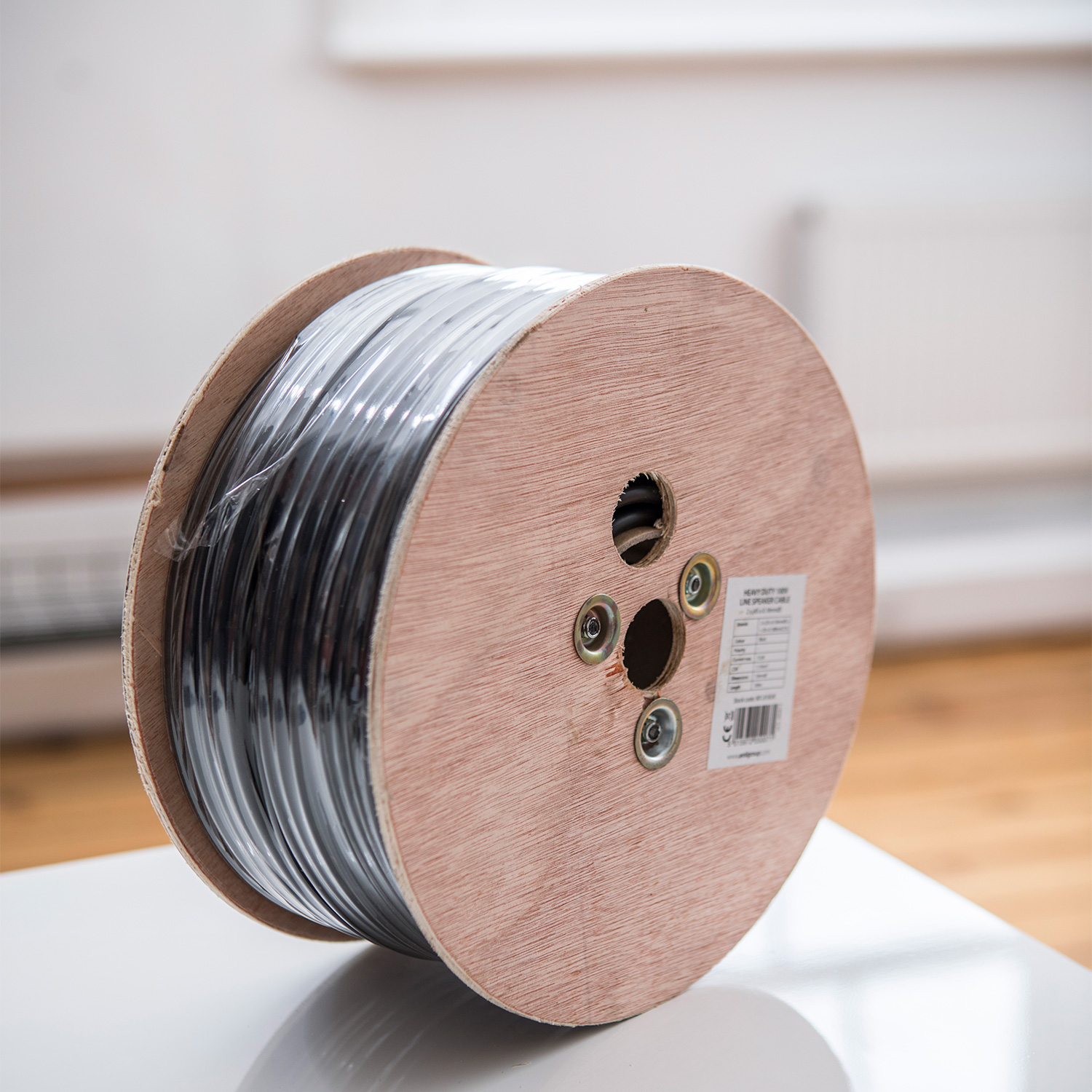

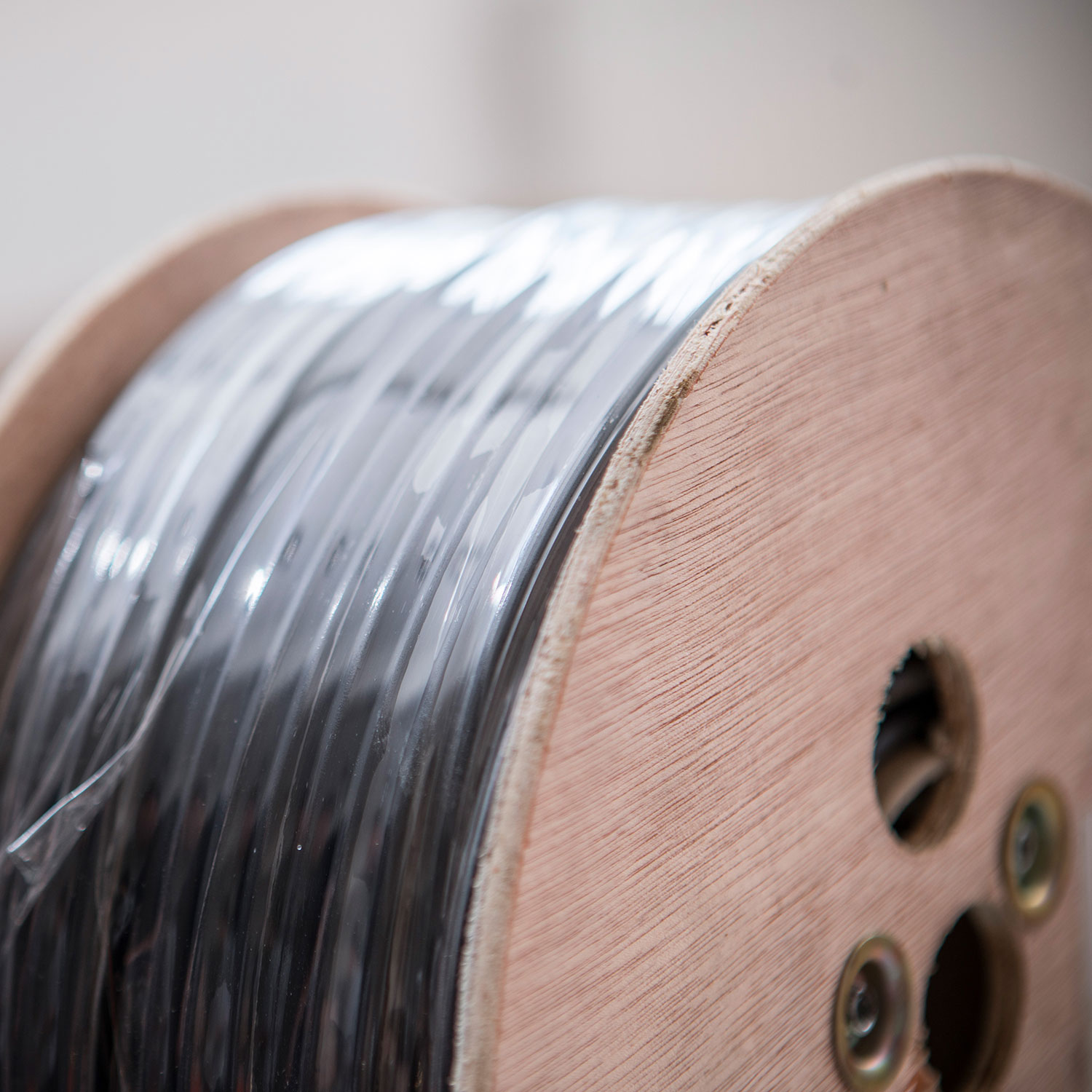

Heavy Duty Double Insulated 100V Line Speaker Cable

801.818UK

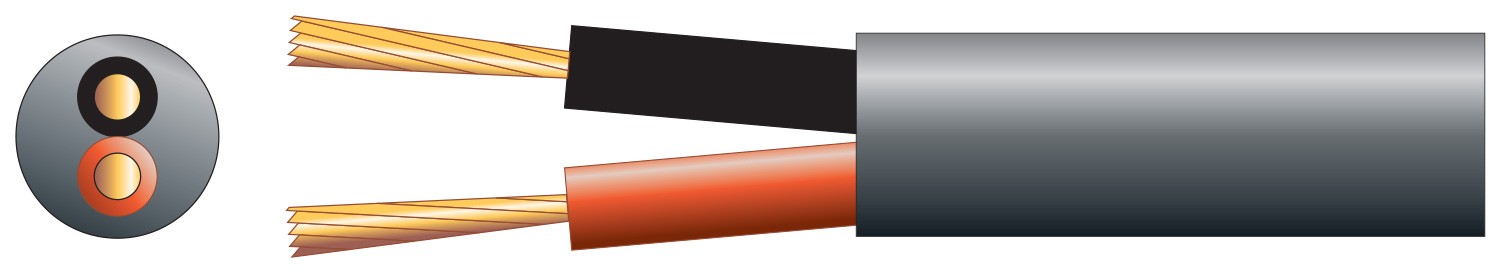

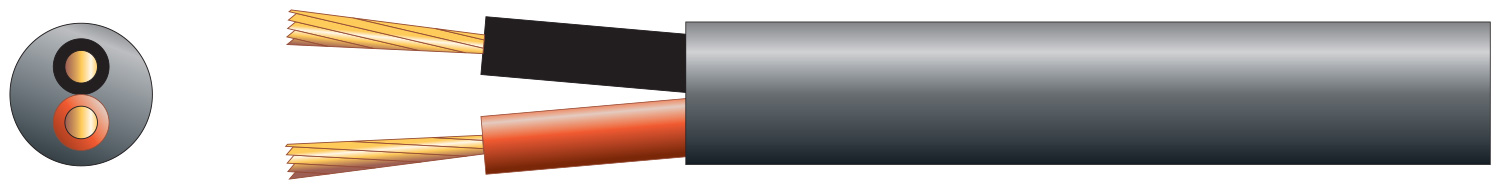

Heavy duty 2 core speaker cable suitable for 100V line PA speaker installations. Stranded conductors with red and black inner insulation and overall black PVC sheath. Red and black conductors.

Full description Find retailer

	Description	Version	Packed
	801.817UK 100V Line Speaker Cable, 2 x 1.15mm 100m	2x1.15mm Wht 100m	Reel
	801.818UK 100V Line Speaker Cable, 2 x 1.15mm 100m	2x1.15mm Blk 100m	Reel
	801.878UK 100V Line Speaker Cable, 2 x 2.01mm 100m	2x2.01mm Wht 100m	Reel
	801.879UK 100V Line Speaker Cable, 2 x 2.01mm 100m	2x2.01mm Black 100m	Reel

Heavy Duty Double Insulated 100V Line Speaker Cable

Heavy duty 2 core speaker cable suitable for 100V line PA speaker installations. Stranded conductors with red and black inner insulation and overall black PVC sheath. Red and black conductors.

Length 100m
Conductor Copper/Copper Clad Aluminium

Versions

	801.817UK	801.818UK	801.878UK	801.879UK
CSA	1.15mm²	1.15mm²	2.01mm²	2.01mm²
Strands	2 x (25 x 0.18mmØCu + 20 x 0.18mmØCCA)	2 x (25 x 0.18mmØCu + 20 x 0.18mmØCCA)	2 x (40 x 0.18mmØCu + 39 x 0.18mmØCCA)	2 x (40 x 0.18mmØCu + 39 x 0.18mmØCCA)
Dimensions	7.8mmØ	7.8mmØ	8.0mmØ	8.0mmØ
Current	15A max.	15A max.	25A max.	25A max.
Sheath	White	Black	White	Black
Packed quantity	1 reel	1 reel	1 reel	1 reel

Downloads

UK Declaration of conformity
For 801.818UK (244KB)

EU Declaration of conformity
For 801.818UK (232KB)
