Heavy Duty Double Insulated 100V Line Speaker Cable

801.817UK

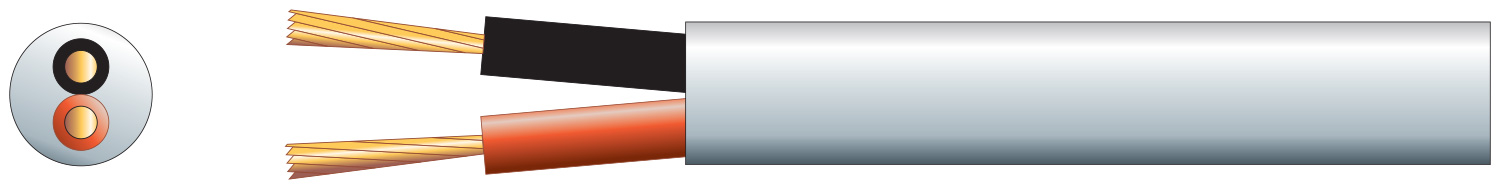

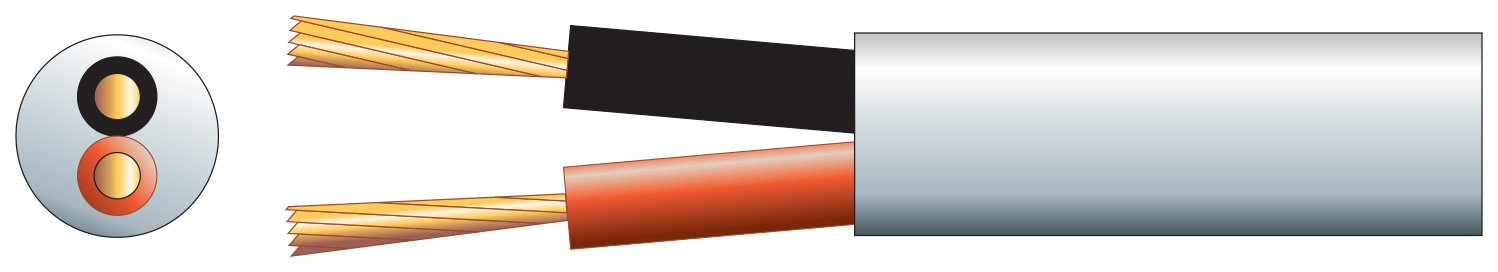

Heavy duty 2 core speaker cable suitable for 100V line PA speaker installations. Stranded conductors with red and black inner insulation and overall black PVC sheath. Red and black conductors.

Description Version Packed
801.817UK
100V Line Speaker Cable, 2 x 1.15mm 100m
2x1.15mm Wht 100m Reel
801.818UK
100V Line Speaker Cable, 2 x 1.15mm 100m
2x1.15mm Blk 100m Reel
801.878UK
100V Line Speaker Cable, 2 x 2.01mm 100m
2x2.01mm Wht 100m Reel
801.879UK
100V Line Speaker Cable, 2 x 2.01mm 100m
2x2.01mm Black 100m Reel

Heavy Duty Double Insulated 100V Line Speaker Cable

Heavy duty 2 core speaker cable suitable for 100V line PA speaker installations. Stranded conductors with red and black inner insulation and overall black PVC sheath. Red and black conductors.

  • Length 100m
  • Conductor Copper/Copper Clad Aluminium

Versions

  801.817UK 801.818UK 801.878UK 801.879UK
CSA 1.15mm² 1.15mm² 2.01mm² 2.01mm²
Strands 2 x (25 x 0.18mmØCu + 20 x 0.18mmØCCA) 2 x (25 x 0.18mmØCu + 20 x 0.18mmØCCA) 2 x (40 x 0.18mmØCu + 39 x 0.18mmØCCA) 2 x (40 x 0.18mmØCu + 39 x 0.18mmØCCA)
Dimensions 7.8mmØ 7.8mmØ 8.0mmØ 8.0mmØ
Current 15A max. 15A max. 25A max. 25A max.
Sheath White Black White Black
Packed quantity 1 reel 1 reel 1 reel 1 reel

Downloads

UK Declaration of conformity
For 801.817UK (241KB)
EU Declaration of conformity
For 801.817UK (233KB)
