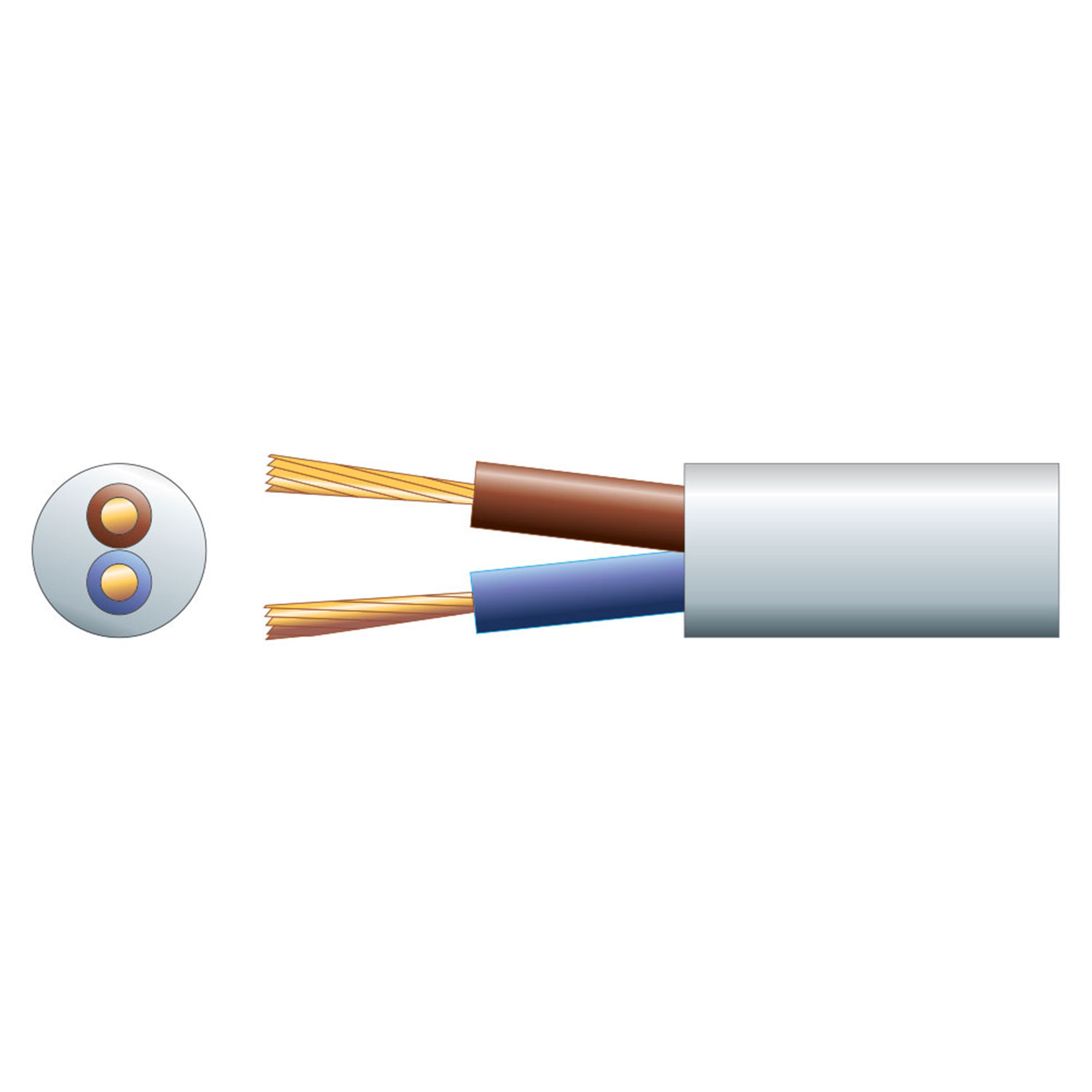

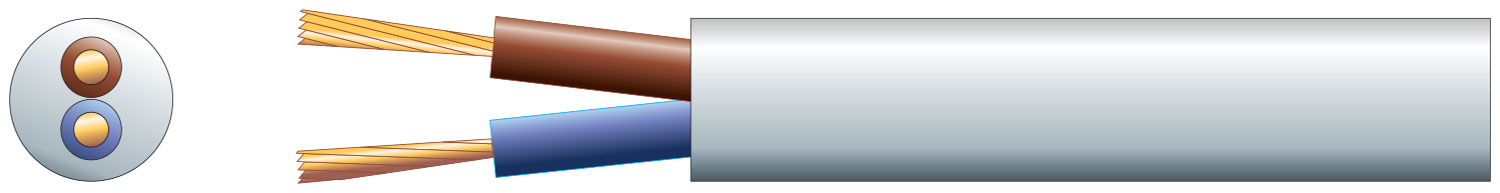

3182Y 2 Core Round PVC, 300/500V, HO5VV-F2, 10A

804.329UK

Round profile mains electric cable. Flexible PVC sheath for use in light electrical applications. BSI approved to BS6500, VDE approved.

Full description Find retailer
Description Version Packed
804.329UK
2 core round mains PVC, 2 x 32/0.2mm, 10A, 6.4mmØ, White, 100m 		White 100m Reel
804.332UK
2 core round mains PVC, 2 x 32/0.2mm, 10A, 6.4mmØ, Black, 100m 		Black 100m Reel
804.330UK
2 core round mains PVC, 2 x 32/0.2mm, 10A, 6.4mmØ, White, 50m 		White 50m Reel
804.333UK
2 core round mains PVC, 2 x 32/0.2mm, 10A, 6.4mmØ, Black, 50m 		Black 50m Reel

3182Y 2 Core Round PVC, 300/500V, HO5VV-F2, 10A

Round profile mains electric cable. Flexible PVC sheath for use in light electrical applications. BSI approved to BS6500, VDE approved.

Specification : Common

  • CSA 1.0mm²
  • Strands 2 x 32/0.2mmØ
  • Cable : dimensions 6.4mmØ
  • Packed 2 reels
  • Current 10.0A max.

Specification : Versions

  804.329UK 804.332UK 804.330UK 804.333UK
Length 100m 100m 50m 50m
Colour White Black White Black

Trade information

  804.329UK 804.332UK 804.330UK 804.333UK
Barcode / EAN 5015972050460 5015972050477 5015972200582 5015972200599
Package type Reel Reel Reel Reel
Package dimensions 250 x 170 x 250mm 250 x 170 x 250mm 250 x 170 x 250mm 250 x 170 x 250mm
Package weight 6.60kg 6.20kg 3.40kg 3.40kg
Package quantity 1 unit 1 unit 1 unit 1 unit
Carton dimensions 250 x 170 x 250mm 250 x 170 x 250mm 250 x 170 x 250mm 250 x 170 x 250mm
Carton weight 6.60kg 6.20kg 3.40kg 3.40kg
Carton quantity 1 package 1 package 1 package 1 package
