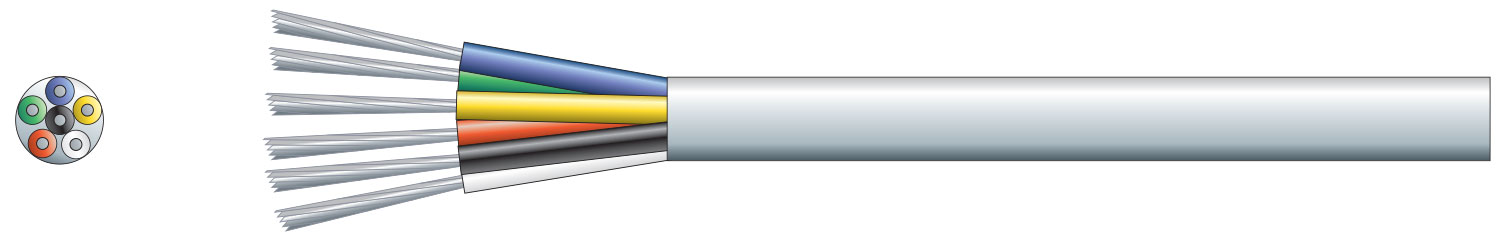

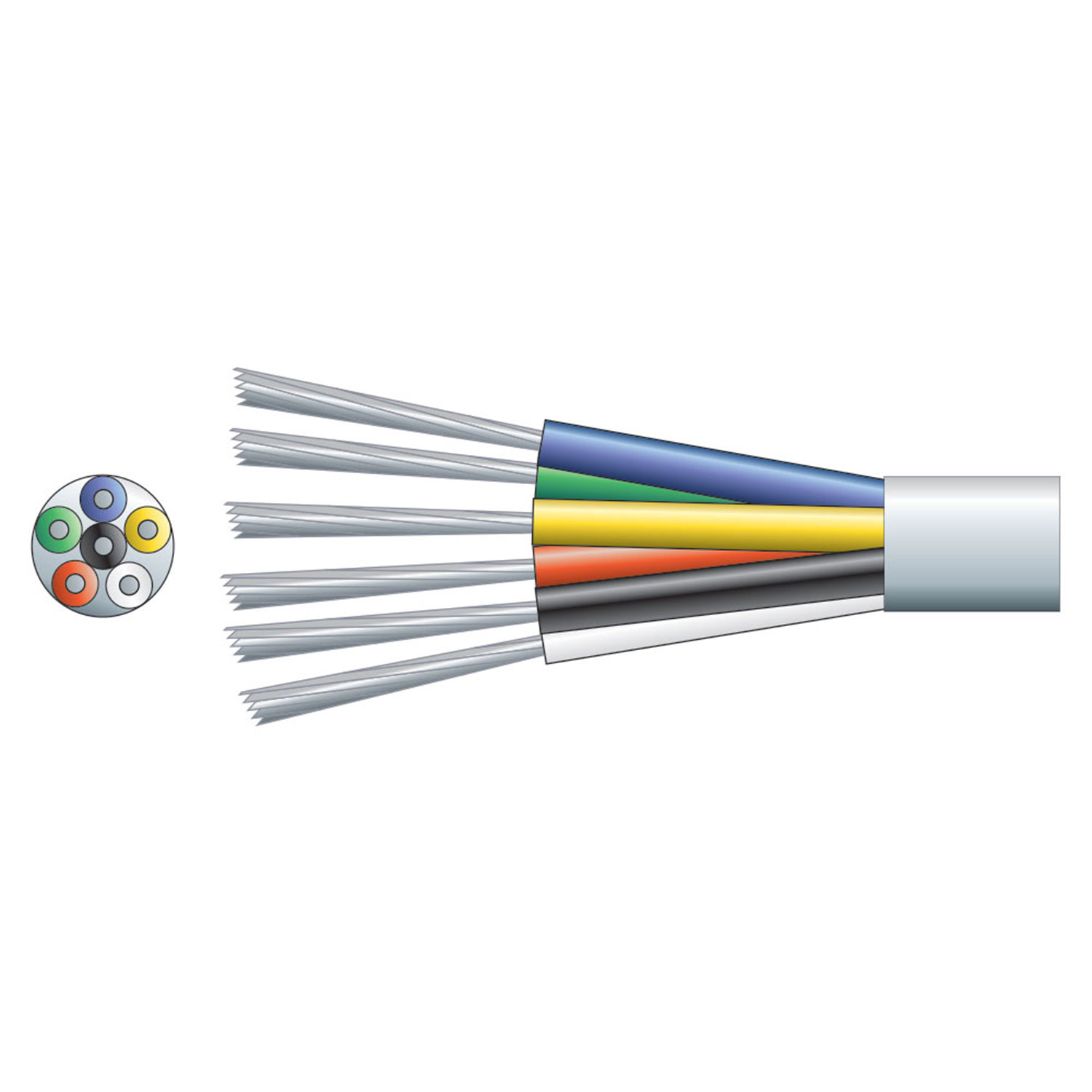

Economy Alarm/Signal Cable

808.203UK

A range of multicore cables suitable for use in security, alarm and any other low voltage applications. Stranded tinned copper clad aluminium conductors with colour coded insulation and white PVC s...

  • Tinned copper clad aluminium conductor
  • Colour coded insulation
  • White PVC sheath
Full description Find retailer
Description Version Packed
808.201UK
4 Core Alarm Cable TCCA Conductor White 100m 		4 Cores White 100m Reel
808.203UK
6 Core Alarm Cable TCCA Conductor White 100m 		6 Cores White 100m Reel
808.205UK
8 Core Alarm Cable TCCA Conductor White 100m 		8 Cores White 100m Reel

Economy Alarm/Signal Cable

A range of multicore cables suitable for use in security, alarm and any other low voltage applications. Stranded tinned copper clad aluminium conductors with colour coded insulation and white PVC sheath.

  • Tinned copper clad aluminium conductor
  • Colour coded insulation
  • White PVC sheath
  • Strands 7 x 0.2mmØ
  • Conductor TCCA
  • CSA 0.22mm²
  • Colour White
  • Length 100m

Versions

  808.201UK 808.203UK 808.205UK
Cores 4 6 8
Cable : diameter 3.5mmØ 4.2mmØ 4.6mmØ
Weight 1.4kg 1.7kg 2kg

Downloads

UK Declaration of conformity
For 808.203UK (240KB)
EU Declaration of conformity
For 808.203UK (232KB)
