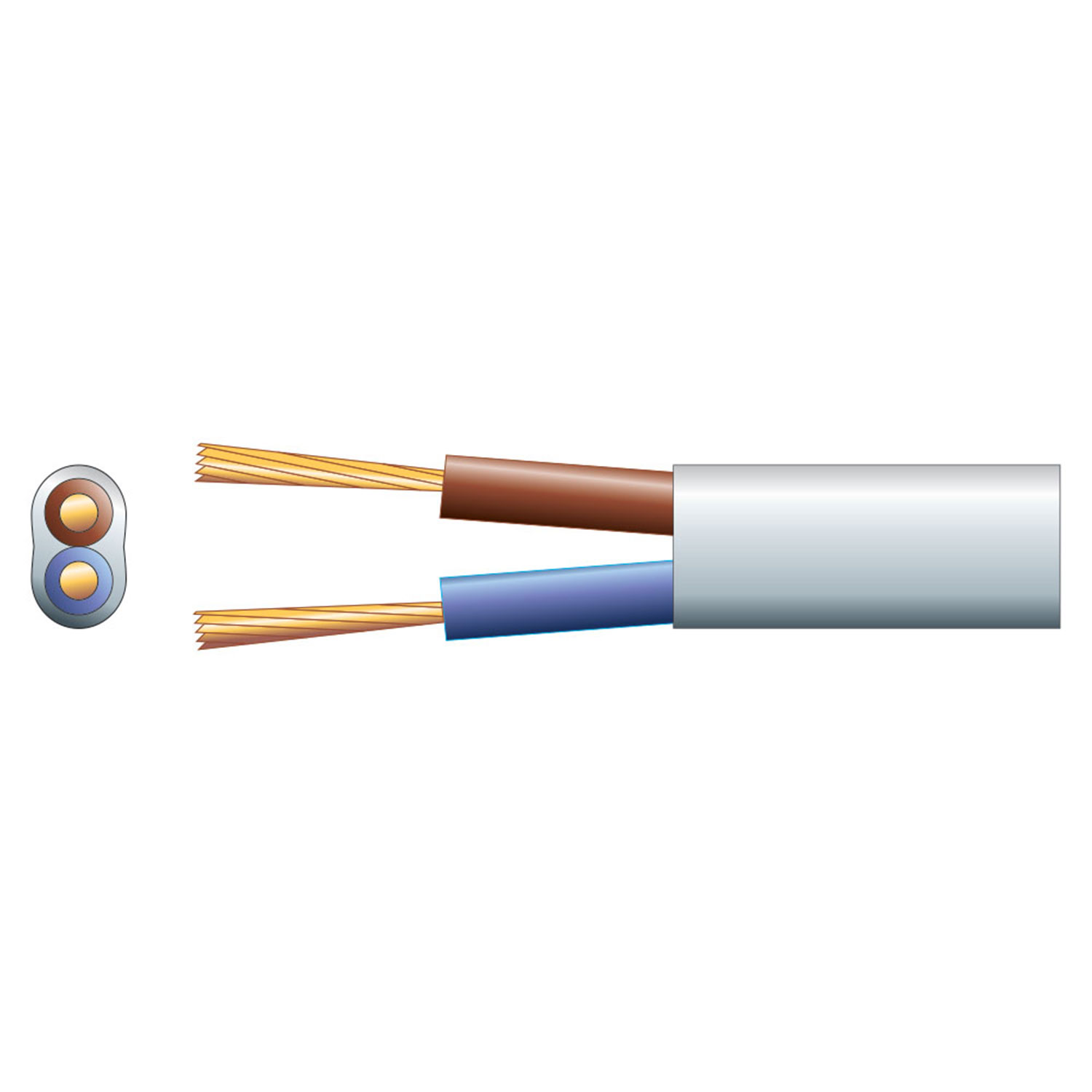

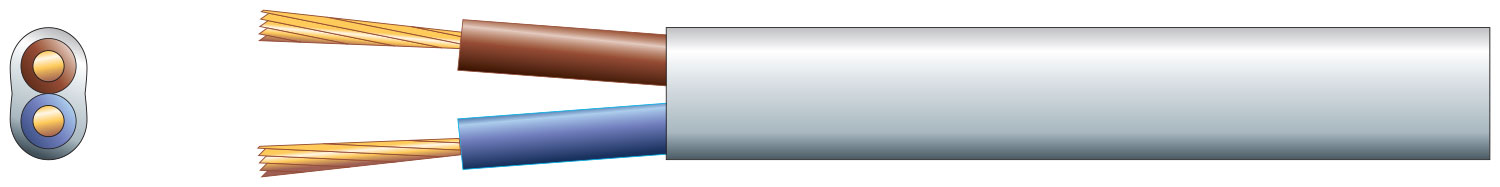

2192Y 2 Core Oval PVC, 300/300V, HO3VVH2-F2, 3A

804.365UK

Oval profile mains electric cable. Flexible PVC sheath for use in light electrical applications. BSI approved to BS6500, VDE approved.

Full description Find retailer
Description Version Packed
804.362UK
2 core oval mains PVC, 2 x 16/0.2mm, 3A, Black, 100m 		Black 100m Reel
804.365UK
2 core oval mains PVC, 2 x 16/0.2mm, 3A, White, 100m 		White 100m Reel
804.363UK
2 core oval mains PVC, 2 x 16/0.2mm, 3A, Black, 50m 		Black 50m Reel
804.366UK
2 core oval mains PVC, 2 x 16/0.2mm, 3A, White, 50m 		White 50m Reel

2192Y 2 Core Oval PVC, 300/300V, HO3VVH2-F2, 3A

Oval profile mains electric cable. Flexible PVC sheath for use in light electrical applications. BSI approved to BS6500, VDE approved.

Specification : Common

  • CSA 0.5mm²
  • Strands 2 x 16/0.2mmØ
  • Cable : dimensions 3.5 x 5.4mm
  • Packed 4 reels
  • Current 3.0A max.

Specification : Versions

  804.362UK 804.365UK 804.363UK 804.366UK
Length 100m 100m 50m 50m
Colour Black White Black White

Trade information

  804.362UK 804.365UK 804.363UK 804.366UK
Barcode / EAN 5015972050545 5015972050552 5015972200544 5015972200551
Package type Reel Reel Reel Reel
Package dimensions 195 x 195 x 110mm 195 x 195 x 110mm 195 x 195 x 110mm 195 x 195 x 110mm
Package weight 3.18kg 3.18kg 1.69kg 1.69kg
Package quantity 1 unit 1 unit 1 unit 1 unit
Carton dimensions 185 x 370 x 230mm 185 x 370 x 230mm 195 x 195 x 110mm 195 x 195 x 110mm
Carton weight 12.70kg 12.70kg 1.69kg 1.69kg
Carton quantity 1 package 1 package 1 package 1 package
