3182Y 2 Core Round PVC, 300/500V, HO5VV-F2, 6A

804.377UK

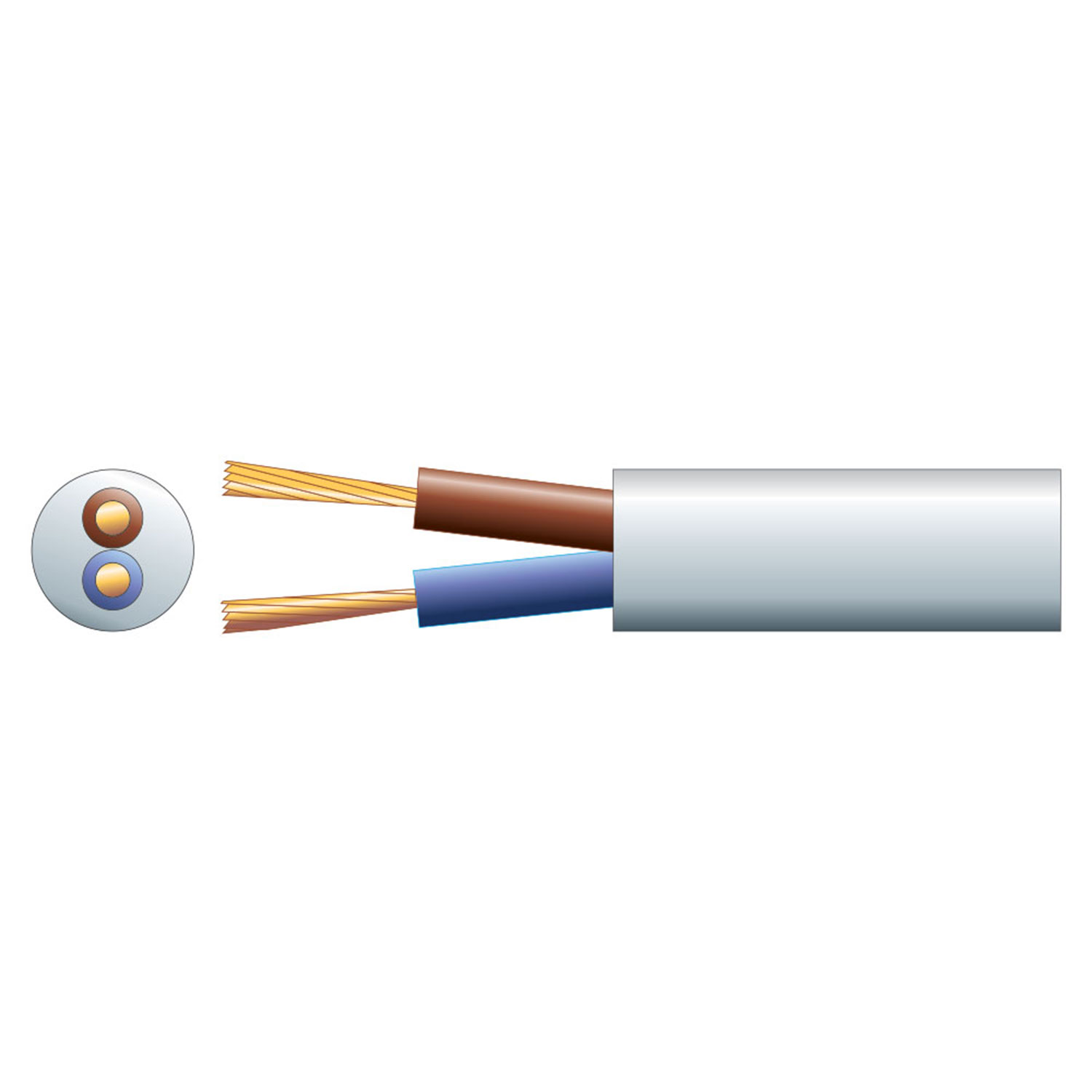

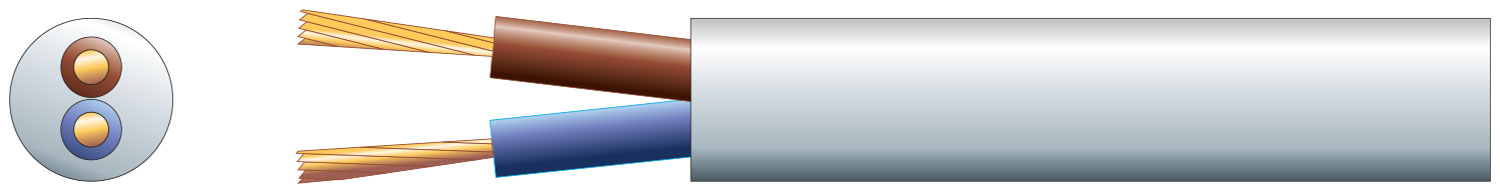

Round profile mains electric cable. Flexible PVC sheath for use in light electrical applications. BSI approved to BS6500, VDE approved.

Full description Find retailer
Description Version Packed
804.377UK
2 core round mains PVC, 2 x 24/0.2mm, 6A, 6.35mmØ, White, 100m 		White 100m Reel
804.380UK
2 core round mains PVC, 2 x 24/0.2mm, 6A, 6.35mmØ, Black, 100m 		Black 100m Reel
804.378UK
2 core round mains PVC, 2 x 24/0.2mm, 6A, 6.35mmØ, White, 50m 		White 50m Reel
804.381UK
2 core round mains PVC, 2 x 24/0.2mm, 6A, 6.35mmØ, Black, 50m 		Black 50m Reel

3182Y 2 Core Round PVC, 300/500V, HO5VV-F2, 6A

Round profile mains electric cable. Flexible PVC sheath for use in light electrical applications. BSI approved to BS6500, VDE approved.

Specification : Common

  • CSA 0.75mm²
  • Strands 2 x 24/0.2mmØ
  • Cable : dimensions 6.35mmØ
  • Packed 2 reels
  • Current 6A max.

Specification : Versions

  804.377UK 804.380UK 804.378UK 804.381UK
Length 100m 100m 50m 50m
Colour White Black White Black

Trade information

  804.377UK 804.380UK 804.378UK 804.381UK
Barcode / EAN 5015972050576 5015972050583 5015972200568 5015972200575
Package type Reel Reel Reel Reel
Package dimensions 250 x 170 x 250mm 220 x 220 x 160mm 250 x 170 x 250mm 220 x 220 x 160mm
Package weight 5.75kg 5.75kg 2.98kg 2.98kg
Package quantity 1 unit 1 unit 1 unit 1 unit
Carton dimensions 250 x 170 x 250mm 235 x 470 x 170mm 250 x 170 x 250mm 220 x 220 x 160mm
Carton weight 5.75kg 11.50kg 2.98kg 2.98kg
Carton quantity 1 package 1 package 1 package 1 package
