2 Way Crossovers
900.590UK
2-way crossovers covering a range of different power capacities. Ensures a balanced separation of the high and low frequencies.
- High quality components
- Excellent sound reproduction
2 Way Crossovers
2-way crossovers covering a range of different power capacities. Ensures a balanced separation of the high and low frequencies.
- High quality components
- Excellent sound reproduction
Specification : Common
- Impedance 8 Ohms
Specification : Versions
| 900.588UK | 900.590UK | 900.591UK | 900.592UK | 900.593UK | |
|---|---|---|---|---|---|
| Damping | 6dB/Oct. | 12dB/Oct. | 12dB/Oct. | 12dB/Oct. | 12dB/Oct. |
| Frequency | 2k, 2.5k or 4kHz | 2.5kHz | 3kHz | 2kHz | 3kHz |
| Power | 100W | 250W | 200W | 200W | 200W |
Trade information
| 900.588UK | 900.590UK | 900.591UK | 900.592UK | 900.593UK | |
|---|---|---|---|---|---|
| Barcode / EAN | 5015972052921 | 5015972052938 | 5015972187517 | 5015972187524 | 5015972187531 |
| Package type | Box Plain | Box Plain | Box Plain | Box Plain | Box Plain |
| Package dimensions | 75 x 120 x 35mm | - | 75 x 120 x 35mm | 100 x 145 x 35mm | 100 x 145 x 35mm |
| Package weight | 0.15kg | 0.64kg | 0.20kg | 0.34kg | 0.36kg |
| Package quantity | 1 unit | 1 unit | 1 unit | 1 unit | 1 unit |
| Carton dimensions | 260 x 400 x 200mm | 480 x 170 x 200mm | 260 x 400 x 200mm | 280 x 480 x 210mm | 280 x 480 x 210mm |
| Carton weight | 7.70kg | 32.00kg | 9.40kg | 14.00kg | 14.70kg |
| Carton quantity | 50 packages | 50 packages | 50 packages | 40 packages | 40 packages |
In the box
The box for this item contains :

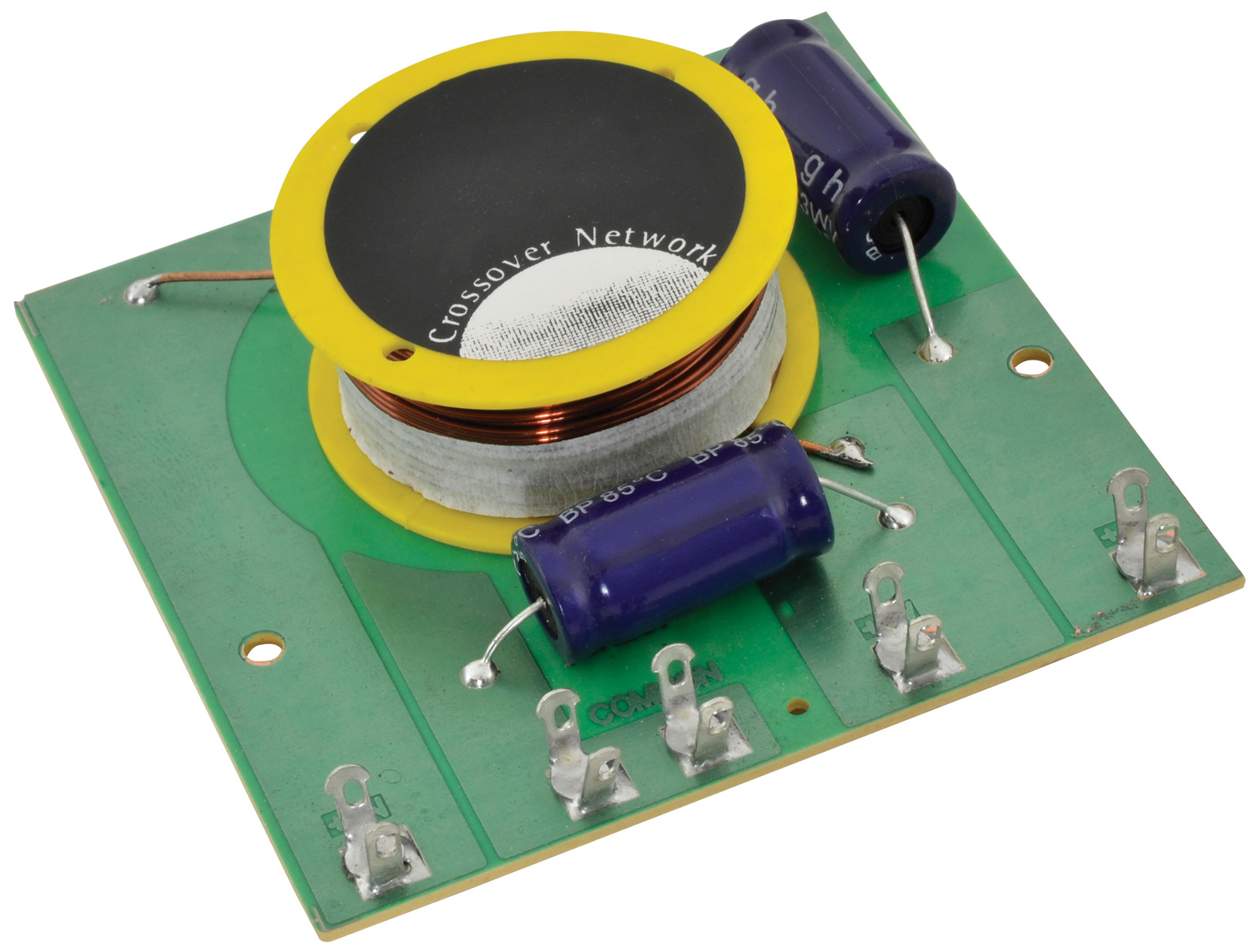

- Passive 2-way crossover PCB
Support
Instruction manual
For 900.592UK (4.0MB)
For 900.592UK (4.0MB)
