2 Way Crossovers

900.591UK X8R3KH-200W

2-way crossovers covering a range of different power capacities. Ensures a balanced separation of the high and low frequencies.

  • High quality components
  • Excellent sound reproduction
Description Version Packed
900.588UK
2-Way Crossover 6dB, 8 Ohm, 100W, 2/2.5/4kHz
8R 2/2.5/4kHz 100W Box Plain
900.590UK
2-Way Crossover 12dB, 8 Ohm, 250W, 2.5kHz
8R 2.5kHz 250W Box Plain
900.591UK
2-Way Crossover 12dB, 8 Ohm, 200W, 3kHz
8R 3kHz 200W Box Plain
900.592UK
2-Way Crossover 12dB, 4/8 Ohm, 200W, 2kHz
4/8R 2kHz 200W Box Plain
900.593UK
2-Way Crossover 12dB, 4/8 Ohm, 200W, 3kHz
4/8R 3kHz 200W Box Plain

2 Way Crossovers

2-way crossovers covering a range of different power capacities. Ensures a balanced separation of the high and low frequencies.

  • High quality components
  • Excellent sound reproduction

Specification : Common

  • Impedance 8 Ohms

Specification : Versions

  900.588UK 900.590UK 900.591UK 900.592UK 900.593UK
Damping 6dB/Oct. 12dB/Oct. 12dB/Oct. 12dB/Oct. 12dB/Oct.
Frequency 2k, 2.5k or 4kHz 2.5kHz 3kHz 2kHz 3kHz
Power 100W 250W 200W 200W 200W

Trade information

  900.588UK 900.590UK 900.591UK 900.592UK 900.593UK
Barcode / EAN 5015972052921 5015972052938 5015972187517 5015972187524 5015972187531
Tariff code 8518210000 8518210000 8518210000 8518210000 8518210000
Country of Origin CN CN CN CN CN
Package type Box Plain Box Plain Box Plain Box Plain Box Plain
Package dimensions 75 x 120 x 35mm 87 x 87 x 30mm 75 x 120 x 35mm 100 x 145 x 35mm 100 x 145 x 35mm
Package weight 0.15kg 0.64kg 0.20kg 0.34kg 0.36kg
Package quantity 1 unit 1 unit 1 unit 1 unit 1 unit
Carton dimensions 260 x 400 x 200mm 480 x 170 x 200mm 260 x 400 x 200mm 280 x 480 x 210mm 280 x 480 x 210mm
Carton weight 7.70kg 32.00kg 9.40kg 14.00kg 14.70kg
Carton quantity 50 packages 50 packages 50 packages 40 packages 40 packages

In the box

The box for this item contains :

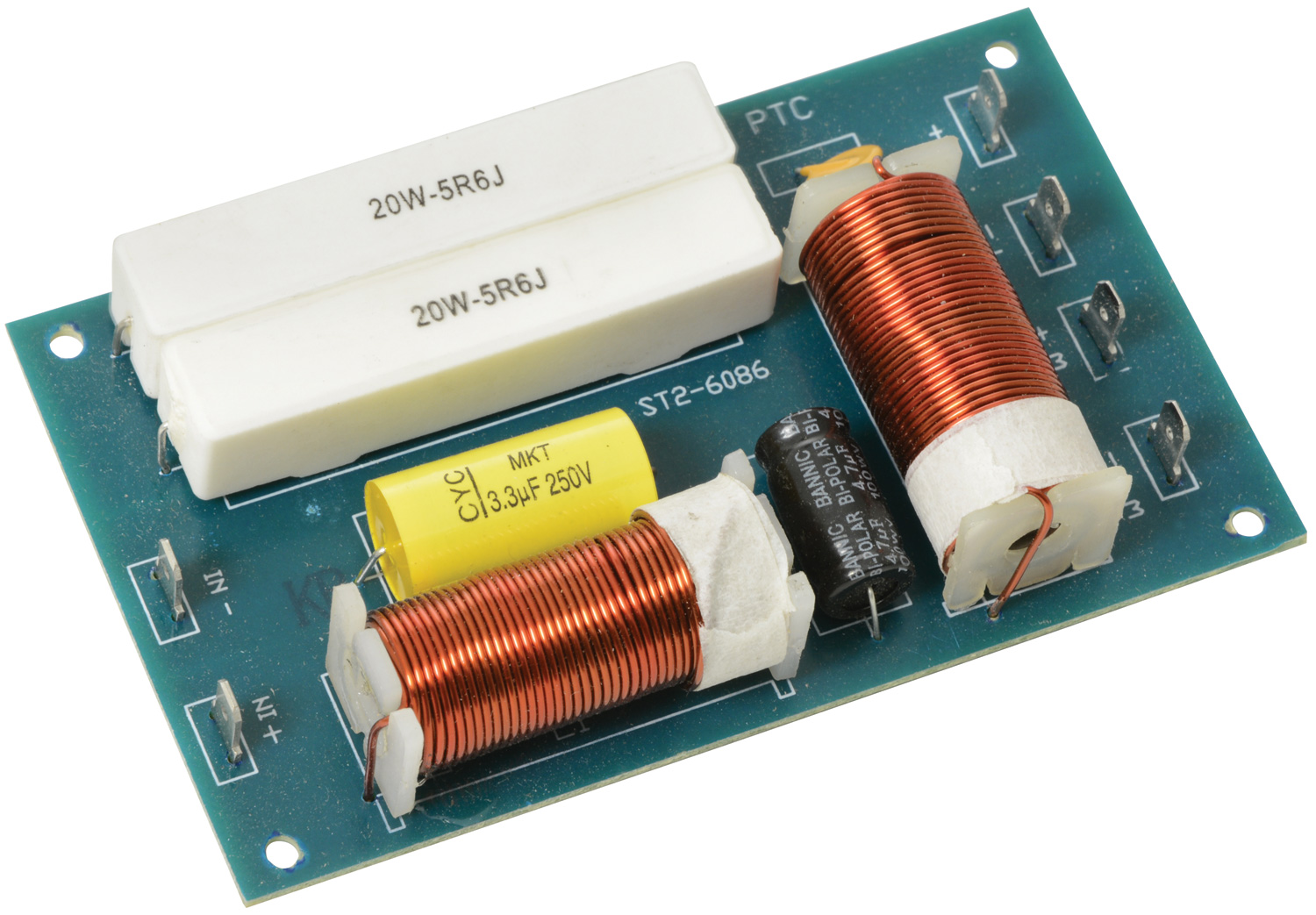

  • Passive 2-way crossover PCB

Support

Instruction manual
For 900.592UK (4.0MB)
