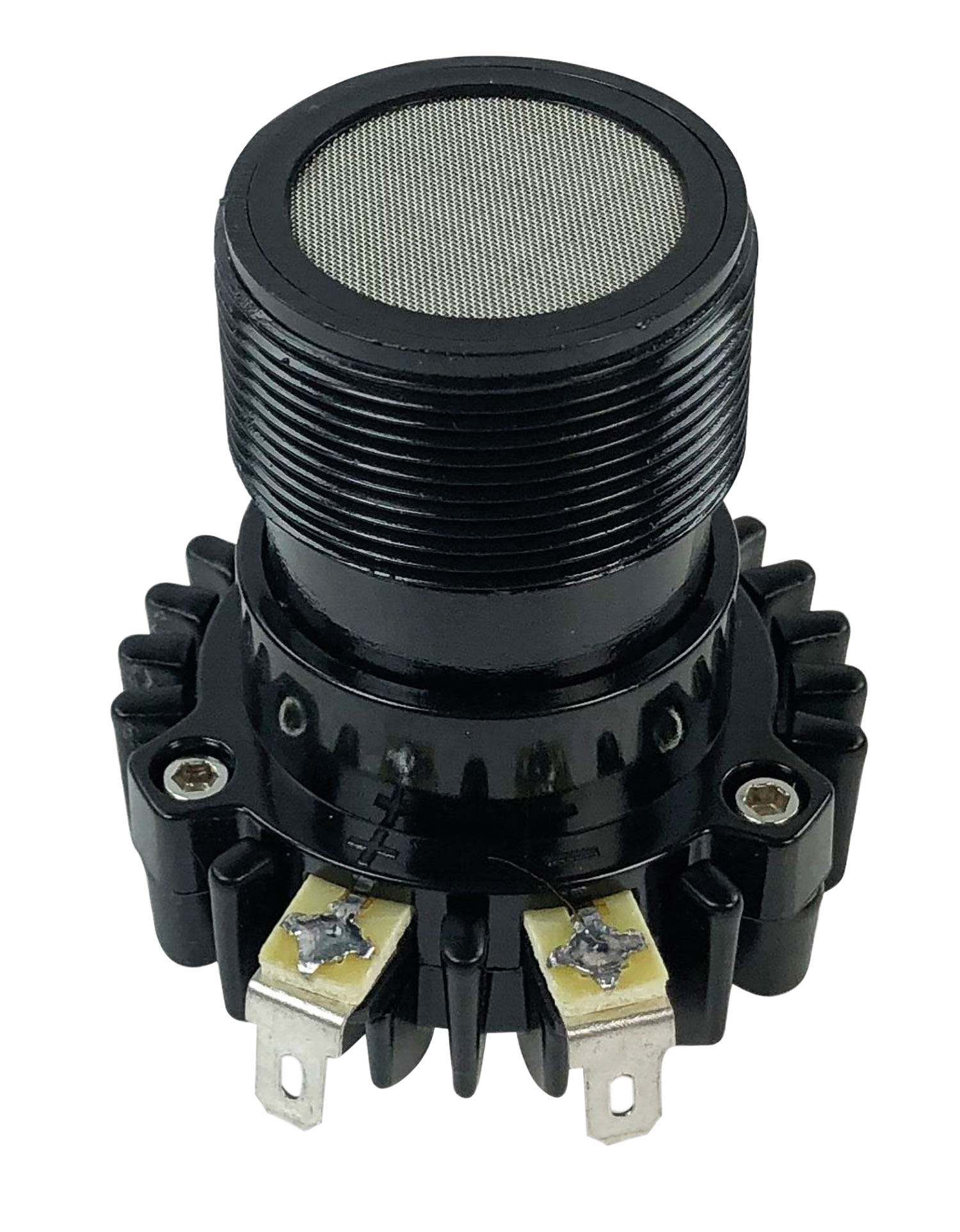

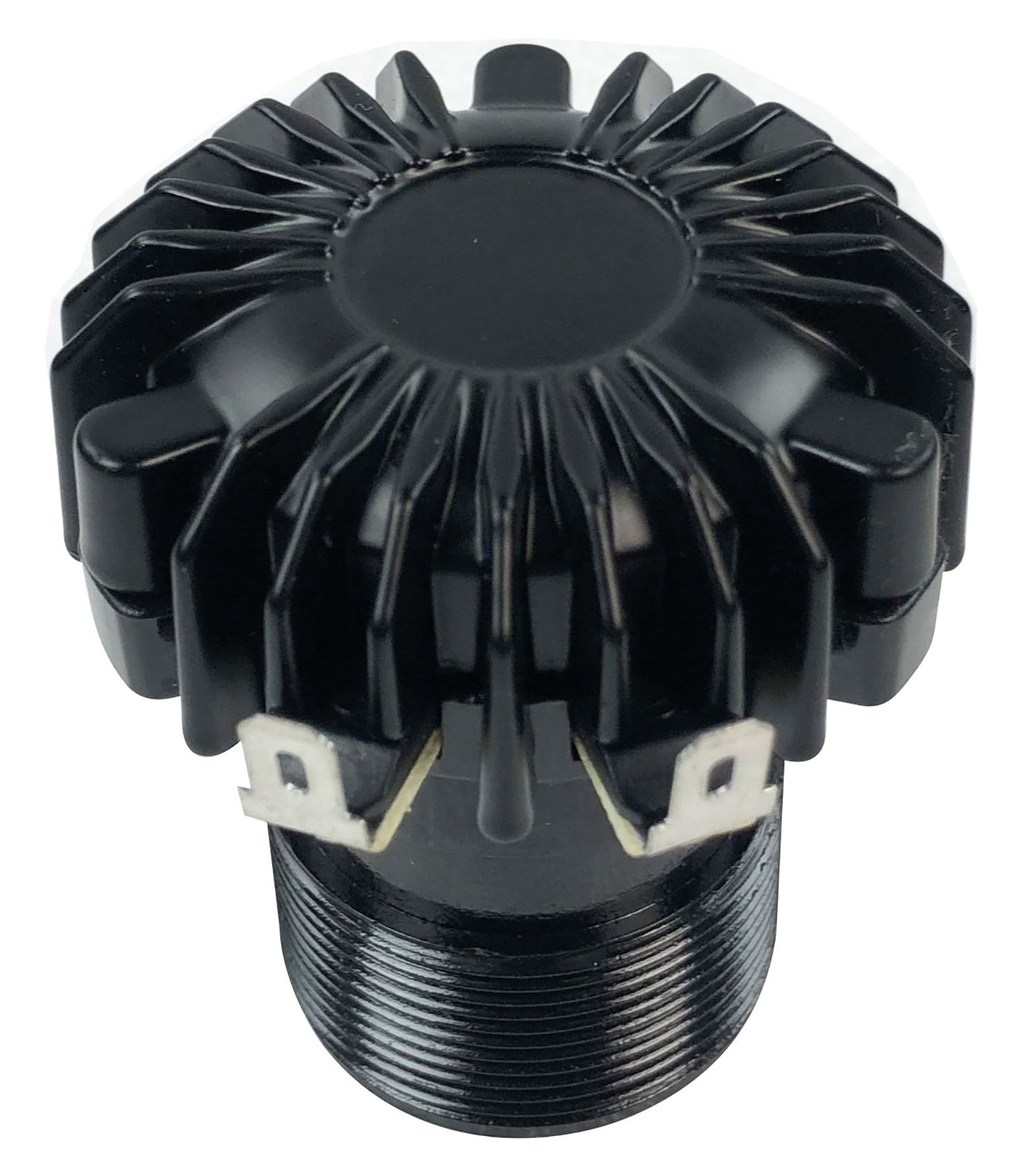

Tweeter Drivers for CASA Active Cabinets

902.109UK HFCASA-8A-10A

High frequency compression drivers as used in the CASA series active cabinets.

  • Direct replacements for CASA series full range active cabinets
Description Version Packed
902.109UK
25mm (1") HF Driver 20Wrms for CASA-8A and CASA-10A
25mm (1") 20Wrms Box Label BW
902.111UK
34mm (1.35") HF Driver 35Wrms for CASA-12A
34mm (1.35") 35Wrms Box Label BW

Tweeter Drivers for CASA Active Cabinets

High frequency compression drivers as used in the CASA series active cabinets.

  • Direct replacements for CASA series full range active cabinets

Specification : Common

  • Throat 25mmØ (1")
  • Impedance 8 Ohms

Specification : Versions

  902.109UK 902.111UK
Power handling : rms 20W 35W
Power handling : max 40W 70W
Frequency response 800Hz - 20kHz 600Hz - 20kHz
Voice coil 25.4mmØ (1") 34.4mmØ (1.36")
Magnet Neodymium Ceramic
Diaphragm Resin film Titanium
Sensitivity @ 1W/1m 103dB 110dB
Dimensions 60 x 52mmØ 61 x 89mmØ
Weight 130g 910g

Trade information

  902.109UK 902.111UK
Barcode / EAN 5015972216736 5015972216743
Tariff code 8518210000 8518210000
Country of Origin CN CN
Package type Box Label BW Box Label BW
Package dimensions 55 x 55 x 65mm 95 x 95 x 80mm
Package weight 0.13kg 1.10kg
Package quantity 1 unit 1 unit
Carton dimensions 350 x 355 x 280mm 200 x 300 x 170mm
Carton weight 15.00kg 12.00kg
Carton quantity 100 packages 12 packages

In the box

The box for this item contains :

  • HF compression driver for CASA series active cabinet
