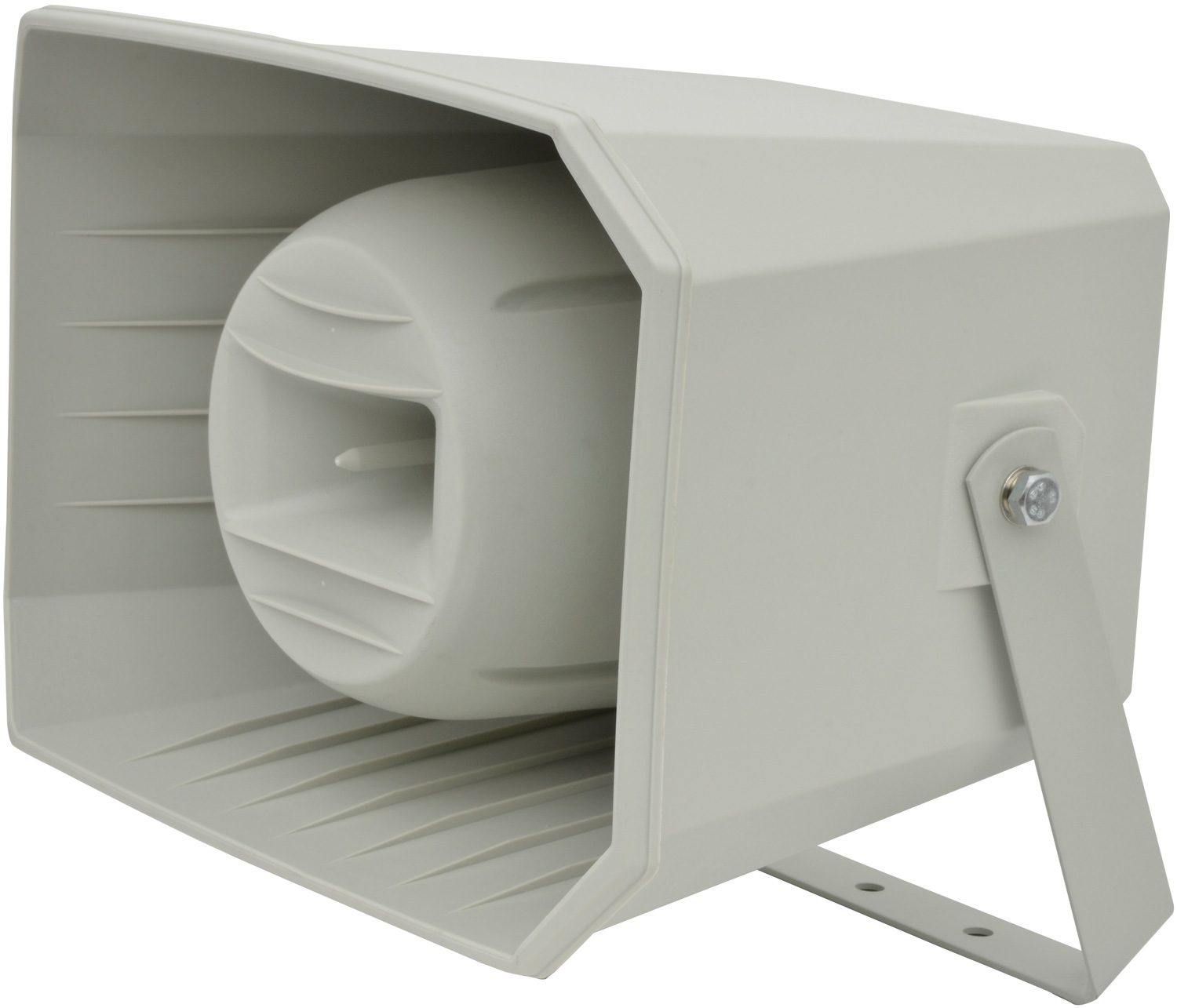

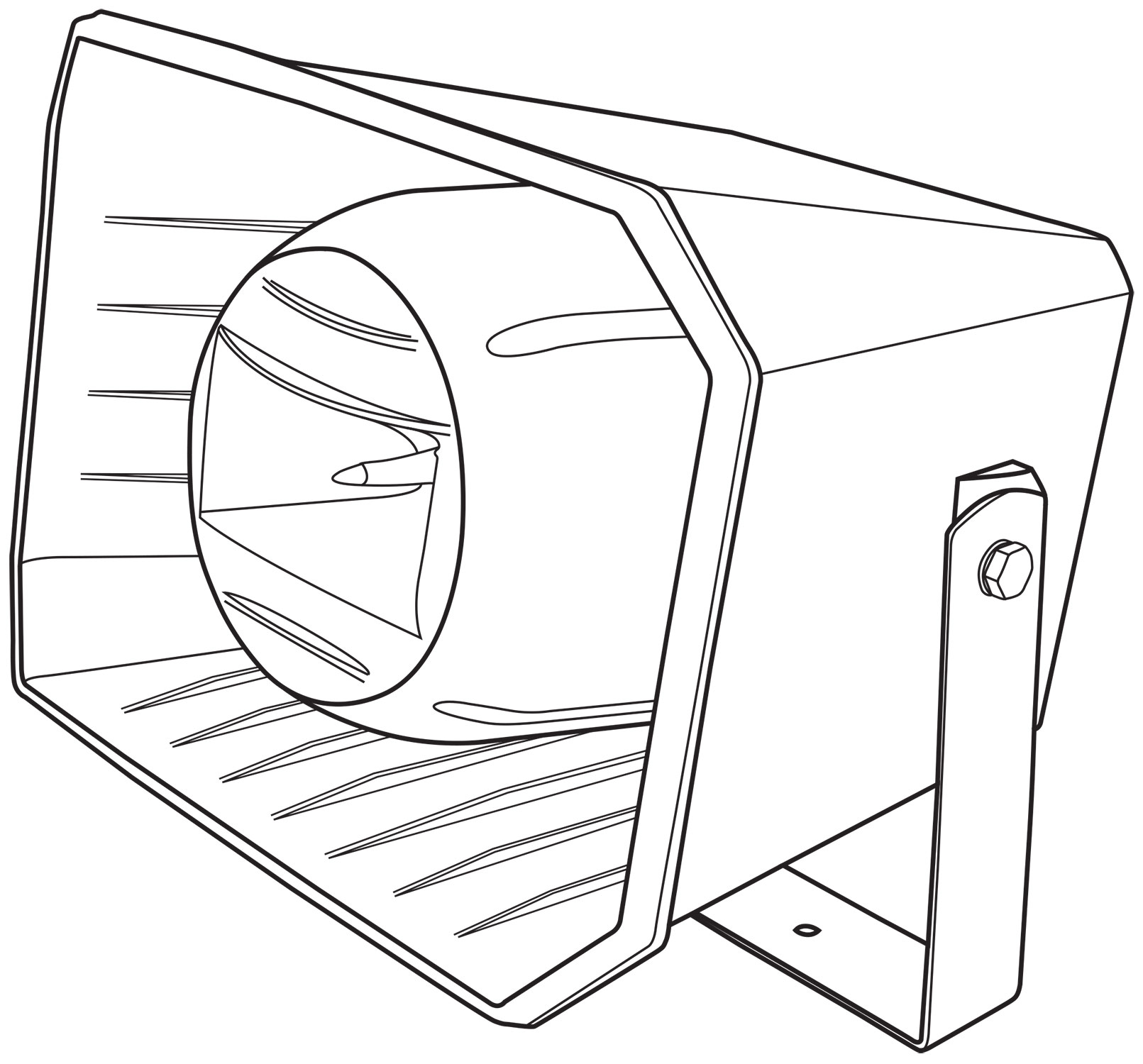

Full Range Horn Speaker

952.067UK FRH50

ABS full range horn speaker with 6.5" reverse mounted LF driver and front mounted 1" dome tweeter housed in an IP65 rated UV stabilised enclosure. Unlike standard outdoor horn speakers, this powerf...

  • Full range music quality output
  • 6 volume tappings for 100V operation
  • Low impedance tapping for 8 Ohm operation
Full description Find retailer
Description Version Packed
952.067UK
FRH50 Full Range Horn Speaker 		FRH50 Box Label

Full Range Horn Speaker

ABS full range horn speaker with 6.5" reverse mounted LF driver and front mounted 1" dome tweeter housed in an IP65 rated UV stabilised enclosure. Unlike standard outdoor horn speakers, this powerful unit has a full range output and is therefore suitable for background music as well as public address.

  • Full range music quality output
  • 6 volume tappings for 100V operation
  • Low impedance tapping for 8 Ohm operation
  • Long throw coverage
  • Angle adjustable mounting bracket
  • LF driver 165mmØ (6.5") reverse woofer
  • HF driver 25mm (1") phenolic dome tweeter
  • IP rating IP65
  • Frequency response 90Hz - 20kHz
  • Power rating : max. 50W
  • Power rating : rms 30W
  • Dispersion angle 90°
  • Sensitivity @ 1W/1m 99dB (±3dB)
  • Tappings 3.5W, 4.5W, 9W, 12.5W, 25W, 50W or 8 Ohms
  • Dimensions 370 x 270 x 330mm
  • Weight 3.56kg

Support : articles

100V line speakers

For many applications, it is necessary to drive many speakers with a single amplifier, giving greater coverage to multiple rooms or over a given area. 100V line is a solution to this problem.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • FRH50 horn speaker
  • Mounting bracket

Downloads

UK Declaration of conformity
For 952.067UK (242KB)
EU Declaration of conformity
For 952.067UK (232KB)
