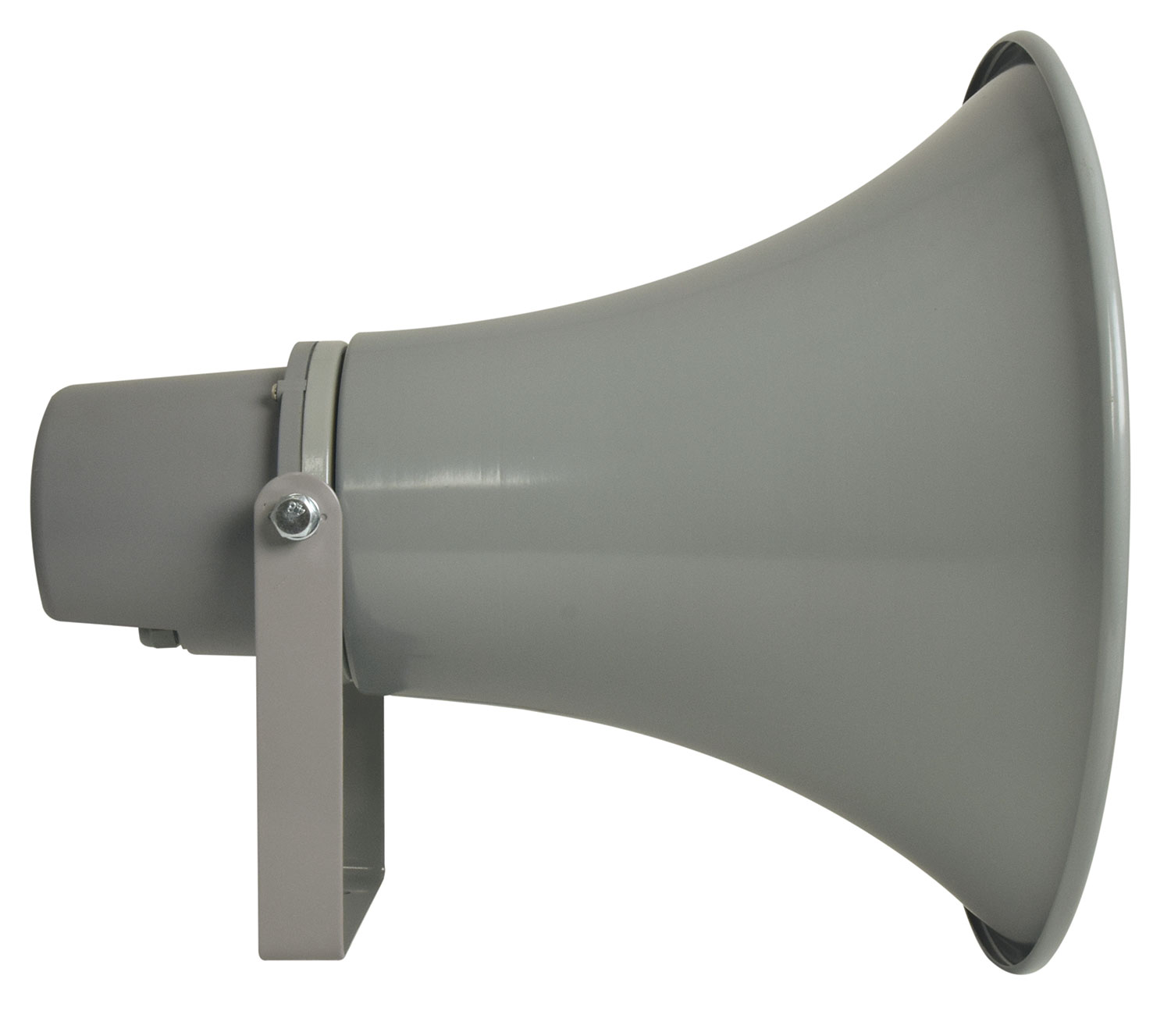

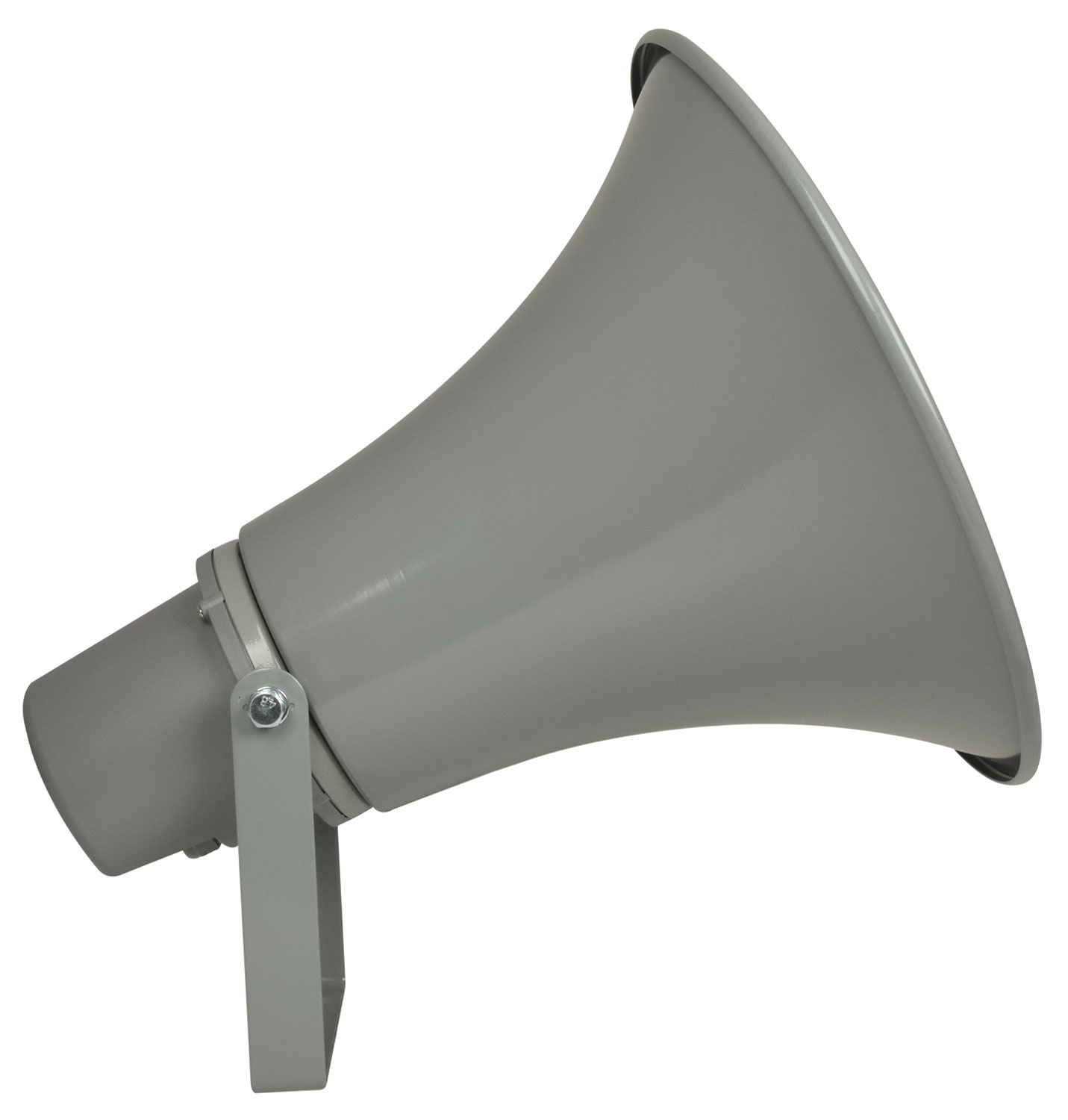

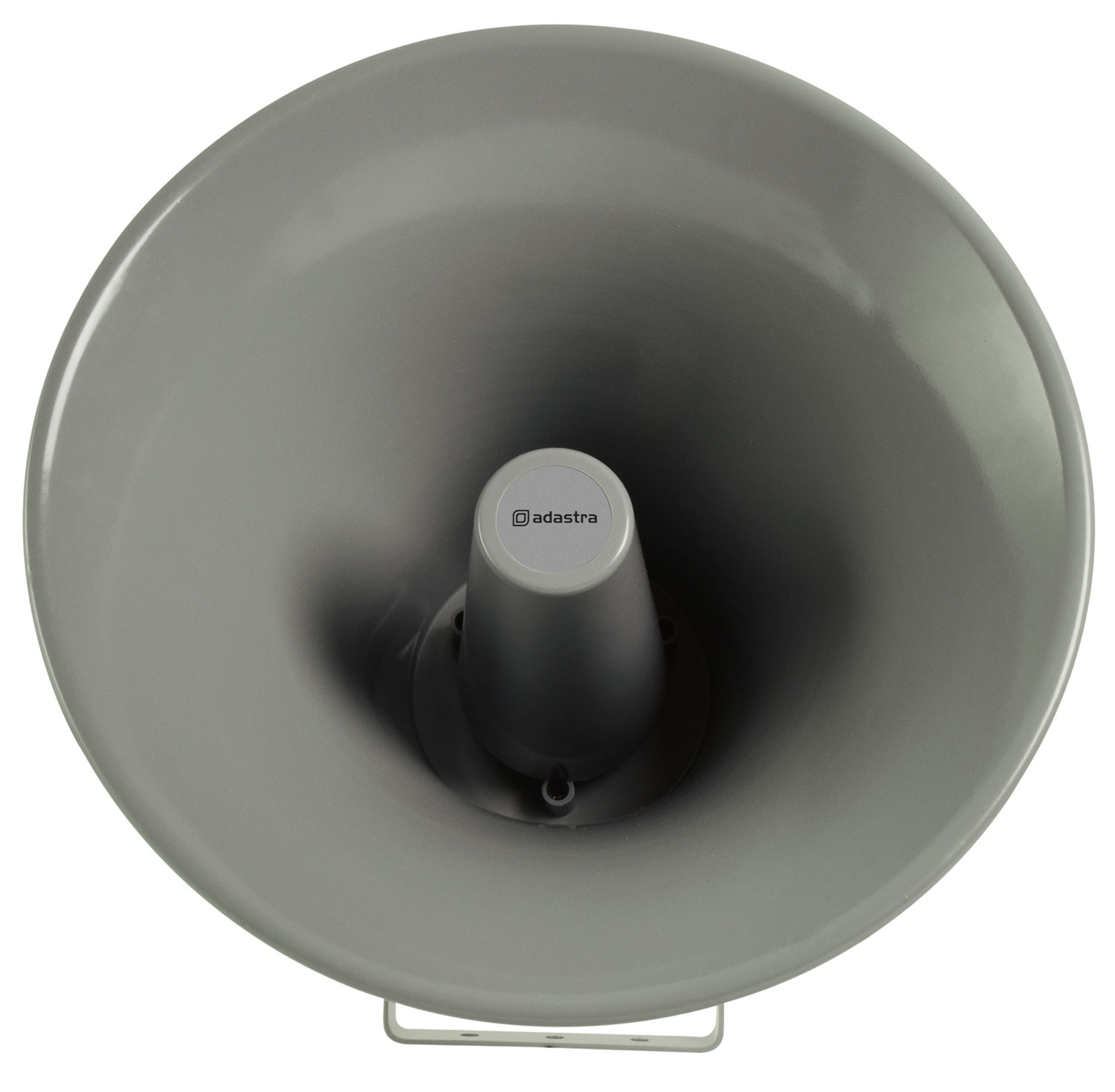

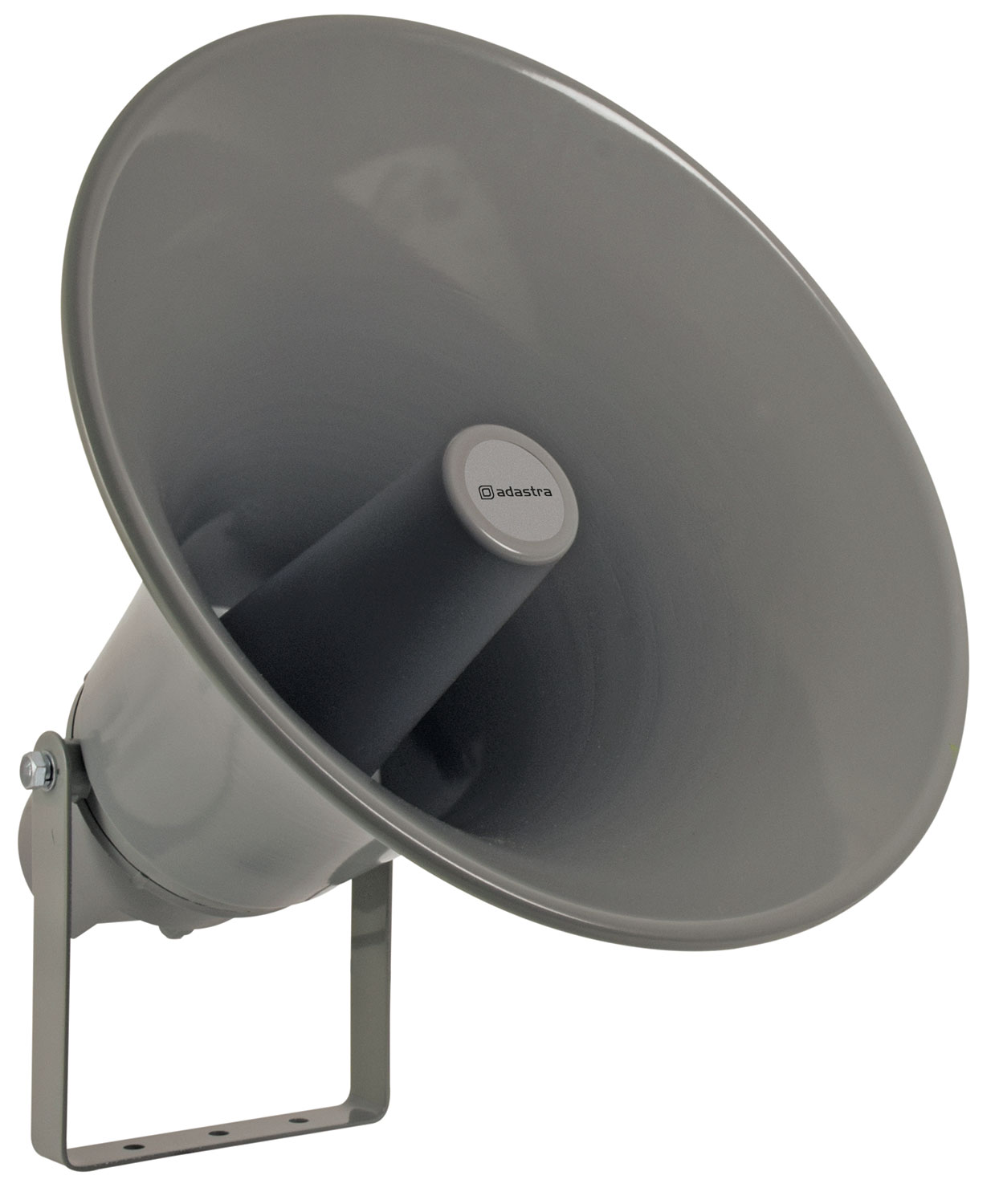

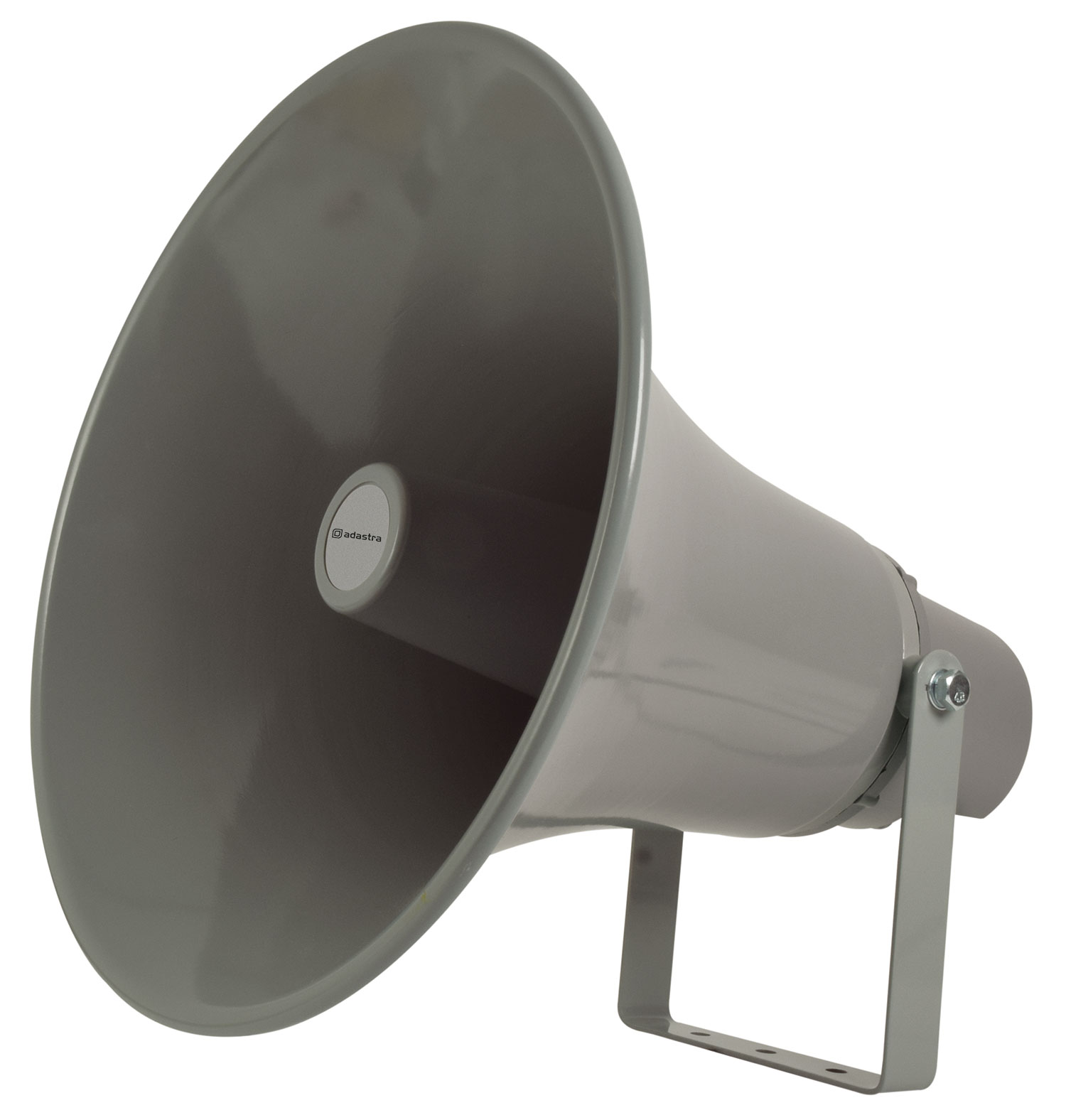

Heavy Duty 100V Horn Speakers

952.272UK HD50V

Heavy duty round horn speakers for voice alerts and public address in outdoor or indoor areas. Constructed from a spun aluminium flare with a weatherproof ABS rear cover and reflex cone. The fibreg...

  • IP66 waterproof
  • Tilt-adjustable wall bracket
  • Tested to extreme temperatures (-55°C to +70°C)
Description Version Packed
952.270UK
20W Heavy Duty 100V Horn Speaker
20W, 9.5" Box Label
952.271UK
30W Heavy Duty 100V Horn Speaker
30W, 11.5" Box Label
952.272UK
50W Heavy Duty 100V Horn Speaker
50W, 13.5" Box Label

Heavy Duty 100V Horn Speakers

Heavy duty round horn speakers for voice alerts and public address in outdoor or indoor areas. Constructed from a spun aluminium flare with a weatherproof ABS rear cover and reflex cone. The fibreglass compression driver is connected to a 100V transformer with a 4-core cable offering 3 different power tappings. Tested to withstand the harshest elemental conditions and suitable for industrial installations, these horns offer reliable and consistent performance in almost any environment.

  • IP66 waterproof
  • Tilt-adjustable wall bracket
  • Tested to extreme temperatures (-55°C to +70°C)
  • Construction Aluminium flare, ABS reflex & rear cover
  • Driver Fibreglass diaphragm compression driver
  • IP rating IP66
  • Impedance (nominal) 8 Ohms (transformer bypassed)
  • Operating temperature range -55°C to +70°C
  • Frequency response 400Hz - 5kHz
  • Colour RAL7042

Versions

  952.270UK 952.271UK 952.272UK

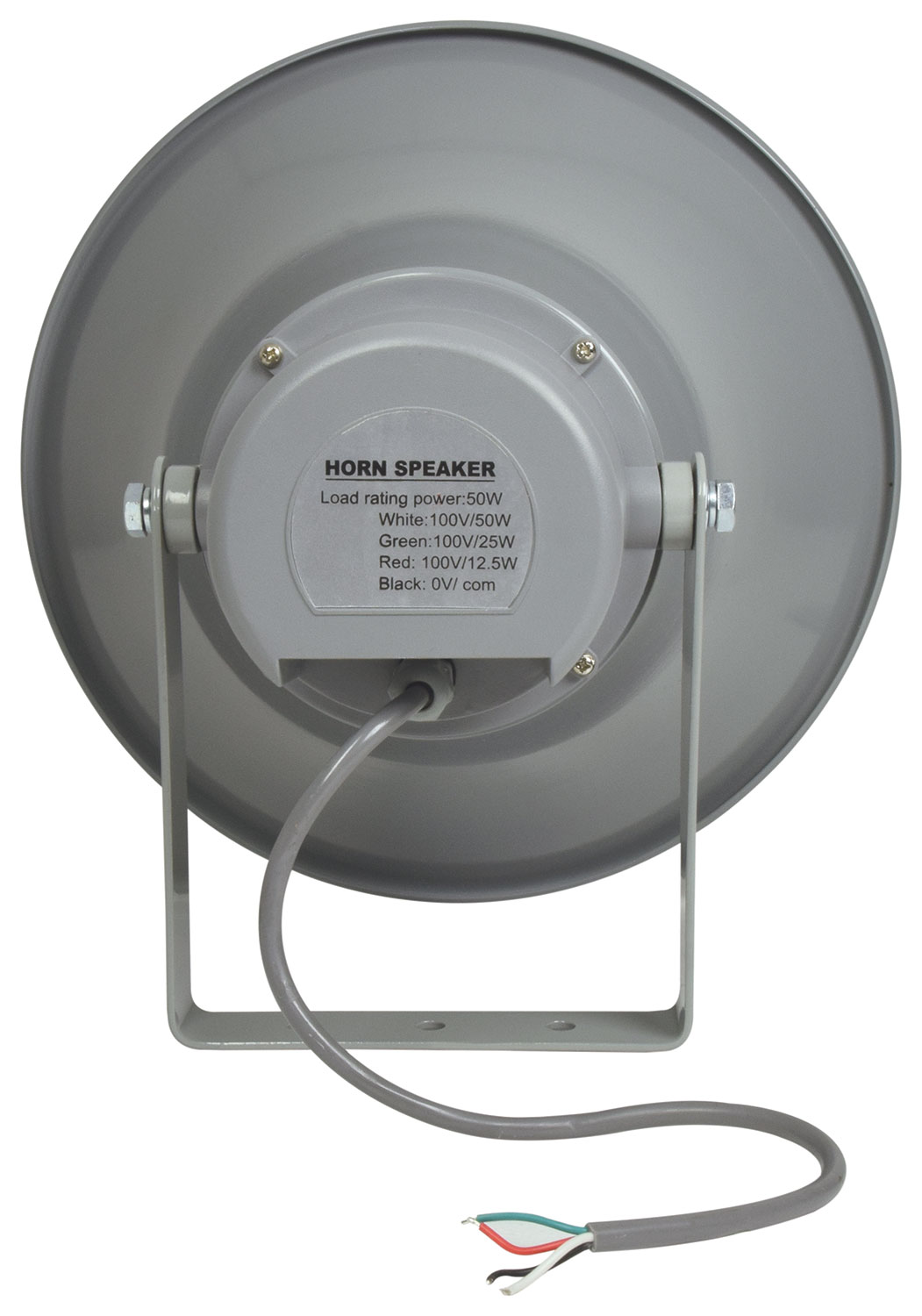

Tappings 5W (red), 10W (green), 20W (white), COM (black) 7.5W (red), 15W (green), 30W (white), COM (black) 12.5W (red), 25W (green), 50W (white), COM (black)
SPL @ 1W/1m 102dB 103dB 105dB
Dimensions 280 x 240mmØ 340 x 290mmØ 362 x 343mmØ
Weight 1.993kg 2.449kg 2.607kg

Support : articles

100V line speakers

For many applications, it is necessary to drive many speakers with a single amplifier, giving greater coverage to multiple rooms or over a given area. 100V line is a solution to this problem.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • Heavy duty 100V horn speaker

Downloads

UK Declaration of conformity
For 952.272UK (242KB)
EU Declaration of conformity
For 952.272UK (232KB)
