Premium KV-T series 100V Ceiling Speakers
6.5" 100V 30W
952.281UK
KV6T
Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome… more
- 3 x 100V volume tappings via 4-core cable
- 8 Ohm optional (bypass transfomer)

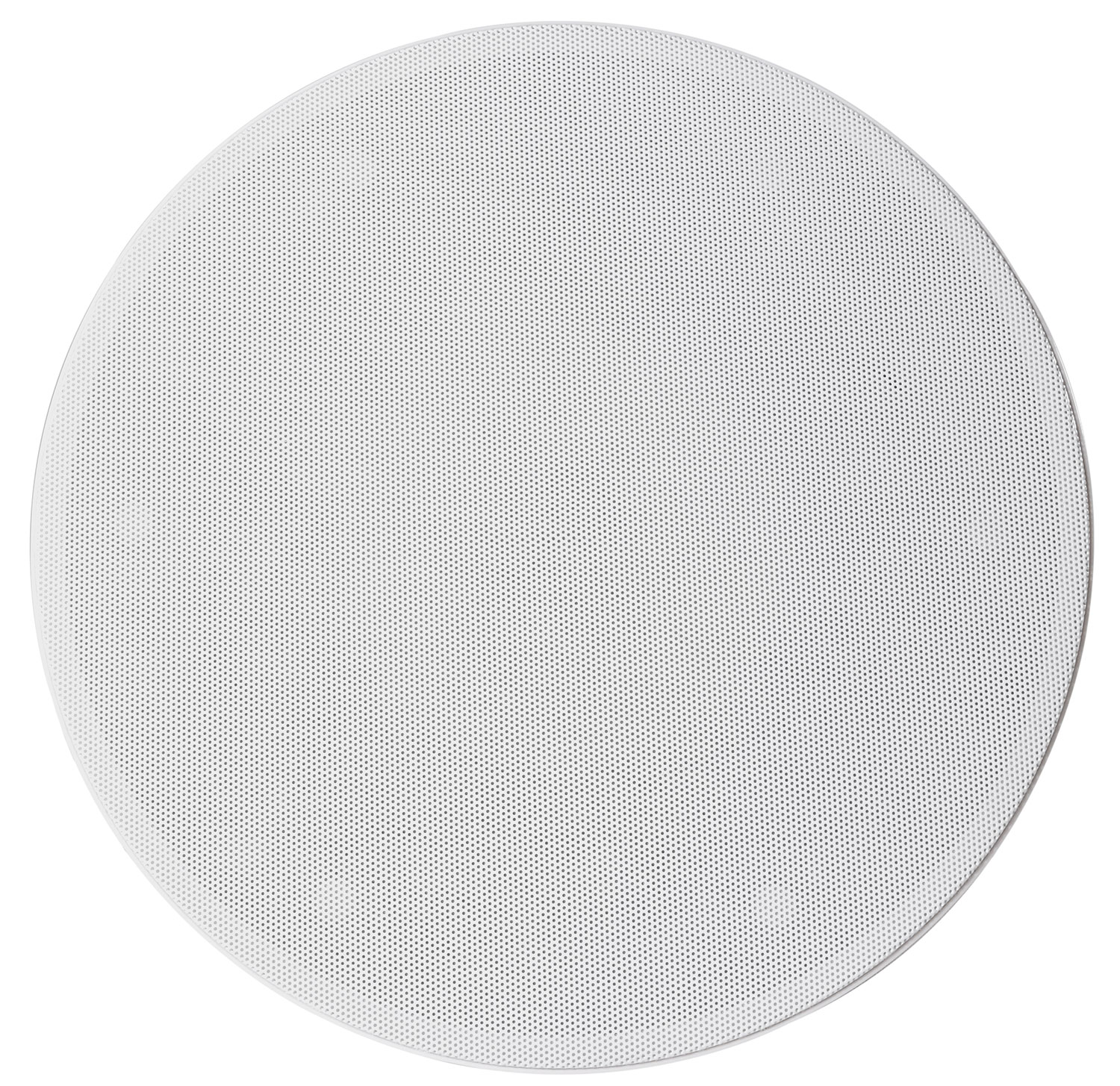

- Magnetic low profile steel grille
Premium KV-T series 100V Ceiling Speakers

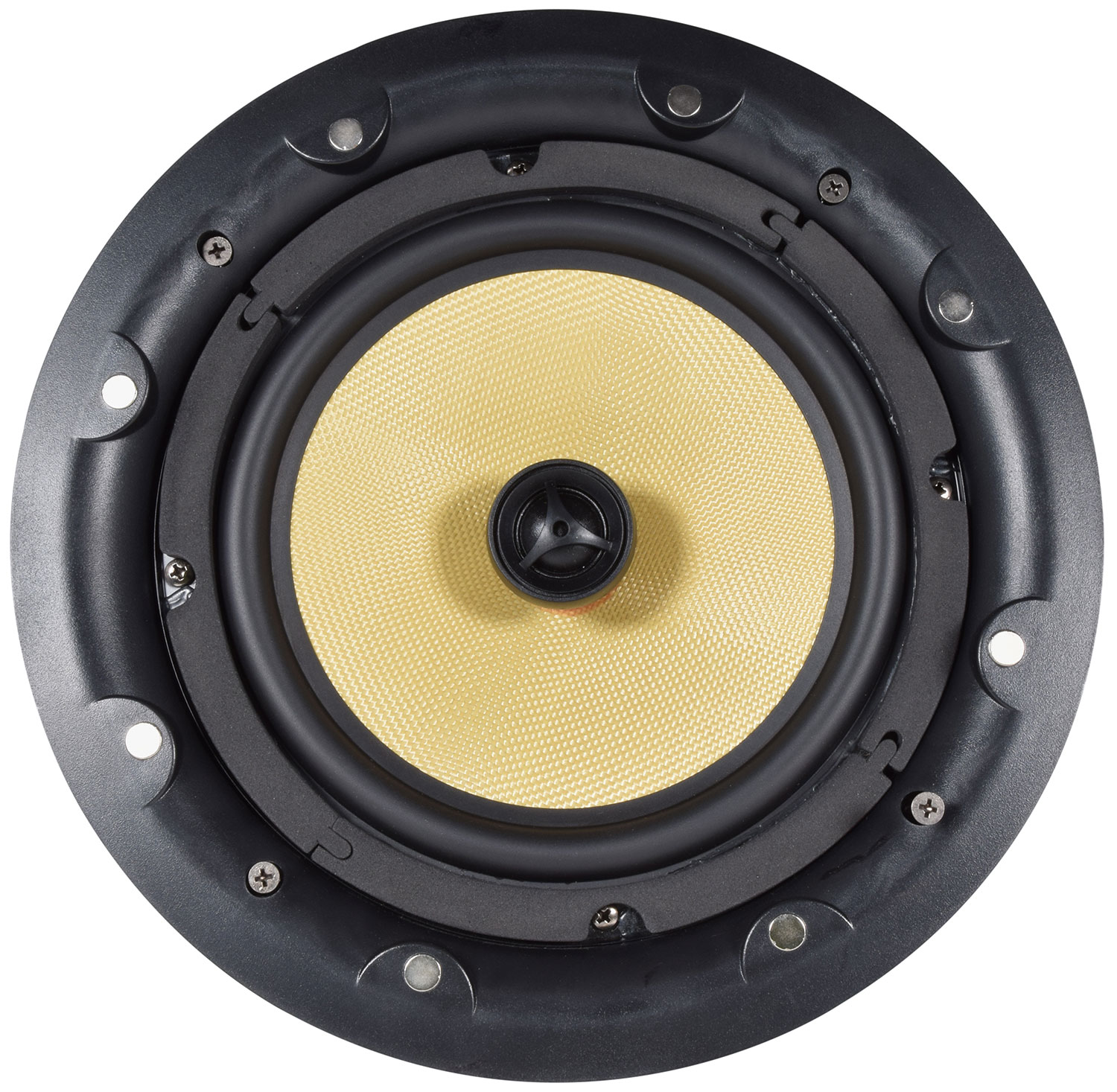

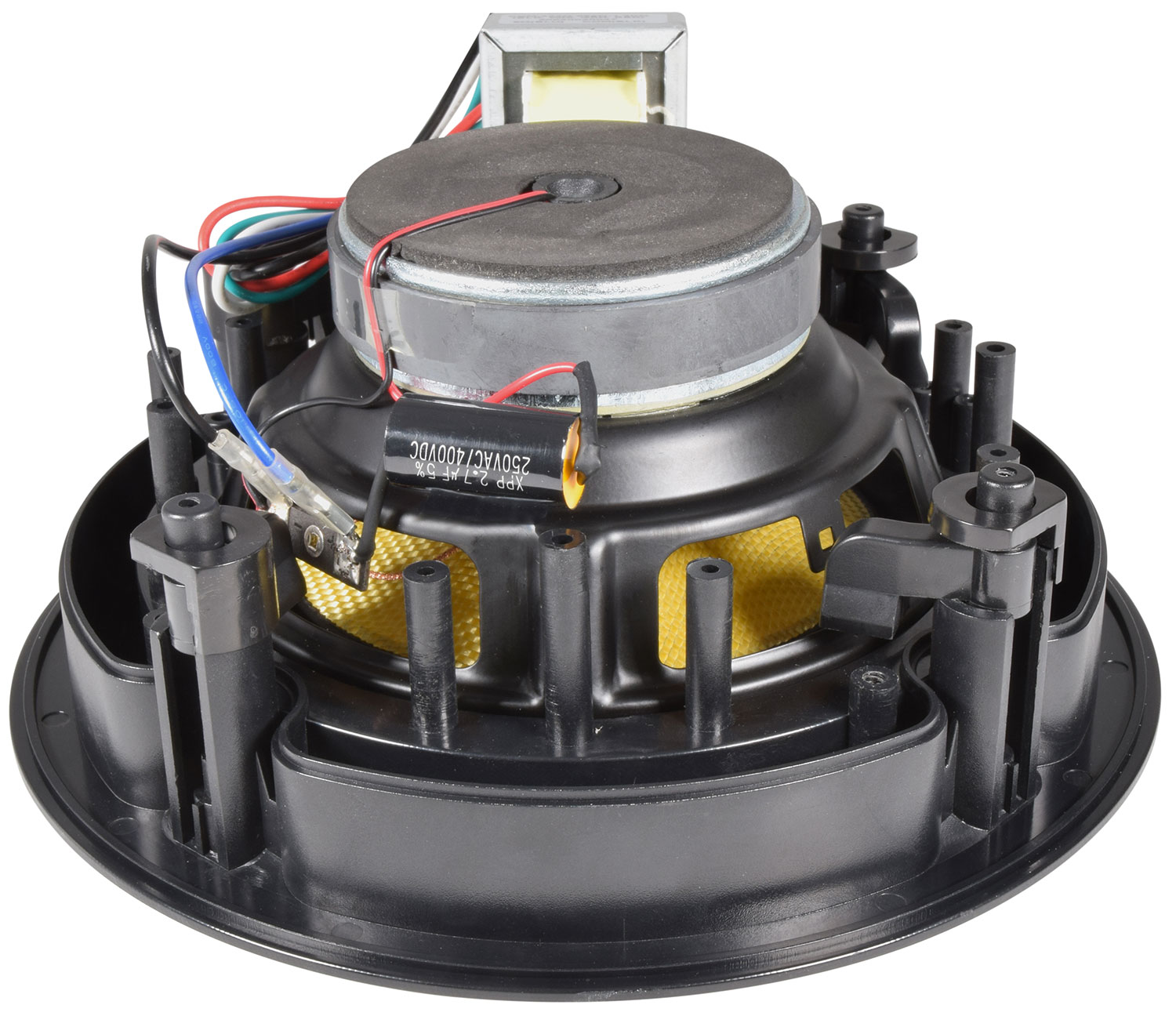

Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome tweeter and coupled to a wave guide baffle for optimum sound dispersion. Each KV-T speaker is fitted with a 100V transformer with selectable volume tappings. High performance ceiling speakers to integrate with 100V voice and background music systems.
- 3 x 100V volume tappings via 4-core cable
- 8 Ohm optional (bypass transfomer)
- Magnetic low profile steel grille
- Heavy duty glass-aramid cone
- Supplied individually
- Impedance 333, 666, 1.3k Ohms or 8 Ohms
- Tappings 7.5W, 15W, 30W & 8 Ohms (60W)
- Magnet weight 355g
- SPL @ 1W/1m 90dB
- Max. SPL 103dB
- Frequency response 50Hz - 20kHz
- Cutout 205mmØ
- Mounting depth 95mm
- Dimensions 94 x 232mmØ
- Construction ABS basket & powder coated steel grille
- Dispersion angle 120°
- HF driver 25mmØ (1") ASV diaphragm
In the Box
- KV-T series premium 100V ceiling speaker
