2 Way Low Profile 100V Line Ceiling Speakers

952.260UK LP5V

2-way ceiling speakers with flared baffle and a low profile magnetic grille. The main driver with concentric directional tweeter is operated via a rotary control with 5 x 100V volume tappings and a...

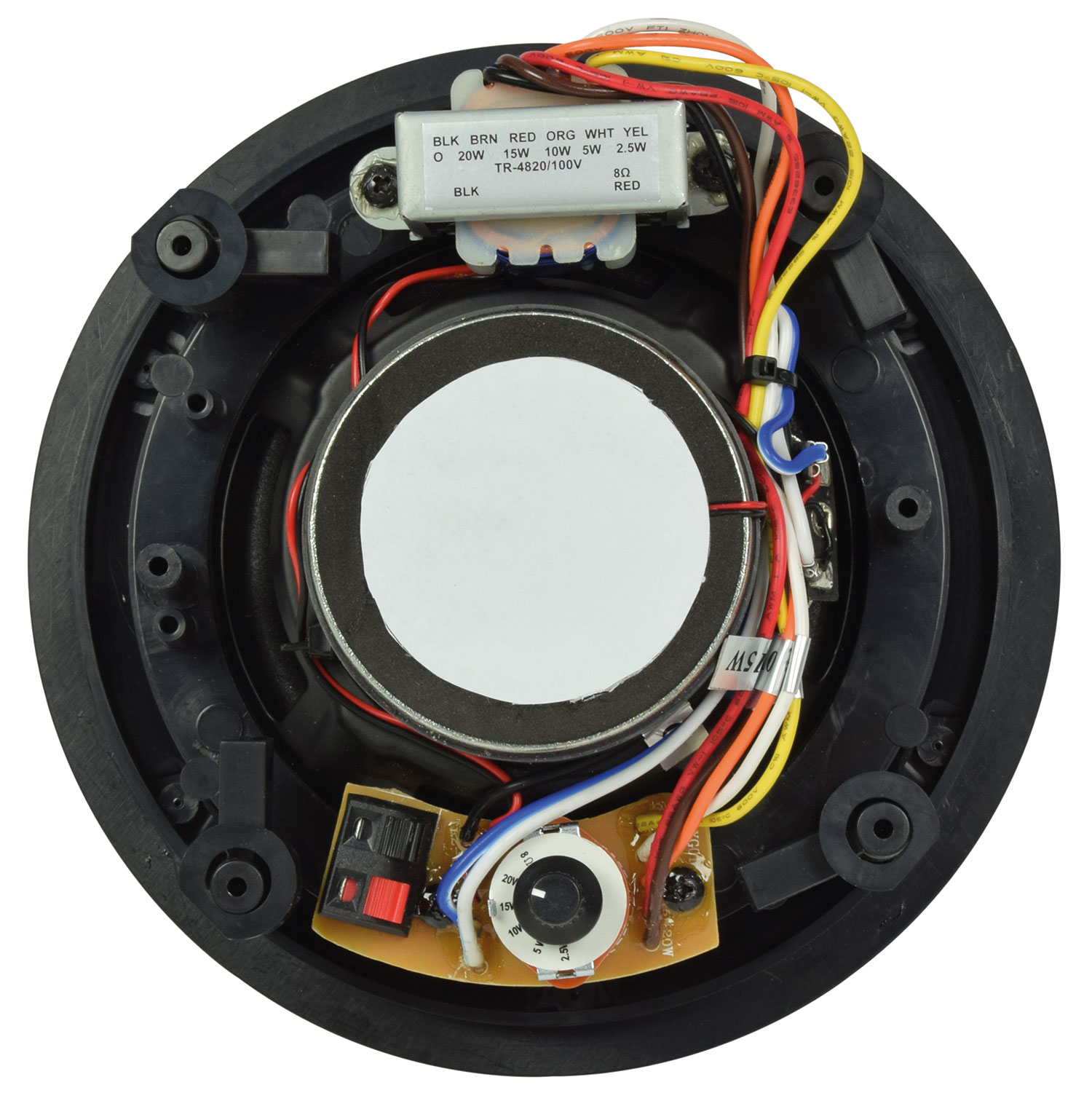

  • Rotary selector switch for 100V line tappings or 8 Ohms
  • Magnetic frameless grille

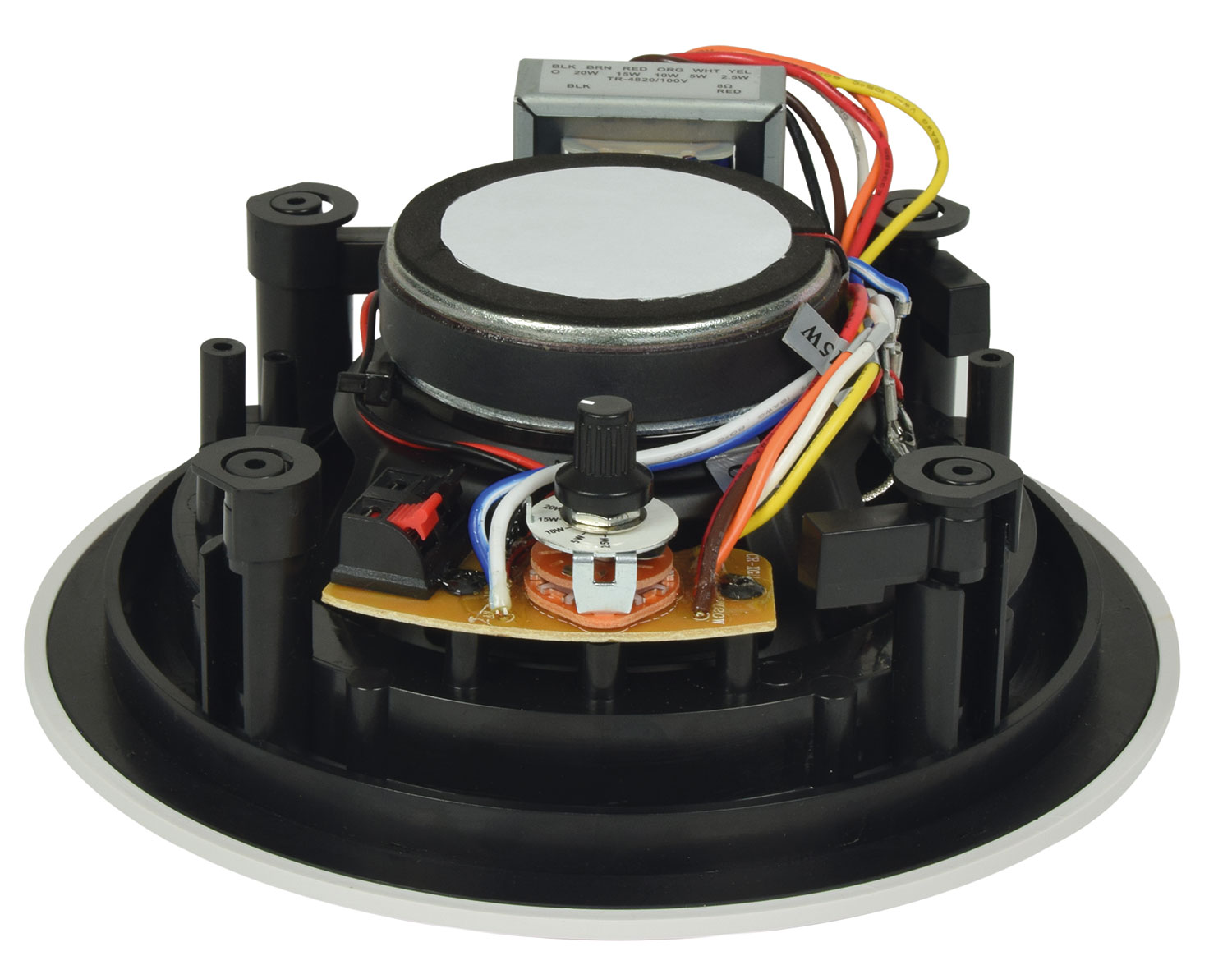

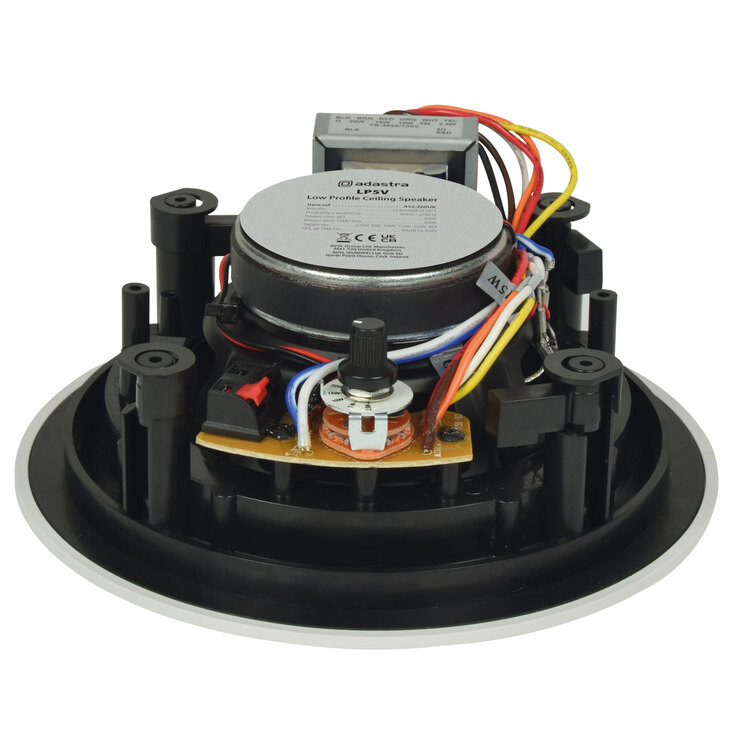

  • Fitted with "dog-ear" mounts for fixing to suspended or false ceilings
Description Version Packed
952.260UK
5.25" Low Profile Ceiling Speaker - 100V
5.25" Box Label BW
952.261UK
6.5" Low Profile Ceiling Speaker - 100V
6.5" Gift Box
952.262UK
8" low profile ceiling speaker - 100V
8" Gift Box

2 Way Low Profile 100V Line Ceiling Speakers

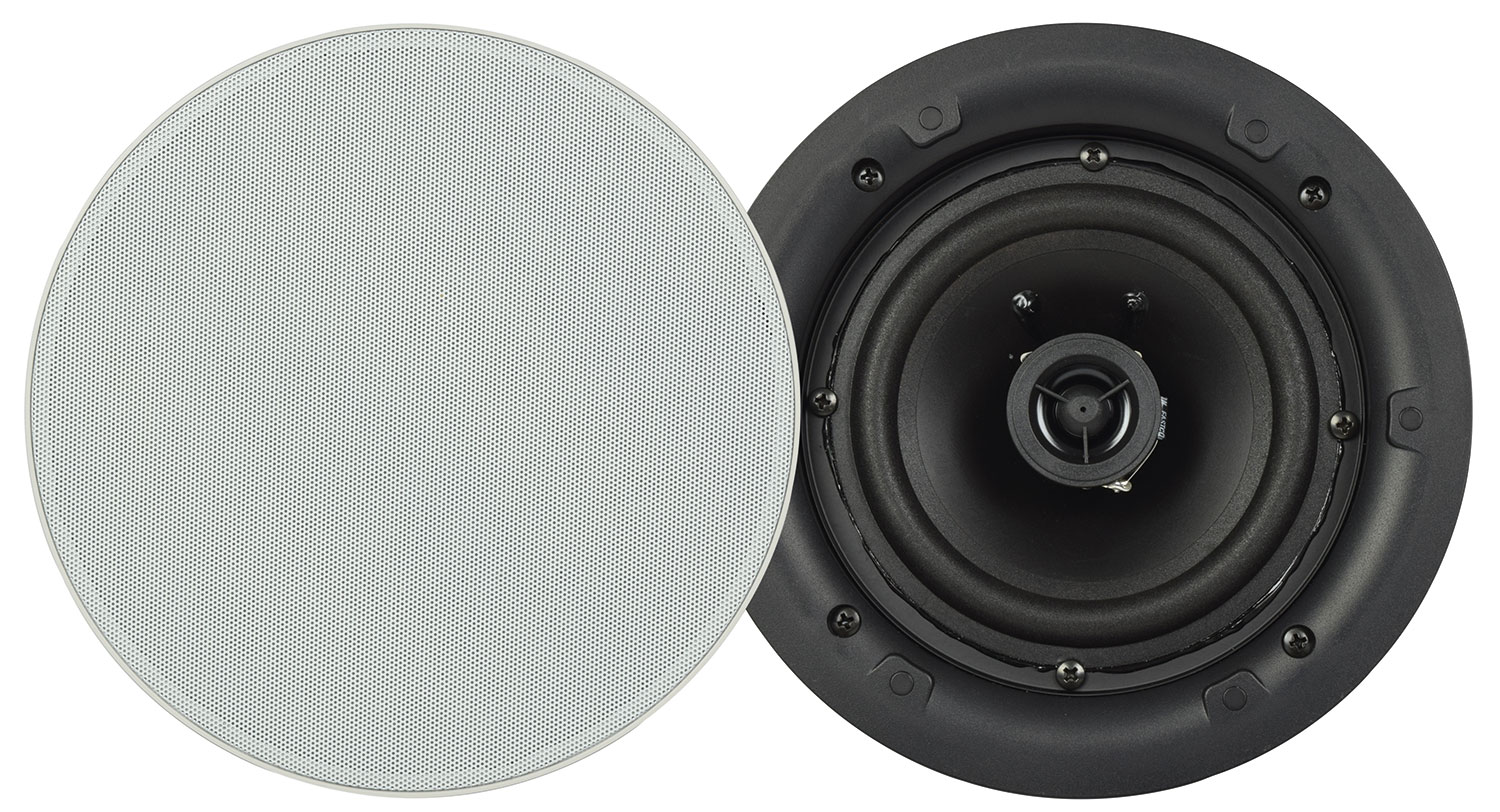

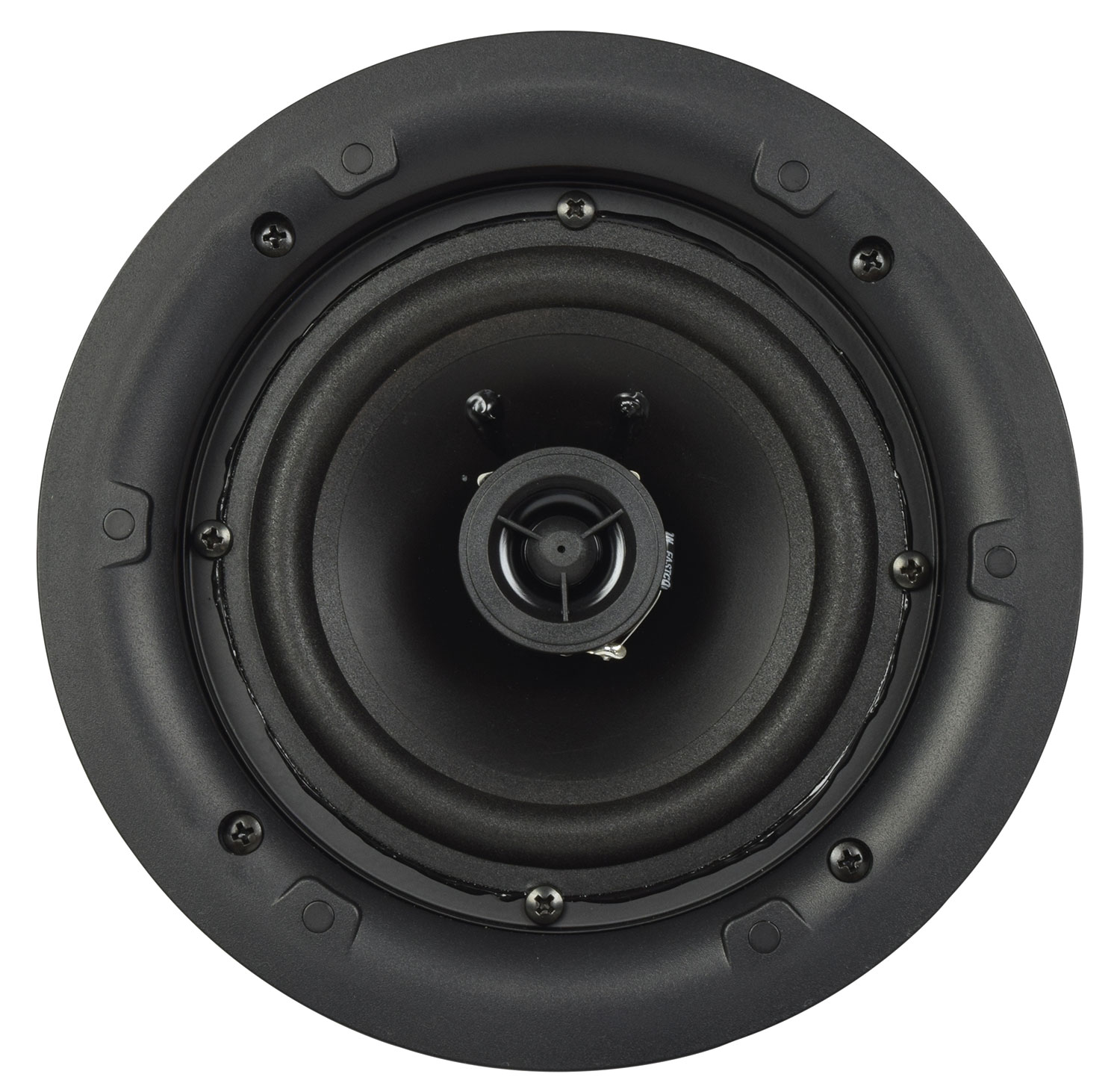

2-way ceiling speakers with flared baffle and a low profile magnetic grille. The main driver with concentric directional tweeter is operated via a rotary control with 5 x 100V volume tappings and an 8 Ohms option. Mount into suspended or false ceilings using the 4 "dog-ear" mounts to achieve a discreet, high quality sound installation.

  • Rotary selector switch for 100V line tappings or 8 Ohms

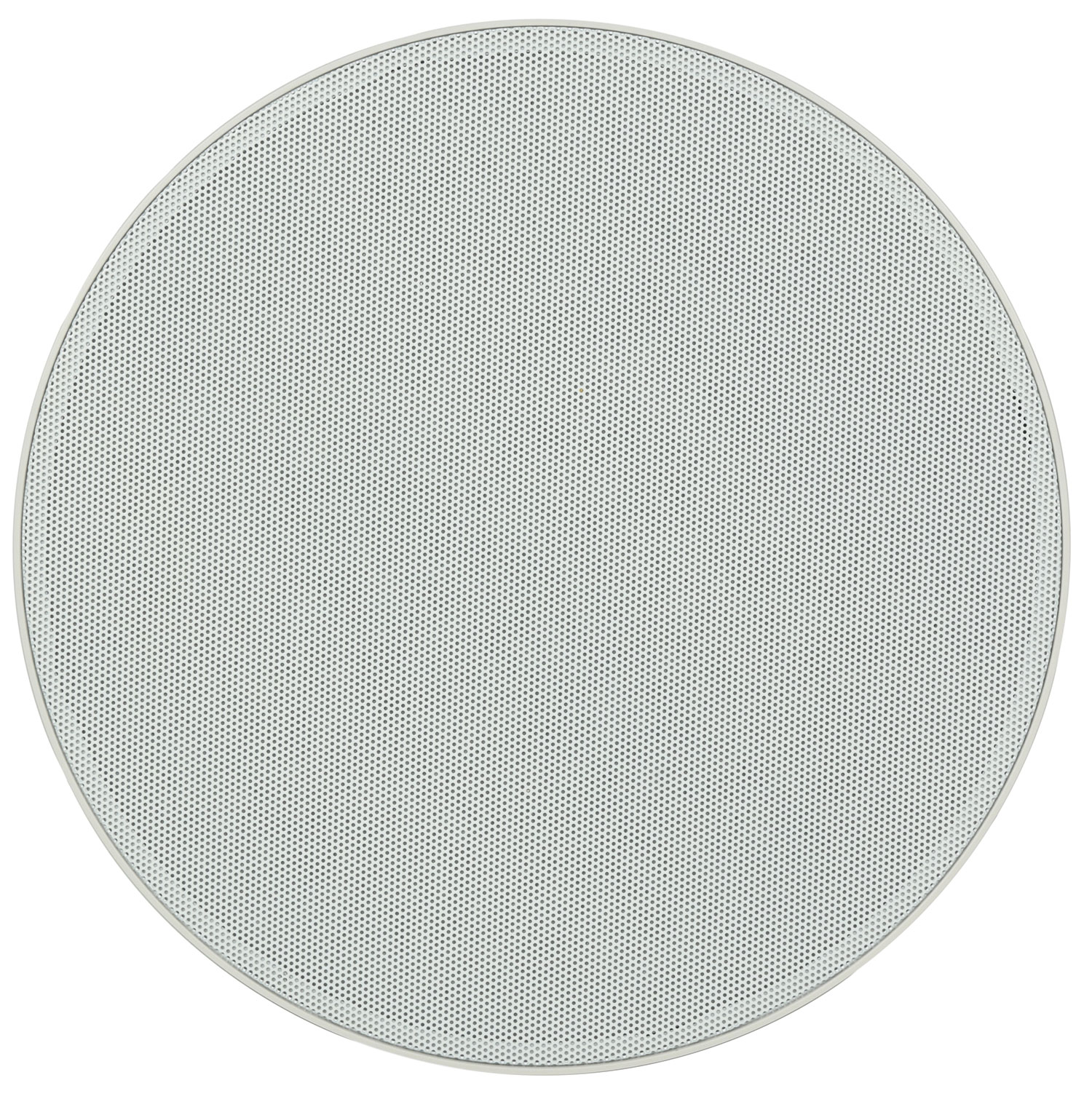

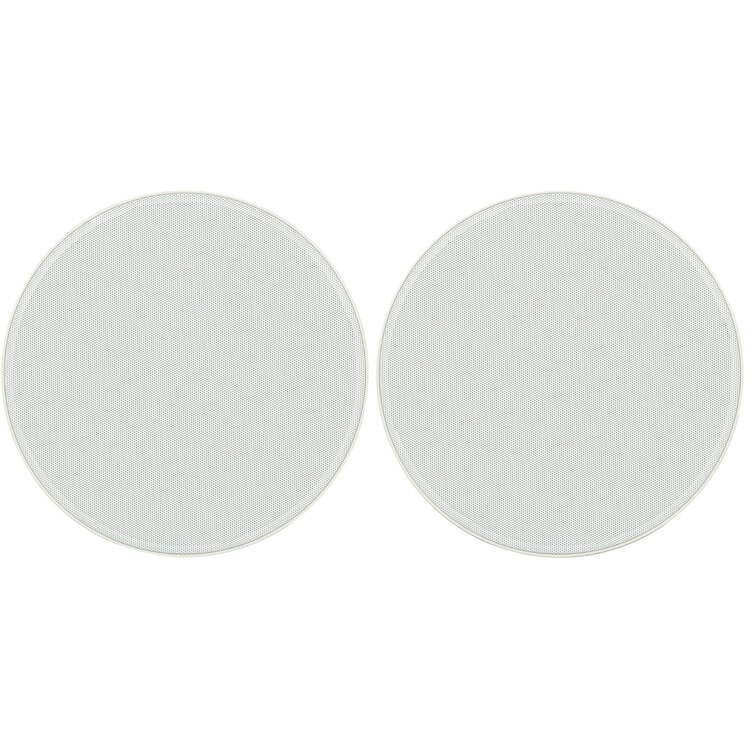

  • Magnetic frameless grille
  • Fitted with "dog-ear" mounts for fixing to suspended or false ceilings
  • Discreet, low profile installation
  • Grille can be painted to match decor
  • Supplied singly
  • Dispersion angle 160°

Versions

  952.260UK 952.261UK 952.262UK
Woofer 133mmØ (5.25") 165mmØ (6.5") 200mmØ (8")
Tweeter 38mmØ (1.5") 38mmØ (1.5") 44mmØ (1.75")
Frequency response 85Hz - 20kHz 70Hz - 20kHz 60Hz - 20kHz
Power max. : 8 Ohms 80W 100W 120W
Power rms : 8 Ohms 40W 50W 60W
Power rms : 100V line 20W 20W 50W
Cutout 180mm 202mm 245mm
Mounting depth 84mm 99mm 104mm
SPL @ 1W/1m 84dB (±2dB) 87dB (±2dB) 89dB (±2dB)
Tappings 2.5, 5, 10, 15, 20W & 8 Ohms 2.5, 5, 10, 15, 20W & 8 Ohms 10, 20, 30, 40, 50W & 8 Ohms
Dimensions 86 x 203mmØ 102 x 232mmØ 108 x 281mmØ
Weight 1.23kg 1.31kg 1.98kg
