Low Impedance Horn 8" 15W

952.237UK CH15

A low impedance round PA horn for general purpose and contract industrial installations. Made from aluminium and fitted with sturdy steel adjustable mounting brackets and 120mm of good quality two ...

Description Version Packed
952.237UK
Low impedance horn, 8 Ohm, 15W rms
Box Label BW

Low Impedance Horn 8" 15W

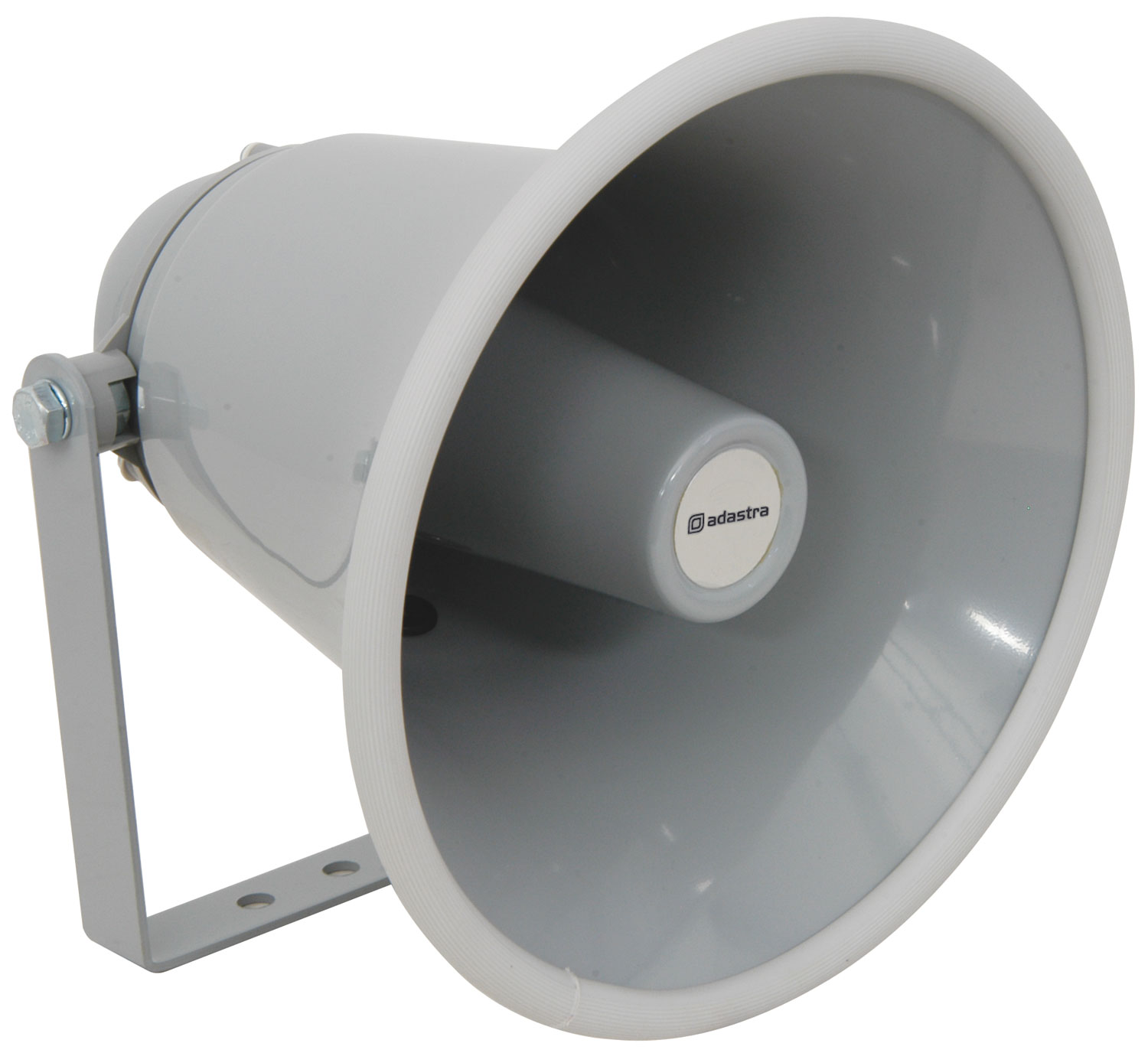

A low impedance round PA horn for general purpose and contract industrial installations. Made from aluminium and fitted with sturdy steel adjustable mounting brackets and 120mm of good quality two core speaker cable.

Specification : Common

  • Impedance 8 ohms
  • Type Low impedance
  • IP rating IP33
  • Cable : length 120mm

Specification : Versions

  952.237UK
Power rms 15W
Frequency response 300Hz - 8kHz
SPL @ 1W/1m 100dB
Dimensions 200 x 210mmØ
Weight 850g

Trade information

  952.237UK
Barcode / EAN 5015972053911
Package type Box Label BW
Package dimensions 200 x 200 x 205mm
Package weight 0.90kg
Package quantity 1 unit
Carton dimensions 450 x 460 x 210mm
Carton weight 14.00kg
Carton quantity 12 packages
Pack plastic weight 0.01kg
