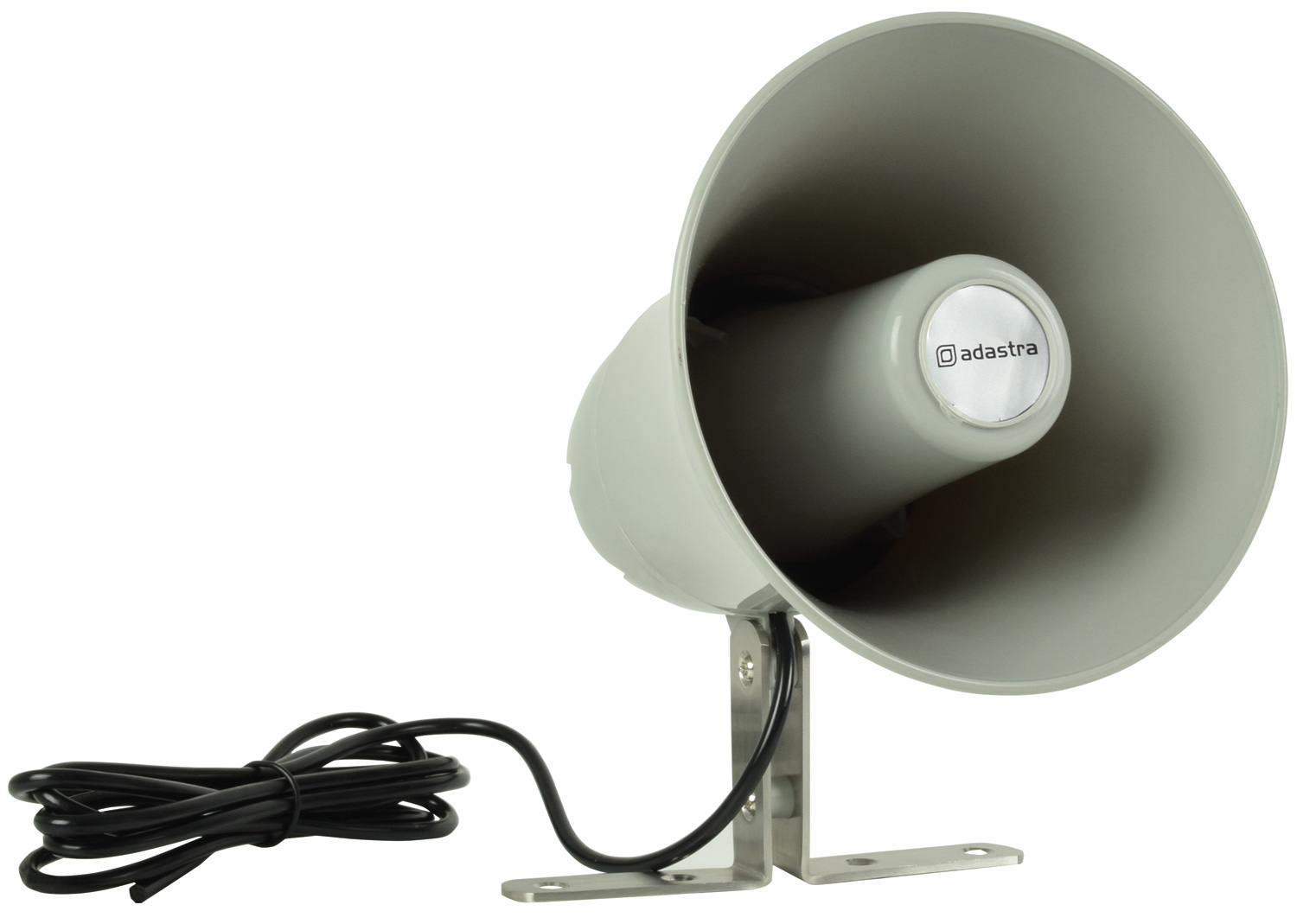

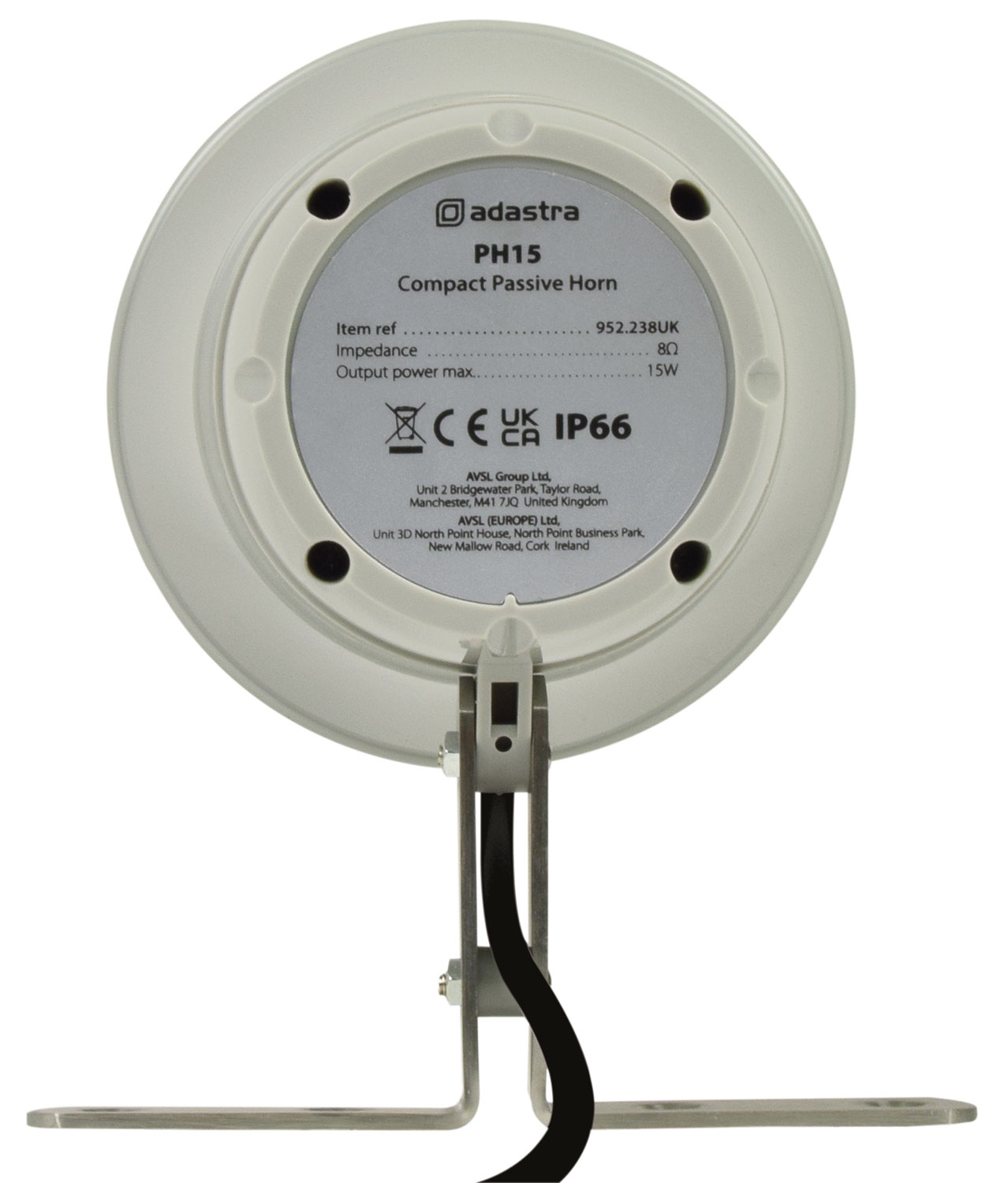

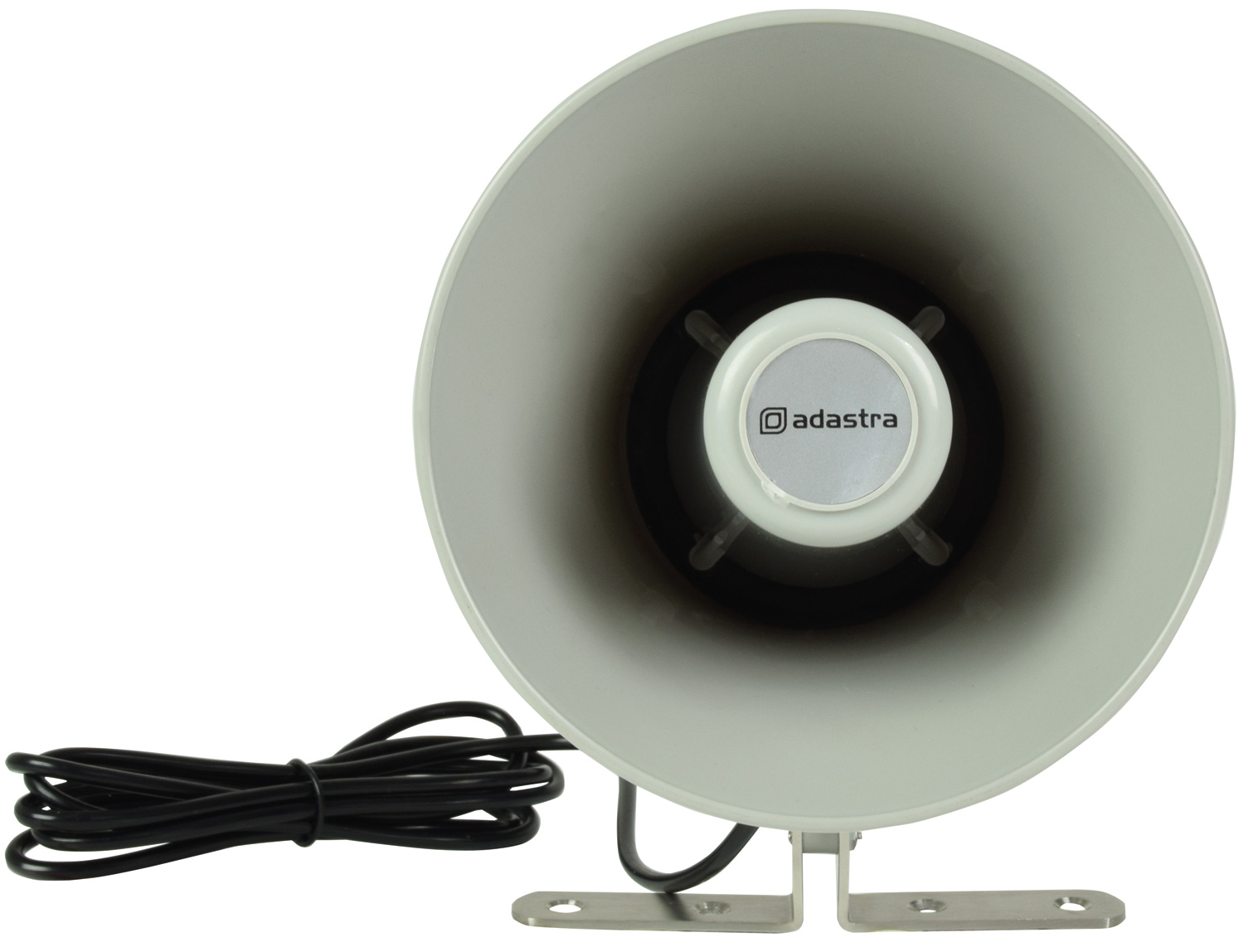

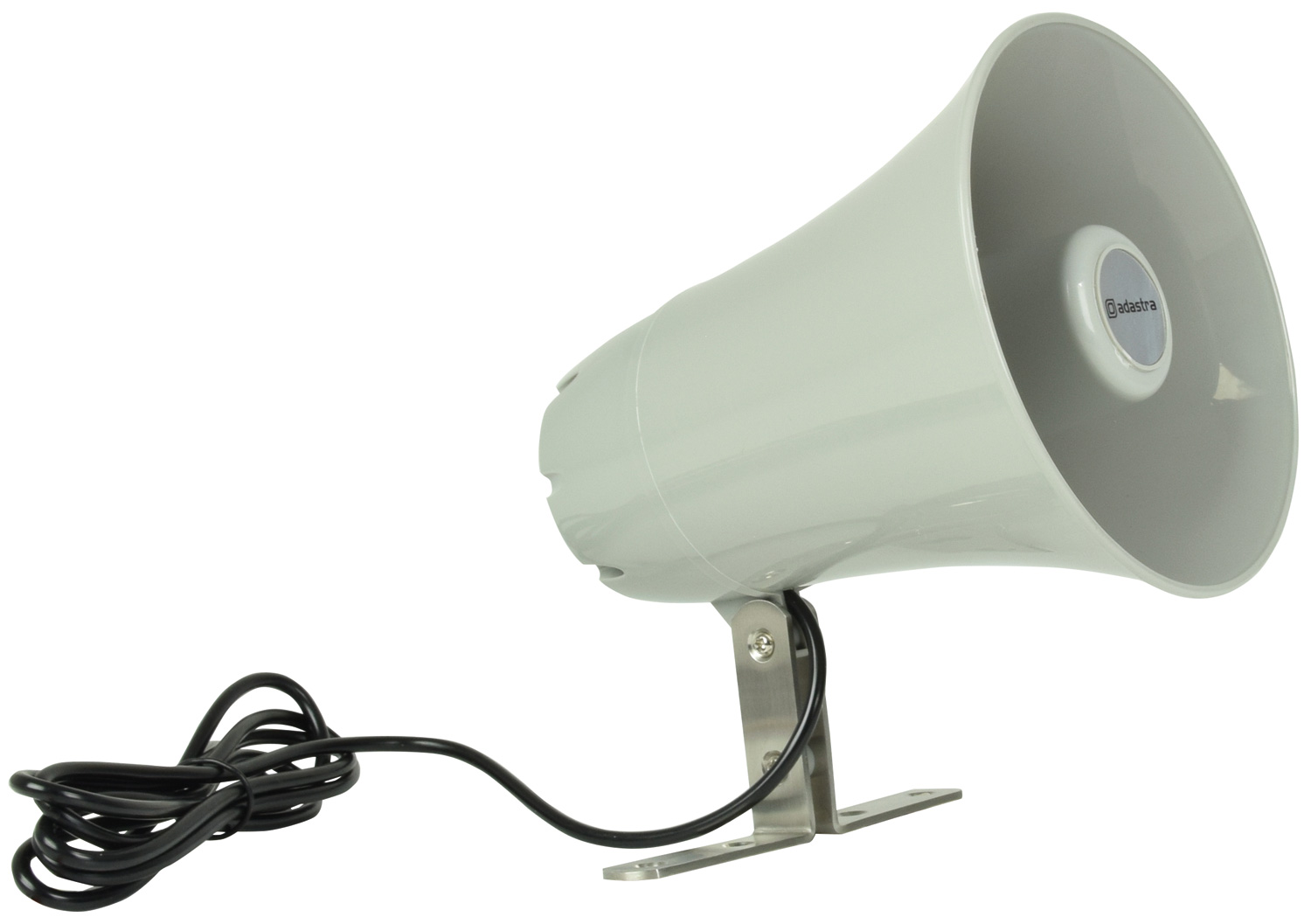

PH15 Waterproof ABS Horn Speaker 15W 8 Ohm

952.238UK PH15

Compact waterproof horn speaker constructed from high impact ABS plastic. Fitted with a high efficiency 15W compression driver for security announcements and public address in indoor or outdoor env...

  • Compact & lightweight ABS housing
  • Adjustable stainless steel bracket
  • 8 Ohm operation
Description Version Packed
952.238UK
PH15 Horn Speaker 15W 8ohm
5.5in 15W 8ohm Box Plain

PH15 Waterproof ABS Horn Speaker 15W 8 Ohm

Compact waterproof horn speaker constructed from high impact ABS plastic. Fitted with a high efficiency 15W compression driver for security announcements and public address in indoor or outdoor environments.

  • Compact & lightweight ABS housing
  • Adjustable stainless steel bracket
  • 8 Ohm operation
  • Hard-wired 0.7m speaker lead
  • Construction ABS moulded body, stainless steel bracket
  • Connection Hard-wired 2-core cable 0.7m
  • Power handling : rms 15W
  • IP rating IP66
  • Impedance 8 Ohms
  • Dimensions 165 x 140mmØ
  • Weight 462g

Support : articles

Low impedance speakers

Impedance is the effective resistance of an electric circuit or component to alternating current, arising from the combined effects of resistance and reactance. Here we explain the features of low impedance and how it is implemented in a speaker system.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • PH15 passive horn speaker

Downloads

UK Declaration of conformity
For 952.238UK (244KB)
EU Declaration of conformity
For 952.238UK (233KB)
