RH Series Rectangular Horn Speakers 100V

952.249UK RH40V

PA horn speakers with 100V transformer offering several different power settings. The housing is moulded from high impact ABS material to offer maximum protection against physical or weather damage...

  • Durable and weatherproof
  • Rotary 100V tapping switch
Description Version Packed
952.099UK
RH15V rectangular horn 100V
15W Box Label BW
952.249UK
RH40V rectangular horn 100V
40W Box Label BW

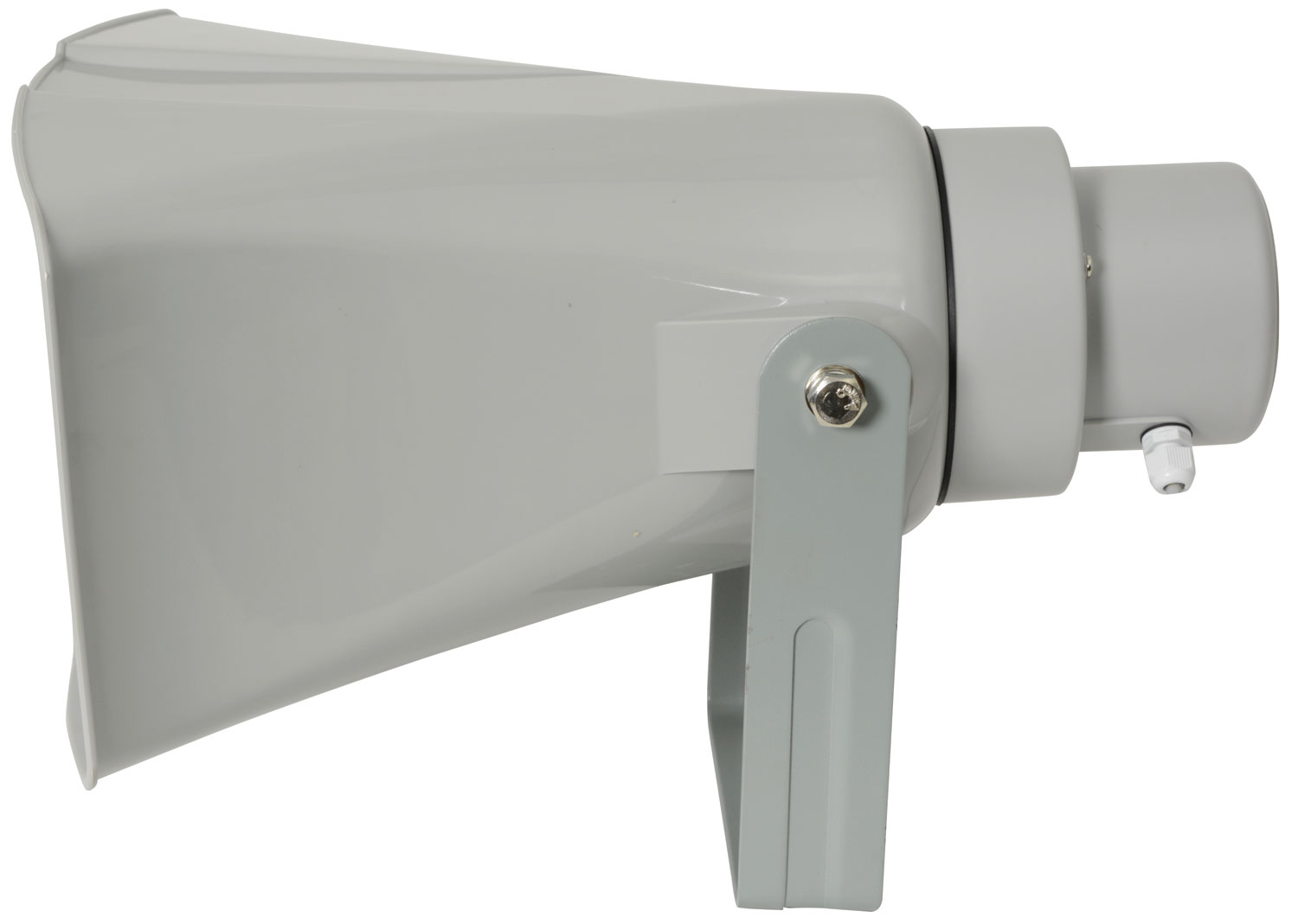

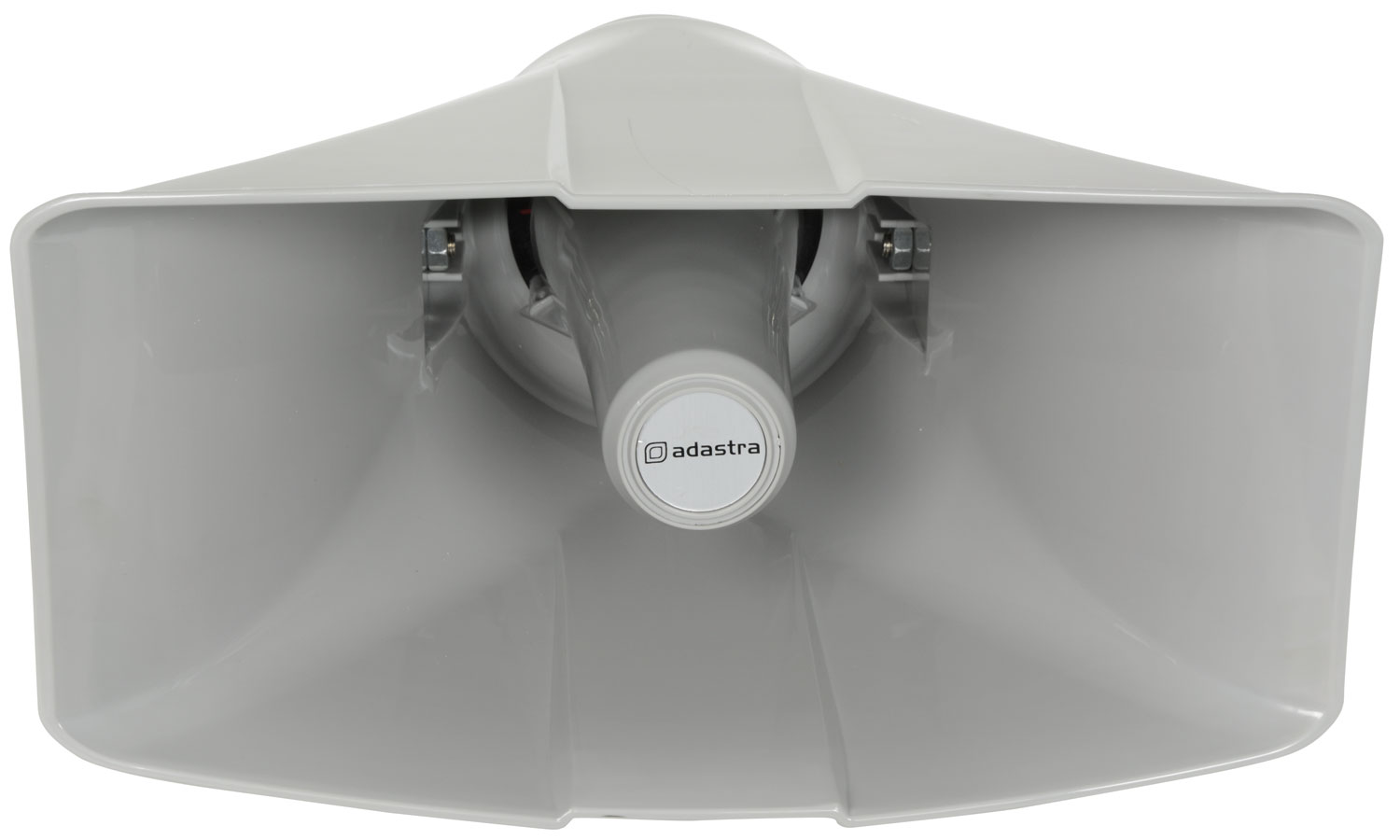

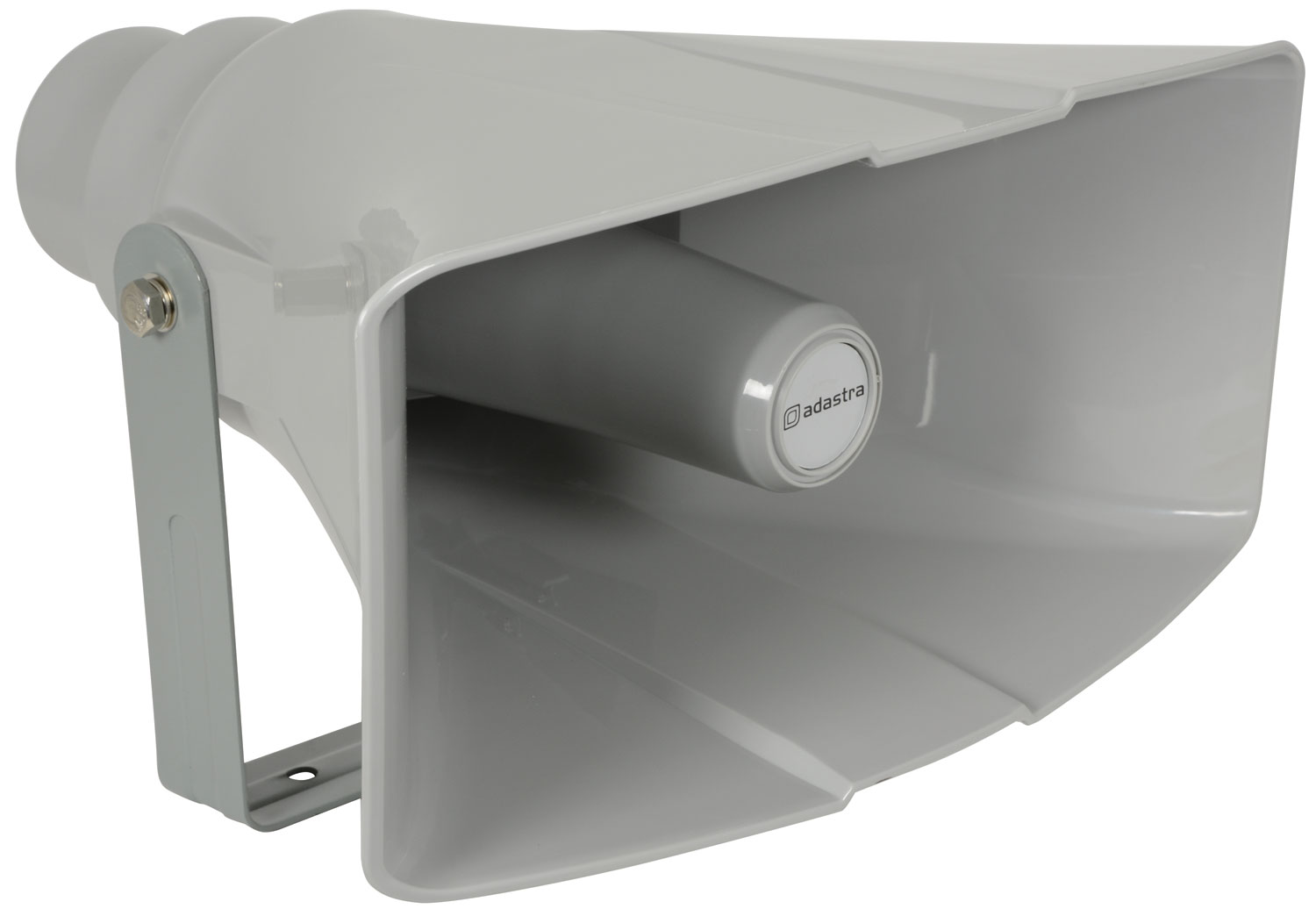

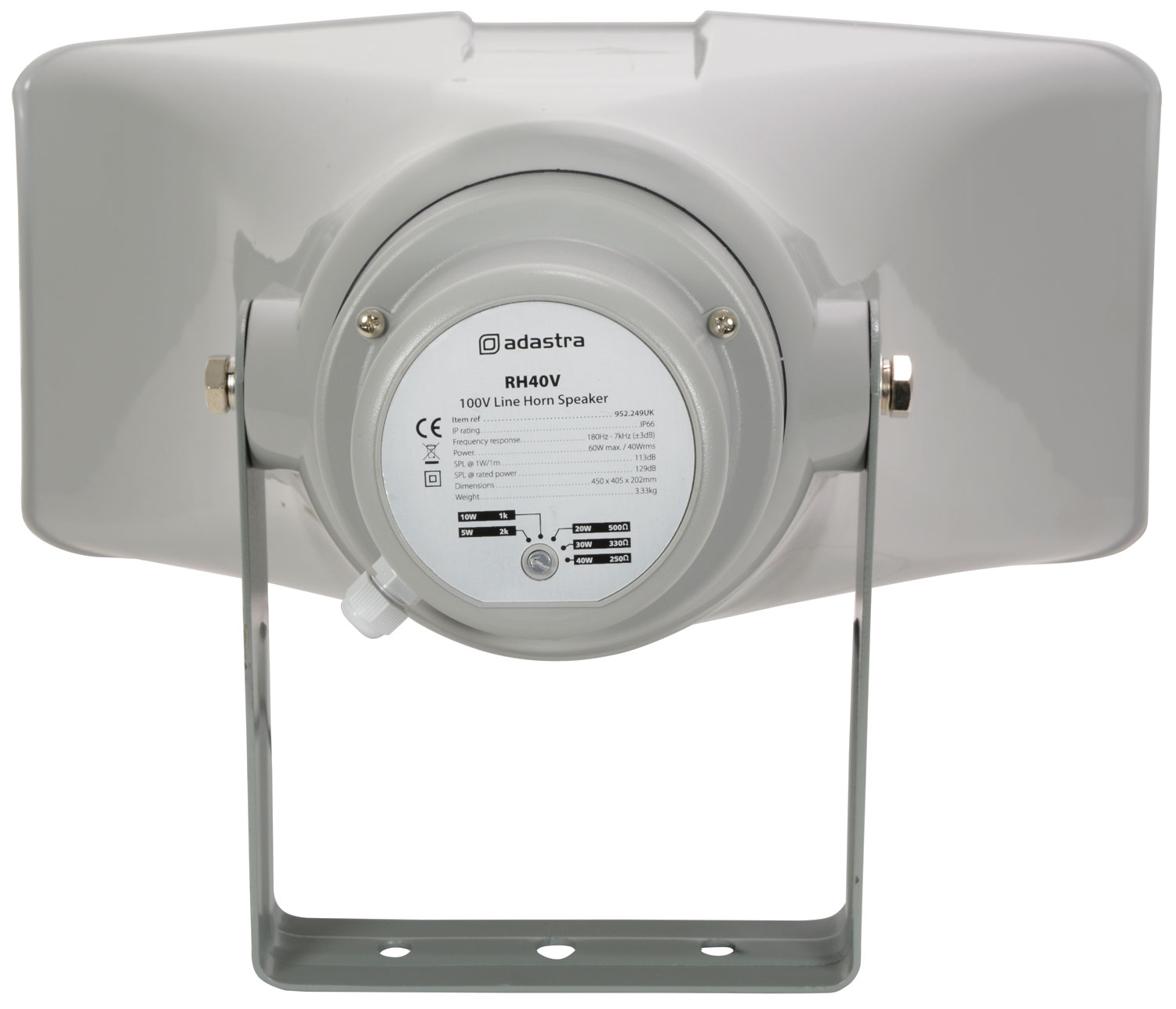

RH Series Rectangular Horn Speakers 100V

PA horn speakers with 100V transformer offering several different power settings. The housing is moulded from high impact ABS material to offer maximum protection against physical or weather damage. Reflex loading and a rectangular flared aperture ensures efficient and directed sound delivery over large areas.

  • Durable and weatherproof
  • Rotary 100V tapping switch
  • IP rating IP66

Versions

  952.099UK 952.249UK
Power rms 15W 40W
Power max. 23W 60W
Frequency response 275Hz - 7kHz (±3dB) 180Hz - 7kHz (±3dB)
100V line tappings 2.5 / 5 / 10 / 15W 5 / 10 / 20 / 30 / 40W
Impedance 4k / 2k / 1k / 670 Ohms 2k / 1k / 500 / 330 / 250 Ohms
SPL @ 1W/1m 106dB 113dB
SPL @ rated power 118dB 129dB
Dimensions 312 x 255 x 152mm 450 x 405 x 202mm
Weight 1.48kg 3.33kg
