BM-series Wall-Mount 100V Background Speakers

952.504UK BM5V-W

Indoor wall speakers with moulded polypropylene cabinets and powder-coated steel grilles. Supplied with a steel bracket for mounting to an appropriate wall or ceiling surface. Moulded enclosures an...

  • 100V or 8 Ohm operation
  • 4 x 100V tappings
  • Supplied with adjustable wall-mount bracket
Full description Find retailer
Description Version Packed
952.502UK
BM4V Wallmount Speaker - White 		4" 20W white Box Label
952.504UK
BM5V Wallmount Speaker - White 		5.25" 30W white Box Label
952.506UK
BM6V Wallmount Speaker - White 		6.5" 40W white Box Label

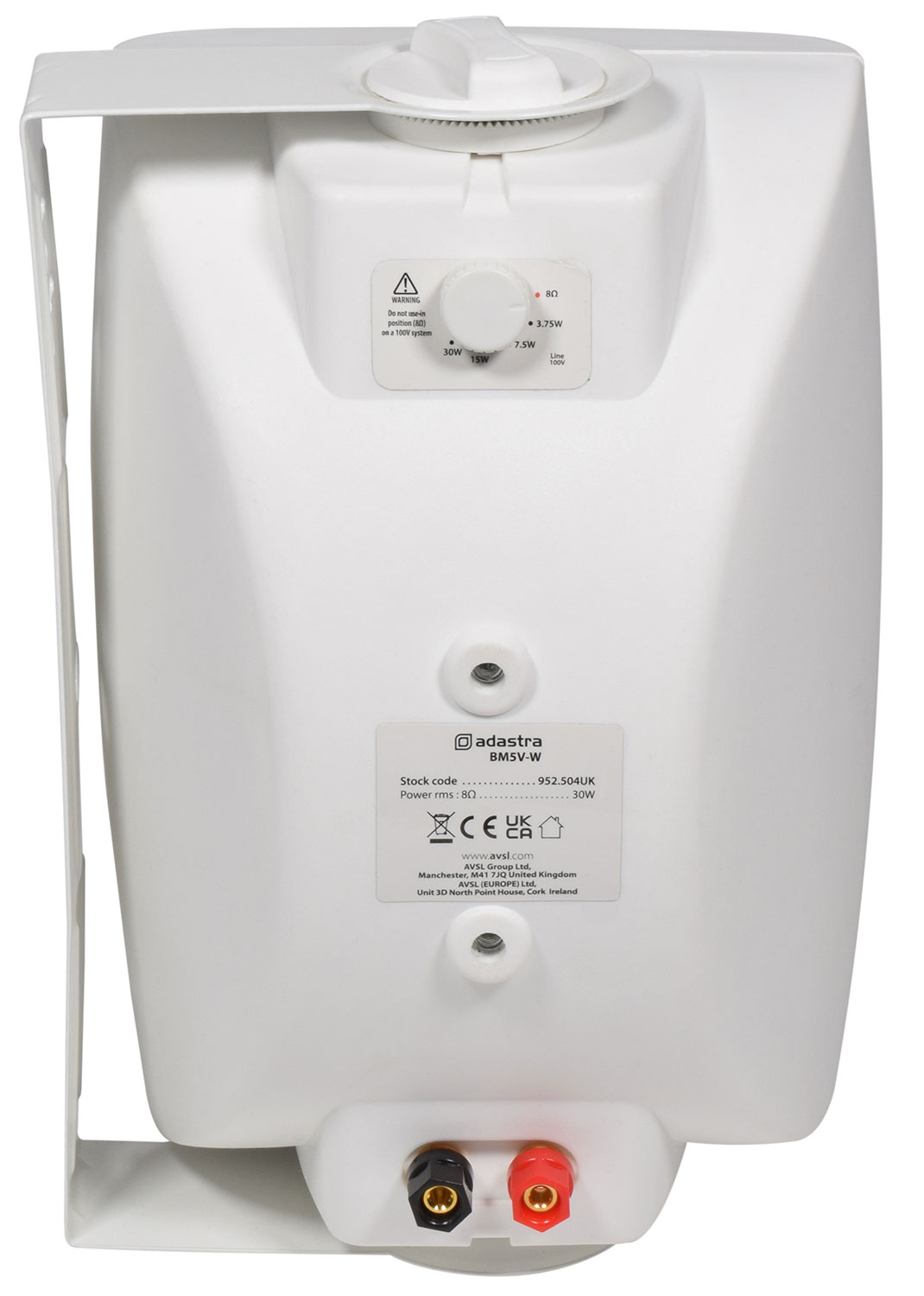

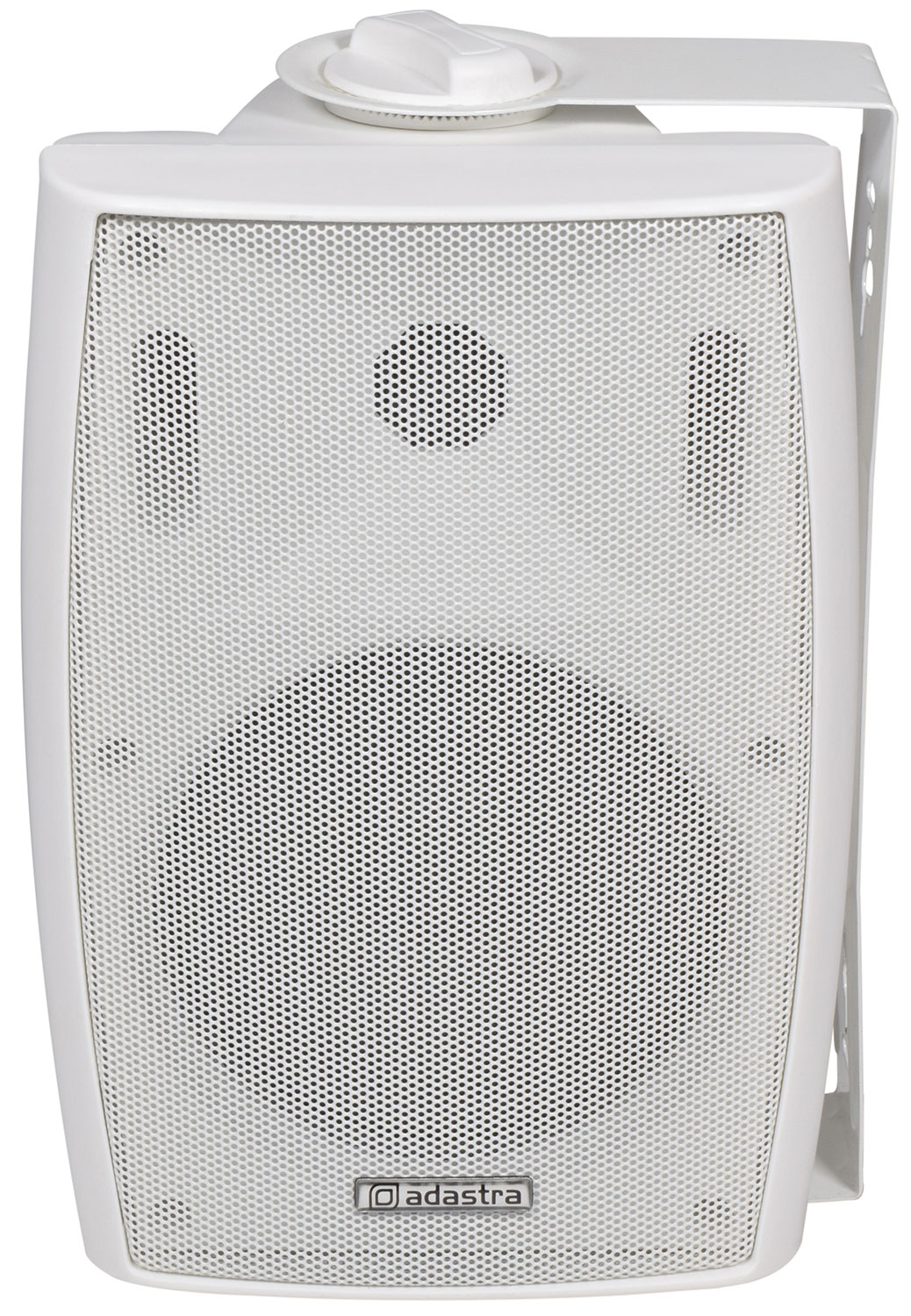

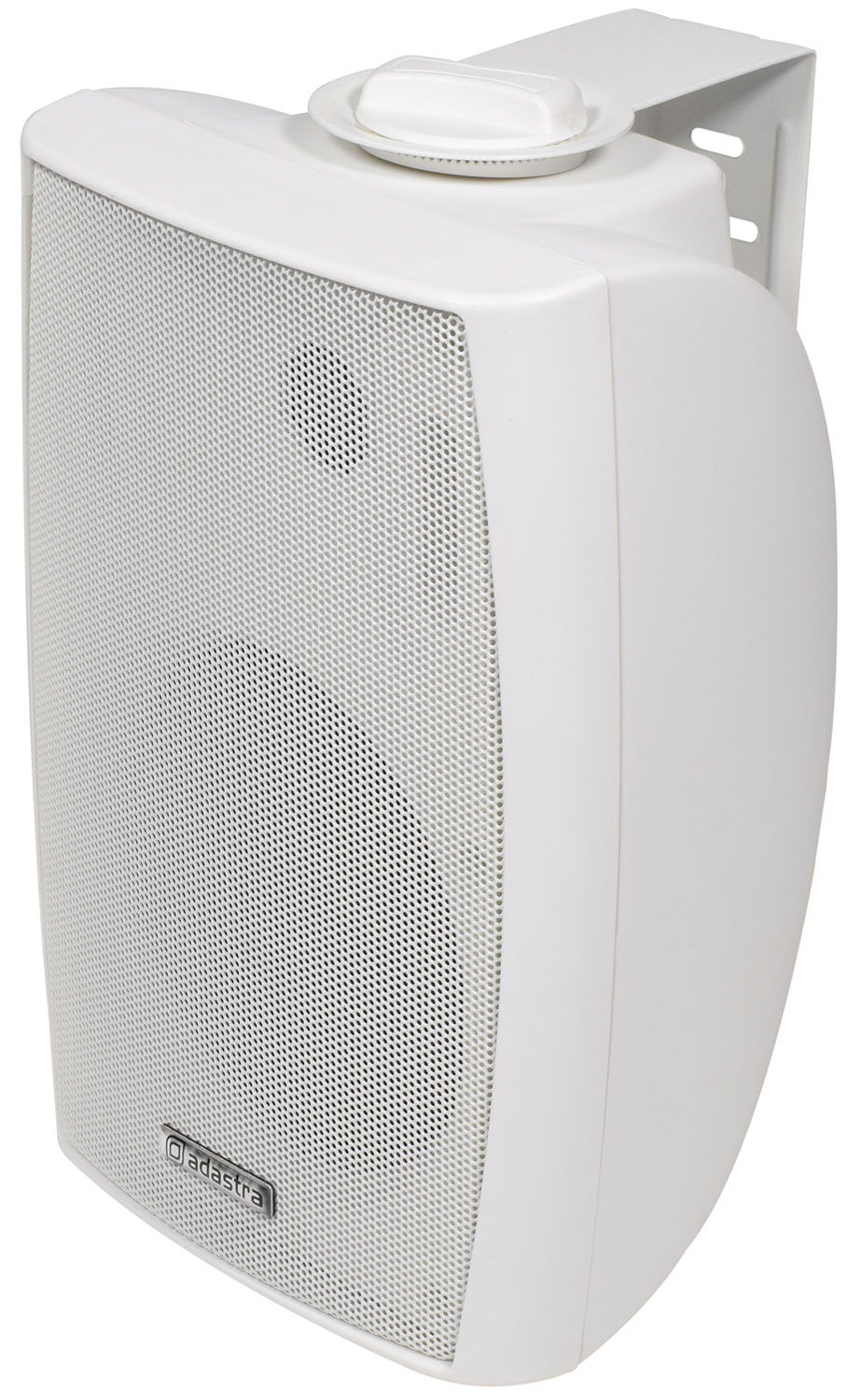

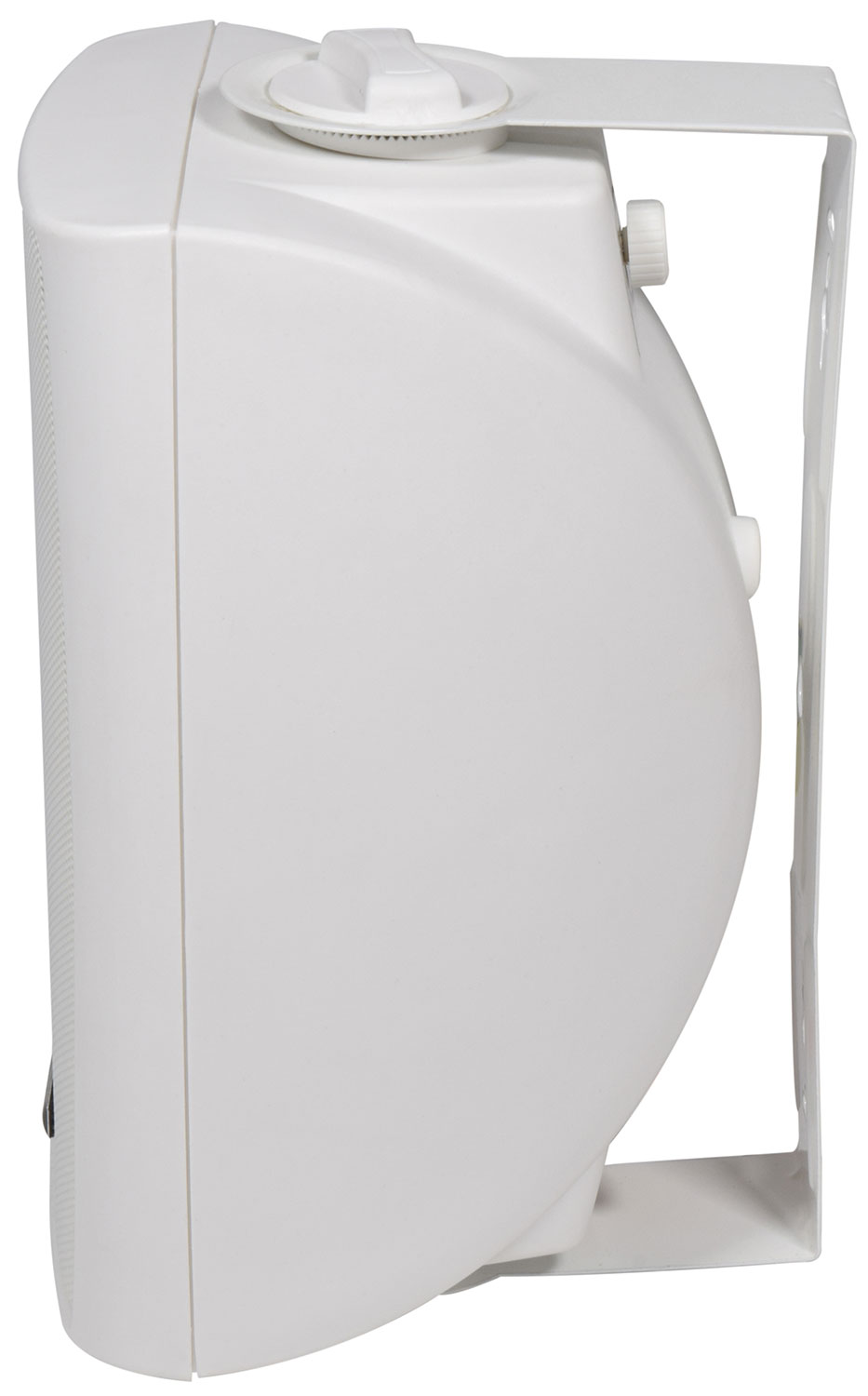

BM-series Wall-Mount 100V Background Speakers

Indoor wall speakers with moulded polypropylene cabinets and powder-coated steel grilles. Supplied with a steel bracket for mounting to an appropriate wall or ceiling surface. Moulded enclosures and efficient driver components offer a cost-effective solution for multi-speaker installations, with options for 8 Ohms or 100V line operation. Designed for general purpose indoor PA and background music systems.

  • 100V or 8 Ohm operation
  • 4 x 100V tappings
  • Supplied with adjustable wall-mount bracket
  • Material PP cabinet with powder coated steel grille
  • Input 4mm binding posts (+/-)
  • Tweeter 12mmØ (0.5") dome tweeter

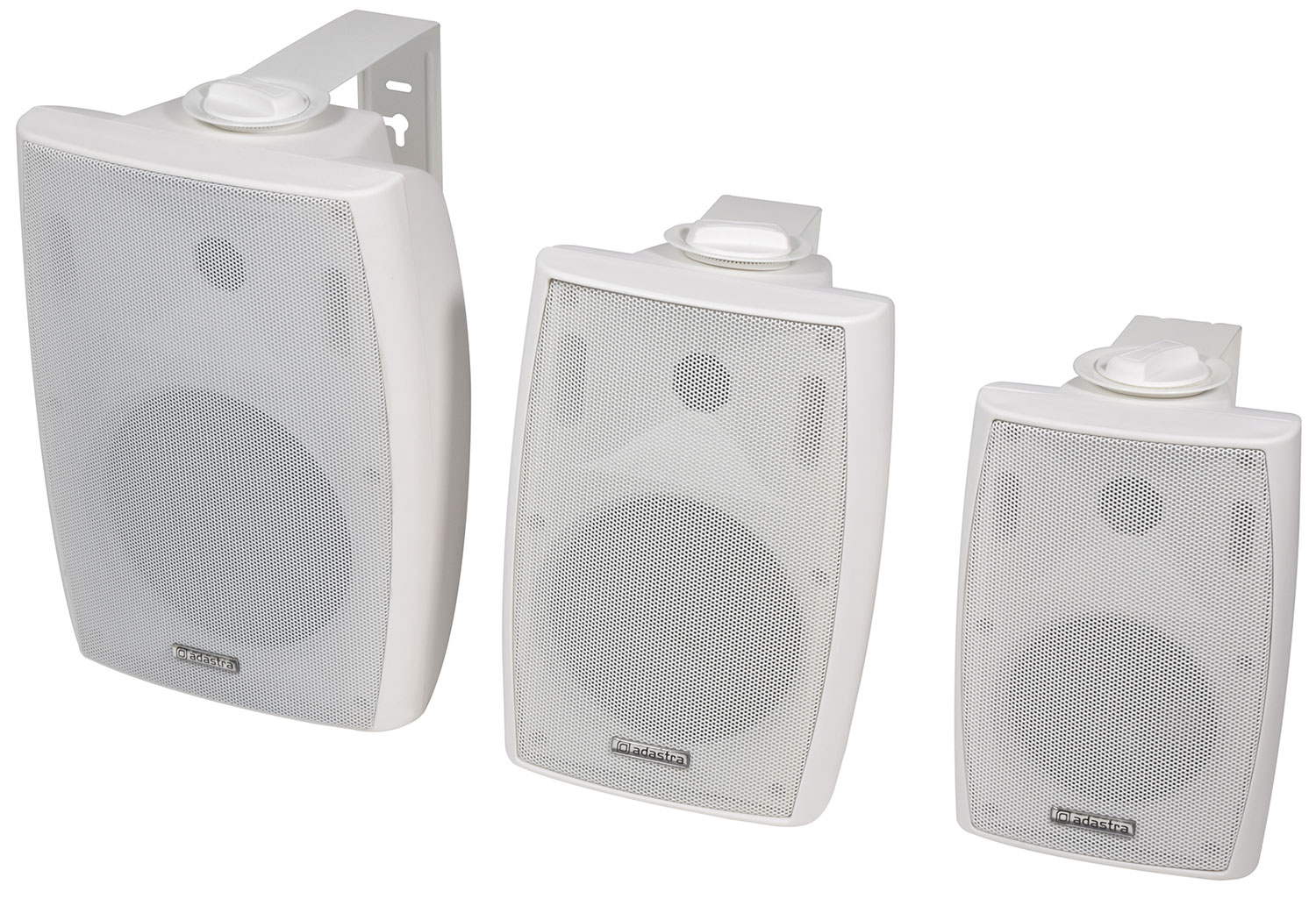

Versions

  952.502UK 952.504UK 952.506UK
Model BM4V-W BM5V-W BM6V-W
Colour White White White
Woofer 100mm (4") paper cone 130mm (5.25") paper cone 165mm (6.5") paper cone
Power rms : 8 Ohms 20W 30W 40W
Tappings 2.5W, 5W, 10W, 20W & 8 Ohms 3.75W, 7.5W, 15W, 30W & 8 Ohms 5W, 10W, 20W, 40W & 8 Ohms
Dimensions 242 x 150 x 150mm 275 x 178 x 173mm 320 x 225 x 220mm
Weight 1.873kg 2.532kg 3.084kg

Support : articles

100V line speakers

For many applications, it is necessary to drive many speakers with a single amplifier, giving greater coverage to multiple rooms or over a given area. 100V line is a solution to this problem.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • BM-series 100V background speaker
  • Wall mounting bracket
  • 2 x screw caps

Downloads

UK Declaration of conformity
For 952.504UK (244KB)
EU Declaration of conformity
For 952.504UK (232KB)
