LA Series Induction Loop Amplifiers
952.864UK

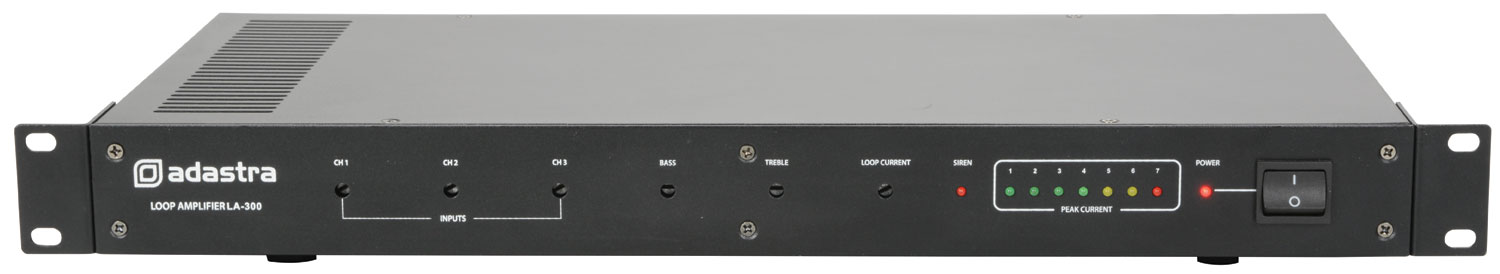

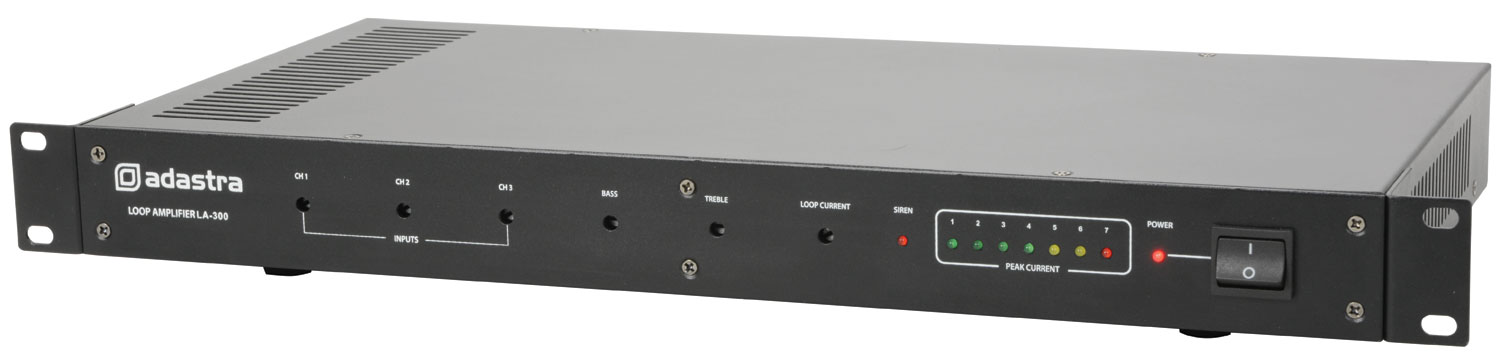

LA-300 mkII
An induction amplifier for driving a cable loop around a room to provide assisted listening for hearing aid users. Front panel controls are adjusted using a screwdriver including level controls for...
- Suitable for hearing aids fitted with a "T" switch
- Mic/line level switch for each input
- Phantom power switch for each input
LA Series Induction Loop Amplifiers
An induction amplifier for driving a cable loop around a room to provide assisted listening for hearing aid users. Front panel controls are adjusted using a screwdriver including level controls for the 3 mic/line channels, bass, treble and loop current. Designed to provide hearing assistance in public and commercial buildings.
- Suitable for hearing aids fitted with a "T" switch
- Mic/line level switch for each input
- Phantom power switch for each input
- Tamper proof channel volume, bass & treble and loop current level controls
- Adjustable metal loss correction
- Alarm contacts for built-in siren
- Priority switchable for channel 1
- Peak current LED indication
- 19" rack mountable
Specification : Common
- Power supply 110/240Vac, 50/60Hz (IEC)
- Frequency response 50Hz - 5kHz (±3dB)
- Input sensitivity : line -6dBu/6k Ohms
- Input sensitivity : mic -56dBu/2k Ohms
- Signal to noise ratio 75dB (line), 60dB (mic)
- THD <1%
Specification : Versions
| 952.864UK | 952.867UK | |
|---|---|---|
| Fuse | T1A 250V | T2A 250V |
| Rack height | 1U | 2U |
| Area coverage | 300m² max. | 600m² max. |
| Dimensions | 483 x 235 x 44mm | 483 x 235 x 88mm |
| Weight | 4.22kg | 5.95kg |
Trade information
| 952.864UK | 952.867UK | |
|---|---|---|
| Barcode / EAN | 5015972181843 | 5015972169353 |
| Package type | Box Printed | Box Printed |
| Package dimensions | 315 x 522 x 84mm | 535 x 133 x 390mm |
| Package weight | 5.55kg | 5.95kg |
| Package quantity | 1 unit | 1 unit |
| Carton dimensions | 356 x 532 x 325mm | 550 x 448 x 291mm |
| Carton weight | 23.00kg | 11.90kg |
| Carton quantity | 4 packages | 2 packages |
