LX-series Indoor/Outdoor 8Ω/100V Wall-mounted Speakers
5.25" white
Lightweight PA speakers with moulded ABS cabinets and fitted with 2-axis wall-mounting brackets. Inputs for standard 8 Ohm operation or 100V line with 2 power tappings offer wiring flexibility within… more
- Super light weight for easy installation
- Integral 2-axis wall-mounting bracket
- Switchable bypass for true 8 Ohm operation
LX-series Indoor/Outdoor 8Ω/100V Wall-mounted Speakers
Lightweight PA speakers with moulded ABS cabinets and fitted with 2-axis wall-mounting brackets. Inputs for standard 8 Ohm operation or 100V line with 2 power tappings offer wiring flexibility within different types of installations. Switching to 8 Ohm operation bypasses the transformer for true low impedance performance. Compact cabinets with super light weight make for easy installation onto a variety of wall surfaces and rear pan-tilt brackets enable accurate positioning for best coverage. Cabinets, speaker cones, grilles and brackets are all weatherproofed. A convenient and cost-effective solution for background music and voice announcements in indoor or sheltered outdoor environments.
- Super light weight for easy installation

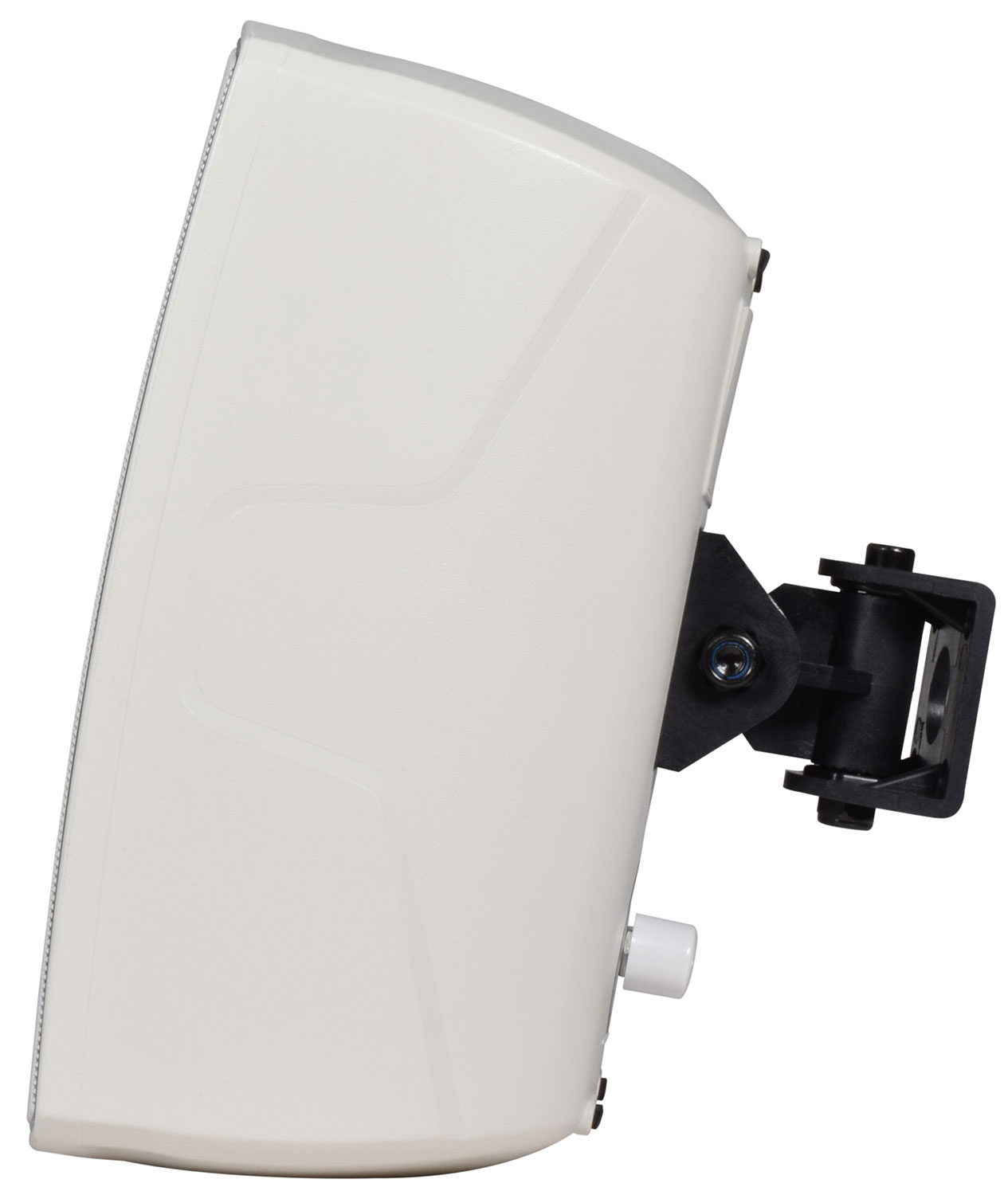

- Integral 2-axis wall-mounting bracket
- Switchable bypass for true 8 Ohm operation
- IP66 weatherproof
- Dimensions 243 x 160 x 117mm
- Weight 1.344kg
- HF driver 19mmØ (0.75") mylar dome
- Main driver 135mmØ (5.25") PP cone
- Max. SPL 102dB
- SPL @ 1W/1m 90dB
- Frequency response 75Hz - 20kHz

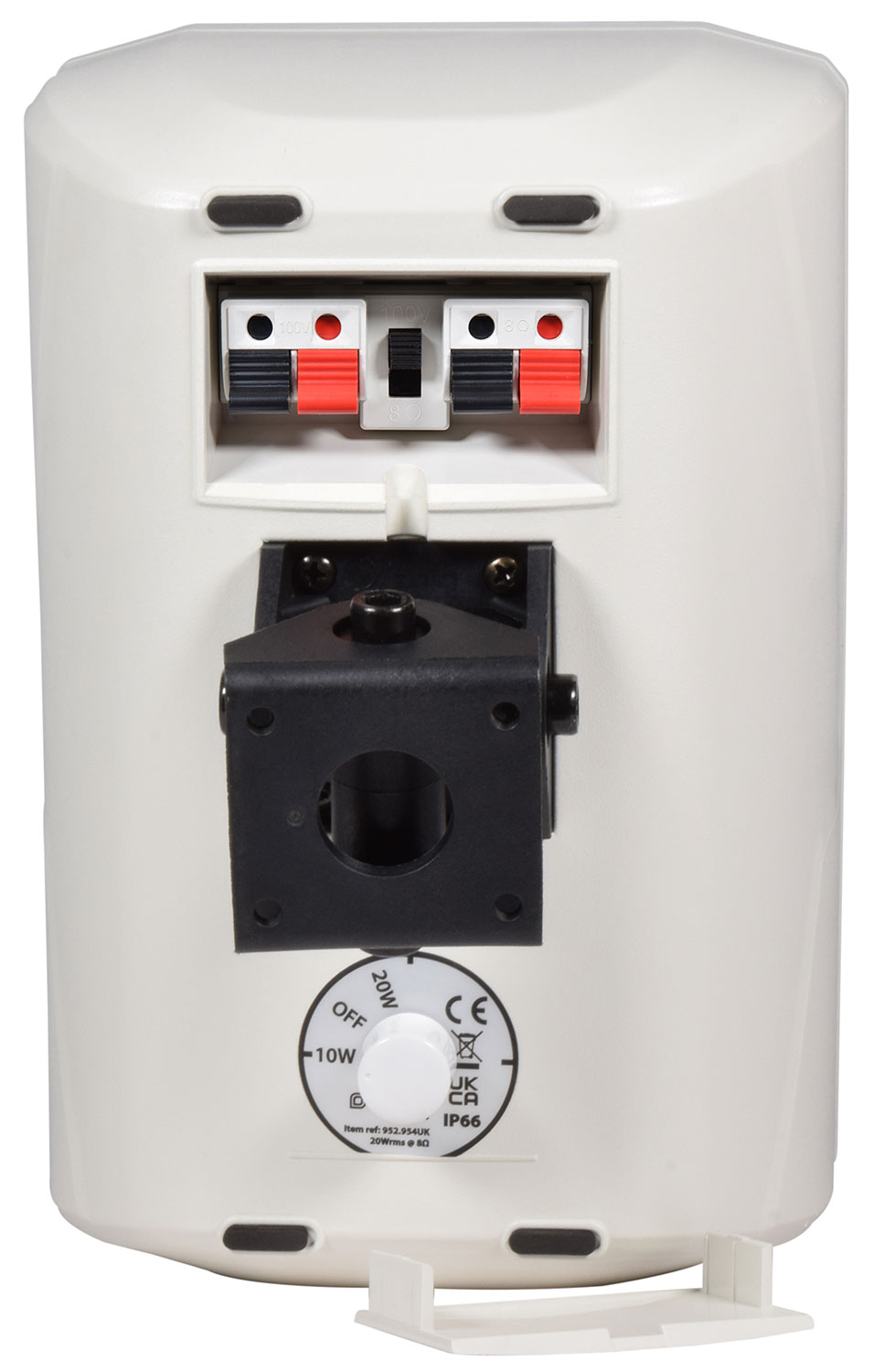

- 100V line tappings 10W, 20W
- Power rms : 8 Ohms 20W
- IP rating IP66
- Construction ABS cabinet, aluminium grille
In the Box
- LX-series indoor/outdoor speaker inc. bracket
