FS Series High Performance Foreground Speakers

952.961UK FSV-W

High quality 2-way speaker for indoor or outdoor use. The moulded speaker cabinet makes them ideal for outdoor events, swimming pools, garden areas and marine or boat use.

  • 2 way speaker system with crossover network
  • Rotary selector switch for 100V line tappings or 8 ohms operation
  • Weatherproofed IP35
Full description Find retailer
Description Version Packed
952.961UK
FSV-W High performance foreground speaker, 100V line, 8 Ohm, 65W rms, white 		5.25" White each Gift Box
952.963UK
FSV-B High performance foreground speaker, 100V line, 8 Ohm, 65W rms, black 		5.25" Black each Gift Box

FS Series High Performance Foreground Speakers

High quality 2-way speaker for indoor or outdoor use. The moulded speaker cabinet makes them ideal for outdoor events, swimming pools, garden areas and marine or boat use.

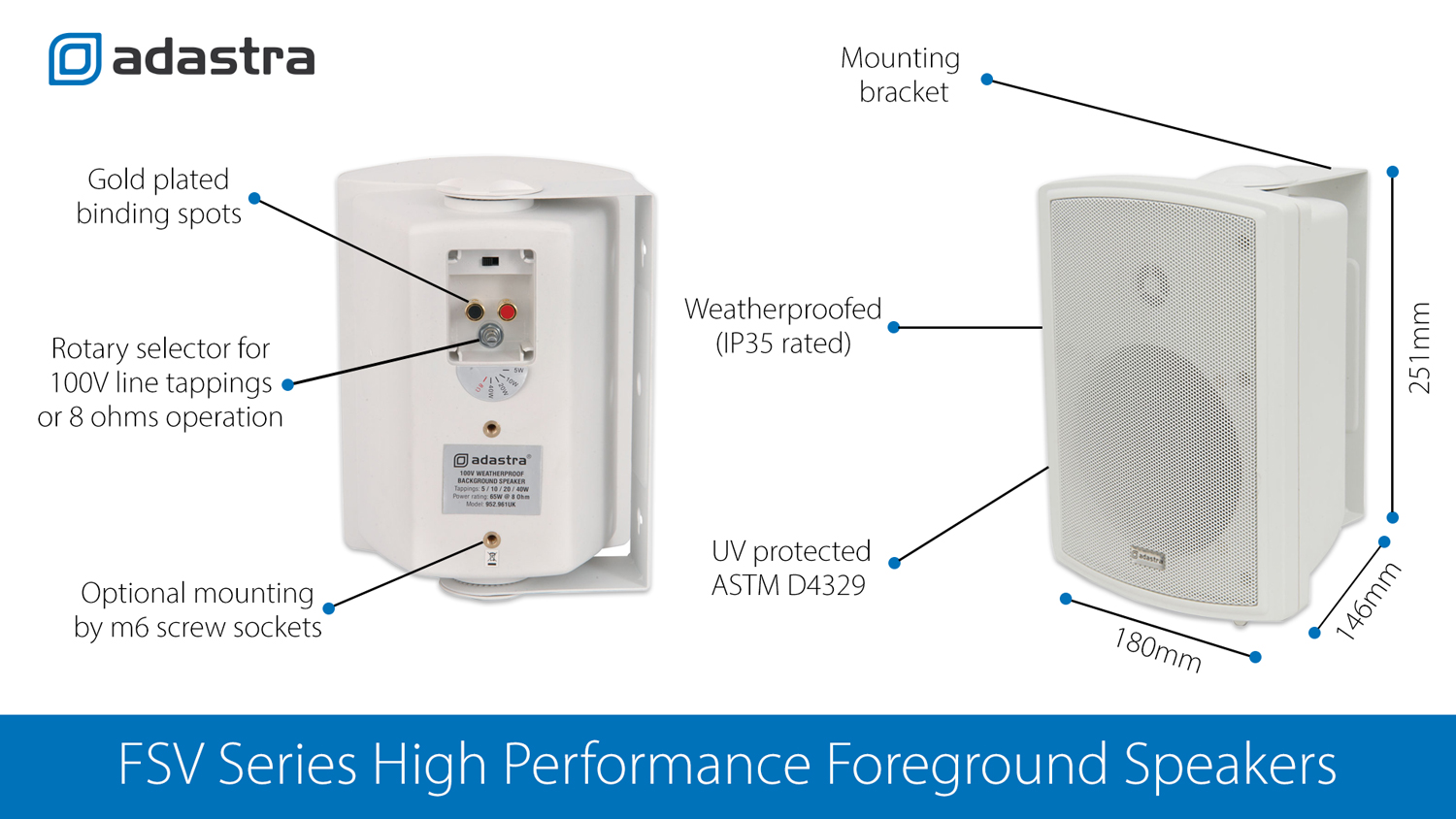

  • 2 way speaker system with crossover network

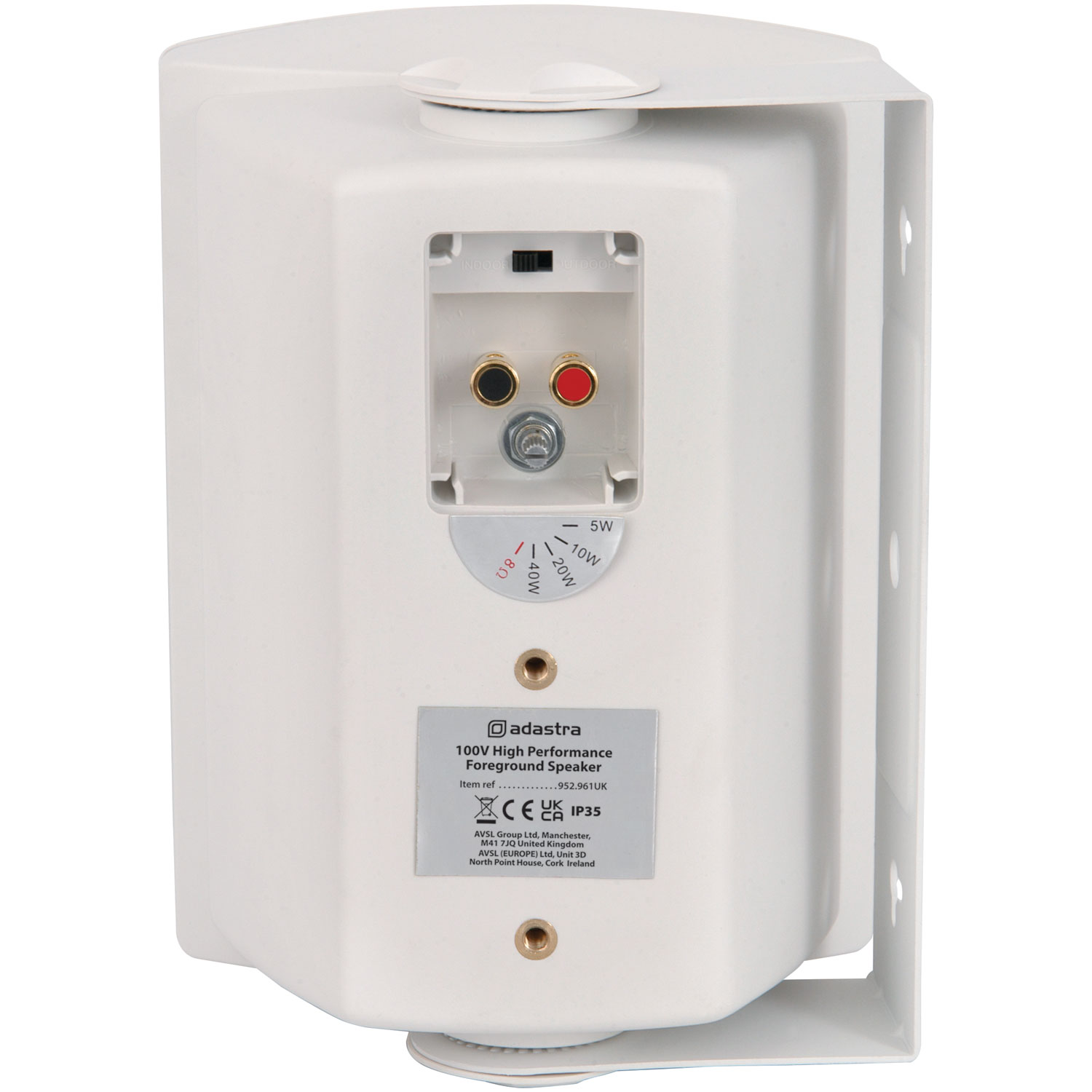

  • Rotary selector switch for 100V line tappings or 8 ohms operation
  • Weatherproofed IP35
  • UV protected ASTM D4329
  • Indoor/outdoor equalisation switch
  • Gold plated binding posts
  • Mounting bracket
  • Optional mounting by M6 screw sockets
  • Available in white or black finish
  • Supplied single

Specification : Common

  • Woofer 133mmØ (5.25")

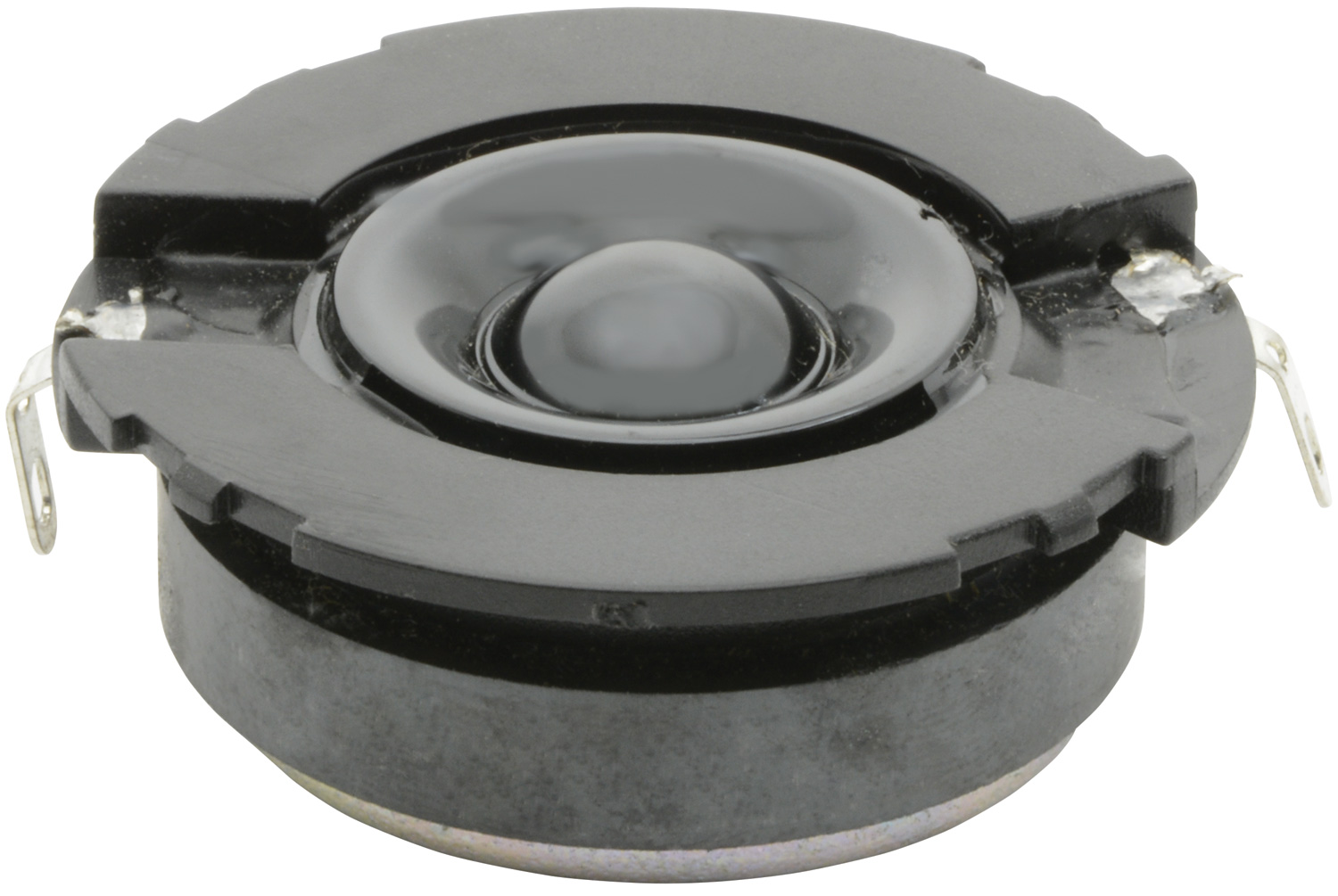

  • Tweeter 13mmØ (0.5")
  • IP rating IP35
  • Frequency response 110Hz - 20kHz
  • Power max. : 8 Ohms 130W
  • Power rms : 8 Ohms 65W
  • SPL @ 1W/1m 86dB
  • Dispersion angle 145°
  • Tappings 40W, 20W, 10W, 5W + 8 ohms
  • Impedance : 100V 250, 500, 1k, 2k Ohms

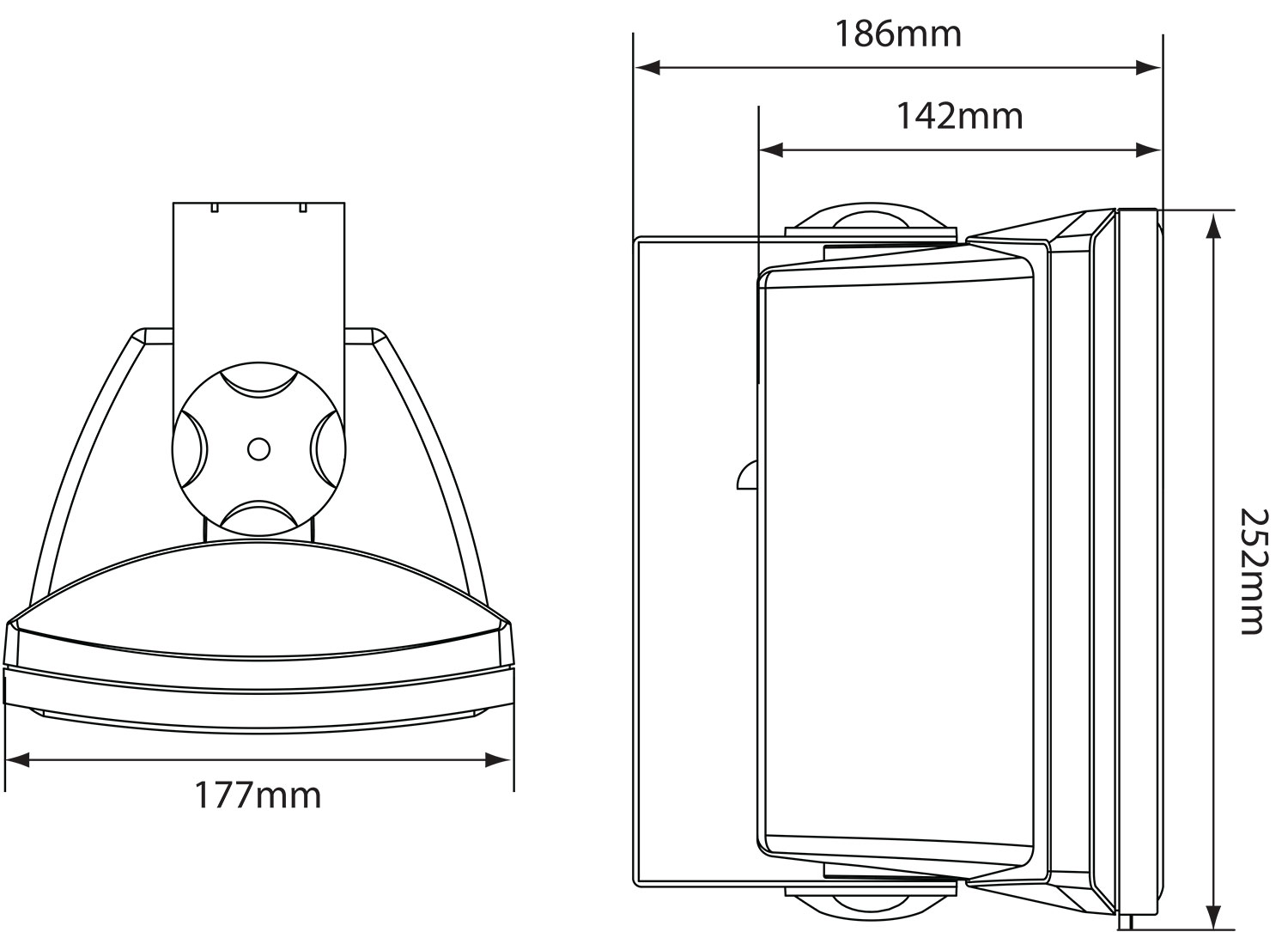

  • Dimensions 252 x 177 x 142mm
  • Weight 3.06kg

Specification : Versions

  952.961UK 952.963UK
Colour White Black

Trade information

  952.961UK 952.963UK
Barcode / EAN 5015972054901 5015972054918
Package type Gift Box Gift Box
Package dimensions 232 x 327 x 195mm 232 x 327 x 195mm
Package weight 3.68kg 3.68kg
Package quantity 1 unit 1 unit
Carton dimensions 418 x 485 x 370mm 418 x 485 x 370mm
Carton weight 14.70kg 14.70kg
Carton quantity 4 packages 4 packages
Pack plastic weight 0.06kg 0.06kg
