FS Series High Performance Foreground Speakers

952.963UK FSV-B

High quality 2-way speaker for indoor or outdoor use. The moulded speaker cabinet makes them ideal for outdoor events, swimming pools, garden areas and marine or boat use.

  • 2 way speaker system with crossover network

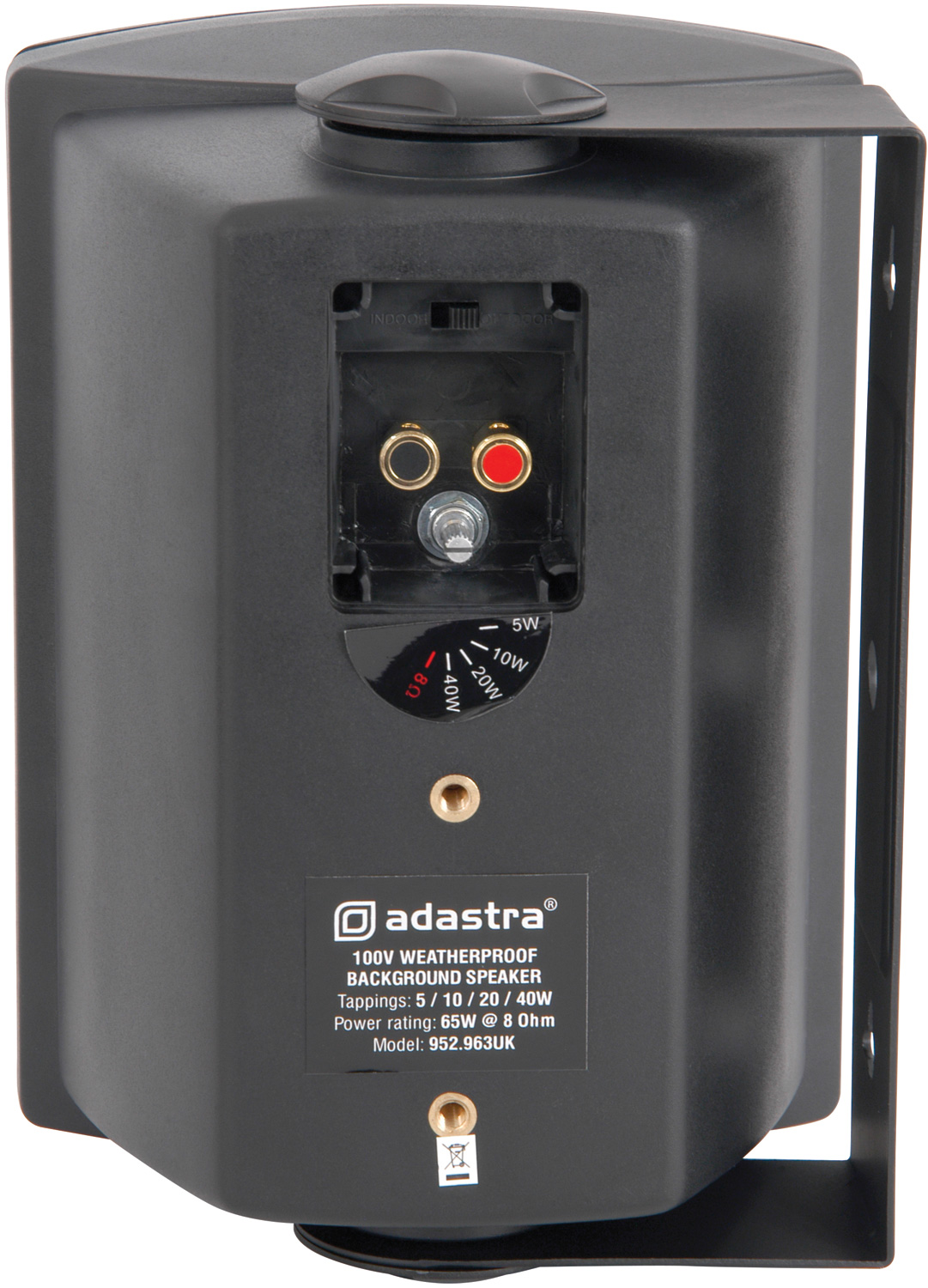

  • Rotary selector switch for 100V line tappings or 8 ohms operation
  • Weatherproof IP35
Description Version Packed
952.961UK
FSV-W High performance foreground speaker, 100V line, 8 Ohm, 65W rms, white
5.25" White each Box Label
952.963UK
FSV-B High performance foreground speaker, 100V line, 8 Ohm, 65W rms, black
5.25" Black each Box Label

FS Series High Performance Foreground Speakers

High quality 2-way speaker for indoor or outdoor use. The moulded speaker cabinet makes them ideal for outdoor events, swimming pools, garden areas and marine or boat use.

  • 2 way speaker system with crossover network
  • Rotary selector switch for 100V line tappings or 8 ohms operation
  • Weatherproof IP35
  • UV protected ASTM D4329
  • Indoor/outdoor equalisation switch
  • Gold plated binding posts
  • Mounting bracket
  • Optional mounting by M6 screw sockets

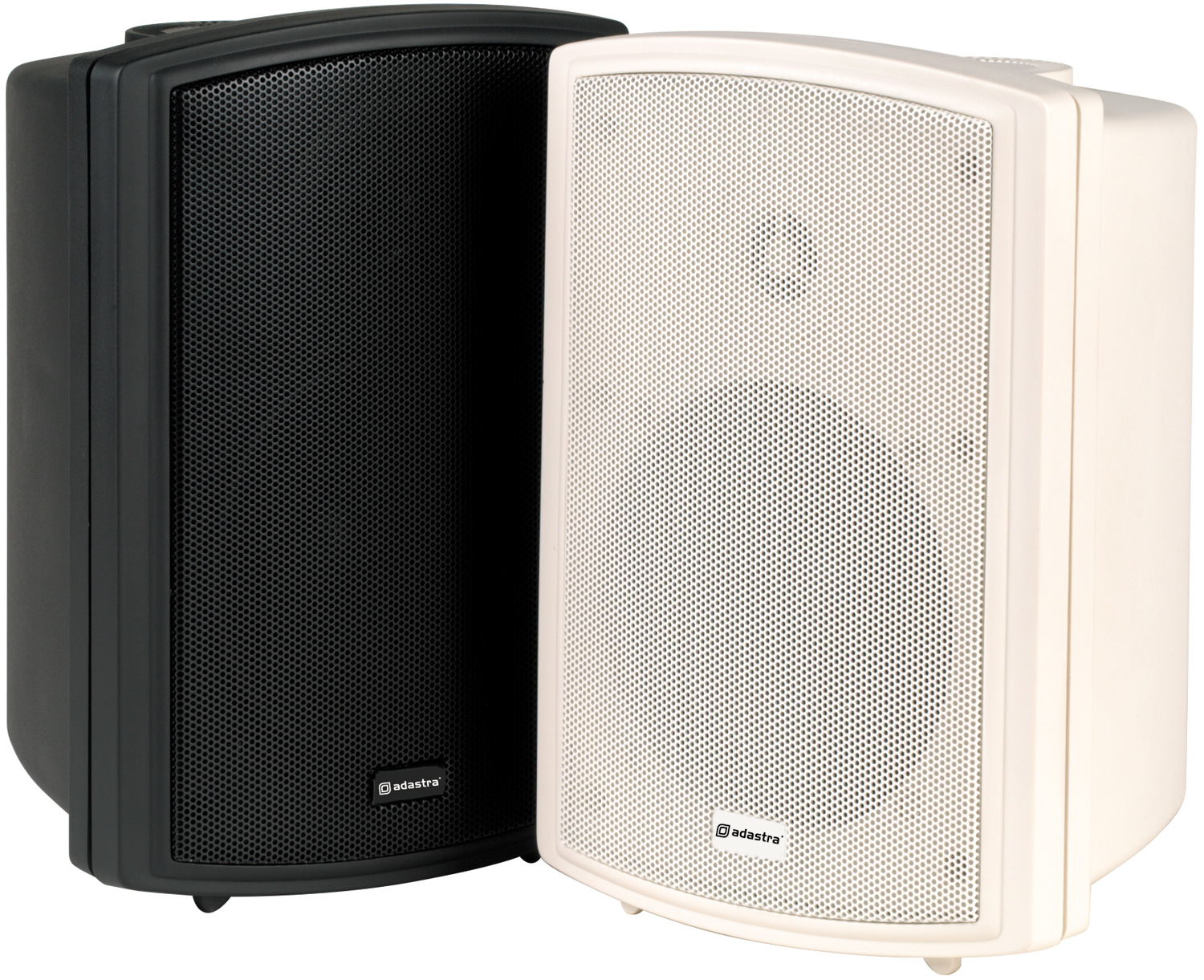

  • Available in white or black finish
  • Supplied single
  • Construction Moulded PP cabinet with aluminium grille
  • Woofer 133mmØ (5.25")
  • Tweeter 13mmØ (0.5")
  • IP rating IP35
  • Frequency response 110Hz - 20kHz
  • Power max. : 8 Ohms 130W
  • Power rms : 8 Ohms 65W
  • SPL @ 1W/1m 86dB
  • Dispersion angle 145°
  • Tappings 40W, 20W, 10W, 5W + 8 ohms
  • Impedance : 100V 250, 500, 1k, 2k Ohms

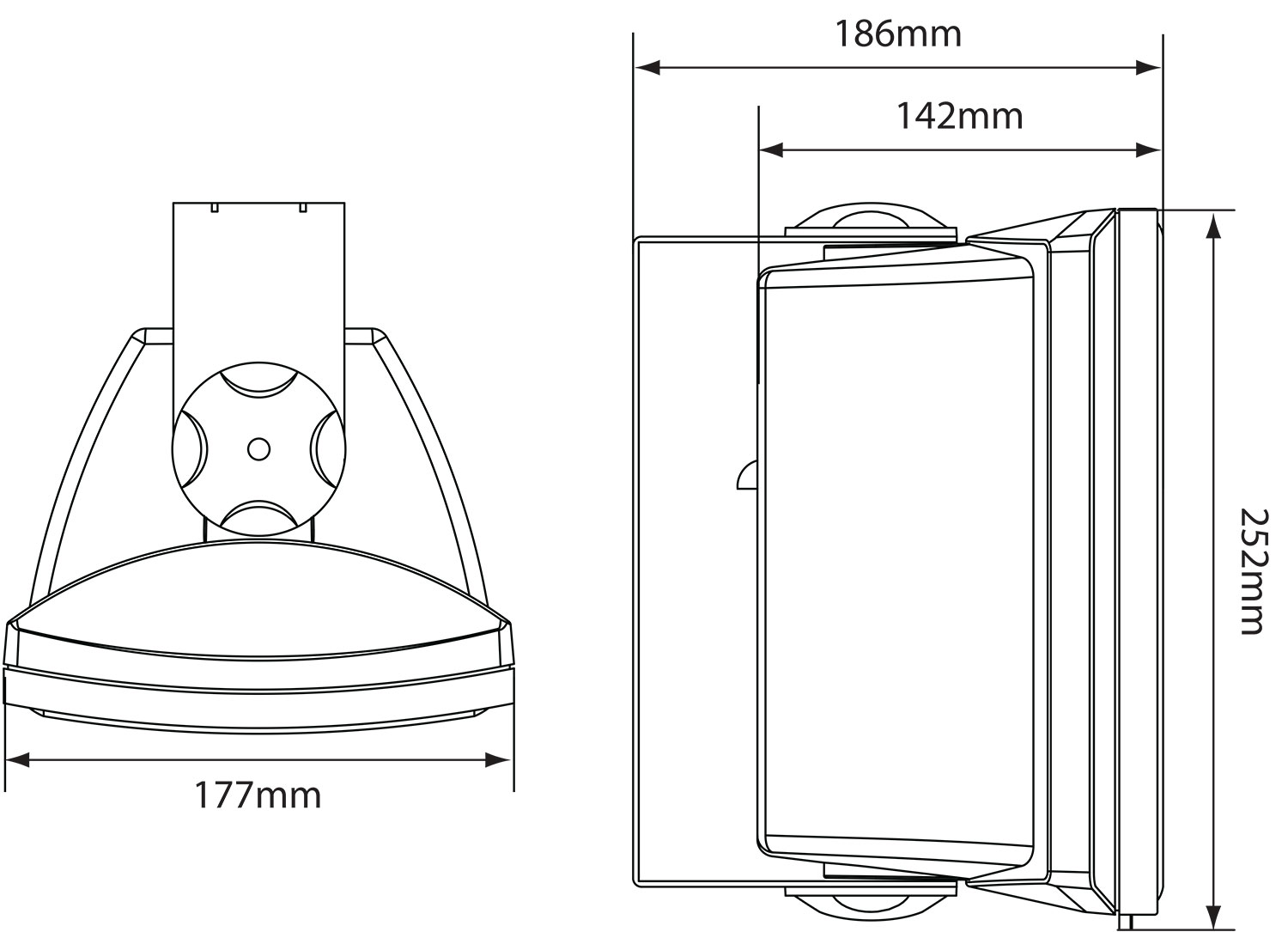

  • Dimensions 252 x 177 x 142mm
  • Weight 3.06kg

Versions

  952.961UK 952.963UK
Colour White Black

Support : articles

100V line speakers

For many applications, it is necessary to drive many speakers with a single amplifier, giving greater coverage to multiple rooms or over a given area. 100V line is a solution to this problem.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

Downloads

Instruction manual
For 952.963UK (68KB)
UK Declaration of conformity
For 952.963UK (243KB)
EU Declaration of conformity
For 952.963UK (232KB)
