Multi-purpose 1U Mixer

953.020UK Z44R

1U live/zoning rack mixer with 2 mic/line inputs and 2 stereo line inputs feeding 4 stereo outputs. Mic channels feed to all outputs, whereas the stereo channels are switchable to any required zone...

  • Switchable 48V phantom power
  • Lo-cut rumble filter for mic channels
  • 3-band EQ for mic channels
Description Version Packed
953.020UK
Z44R - live/zone mixer with DSP reverb - 1U rack
Box Printed

Accessories

Description Version Packed
853.081UK
RACK-IT Wall / Counter Mounting Brackets 1U - pair
1U Box Label BW

Multi-purpose 1U Mixer

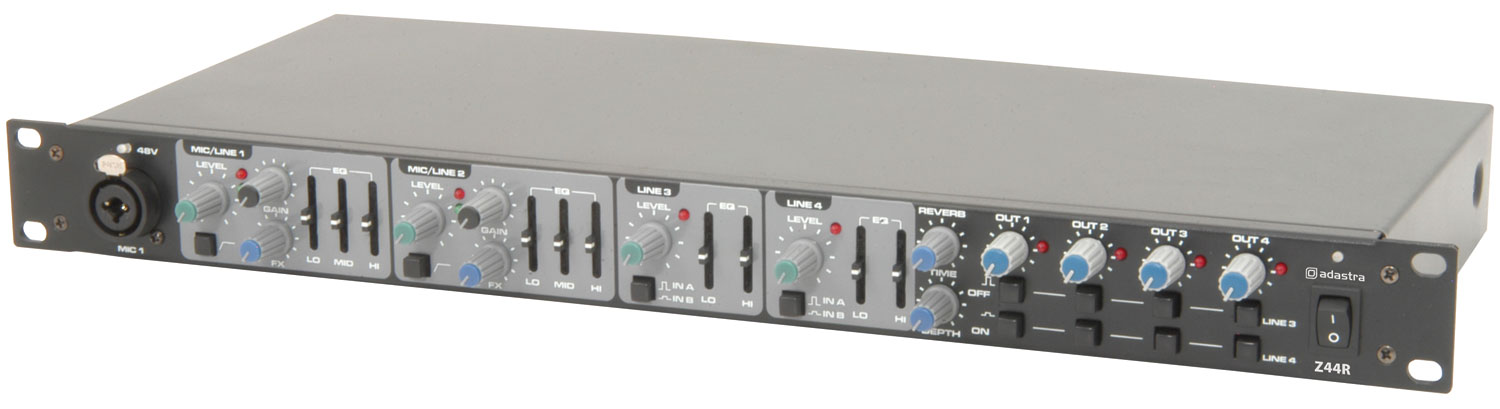

1U live/zoning rack mixer with 2 mic/line inputs and 2 stereo line inputs feeding 4 stereo outputs. Mic channels feed to all outputs, whereas the stereo channels are switchable to any required zone. Applications vary from additional vocal mixing for DJ set-ups to multi-room zoning for venues and many other scenarios.

  • Switchable 48V phantom power
  • Lo-cut rumble filter for mic channels
  • 3-band EQ for mic channels
  • 2-band EQ for stereo channels
  • Foot-switchable internal DSP reverb or ext. FX
  • 4 stereo zone outputs with level controls

Specification

  • Power supply 230Vac, 50Hz (IEC)

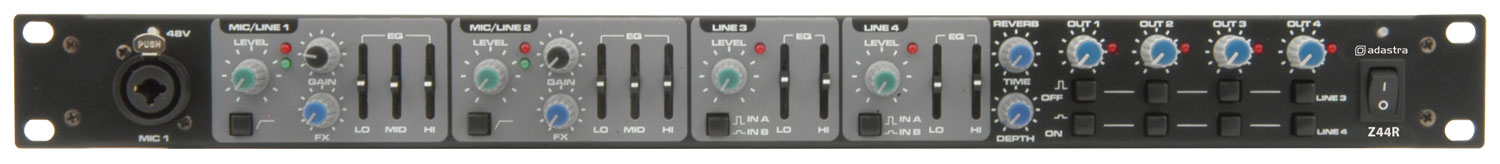

  • Mic/line channel inputs Ch 1 front combo and rear jack, Ch 2 combo (rear)
  • Mic/line channel controls Level, Lo-cut, Gain, FX and Lo/Mid/Hi EQ faders
  • Line 3 + 4 stereo inputs Input A (L+R) 6.3mm jack / Input B (L+R) RCA
  • Line 3 + 4 stereo controls Level, In A/B and Lo/Hi EQ faders

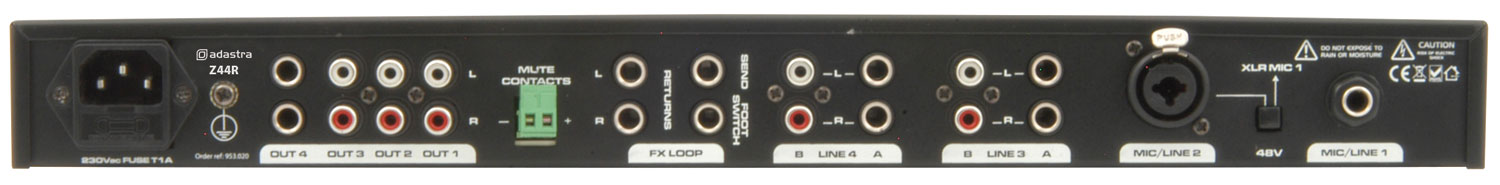

  • Output connections Outputs 1-3 (L+R) RCA, Output 4 (L+R) 6.3mm jack
  • Output controls Level, Line 3 on/off, Line 4 on/off
  • FX connections (6.3mm jack) Footswitch, Send (defeats onboard reverb), L+R Return
  • FX controls Reverb time, Depth (onboard or external level)
  • Indicators (LED) Power, 48V, Mic/line signal+peak, Line peak, Output peak
  • Fire alarm contacts Modular terminal, make-to-mute all except Mic 1
  • Dimensions 483 x 44 x 220mm
  • Weight 2.75kg

Trade information

  953.020UK
Barcode / EAN 5015972103159
Package type Box Printed
Package dimensions 575 x 120 x 290mm
Package weight 2.73kg
Package quantity 1 unit
Carton dimensions 290 x 530 x 260mm
Carton weight 5.46kg
Carton quantity 2 packages
Pack plastic weight 0.11kg

Support

Instruction manual
For 953.020UK (1.1MB)
