RX45 Advanced Audio Matrix
953.046UK
RX45

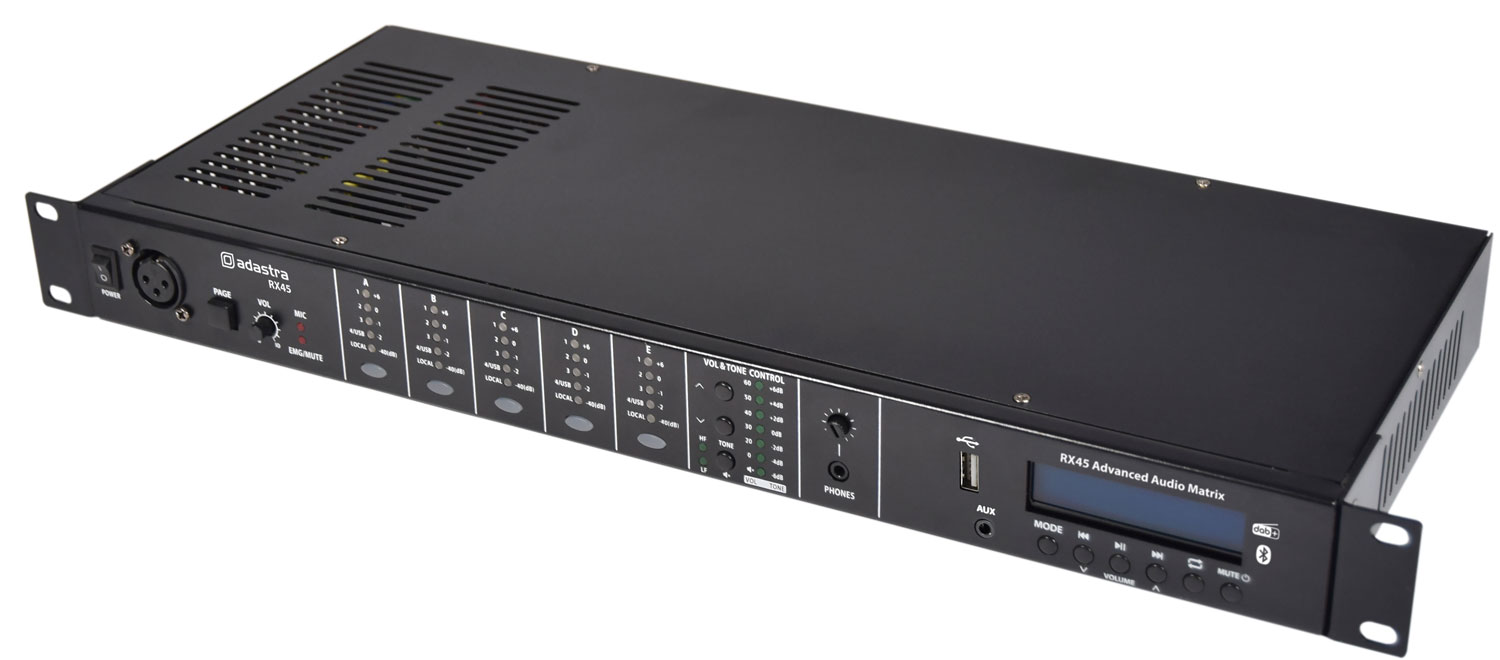

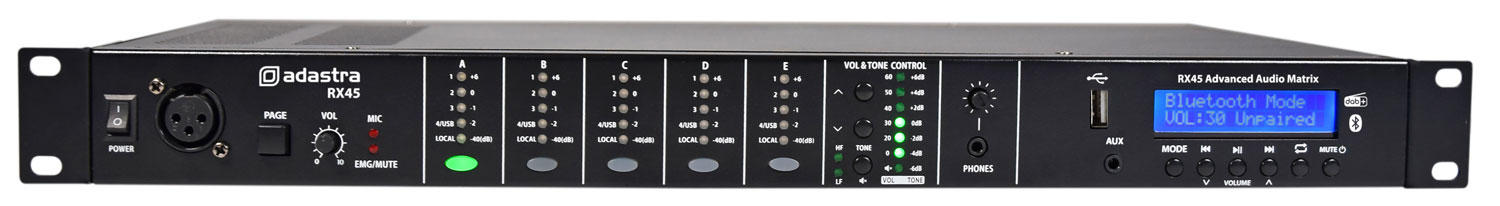

RX45 is a 1U rack-mountable audio matrix feeding 4 selectable inputs to 5 stereo outputs. An inbuilt audio player section features playback from USB media, DAB+ tuner or Bluetooth. Each zone output...
- Expandable up to 40 individual zones (8 x RX45)
- Inbuilt USB, DAB+ and BT audio player
- Local or optional TR86 remote control per zone
RX45 Advanced Audio Matrix

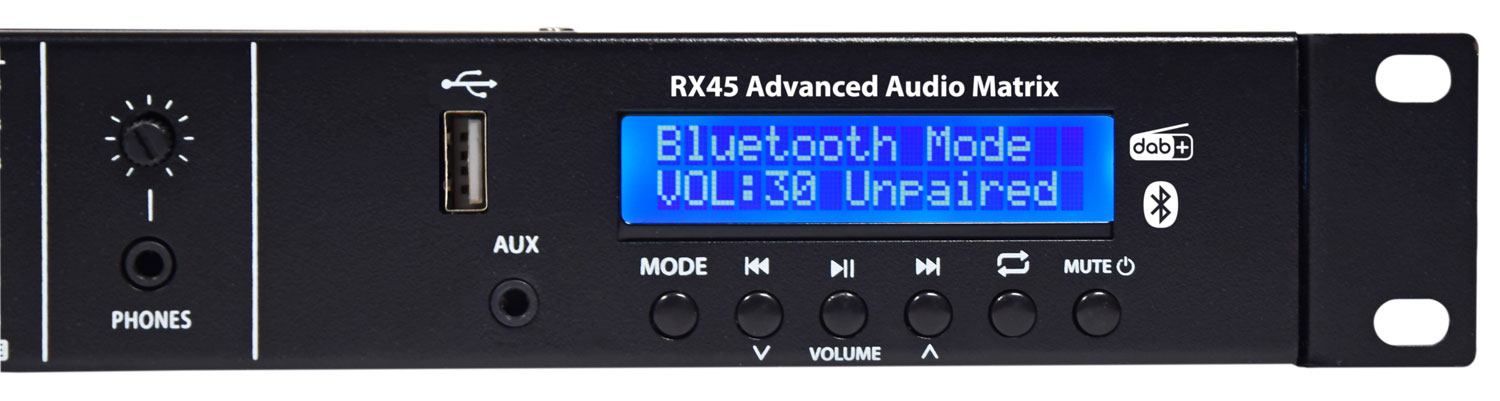

RX45 is a 1U rack-mountable audio matrix feeding 4 selectable inputs to 5 stereo outputs. An inbuilt audio player section features playback from USB media, DAB+ tuner or Bluetooth. Each zone output has a push button and LED ladder on the front panel for selecting the input source and adjusting level and tone settings in the master section. Connecting optional TR86 wall plates via CAT5 cable enables remote source and level selection for any zone. The output for the selected zone may be monitored through a headphones output on the front panel. The RX45 system is expandable using multiple RX45 units cascaded together via dual CAT5 links, with DIP switches to assign one of 8 different IDs to each connected RX45 unit, providing up to 40 distinct zones. Additional DIP switches can be set to link the audio player from one unit to one or more connected slaves. An optional CS-20 call station can be used to address up to 20 different zones for announcements.
- Expandable up to 40 individual zones (8 x RX45)
- Inbuilt USB, DAB+ and BT audio player
- Local or optional TR86 remote control per zone
- Local audio connection available if using TR86 remote
- Emergency mute and audio in contacts
- RX45 units linkable using standard CAT5 cable
- Power supply 100-250Vac, 50/60Hz (IEC lead included)
- Fuse T1AL
- Audio source USB/DAB+/Bluetooth audio player
- Bluetooth version 5.0
- Inputs Paging mic. (XLR), 3 x stereo line (RCA) + call station (RJ45)
- Microphone : input sensitivity -41dBV
- Line input : sensitivity -12.5dBV
- Call station input : sensitivity +4dBV
- Emergency control 24V mute contacts and emergency audio input
- EMG input: sensitivity -10dBV
- Signal to noise ratio : mic 65dB
- Signal to noise ratio : line 73dB
- Outputs 5 x stereo zones (RCA)
- Output impedance : line 600 ohms
- THD +N <0.1% @ 1kHz
- Monitor outputs Stereo 3.5mm headphone jack (selected channel)
- Phantom power +24V switchable for paging mic.
- Remote control connection 8P8C (RJ45)

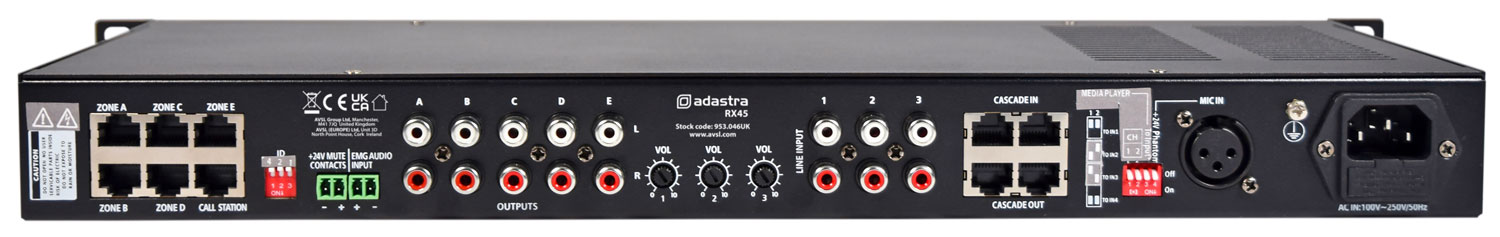

- Link connection 2 x 8P8C (RJ45)
- Frequency response : ±3dB 20Hz - 20kHz
- Attenuation -30dB (paging)
- Dimensions 44 x 190 x 483mm
- Weight 2.608kg
