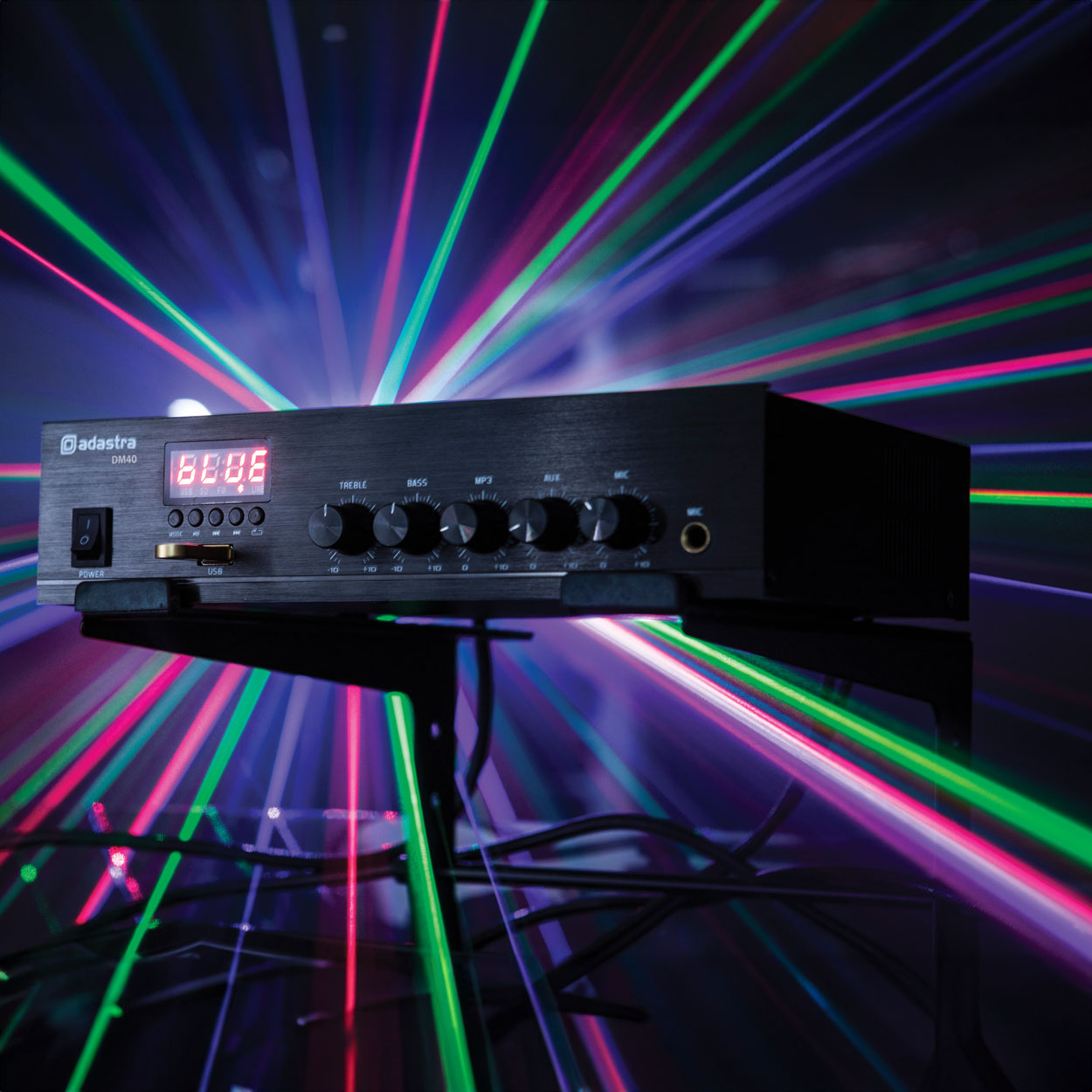

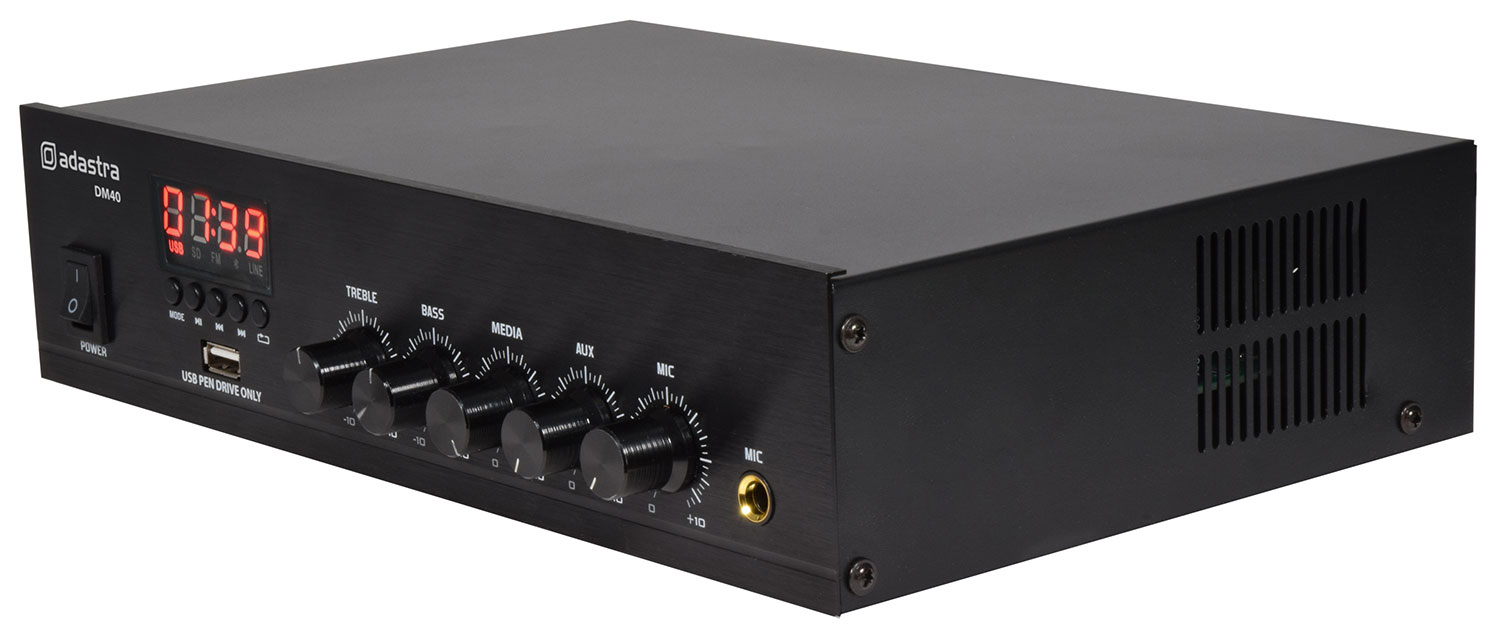

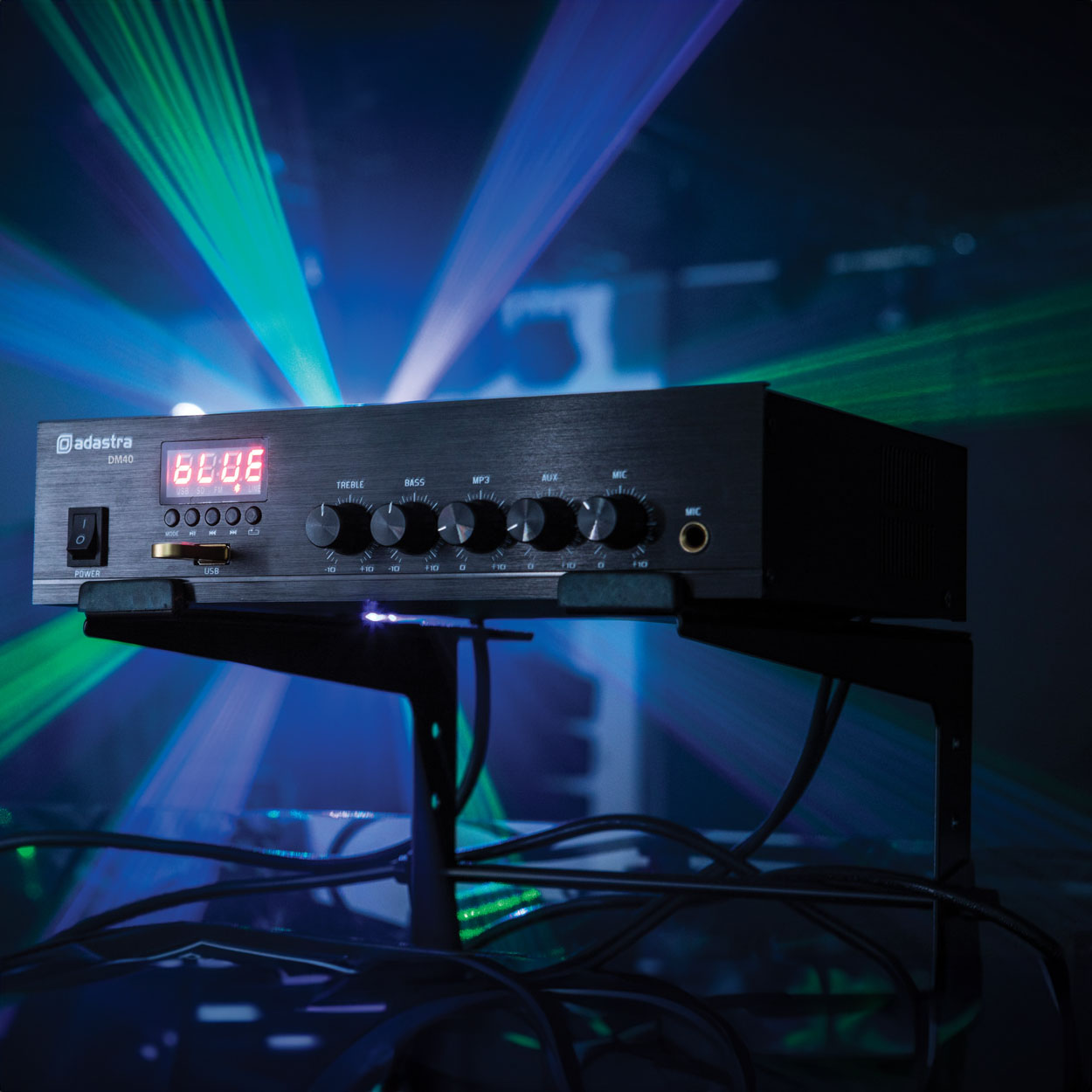

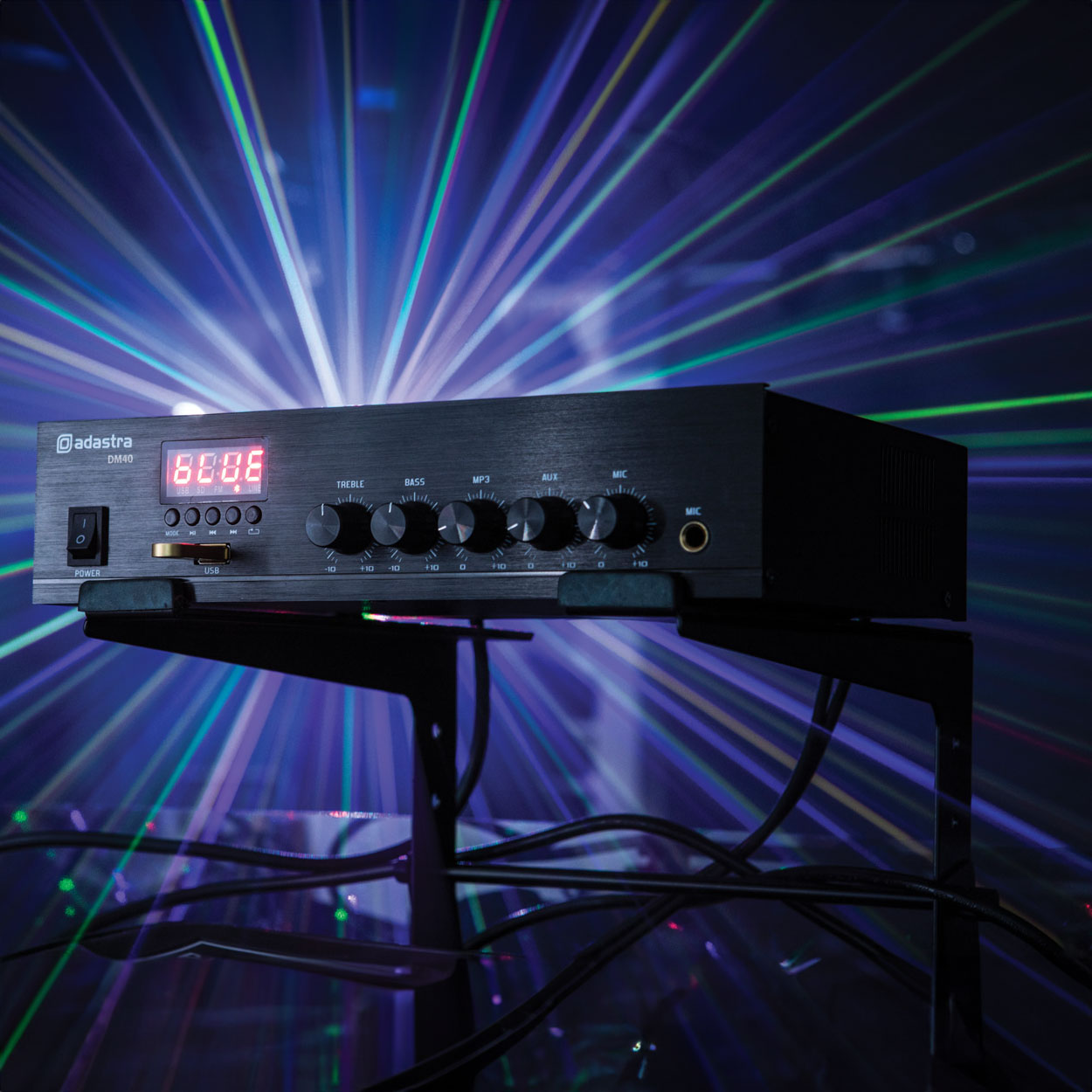

DM-Series Mixer-Amp with USB/FM and Bluetooth
953.109UK
DM40
100V line mixer-amp with digital amplifier in a compact housing. Onboard audio player accepts USB media for digital audio or can be tuned to FM radio stations. In Bluetooth mode, a smart phone or t...
- Built-in USB/FM media player
- Bluetooth connectivity
- Suitable for 100V or 4-16 Ohm speakers
DM-Series Mixer-Amp with USB/FM and Bluetooth
100V line mixer-amp with digital amplifier in a compact housing. Onboard audio player accepts USB media for digital audio or can be tuned to FM radio stations. In Bluetooth mode, a smart phone or tablet may be paired with the DM25 for wireless audio playback. Mono output to either 100V line or 4-16 ohms speaker load is connected via spring terminals on the rear panel. All-in-one solution for small sound installations.
- Bluetooth connectivity
- Integral USB player and FM tuner
- 100V line or 4-16 Ohms operation
- Note: USB port is not for charging smart phones
- Power supply 230Vac, 50Hz (IEC)
- Audio source USB player, FM tuner and Bluetooth receiver

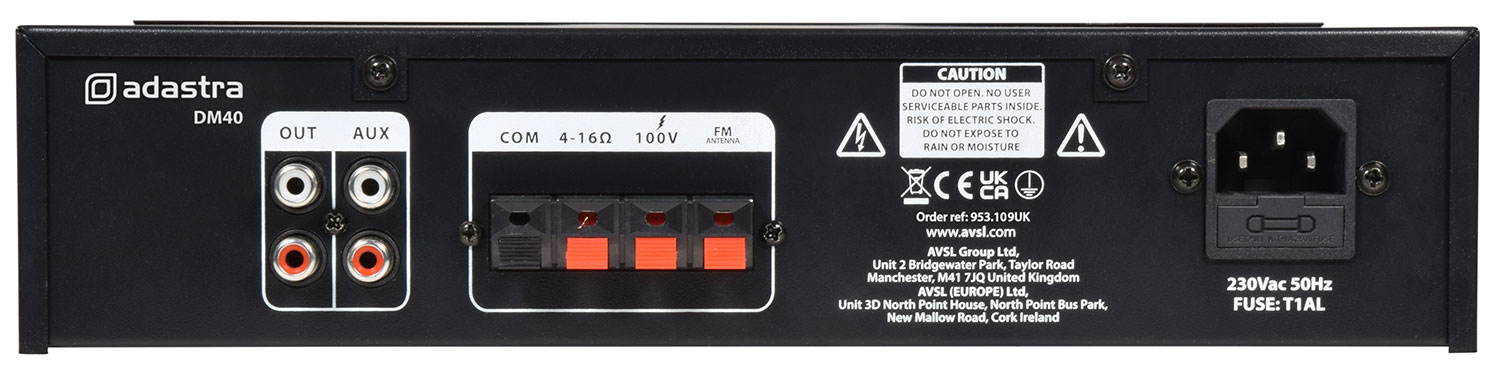

- Speaker : outputs COM, 100V and 4-16 Ohms (spring terminals)

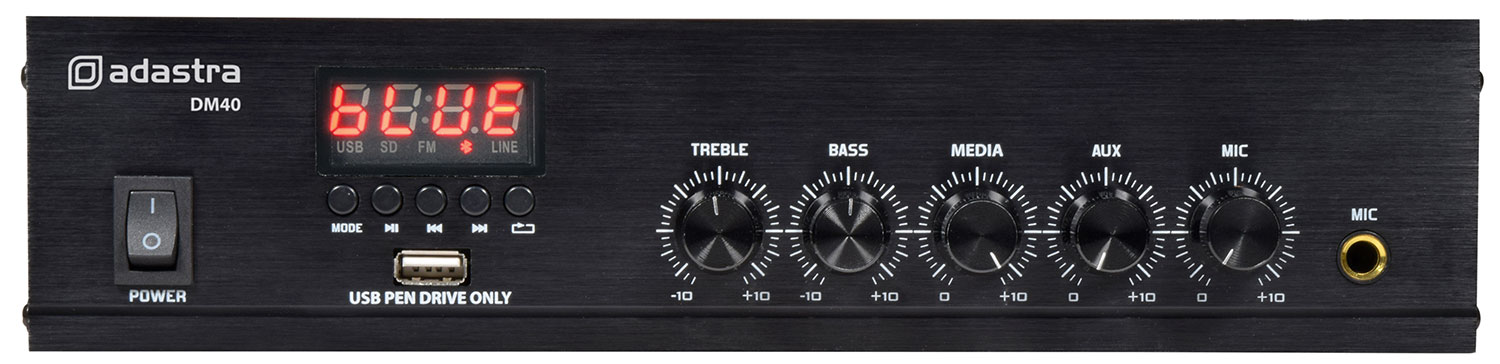

- Controls Treble, Bass, MP3, Aux, Mic
- Fuse T1AL
- USB version USB 2.0 (FAT32, 128GB max.)
- Bluetooth version 2.1
- Microphone : inputs 6.3mm jack (unbalanced)
- Line input 2 x RCA (summed to mono)
- Line output 2 x RCA
- Antenna connection Spring terminal
- Dimensions 280 x 205 x 67mm
Versions
| 953.108UK | 953.109UK | |
|---|---|---|
| Power : output | 25Wrms | 40Wrms |
| Weight | 1.34kg | 1.74kg |
Support : articles
Power Ratings: RMS vs Max vs Peak
A summary explaining the key differences between RMS, Max and Peak power ratings.
Wireless Audio
A description of various wireless technologies available to musicians, presenters and performers
In the box
The box for this item contains :
- DM-series 100V mixer-amp
- IEC power lead(s)
