UA Series Compact 100V Mixer-Amplifiers

953.189UK UA90

100V mixer-amplifiers with an integral mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Mast...

  • Supplied with hardware for rack-mounting 2 units
  • 5 input channels
  • 24V fire alarm mute contacts
Description Version Packed
953.183UK
UA30 Compact 5ch 100V MixerAmp
30W Box Printed
953.186UK
UA60 Compact 5ch 100V MixerAmp
60W Box Printed
953.189UK
UA90 Compact 5ch 100V MixerAmp
90W Box Printed

UA Series Compact 100V Mixer-Amplifiers

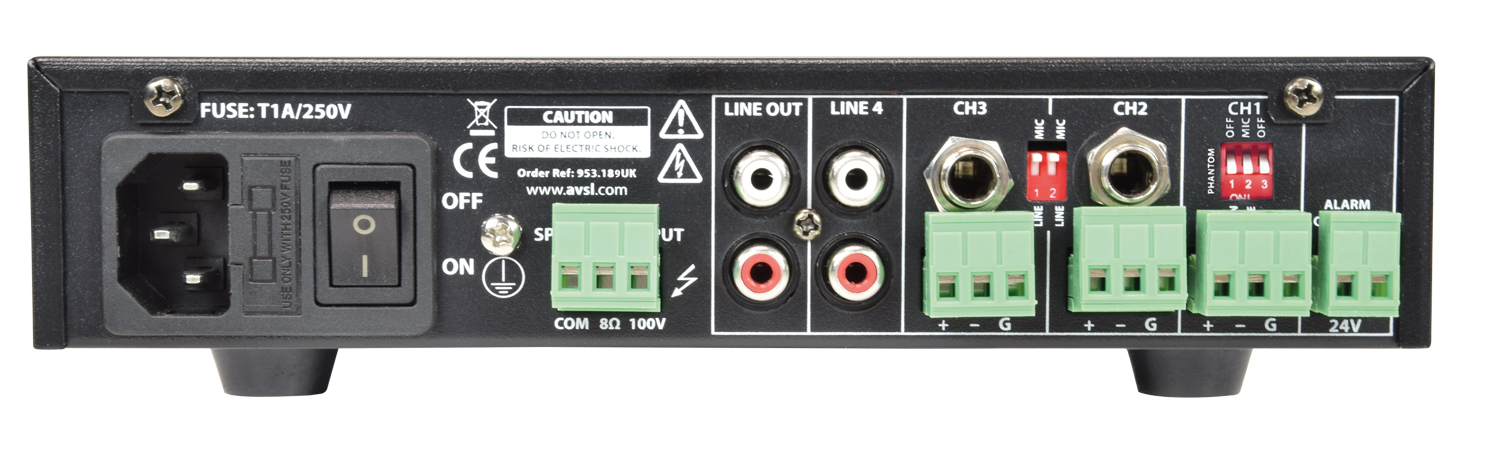

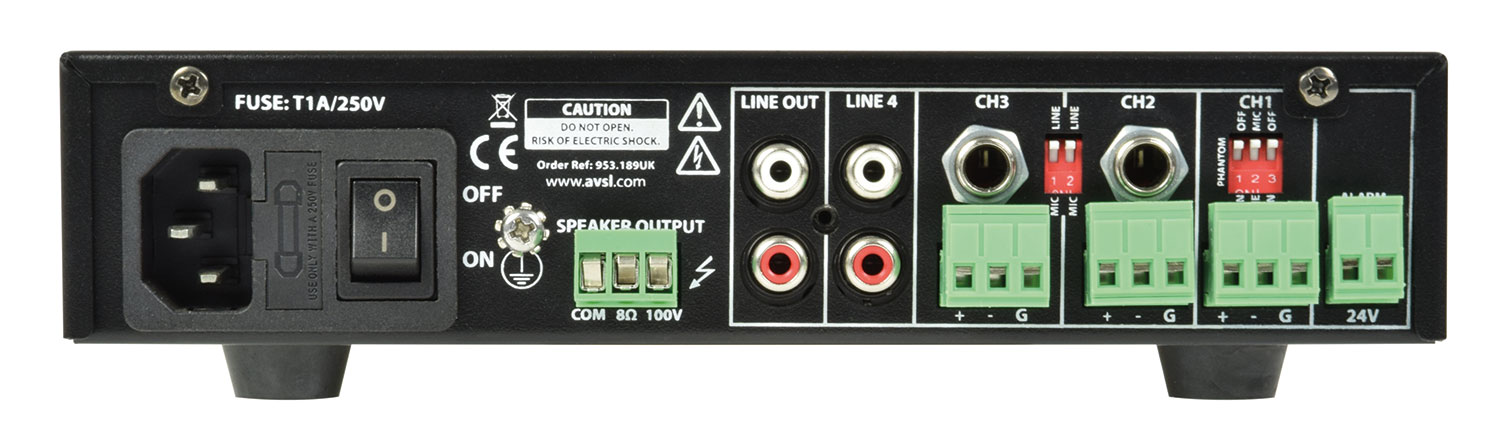

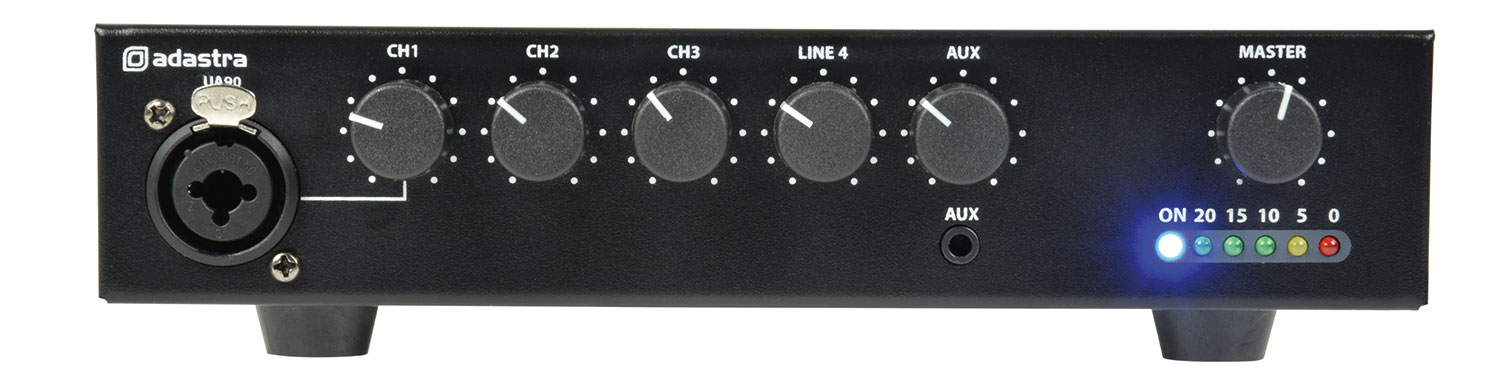

100V mixer-amplifiers with an integral mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.

  • Supplied with hardware for rack-mounting 2 units
  • 5 input channels
  • 24V fire alarm mute contacts
  • 100V line or 8 Ohms operation

Specification : Common

  • Power supply 170-264Vac, 50Hz (IEC)
  • Amplifier : construction Class D + transformer output
  • Inputs Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
  • Line output 2 x RCA (mono)
  • Speaker output Euroblock terminals: 100V / 8 Ohms / Com
  • Mute 24V relay contacts
  • THD <0.4% @ 1kHz
  • Input impedance 1k Ohms (mic/line)
  • Input sensitivity -10dB (line), -45dB (mic)
  • SNR 80dB (line), 75dB (mic)
  • Frequency response 100Hz - 18kHz

Specification : Versions

  953.183UK 953.186UK 953.189UK
Output power : rms 30W 60W 90W
Dimensions 249 x 210 x 44mm 269 x 210 x 44mm 300 x 210 x 44mm
Weight 2.35kg 2.47kg 2.99kg

Trade information

  953.183UK 953.186UK 953.189UK
Barcode / EAN 5015972216552 5015972216569 5015972216576
Package type Box Printed Box Printed Box Printed
Package dimensions 325 x 355 x 84mm 325 x 390 x 84mm 326 x 420 x 84mm
Package weight 3.31kg 3.46kg 4.18kg
Package quantity 1 unit 1 unit 1 unit
Carton dimensions 340 x 370 x 218mm 340 x 405 x 218mm 341 x 435 x 218mm
Carton weight 7.40kg 7.60kg 9.00kg
Carton quantity 2 packages 2 packages 2 packages

In the box

The box for this item contains :

  • UA series compact 100V amplifier
  • IEC power lead(s)
  • Rack-mounting hardware

Support

Instruction manual
For 953.183UK (481KB)
Instruction manual
For 953.186UK (481KB)
Instruction manual
For 953.189UK (481KB)
