UA Series Compact 100V Mixer-Amplifiers

953.183UK UA30

100V mixer-amplifiers with an integral mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Mast...

  • Supplied with hardware for rack-mounting 2 units
  • 5 input channels
  • 24V fire alarm mute contacts
Description Version Packed
953.183UK
UA30 Compact 5ch 100V MixerAmp
30W Box Label BW
953.186UK
UA60 Compact 5ch 100V MixerAmp
60W Box Label BW
953.189UK
UA90 Compact 5ch 100V MixerAmp
90W Box Label BW

Accessories

Description Version Packed
952.360UK
COM60 Paging Mic + Chime
Box Label BW

UA Series Compact 100V Mixer-Amplifiers

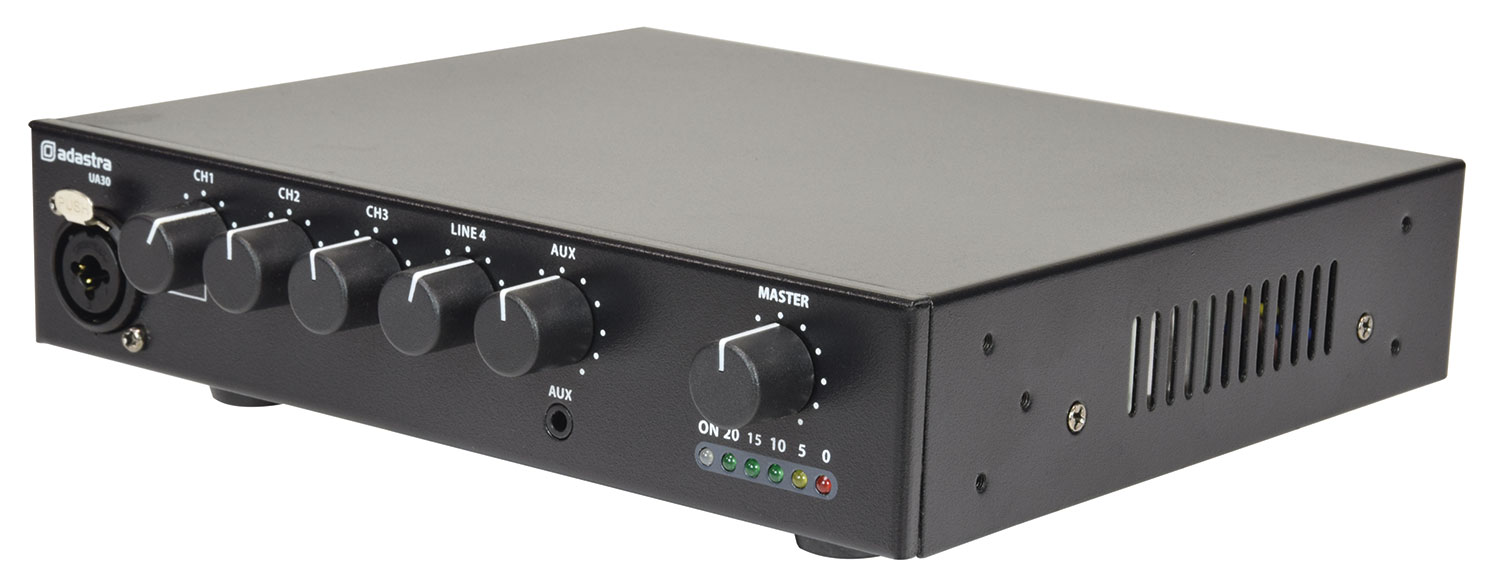

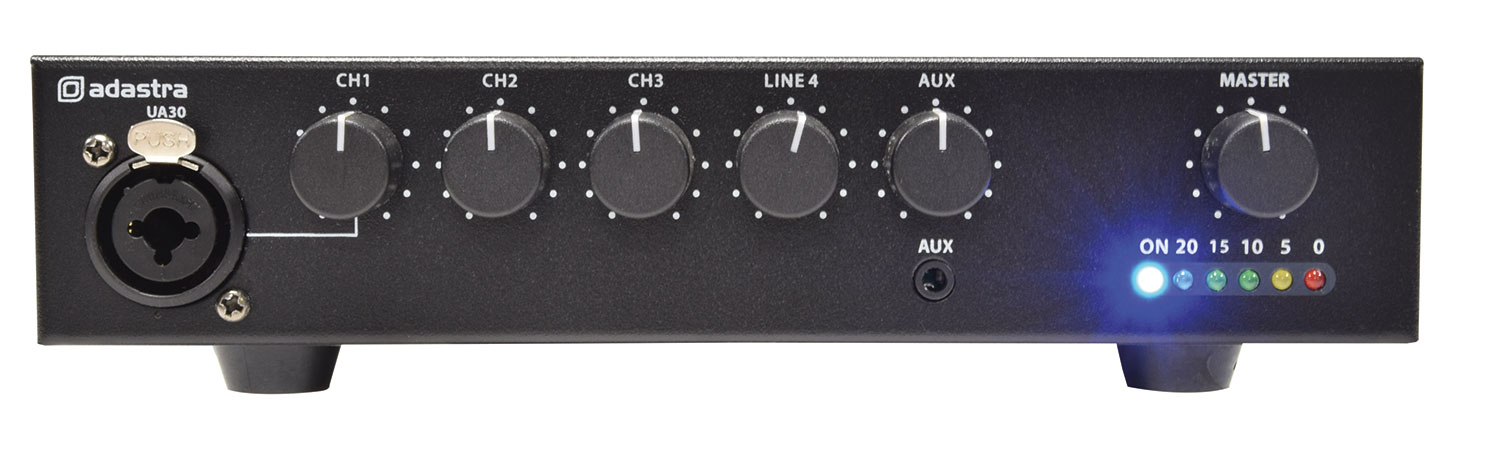

100V mixer-amplifiers with an integral mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.

  • Supplied with hardware for rack-mounting 2 units
  • 5 input channels
  • 24V fire alarm mute contacts
  • 100V line or 8 Ohms operation
  • Switchable +20V phantom power CH1
  • Power supply 170-264Vac, 50Hz (IEC)
  • Amplifier : construction Class D + transformer output

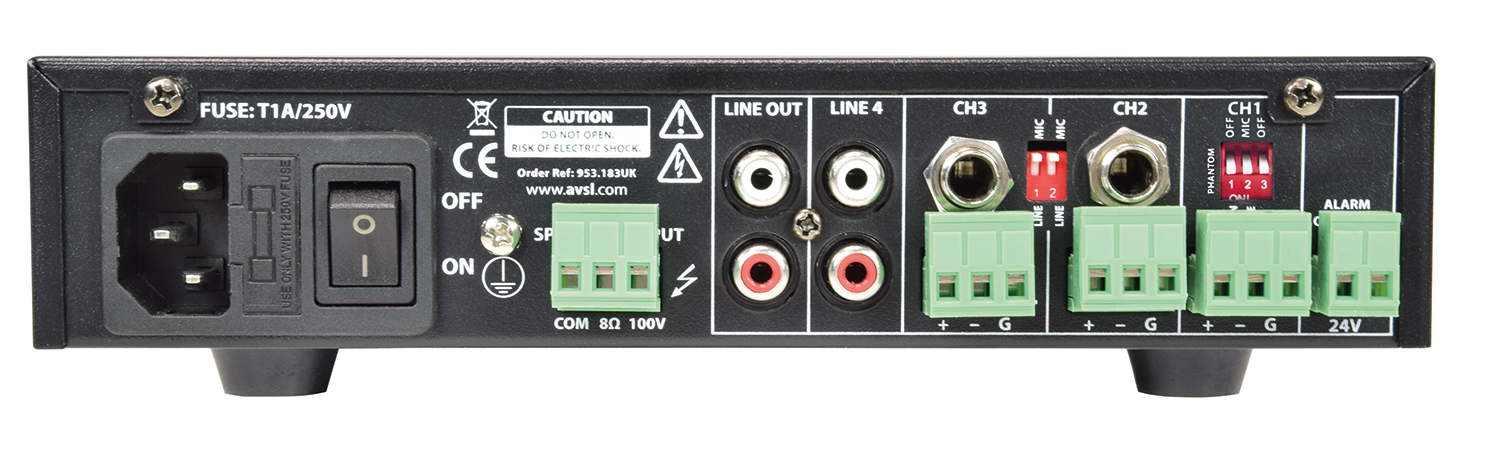

  • Inputs Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
  • Phantom power +20V CH1 (XLR or rear terminals)
  • Line output 2 x RCA (mono)
  • Speaker output Euroblock terminals: 100V / 8 Ohms / Com
  • Mute 24V relay contacts
  • THD <0.4% @ 1kHz
  • Input impedance 1k Ohms (mic/line)
  • Input sensitivity -10dB (line), -45dB (mic)
  • SNR 80dB (line), 75dB (mic)
  • Frequency response 100Hz - 18kHz

Versions

  953.183UK 953.186UK 953.189UK
Output power : rms 30W 60W 90W
Dimensions 249 x 210 x 44mm 269 x 210 x 44mm 300 x 210 x 44mm
Weight 2.35kg 2.47kg 2.99kg

Support : articles

Amplifier Classes

There have been many developments in audio electronics, resulting in different amplifier circuit designs. Such designs can be divided into classes, of which 4 main types are relevant to audio – A, AB, H and D.

Friday, 28th February 2020

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • UA series compact 100V amplifier
  • IEC power lead(s)
  • Rack-mounting hardware
