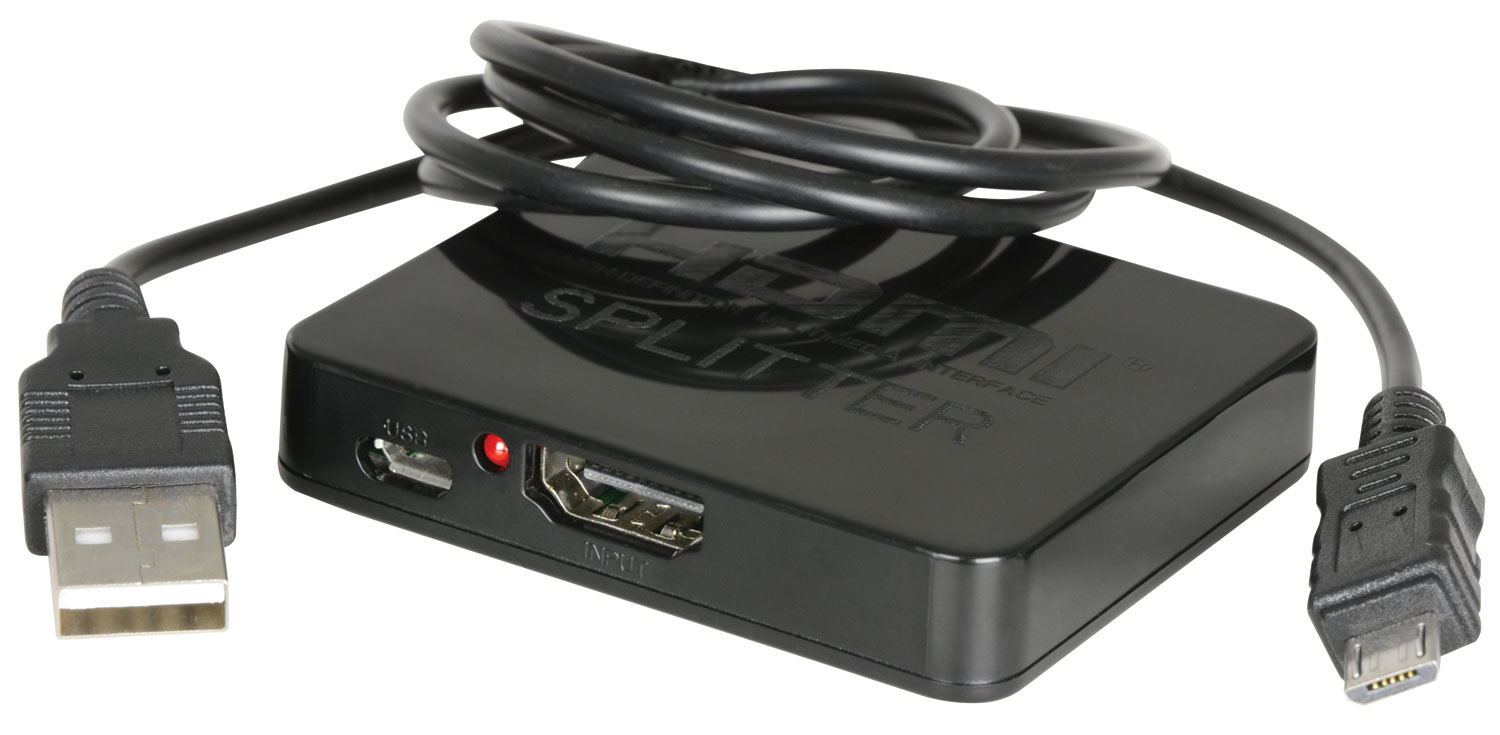

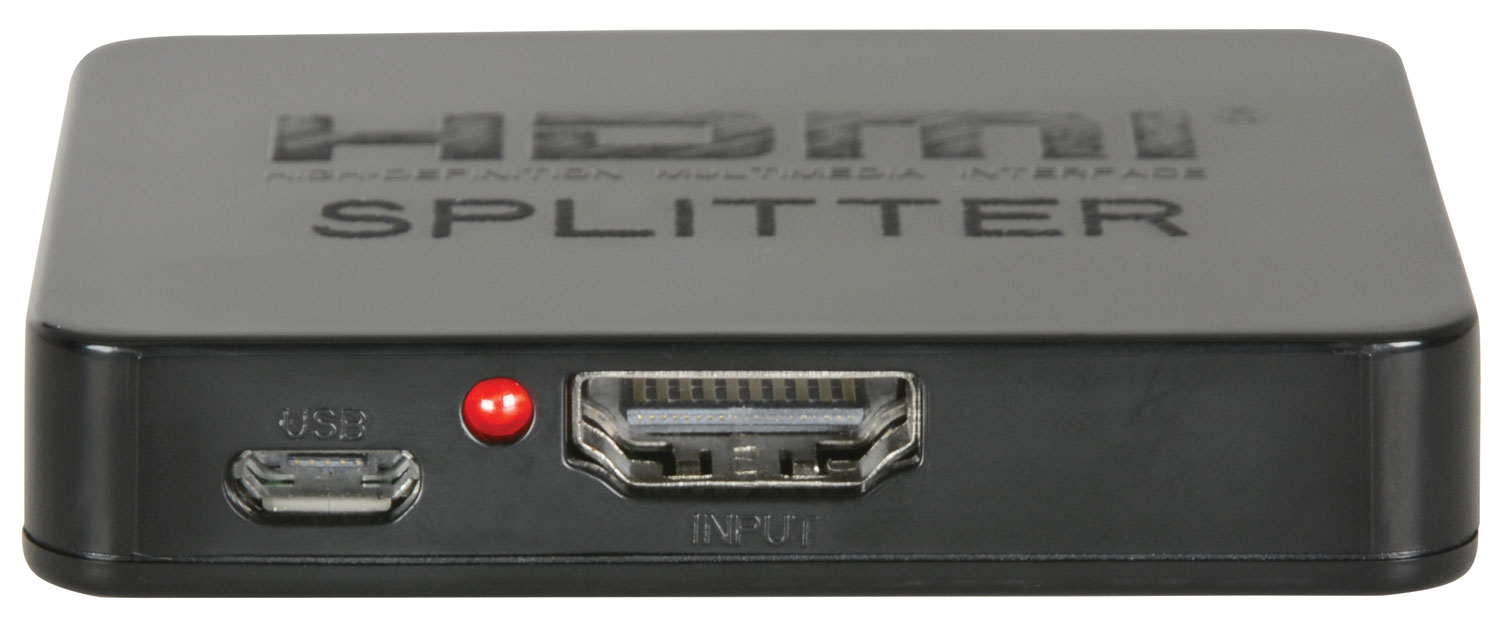

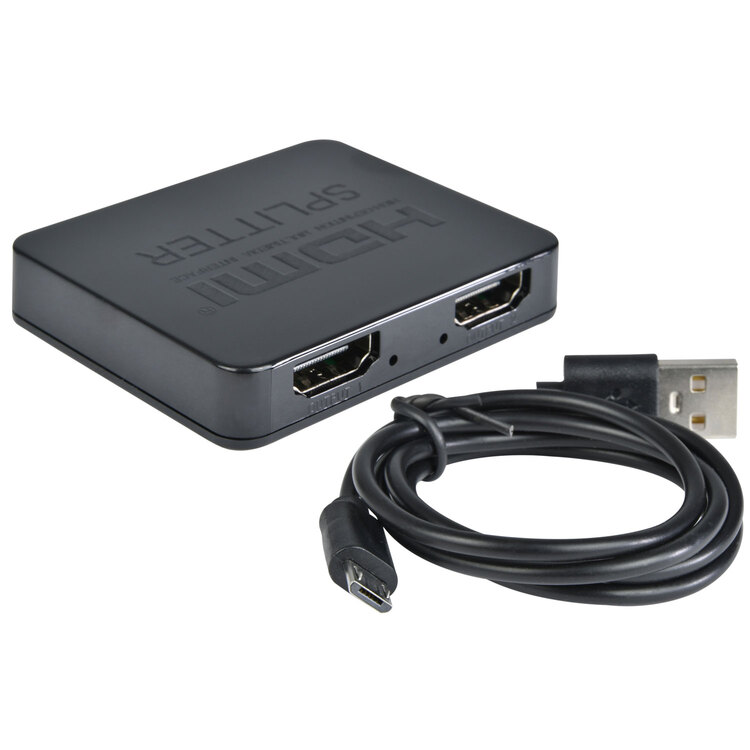

4K Mini HDMI Splitter 1x2

128.825UK HDP12M

This 4K compatible mini HDMI splitter allows a single HDMI source to be connected to two displays at the same time. Supplied with an additional USB power lead should it be required, it can also be ...

  • Small form factor chassis
  • No power needed, unit works using the power carried by your HDMI cables
  • Live output LEDs
Full description Find retailer
Description Version Packed
128.825UK
Mini HDMI Splitter 1x2 		Blister

4K Mini HDMI Splitter 1x2

This 4K compatible mini HDMI splitter allows a single HDMI source to be connected to two displays at the same time. Supplied with an additional USB power lead should it be required, it can also be placed at the end of a long HDMI cable to regenerate the signal.

  • Small form factor chassis
  • No power needed, unit works using the power carried by your HDMI cables
  • Live output LEDs
  • Supports 4K, up to 1080p, 3D and up to 36bit colour image formats
  • Supports DTS-HD, Dolby-trueHD, DTS/Dolby-AC3, DSD HD (HBR) formats
  • HDCP2.2 Compliant
  • Supplied with additional USB power cable to use if required
  • HDMI version 1.4a
  • Video format 4K, Up to 1080p @ 60Hz, 3D, 36bit deep colour
  • Audio format DTS-HD, Dolby-trueHD, DTS/Dolby-AC3, DSD HD(HBR)
  • Operating temperature range -15 to +55°C
  • Max. bandwidth 340MHz
  • Max. baud rate 3.4Gbps
  • Max. working current 350mA
  • Dimensions 62 x 51 x 11mm
  • Weight 31g

In the box

The box for this item contains :

  • HDMI Splitter 1x2, USB Power Lead, User Manual

Downloads

Instruction manual
For 128.825UK (455KB)
UK Declaration of conformity
For 128.825UK (249KB)
EU Declaration of conformity
For 128.825UK (236KB)

Alternative

128.826UK HDS12
4K HDMI Splitter
1x2
4K HDMI splitter to connect a single HDMI source to multiple displays at the same time. Use with HDMI cables of a combined 25m per output for HD resolution, or a combined 16m per output for 4K.
