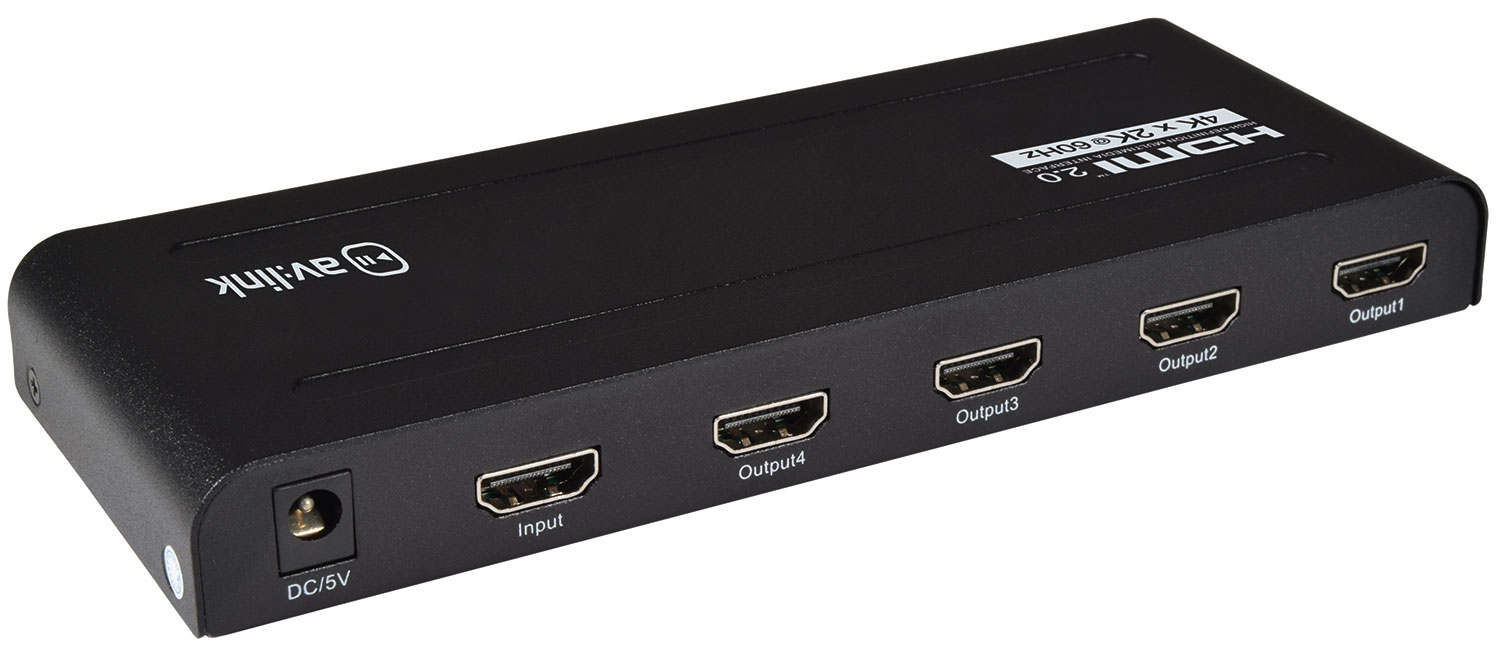

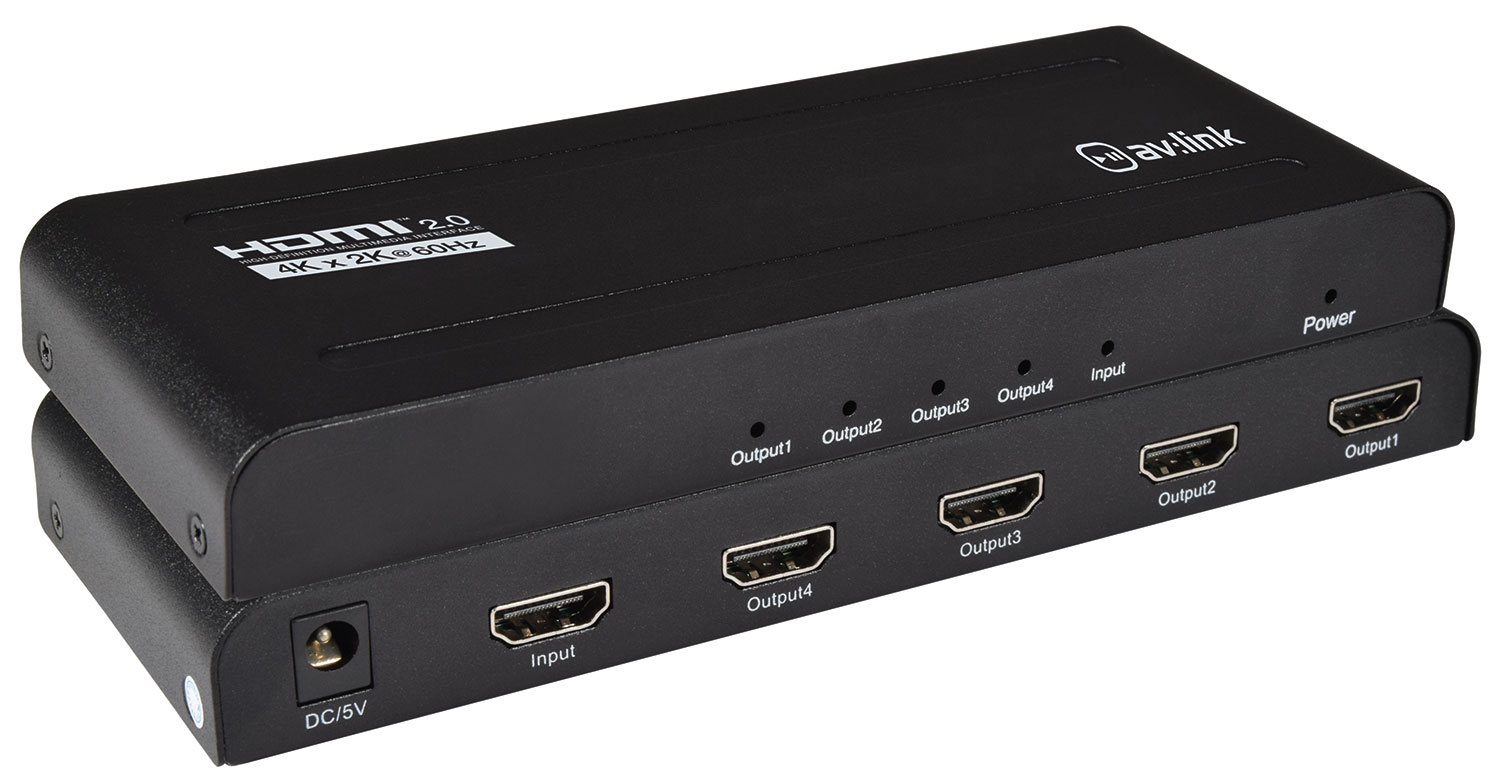

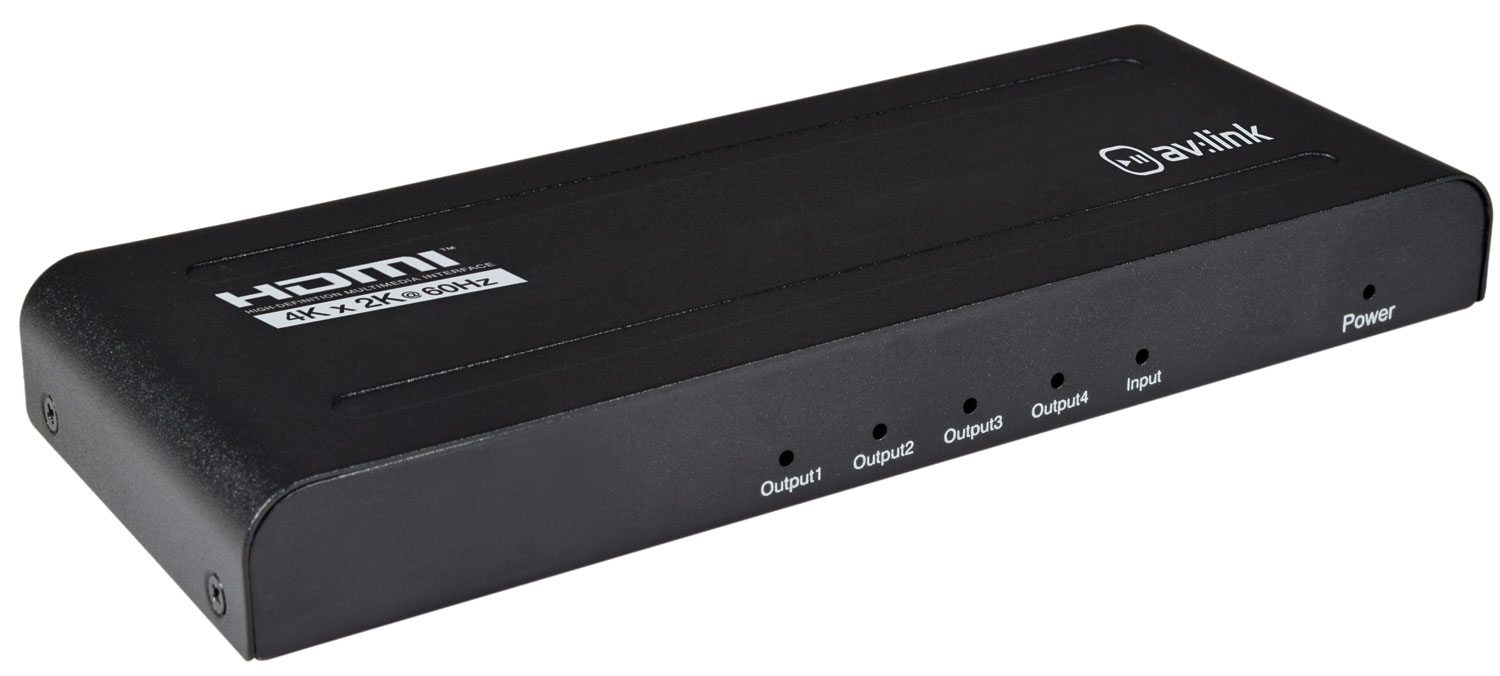

4K HDMI Splitter

Slimline 4K HDMI splitters to easily connect a single HDMI source to multiple displays at the same time. This updated version will support HDMI resolutions up to 3840 x 2160 @ 60Hz, compatible with the latest digital TV boxes and games consoles.

• Supports HDMI resolutions up to 3840 x 2160 @ 60Hz for compatibility with the latest 4K digital TV boxes and games consoles.
• Simple connection and installation
• Sleek design with tough metal chassis
• Gold plated HDMI connectors for optimum signal transfer
• Supports DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD audio formats

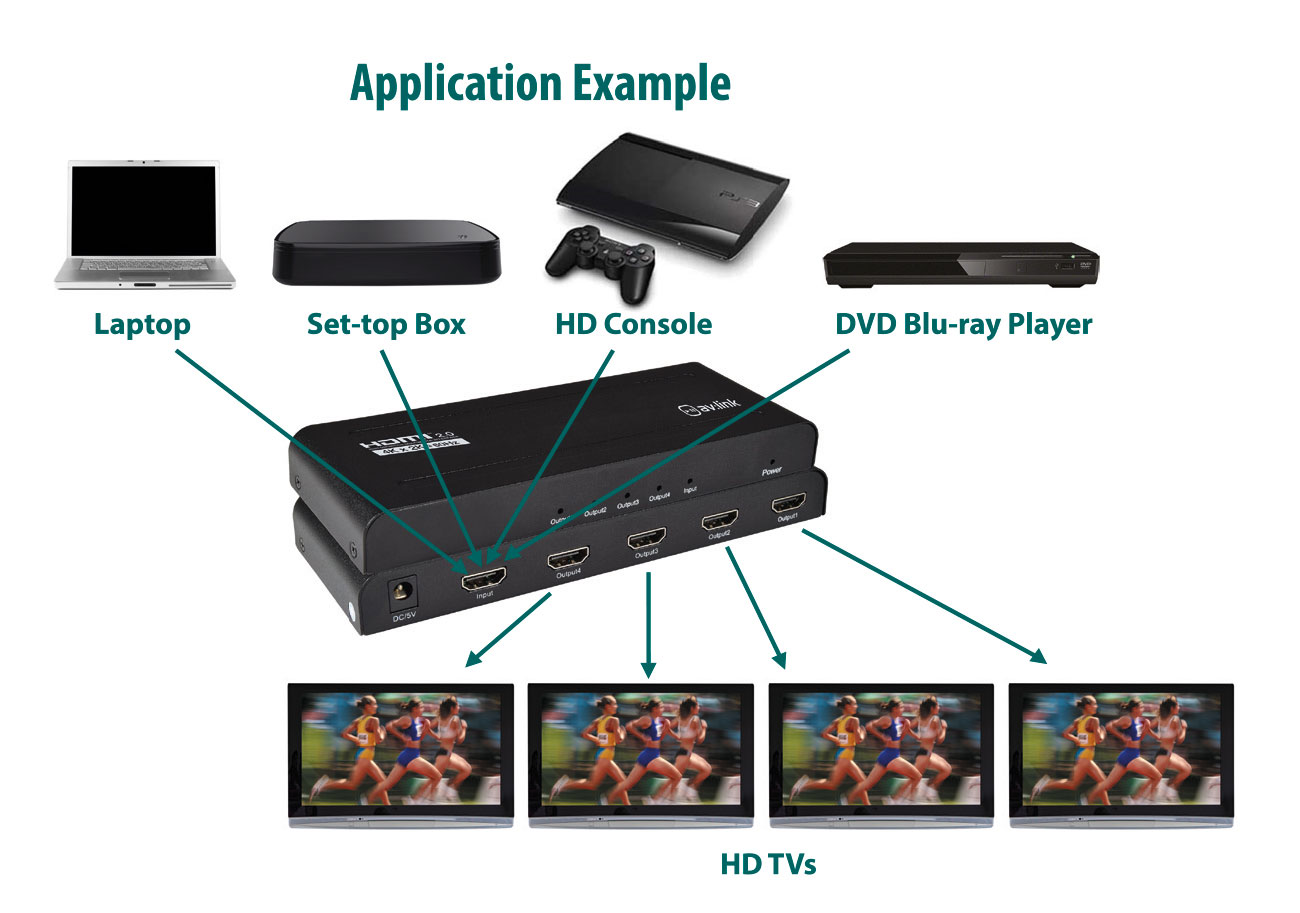

• Ideal for entertainment, hospitality and other commercial venues requiring multiple display feeds from a single HDMI source
• UK power adaptor supplied

• Weight 230g
• Dimensions 178 x 67 x 23mm
• Power supply Input: AC (50Hz, 60Hz) 100-240V, Output: DC5V/1A
• Max. working current 650mA
• Max. baud rate 6Gbps
• Output connections 4x HDMI
• Video resolution Up to 3840 x 2160 @ 60Hz
• Display colours 8/10/12bit deep colour
• Audio format DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD
• HDCP version 2.2
• Max. bandwidth 600MHz
• Transmission distance 35m max 4K @ 30Hz and FHD or 10m max 4K @ 60Hz
• Operating temperature range -15°C to +55°C
