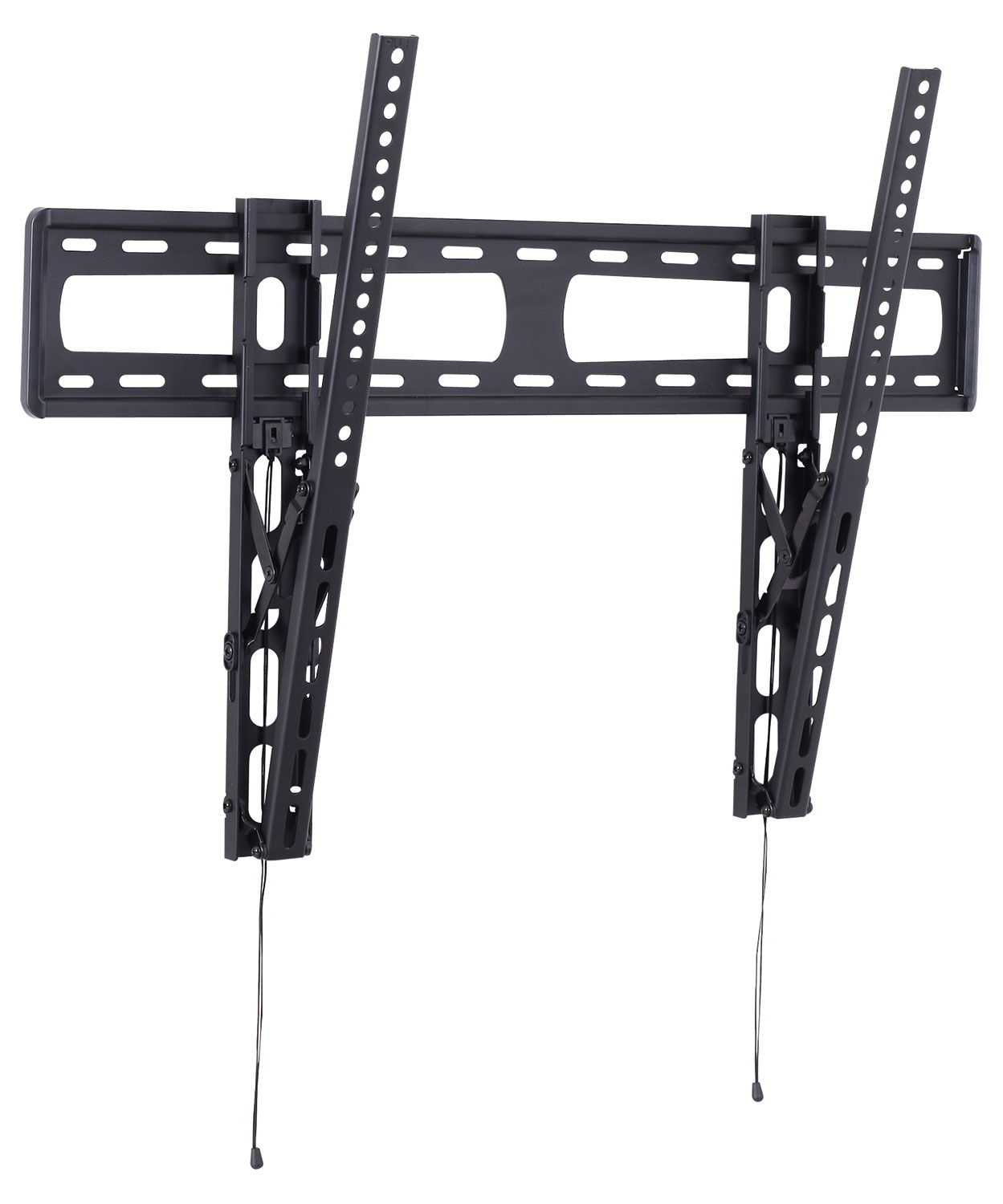

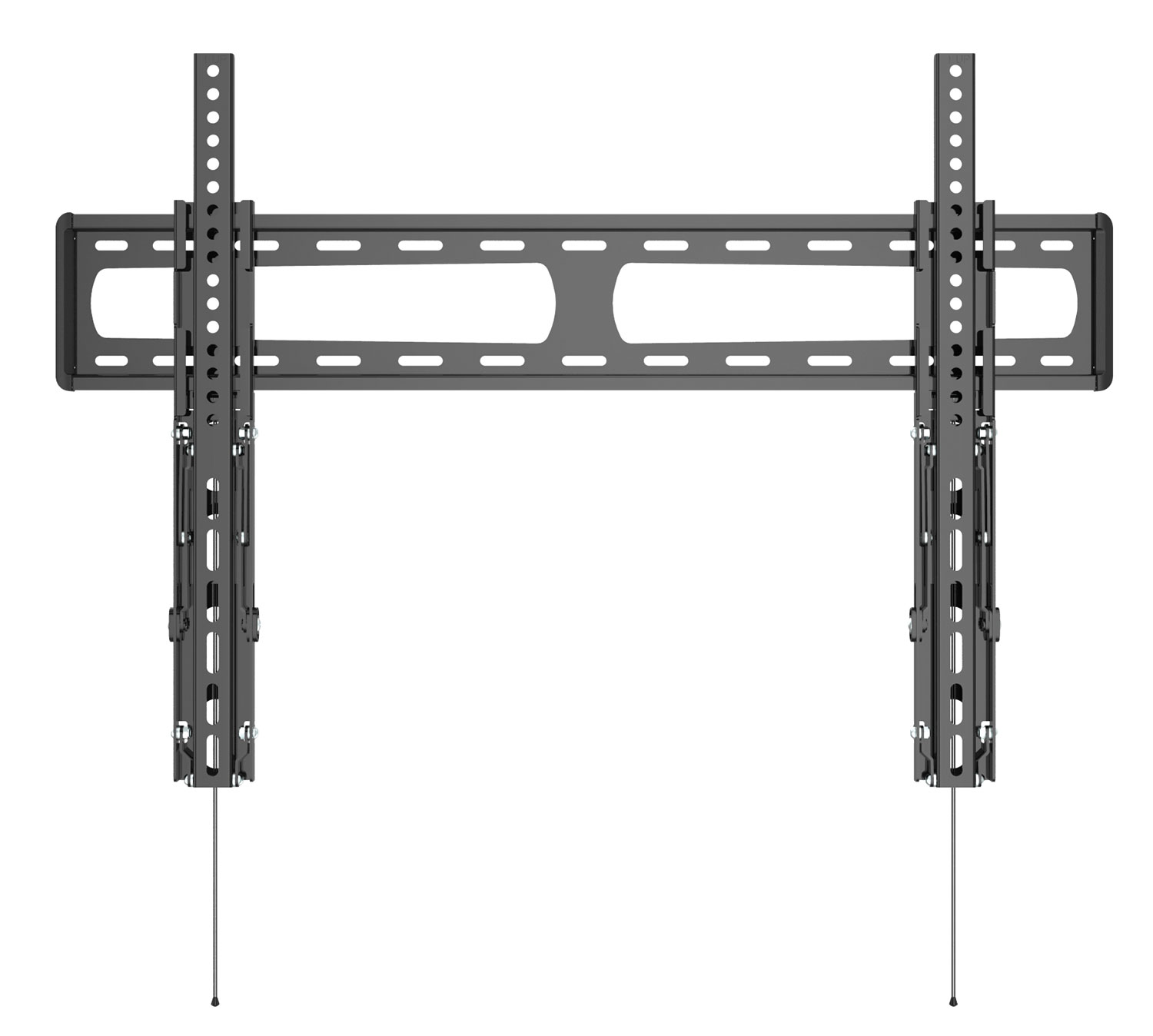

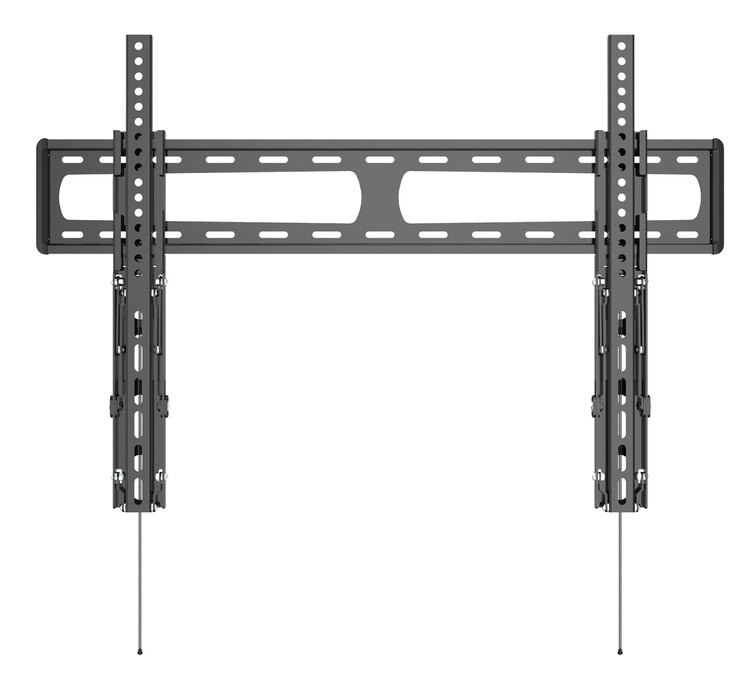

Tilting Ultra Slim TV Bracket for Large Screens 47" to 90"

129.326UK LPT800

A professional quality, easy to assemble tilting wall mounting for the latest VESA 800 TV's up to 90" in screen size. Designed for hassle free mounting and removal of the TV when required, the self...

  • Suitable for most 47" to 90" TV's
  • Low profile design sits only 26mm from the mounting surface
  • Maximum weight load 60kg
Description Version Packed
129.326UK
Tilting Ultra Slim TV Bracket for Screens 47" to 90"
Gift Box

Tilting Ultra Slim TV Bracket for Large Screens 47" to 90"

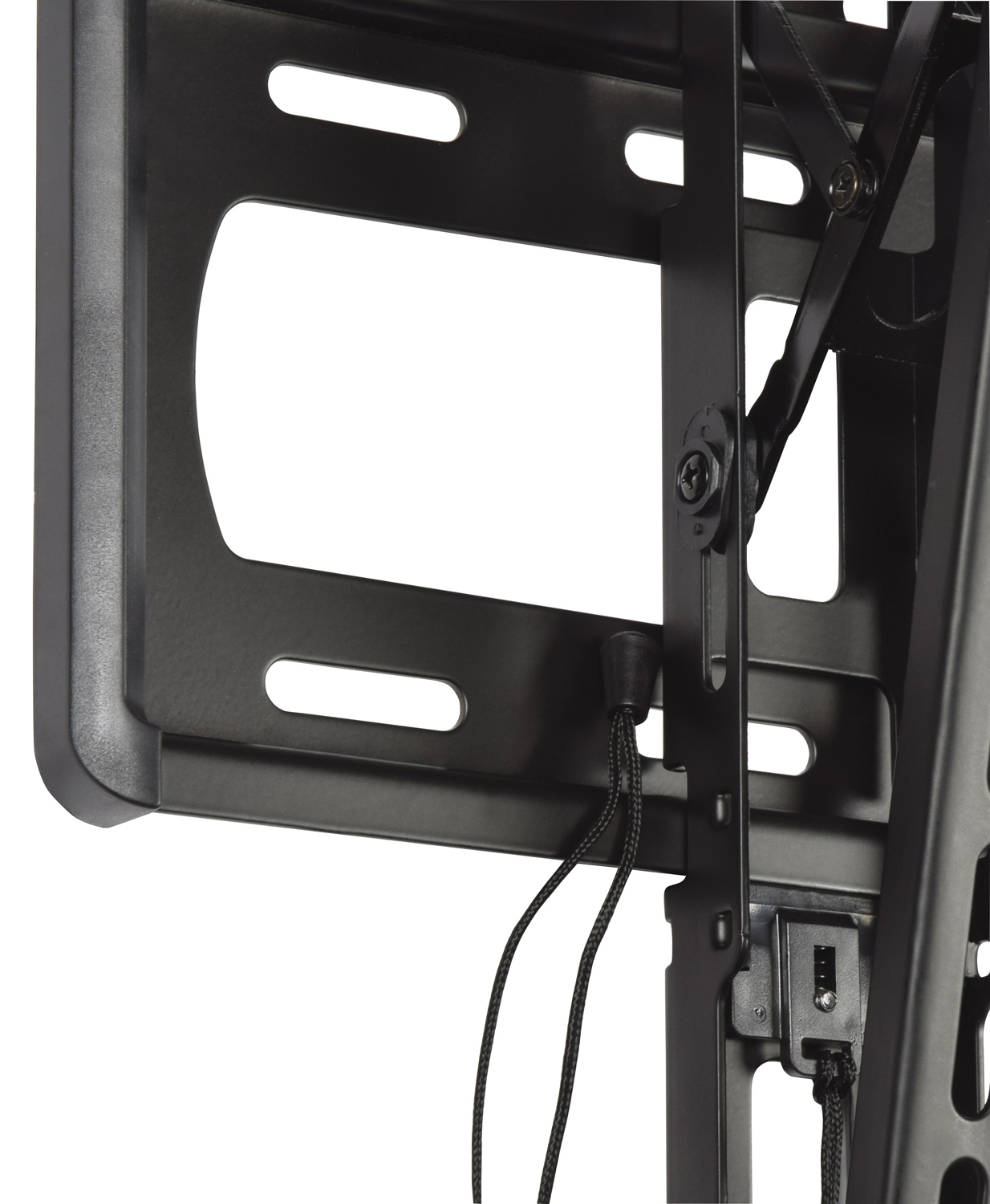

A professional quality, easy to assemble tilting wall mounting for the latest VESA 800 TV's up to 90" in screen size. Designed for hassle free mounting and removal of the TV when required, the self-locking mechanism can be opened by simply pulling on 2 drawstrings that hang either side of the unit. The smooth, accurate tilting mechanism provides an additional 12° tilt angle should your mounting position require it.

  • Suitable for most 47" to 90" TV's
  • Low profile design sits only 26mm from the mounting surface
  • Maximum weight load 60kg
  • Maximum 800x600 VESA compatible
  • Up to 12° tilt angle adjustment if required
  • Wide range of fixings supplied
  • Max. VESA 800x600
  • Max. weight load 60kg
  • Screen size 47" to 90"
  • Distance from wall 26mm
  • Tilt angle adjustment 0° to 12°
  • Dimensions 912 x 630mm (H x W)
  • Weight 5kg

In the box

The box for this item contains :

  • 1pc TV bracket
  • 4pcs M6 x 16mm
  • 4pcs M8 x 16mm
  • 4pcs M8 x 25mm
  • 4pcs M10 x 16mm
  • 4pcs M8 washer
  • 4pcs M10 washer
  • 6pcs Wall screw
  • 6pcs Wall plug
  • 4pcs Spacer
  • 1pc Magnetic spirit level (removable)
  • 1pc User guide

Videos

AV:LINK TV Brackets and Projector Brackets Overview

Downloads

Instruction manual
For 129.326UK (4.6MB)
