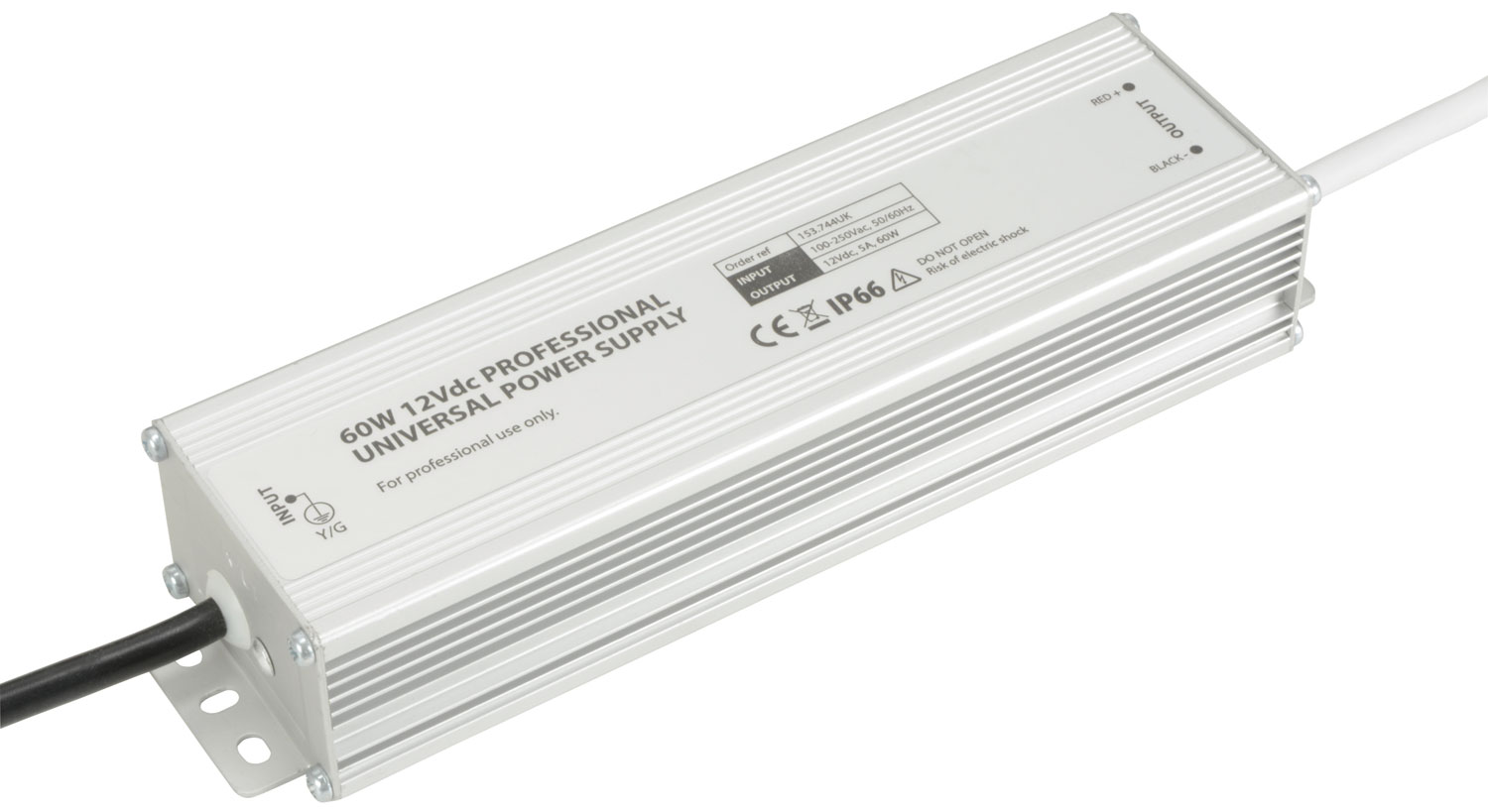

Universal 12Vdc Power Supplies
153.744UK
PS60
A range of IP67 rated 12Vdc power supplies, available in a range of power output ratings from 30W to 150W, suitable for both indoor and outdoor LED Tape & lighting installations. For professional u...
- Ideal for 12Vdc LED Tape and Lighting Installations
- 1 or 2 outputs for loop output connection
- Waterproof IP67 rated
Universal 12Vdc Power Supplies
A range of IP67 rated 12Vdc power supplies, available in a range of power output ratings from 30W to 150W, suitable for both indoor and outdoor LED Tape & lighting installations. For professional use only.
- Ideal for 12Vdc LED Tape and Lighting Installations
- 1 or 2 outputs for loop output connection
- Waterproof IP67 rated
- Professional use power supplies
Specification : Common
- Power supply 170-250Vac, 50/60Hz
- Voltage out 12Vdc
- IP rating IP67
Specification : Versions
| 153.754UK | 153.753UK | 153.744UK | 153.755UK | 153.756UK | |
|---|---|---|---|---|---|
| Max power output | 30W | 45W | 60W | 100W | 150W |
| Max. current | 2.5A | 3.75A | 5A | 8.3A | 12.5A |
| Output feeds | 1 | 1 | 1 | 1 | 2 |
| Dimensions | 190 x 29 x 20mm | 230 x 33 x 24mm | 195 x 53 x 36mm | 215 x 51 x 35mm | 244 x 72 x 45mm |
| Weight | 208g | 397g | 565g | 610g | 2.75kg |
Trade information
| 153.754UK | 153.753UK | 153.744UK | 153.755UK | 153.756UK | |
|---|---|---|---|---|---|
| Barcode / EAN | 5015972114254 | 5015972114247 | 5015972062364 | 5015972114278 | 5015972114292 |
| Tariff code | 8504409090 | 8504409090 | 8504409090 | 8504409090 | 8504409090 |
| Country of Origin | CN | CN | CN | CN | CN |
| Package type | Box Label BW | Box Label BW | Box Label BW | Box Label BW | Box Label BW |
| Package dimensions | 40 x 195 x 35mm | 40 x 225 x 35mm | 60 x 260 x 35mm | 60 x 220 x 40mm | 90 x 262 x 48mm |
| Package weight | 0.31kg | 0.27kg | 0.45kg | 0.68kg | 1.30kg |
| Package quantity | 1 unit | 1 unit | 1 unit | 1 unit | 1 unit |
| Carton dimensions | 235 x 345 x 175mm | 210 x 360 x 200mm | 270 x 310 x 220mm | 230 x 250 x 210mm | 260 x 273 x 200mm |
| Carton weight | 16.50kg | 14.50kg | 14.50kg | 14.50kg | 14.00kg |
| Carton quantity | 50 packages | 50 packages | 50 packages | 20 packages | 10 packages |
| Pack paper weight | 0.02kg | 0.02kg | 0.02kg | 0.34kg | 0.00kg |
Support
Instruction manual
For 153.744UK (169KB)
For 153.744UK (169KB)
Instruction manual
For 153.754UK (169KB)
For 153.754UK (169KB)
Instruction manual
For 153.753UK (169KB)
For 153.753UK (169KB)
Instruction manual
For 153.756UK (169KB)
For 153.756UK (169KB)
Instruction manual
For 153.755UK (169KB)
For 153.755UK (169KB)
