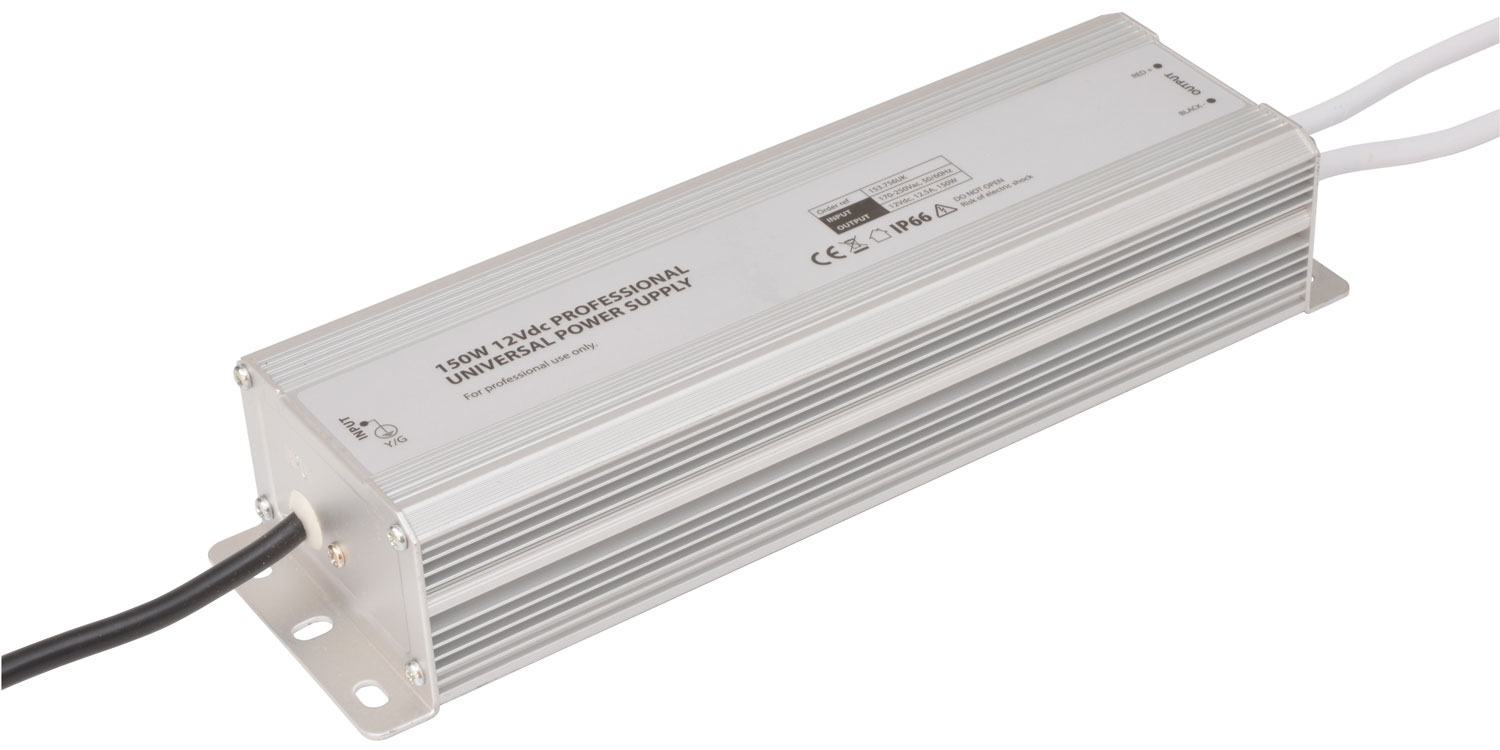

Universal 12Vdc Power Supplies
153.756UK
PS150
A range of IP67 rated 12Vdc power supplies, available in a range of power output ratings from 30W to 150W, suitable for both indoor and outdoor LED Tape & lighting installations. For professional u...
- Ideal for 12Vdc LED Tape and Lighting Installations
- 1 or 2 outputs for loop output connection
- Waterproof IP67 rated
Universal 12Vdc Power Supplies
A range of IP67 rated 12Vdc power supplies, available in a range of power output ratings from 30W to 150W, suitable for both indoor and outdoor LED Tape & lighting installations. For professional use only.
- Ideal for 12Vdc LED Tape and Lighting Installations
- 1 or 2 outputs for loop output connection
- Waterproof IP67 rated
- Professional use power supplies
- Power supply 185-250Vac, 50/60Hz
- Voltage out 12Vdc
- IP rating IP67
Versions
| 153.754UK | 153.753UK | 153.744UK | 153.755UK | 153.756UK | |
|---|---|---|---|---|---|
| Max power output | 30W | 45W | 60W | 100W | 150W |
| Max. current | 2.5A | 3.75A | 5A | 8.3A | 12.5A |
| Output feeds | 1 | 1 | 1 | 1 | 2 |
| Dimensions | 190 x 29 x 20mm | 230 x 33 x 24mm | 195 x 53 x 36mm | 215 x 51 x 35mm | 244 x 72 x 45mm |
| Weight | 208g | 397g | 565g | 610g | 2.75kg |
Downloads
Instruction manual
For 153.756UK (169KB)
For 153.756UK (169KB)
UK Declaration of conformity
For 153.756UK (248KB)
For 153.756UK (248KB)
EU Declaration of conformity
For 153.756UK (238KB)
For 153.756UK (238KB)
