Universal 12Vdc Power Supplies

153.753UK PS40

A range of IP67 rated 12Vdc power supplies, available in a range of power output ratings from 30W to 150W, suitable for both indoor and outdoor LED Tape & lighting installations. For professional u...

  • Ideal for 12Vdc LED Tape and Lighting Installations
  • 1 or 2 outputs for loop output connection
  • Waterproof IP67 rated
Description Version Packed
153.754UK
Power Supply 12Vdc 2.5A 30W
12Vdc 2.5A 30W Box Label BW

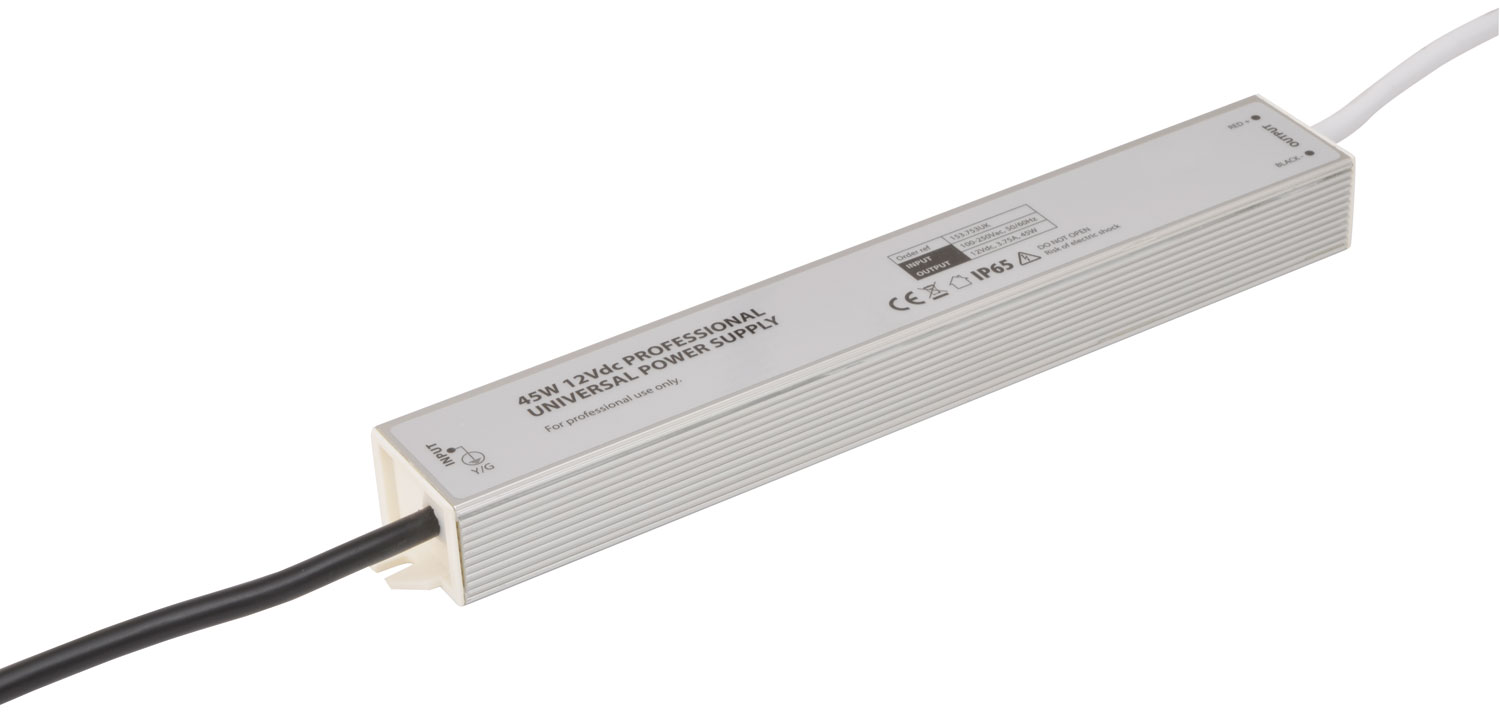

153.753UK
Power Supply 12Vdc 3.75A 45W
12Vdc 3.75A 45W Box Label BW
153.744UK
Power Supply 12Vdc 5A 60W
12Vdc 5A 60W Box Label BW
153.755UK
Power Supply 12Vdc 8.3A 100W
12Vdc 8.3A 100W Box Label BW
153.756UK
Power Supply 12Vdc 12.5A 150W
12Vdc 12.5A 150W Box Label BW

Universal 12Vdc Power Supplies

A range of IP67 rated 12Vdc power supplies, available in a range of power output ratings from 30W to 150W, suitable for both indoor and outdoor LED Tape & lighting installations. For professional use only.

  • Ideal for 12Vdc LED Tape and Lighting Installations
  • 1 or 2 outputs for loop output connection
  • Waterproof IP67 rated
  • Professional use power supplies
  • Power supply 170-250Vac, 50/60Hz
  • Voltage out 12Vdc
  • IP rating IP67

Versions

  153.754UK 153.753UK 153.744UK 153.755UK 153.756UK
Max power output 30W 45W 60W 100W 150W
Max. current 2.5A 3.75A 5A 8.3A 12.5A
Output feeds 1 1 1 1 2
Dimensions 190 x 29 x 20mm 230 x 33 x 24mm 195 x 53 x 36mm 215 x 51 x 35mm 244 x 72 x 45mm
Weight 208g 397g 565g 610g 2.75kg

Downloads

Instruction manual
For 153.753UK (169KB)
UK Declaration of conformity
For 153.753UK (250KB)
EU Declaration of conformity
For 153.753UK (238KB)
