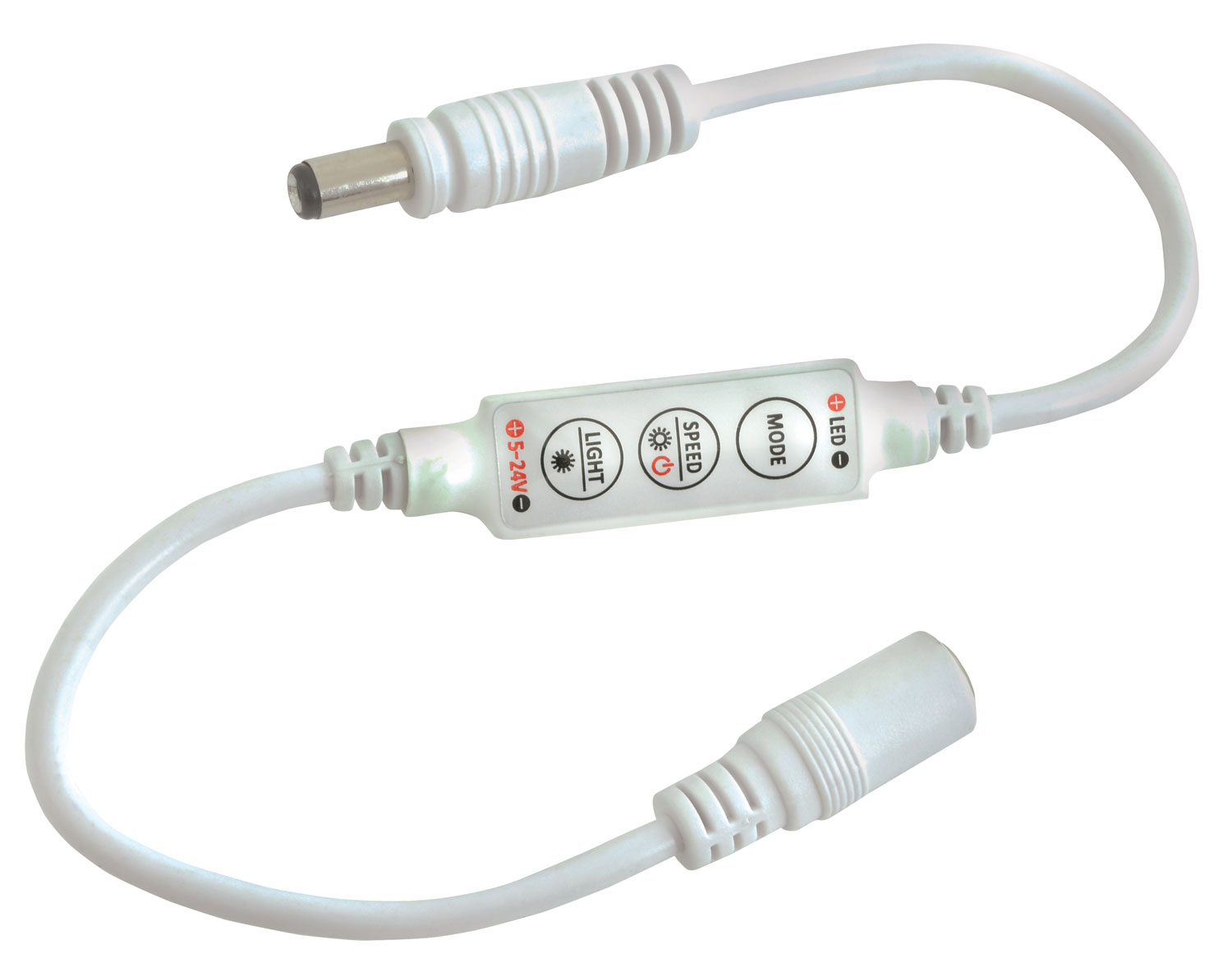

In-line Single Colour LED Tape Controller

153.795UK ISDC1

In-line low voltage single colour LED tape controller with 3 button control for dimming and internal sequence programs. Convenient DC jack input and output connections in a compact and easy-to-use ...

  • Compatible with single colour LED tape 5-24Vdc
  • Discreet, miniature design
Full description Find retailer
Description Version Packed
153.795UK
Single colour LED tape controller with DC jacks 		Poly Bag

In-line Single Colour LED Tape Controller

In-line low voltage single colour LED tape controller with 3 button control for dimming and internal sequence programs. Convenient DC jack input and output connections in a compact and easy-to-use format.

  • Compatible with single colour LED tape 5-24Vdc
  • Discreet, miniature design
  • Power supply 5 - 24Vdc
  • Controls Mode, speed (off), light (dim)
  • Wire length 136mm
  • Input 2.1mm x 5.5mm DC jack socket
  • Output 2.1mm x 5.5mm DC jack plug
  • Continuous current 6A
  • Current max. 12A
  • Dimensions : controller 42 x 13 x 5mm
  • Weight : controller 3g

Downloads

Instruction manual
For 153.795UK (1.3MB)
UK Declaration of conformity
For 153.795UK (248KB)
EU Declaration of conformity
For 153.795UK (237KB)
