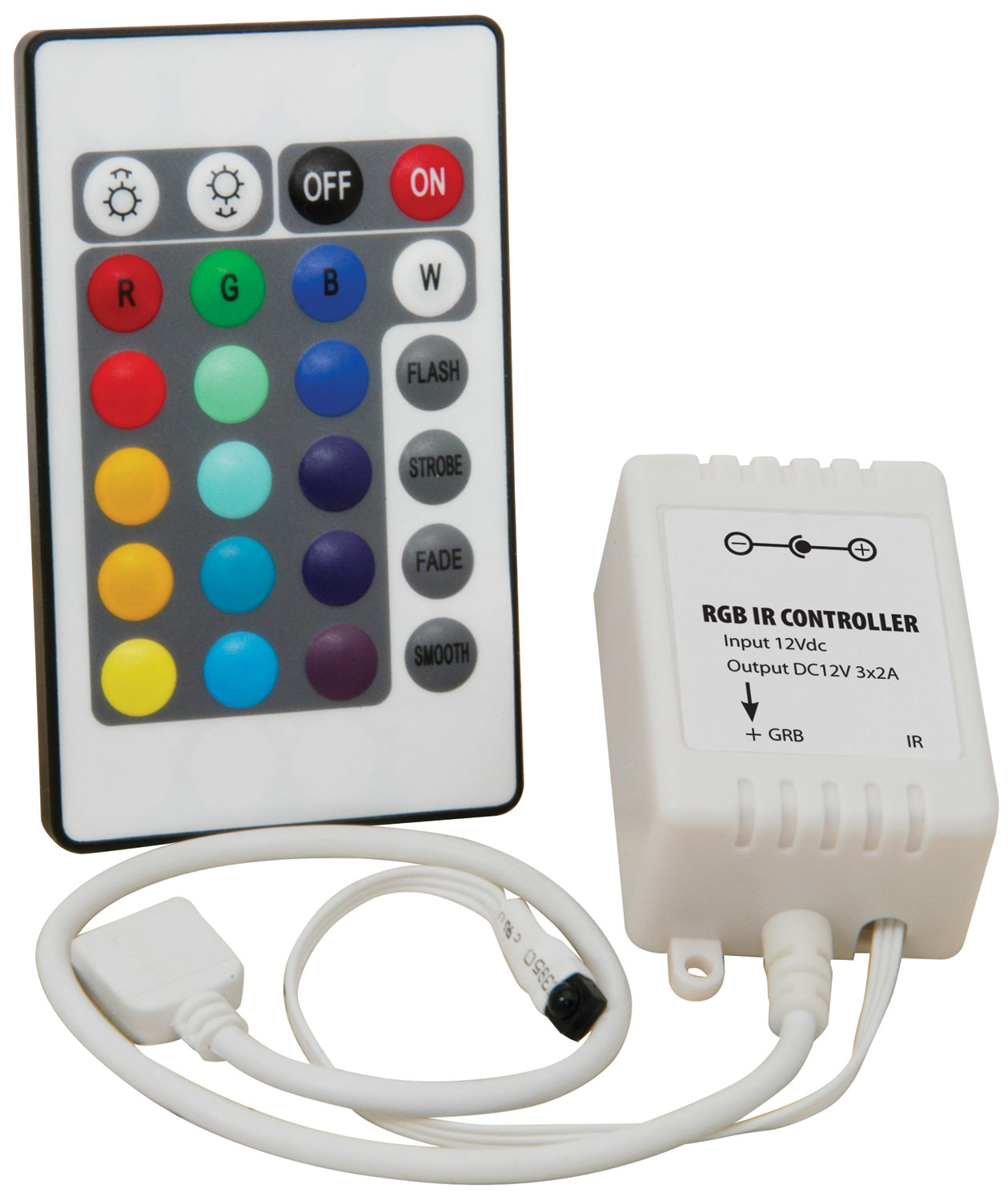

RGB LED Tape Controller with 24 Key IR Remote

153.741UK LTC22IR

RGB controller for LED tape operated by an IR remote control for selecting the static colour, brightness or colour changing operating mode.

  • Ideal for use in small applications
  • 16 preset static colour modes
  • 4 different colour changing modes of operation
Description Version Packed
153.741UK
RGB Controller for LED tape with IR remote control
Box Label BW

RGB LED Tape Controller with 24 Key IR Remote

RGB controller for LED tape operated by an IR remote control for selecting the static colour, brightness or colour changing operating mode.

  • Ideal for use in small applications
  • 16 preset static colour modes
  • 4 different colour changing modes of operation
  • Adjustable brightness
  • Supplied with small handheld IR remote
  • IR remote controlled up to 10m (in line of sight)
  • Mounting points for attachment to a wall or other surfaces
  • Power supply 12Vdc (2.1mm DC socket)
  • Max. current per channel 3 x 2A
  • Remote battery 1 x CR2025
  • Remote range 10m (line of sight)
  • Dimensions (remote) 85 x 55 x 8mm
  • Weight (remote) 21g
  • Dimensions (controller) 35 x 50 x 25mm
  • Weight (controller) 30g

Downloads

Instruction manual
For 153.741UK (115KB)
UK Declaration of conformity
For 153.741UK (243KB)
EU Declaration of conformity
For 153.741UK (231KB)
