RGBW Sound Active LED Controller
2-in-1 sound active controller for RGBW or RGB LED tape with a 24-key handheld RF remote control. Capable of operating 5V to 24V tape with up to 5A output per channel (R/G/B) or 4A per channel (R/G...
- 8 static colours
- 3 sound or audio activated programs
- 3 auto sequences with speed control
| Description | |
|---|---|
|
153.743UK
RGBW Sound Active Controller |

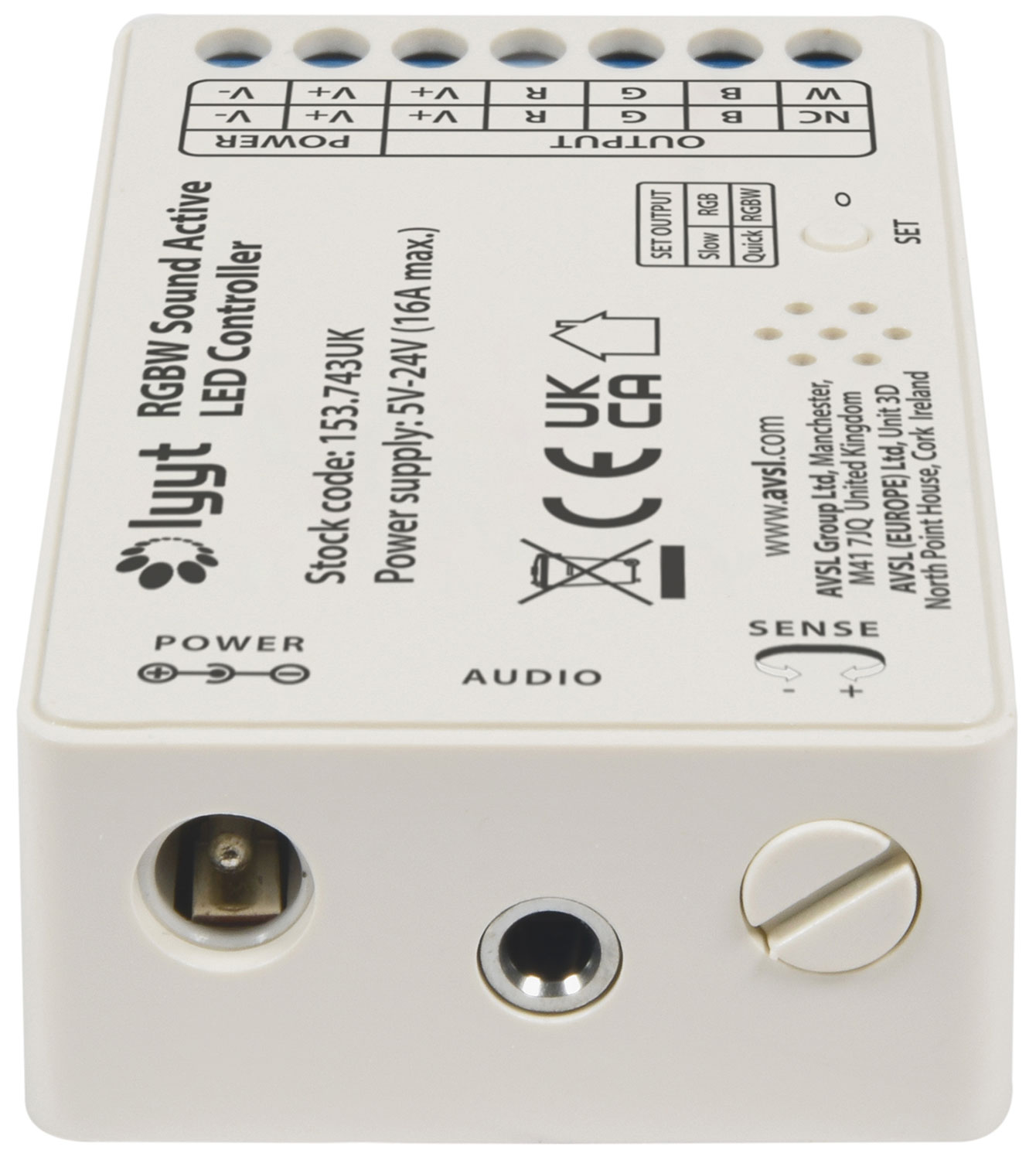

RGBW Sound Active LED Controller
2-in-1 sound active controller for RGBW or RGB LED tape with a 24-key handheld RF remote control. Capable of operating 5V to 24V tape with up to 5A output per channel (R/G/B) or 4A per channel (R/G/B/W). Options for 8 static colours, 3 auto sequences with speed control, 3 sound-activated sequences and sensitivity control. Adjust the brightness and use the colour scroll to choose from 1024 colours and save as DIY mode. Operating with this controller enables RGB or RGBW tape to give sound-reactive colour to architectural features or signage. Ideal for use at a party, bar, night club, on stage etc.
- 8 static colours
- 3 sound or audio activated programs
- 3 auto sequences with speed control
- Colour scroll 1024 colours and save as DIY mode
- Sensitivity control
- Includes RF handheld remote
- Power supply 5V-24V (16A max.)
- Battery : remote CR2025 Lithium Cell (supplied)

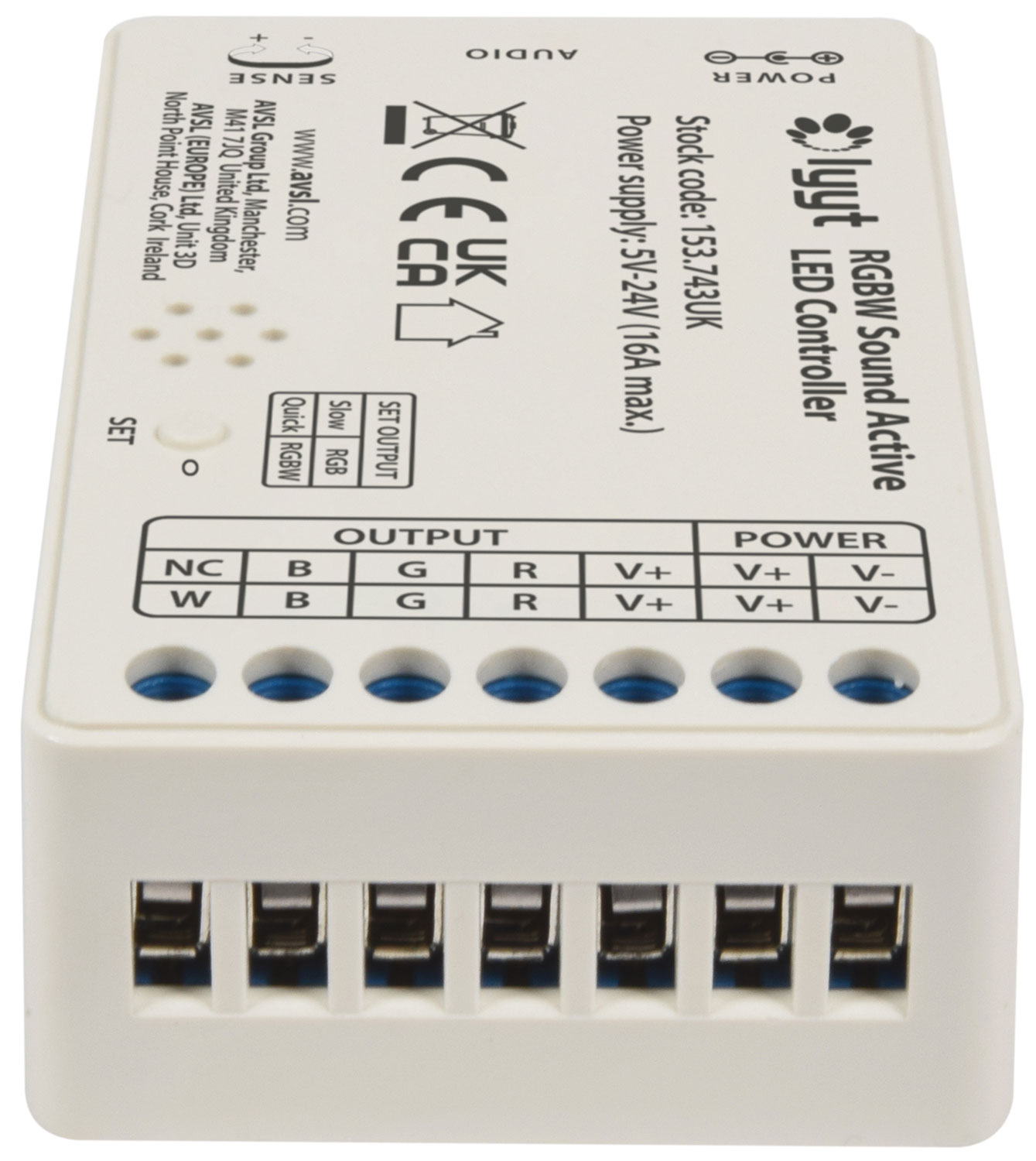

- Output W / B / G / R / V+ screw terminals
- Power connection DC5521 Jack or screw terminals
- Carrier frequency 433.92MHz
- Audio in connector 3.5mm mono jack
- Indicators RGB or RGBW mode
- Dimensions 75 x 43 x 20mm
- Weight 84g
In the box
The box for this item contains :
- RGBW Sound active LED controller
- RF handheld remote
Downloads
For 153.743UK (524KB)
For 153.743UK (250KB)
For 153.743UK (238KB)
