Matrix Pro: 10 x 10 Matrix Light

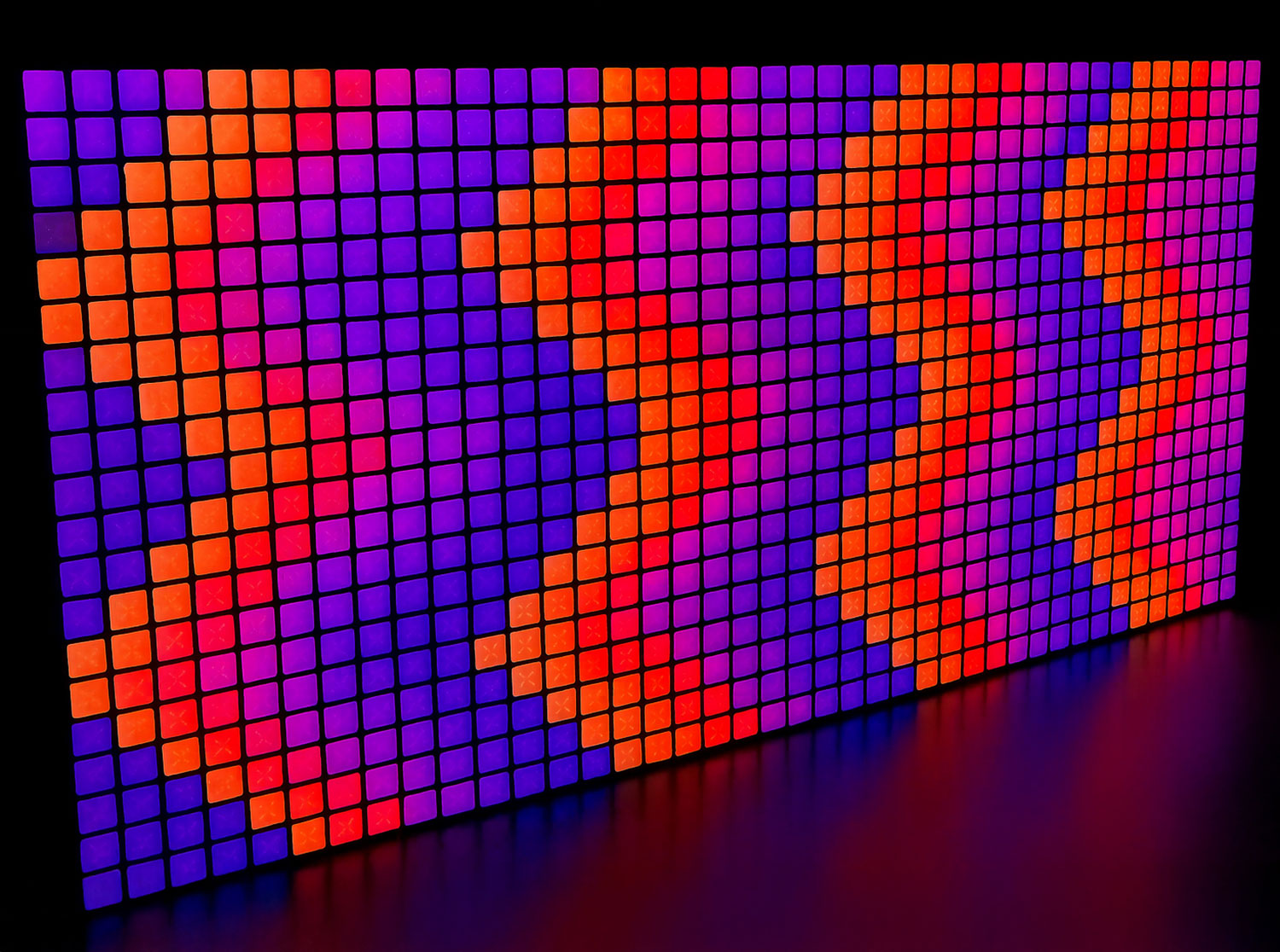

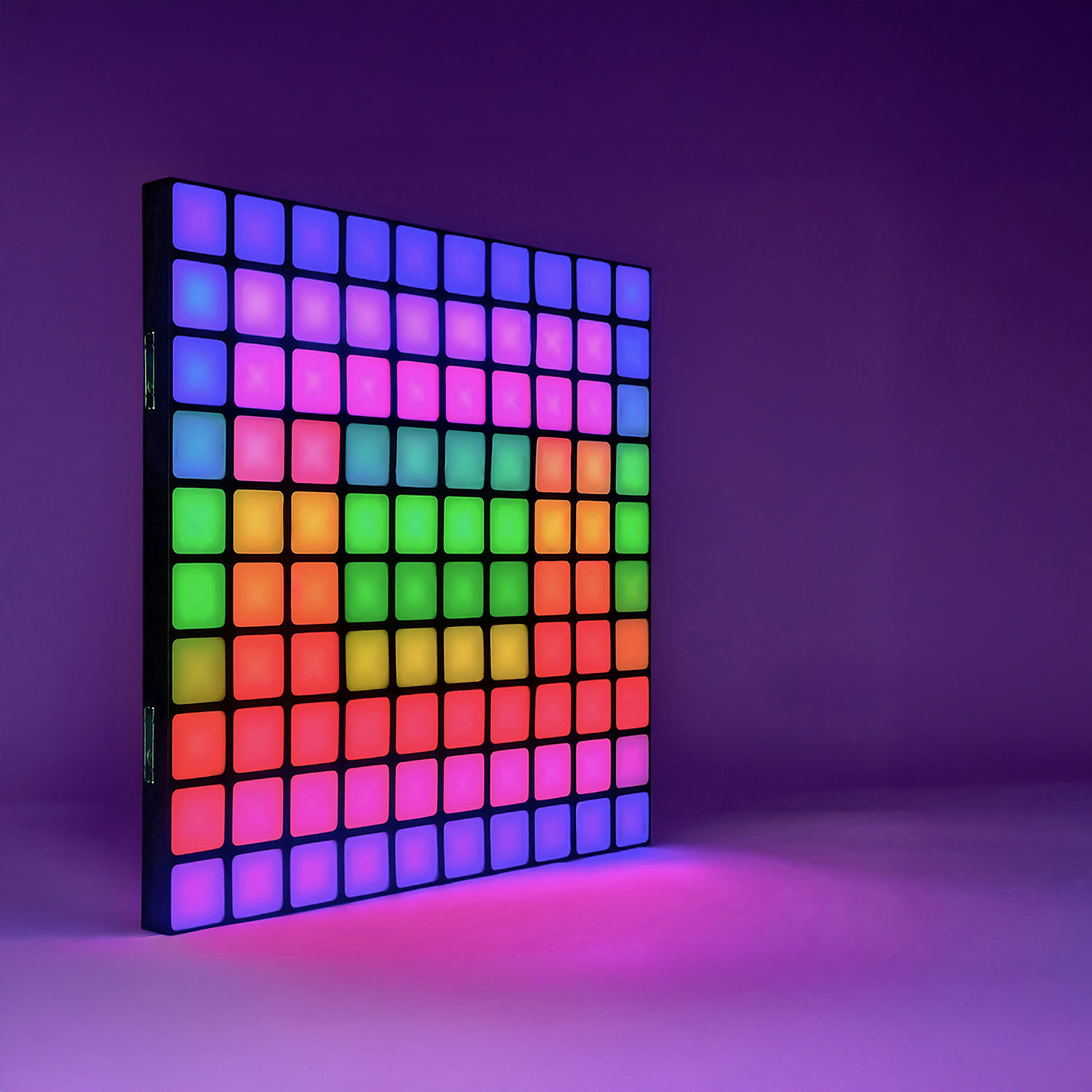

Powered by 500 high-output SMDs, the Citronic Matrix Pro produces a wide range of colourful moving effects and washes. Internal auto, sound-activated and static programs are easily accessed via the rear digital control panel, while remote control is available via Art-Net or DMX in 3, 5, 20 or 300-channel modes. With Art-Net support, multiple Matrix Pro units can be linked and controlled as a single pixel-mapped system, delivering smooth animations, dynamic effects and scalable control using standard network cabling. Compatible with industry-standard lighting software and consoles, Matrix Pro integrates seamlessly into modern lighting systems and is easy to expand as requirements grow. Intelligent fan control and thermal protection ensure reliable operation during extended use, while twist-and-lock power connections reinforce its professional design. The Matrix Pro can be mounted in any orientation using the supplied clamps, with integrated connections on all four sides allowing fixtures to be quickly linked together to create striking colour walls for stage backdrops, live venues and large-scale events.

• Powered by 500pcs of high output SMD5050 RGB LEDs that produce a vast array of colourful moving effects and washes
• 3, 5, 20 or 300 channel DMX modes
• Art-Net Control for easy Pixel map Setup
• Automatic, Static and sound modes that can be tailored to your requirements using additional speed, strobe and sensitivity settings
• Twist and lock power connections for a more professional feel
• Intelligent fan control and temperature protection

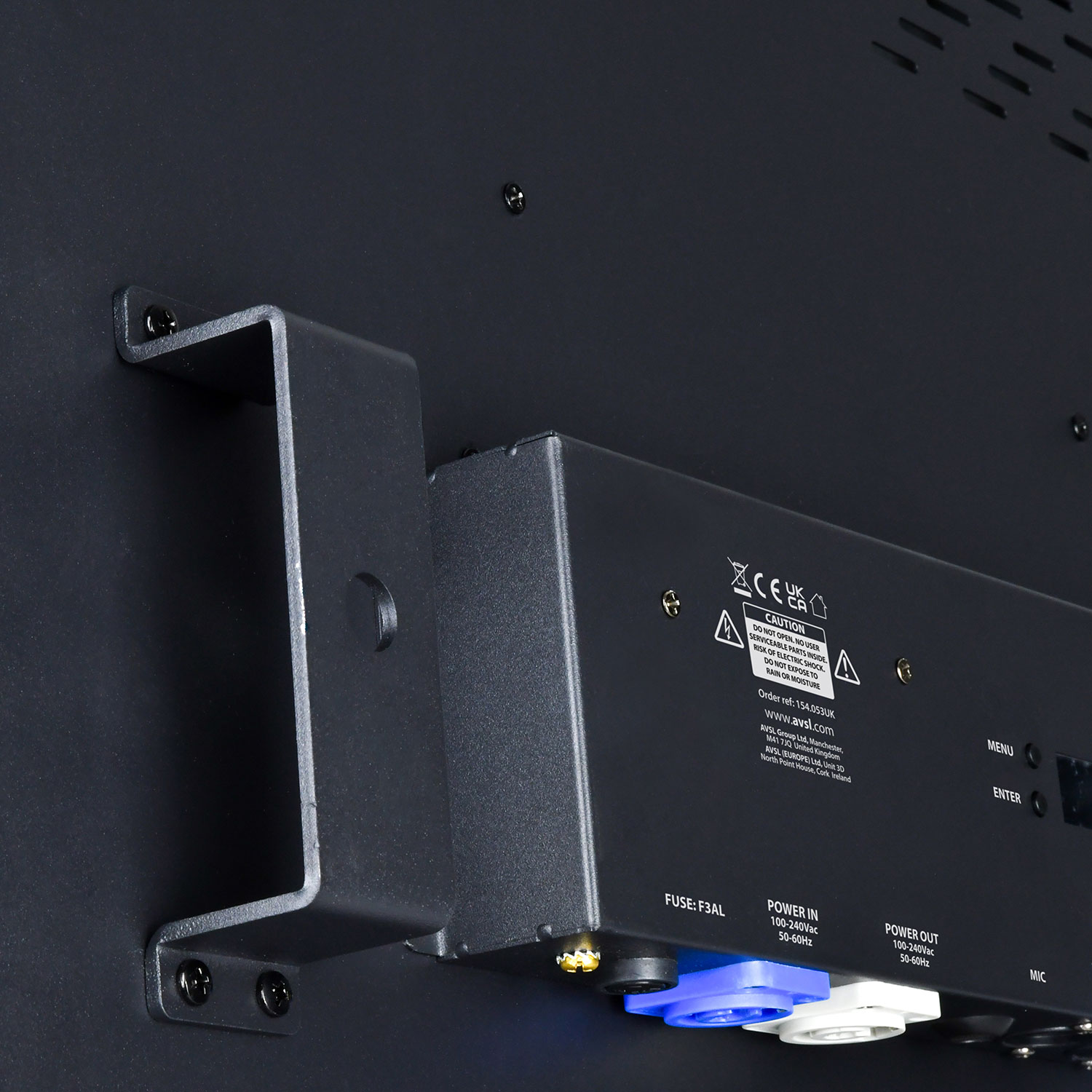

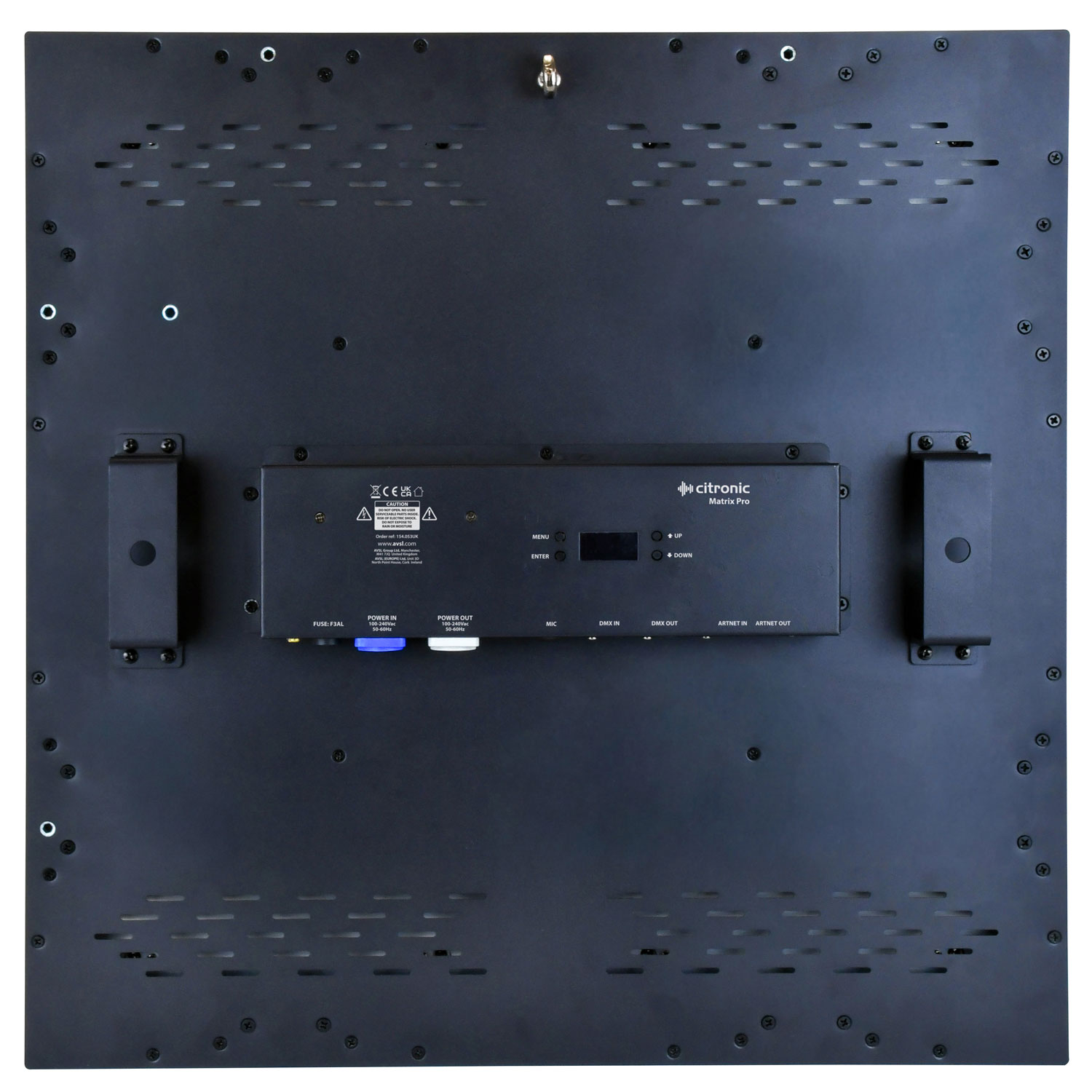

• Mount to trussing using the Vertical Mounting Brackets supplied or via the attached rear brackets.
• Connect horizontally and vertically to more units, using the integrated connectors
• Maximum of 10 units may be hung vertically

• LED : type 500Pcs SMD 5050 3-in-1 RGB LEDs 0.2w each
• Effects RGB colour mixing, Linear dimming 0-100%, Strobe 0-25 times per second
• Modes Auto, Sound, Static, DMX, Art-Net, Master/Slave
• DMX channels 3, 5, 20 or 300CH

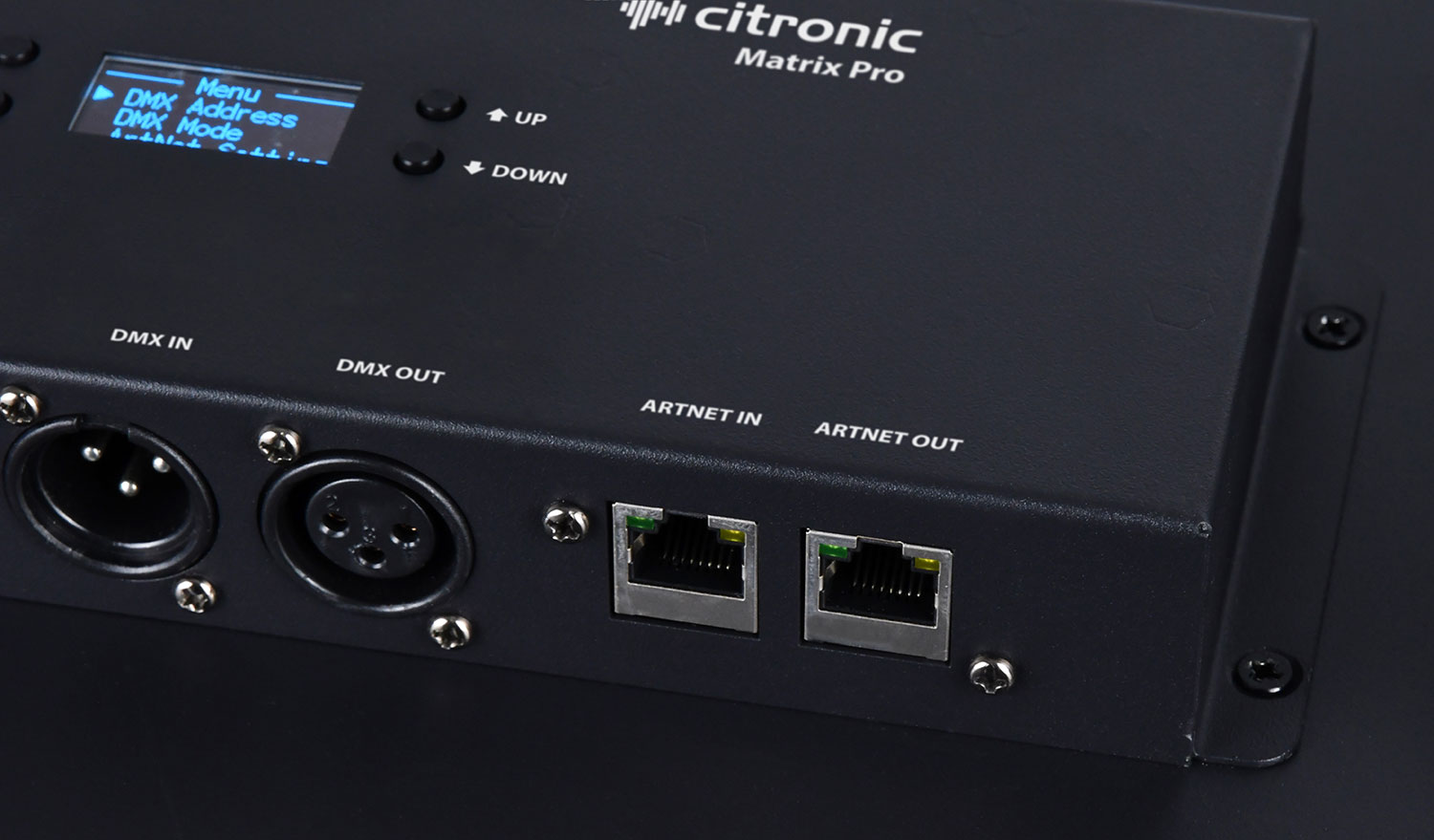

• DMX connection 3 Pin DMX (In/Out) or RJ45 (In/Out)
• Power connection Power in/out (twist and lock)
• Power supply 110-240Vac, 50/60Hz
• Power consumption 120 W
• Dimensions 70mm x 550mm x 550mm
• Weight 6.6Kg
