192 Channel DMX Controller

154.093UK DM-X16

This 192 channel DMX controller has 16 fader channels which make it easy to see exactly what you are doing without having to use a page up and page down button. The unit itself has 12 fixture butto...

  • High quality LCD display with easy readout
  • 12 Fixtures each with 16 channels
  • 16 High quality faders
Description Version Packed
154.093UK
DM-X16 192 Channel DMX controller
Box Label

192 Channel DMX Controller

This 192 channel DMX controller has 16 fader channels which make it easy to see exactly what you are doing without having to use a page up and page down button. The unit itself has 12 fixture buttons, each controls up to 16 channels on each fixture, whilst the 30 programmable bank buttons holding 8 scenes each. These scenes can be programmed into 6 chase sequences each holding up to 240 scenes which can be triggered by sound, manually by tap or automatically by the time faders between 0.1 seconds and 10 minutes. It comes complete with an LED gooseneck light that can be plugged in to the rear and help in dark environments. This controller is ideal for small theatres or stage applications.

  • High quality LCD display with easy readout
  • 12 Fixtures each with 16 channels
  • 16 High quality faders
  • 30 banks each with 8 programmable scenes (240 scenes in total)
  • 6 chase banks
  • Music, auto or manually triggered chase sequences
  • Speed control from 0.1 second to 10 minutes
  • MIDI connection facility (MIDI IN) to run the unit, synchronous with your MIDI unit or compatible software
  • Blackout button
  • Built-in microphone for audio triggering

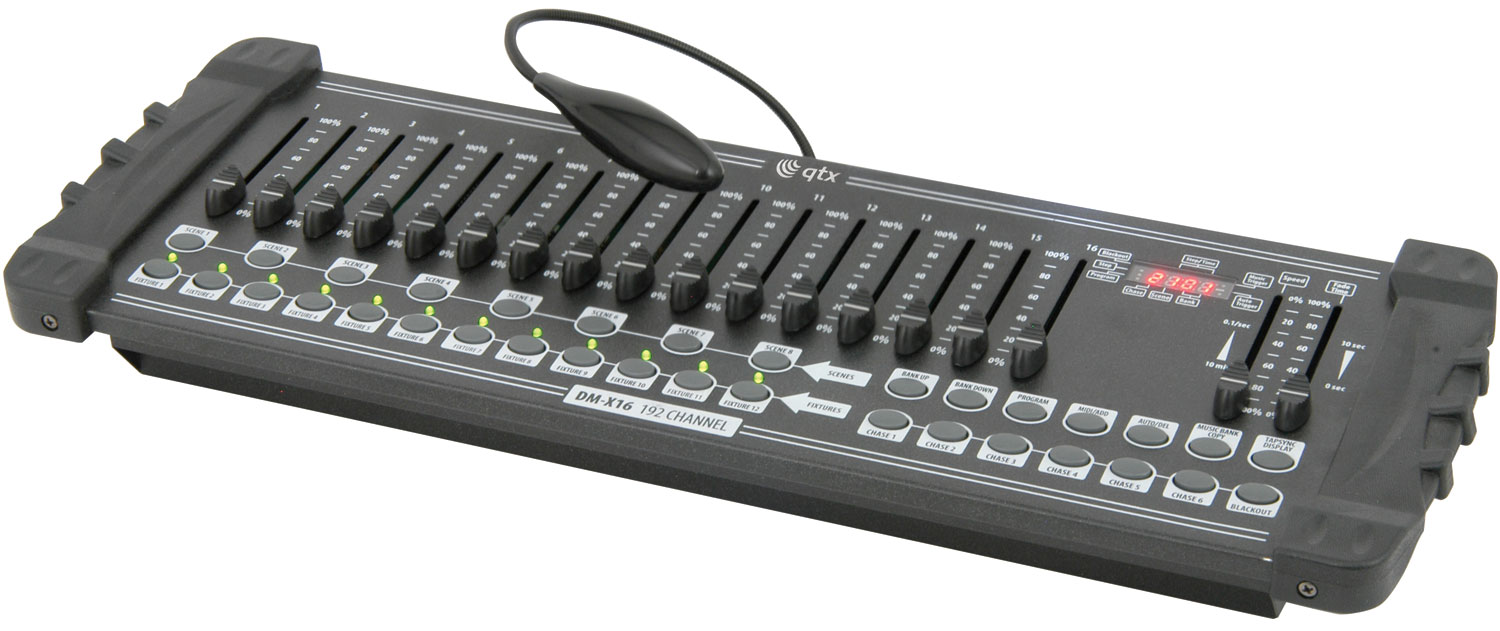

  • LED gooseneck lamp provided
  • 19" rack mountable with removable plastic protection handles
  • DMX channels 192
  • Power supply 9Vdc, 1A
  • Dimensions 520 x 183 x 73mm
  • Weight 3.0kg

Downloads

Instruction manual
For 154.093UK (6.2MB)
UK Declaration of conformity
For 154.093UK (251KB)
EU Declaration of conformity
For 154.093UK (239KB)
