AVSL : Product : LED Tape : 24V LED Tape Reels : 156.786UK

24V IP20 Hi Output LED Tape

156.786UK

24V LED tape with high luminous flux output. 120 LEDs per metre combine to give exceptional light output with narrow spacing for even light distribution. Features self adhesive backing for easy ins...

High luminous flux output
120 ultra bright LEDs per metre
Self-adhesive backing for easy installation

Full description Find retailer

	Description	Version	Packed
	156.786UK 24V IP20 Hi Output LED Tape Warm White	WW	Poly Bag
	156.788UK 24V IP20 Hi Output LED Tape Cool White	CW	Poly Bag

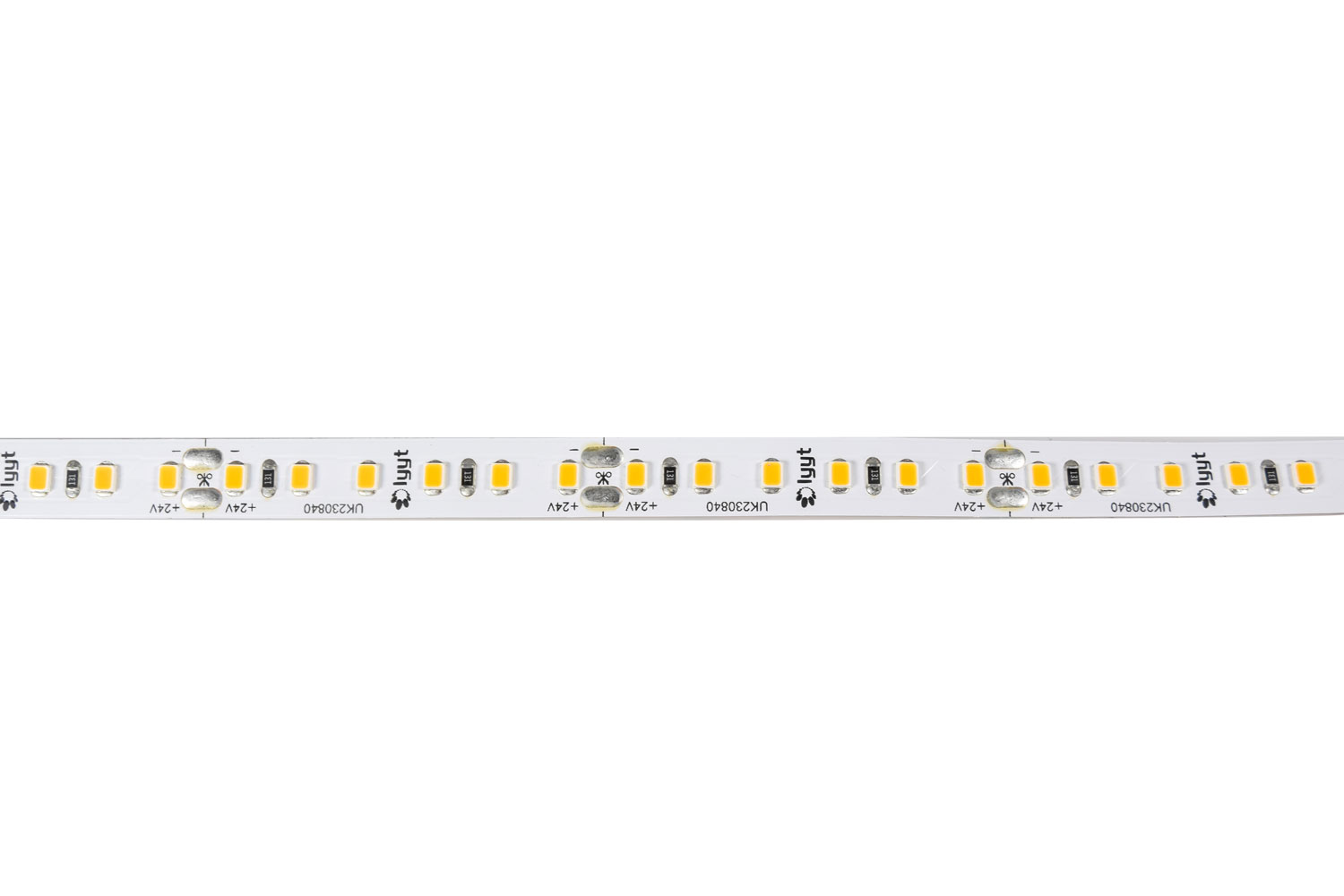

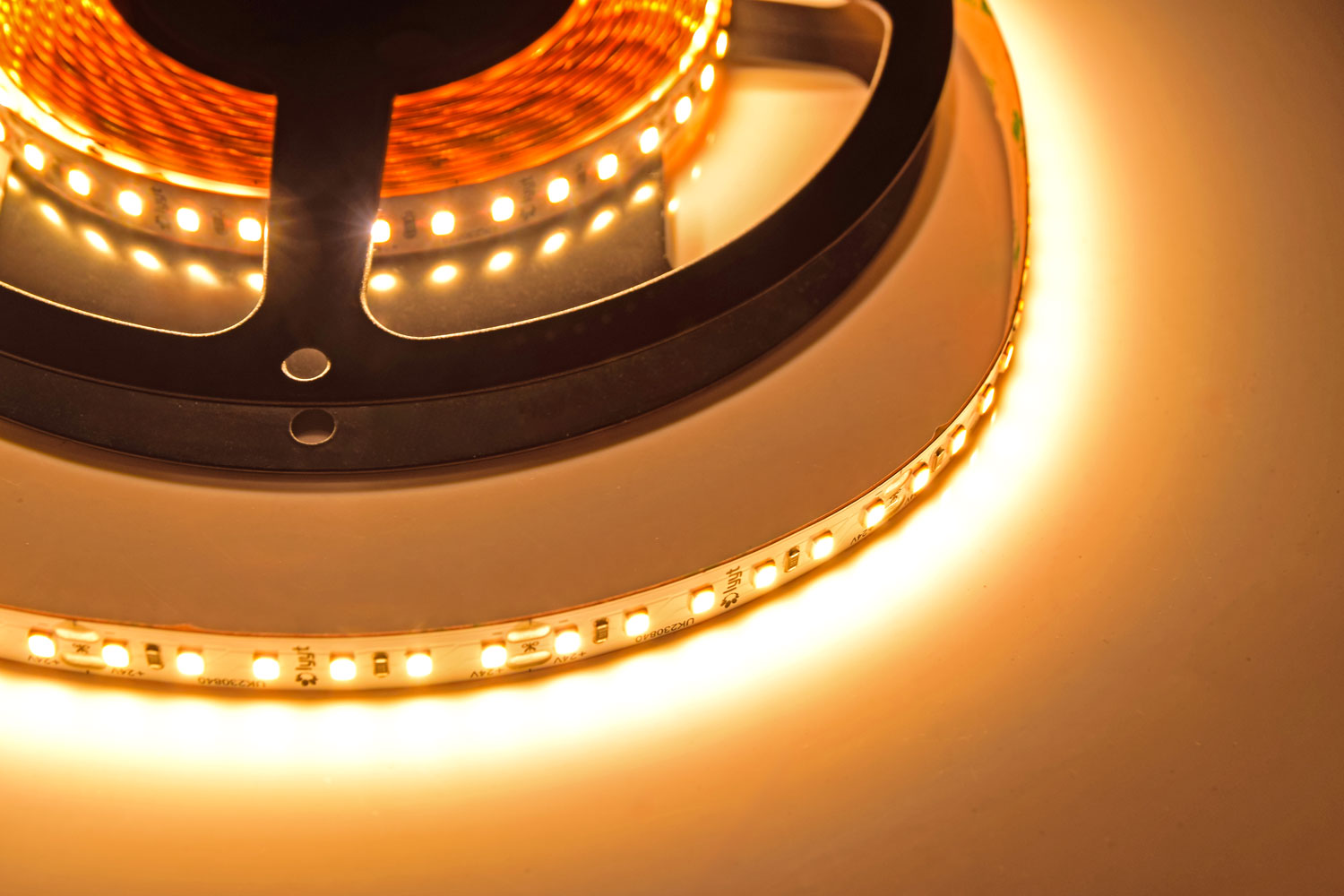

24V IP20 Hi Output LED Tape

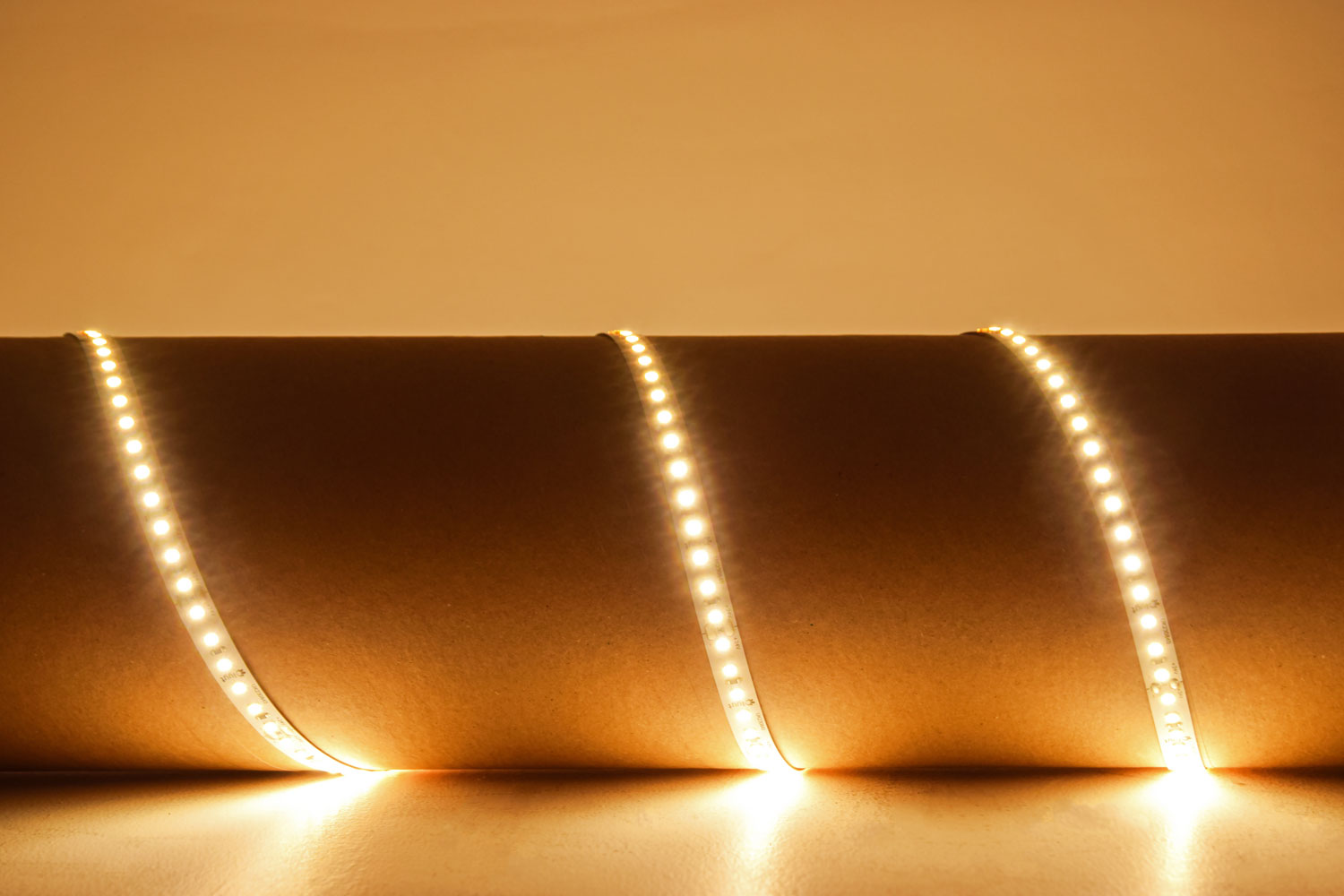

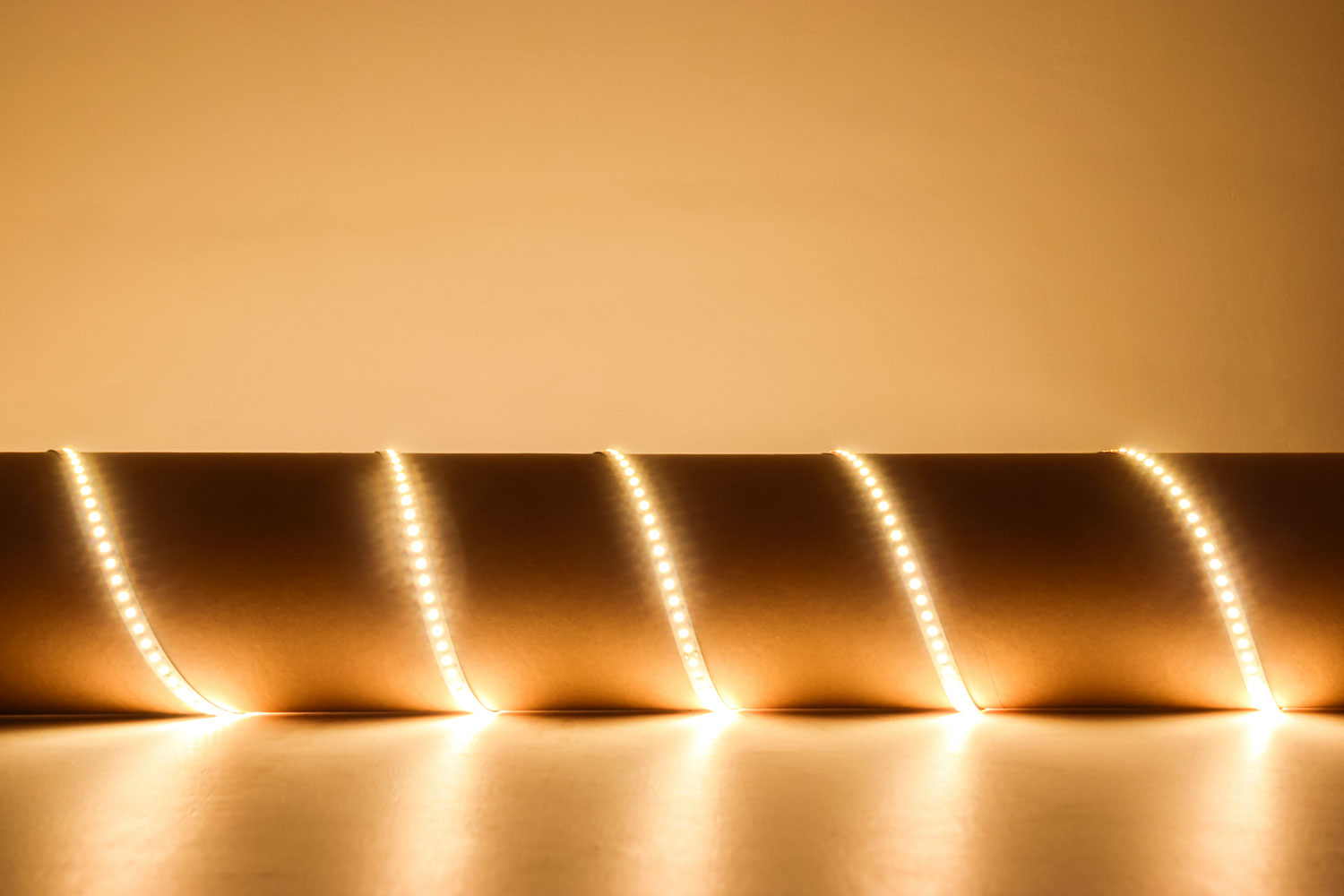

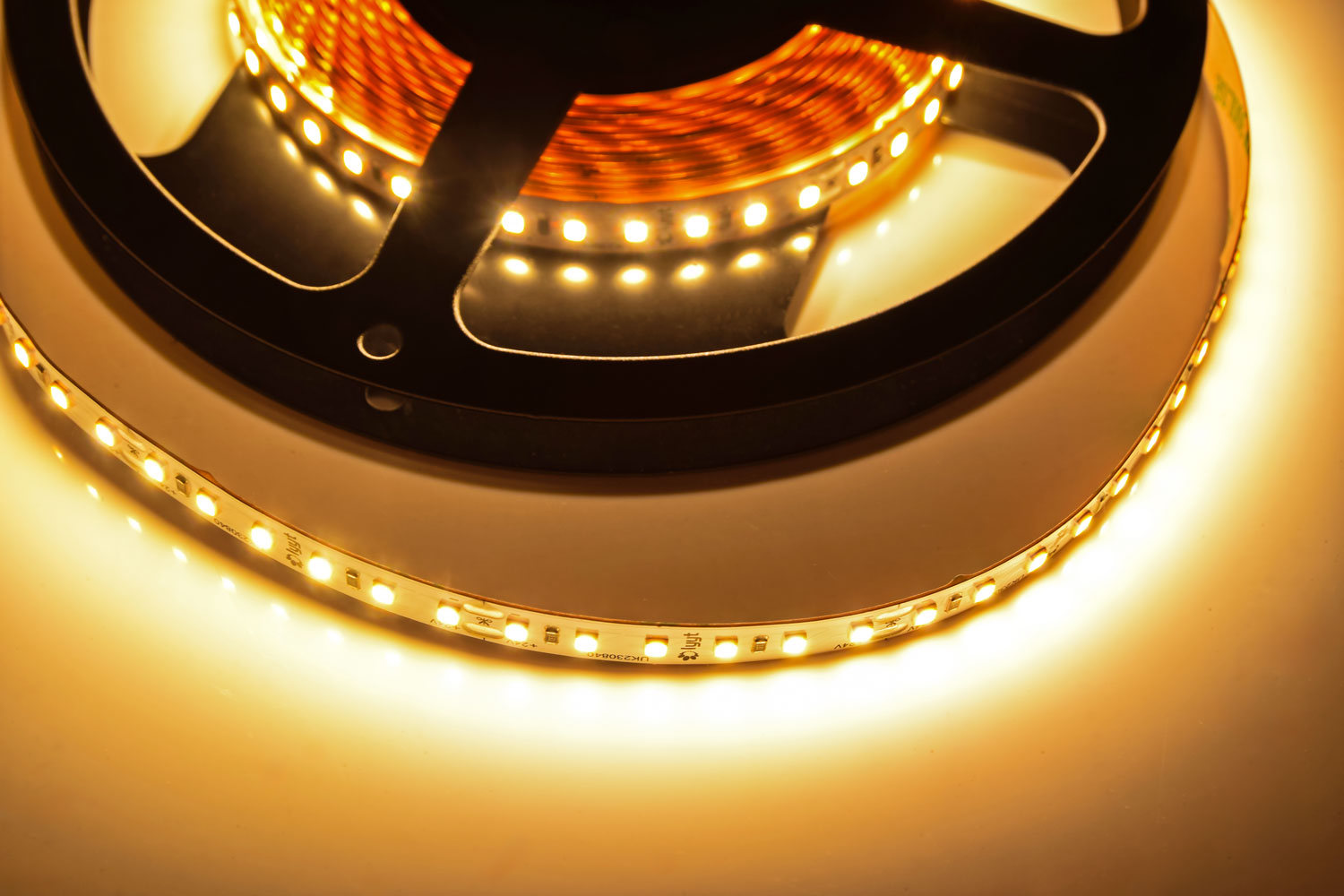

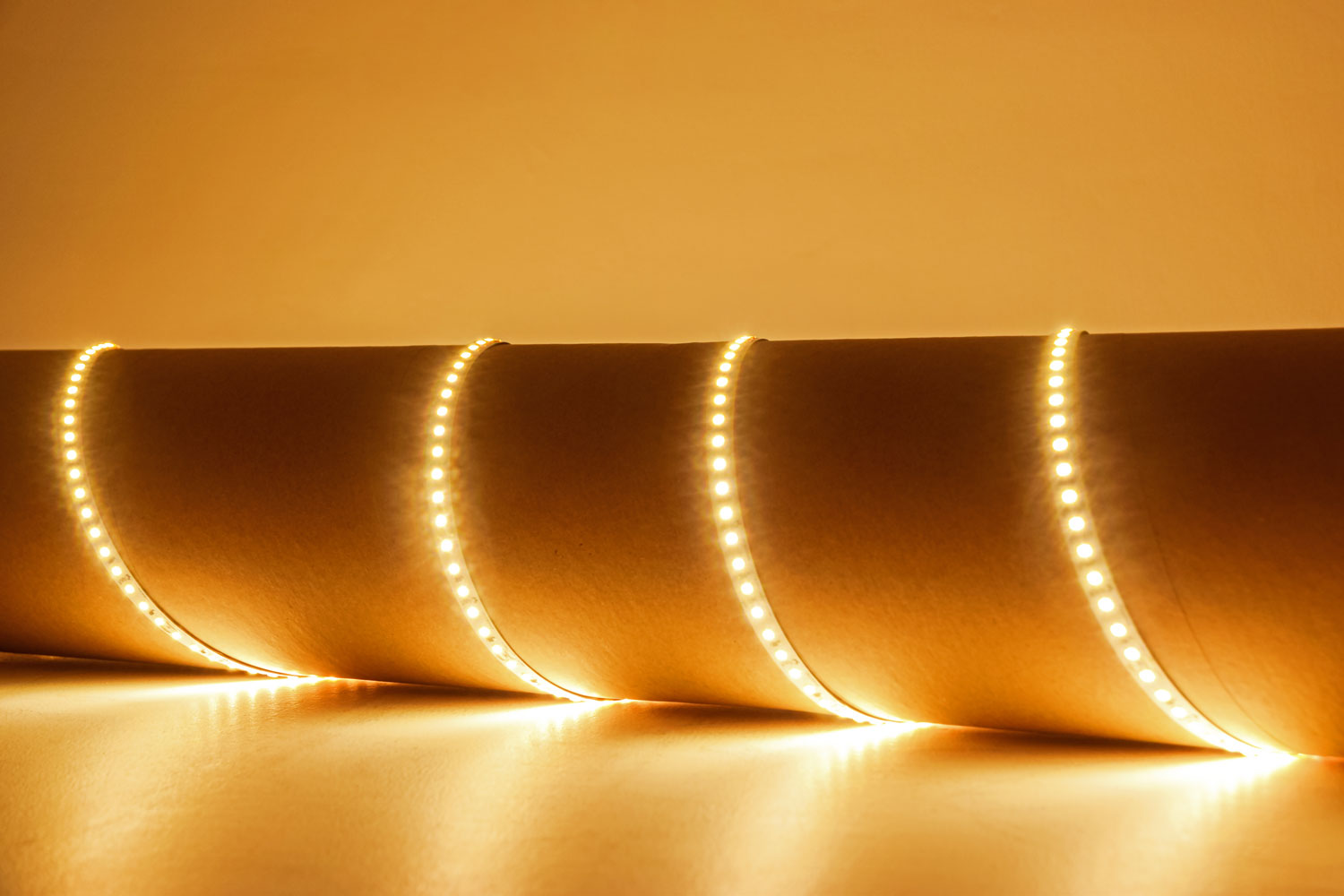

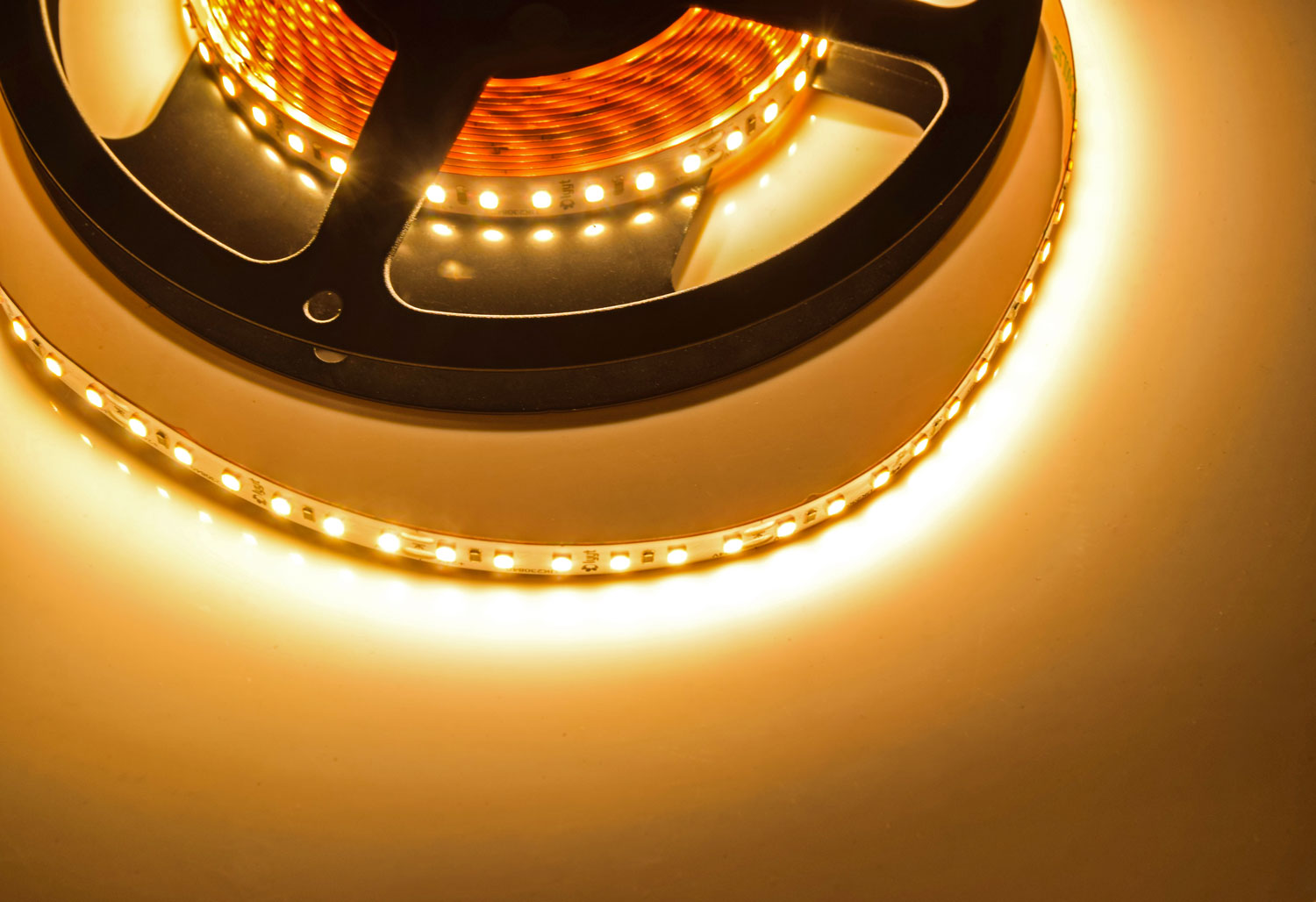

24V LED tape with high luminous flux output. 120 LEDs per metre combine to give exceptional light output with narrow spacing for even light distribution. Features self adhesive backing for easy installation. Where standard LED tapes may not be powerful enough, these high output versions offer sufficient illumination for cabinets, architectural detail and signage.

High luminous flux output
120 ultra bright LEDs per metre
Self-adhesive backing for easy installation

Can be cut to desired length
IP20 version suitable for indoor use

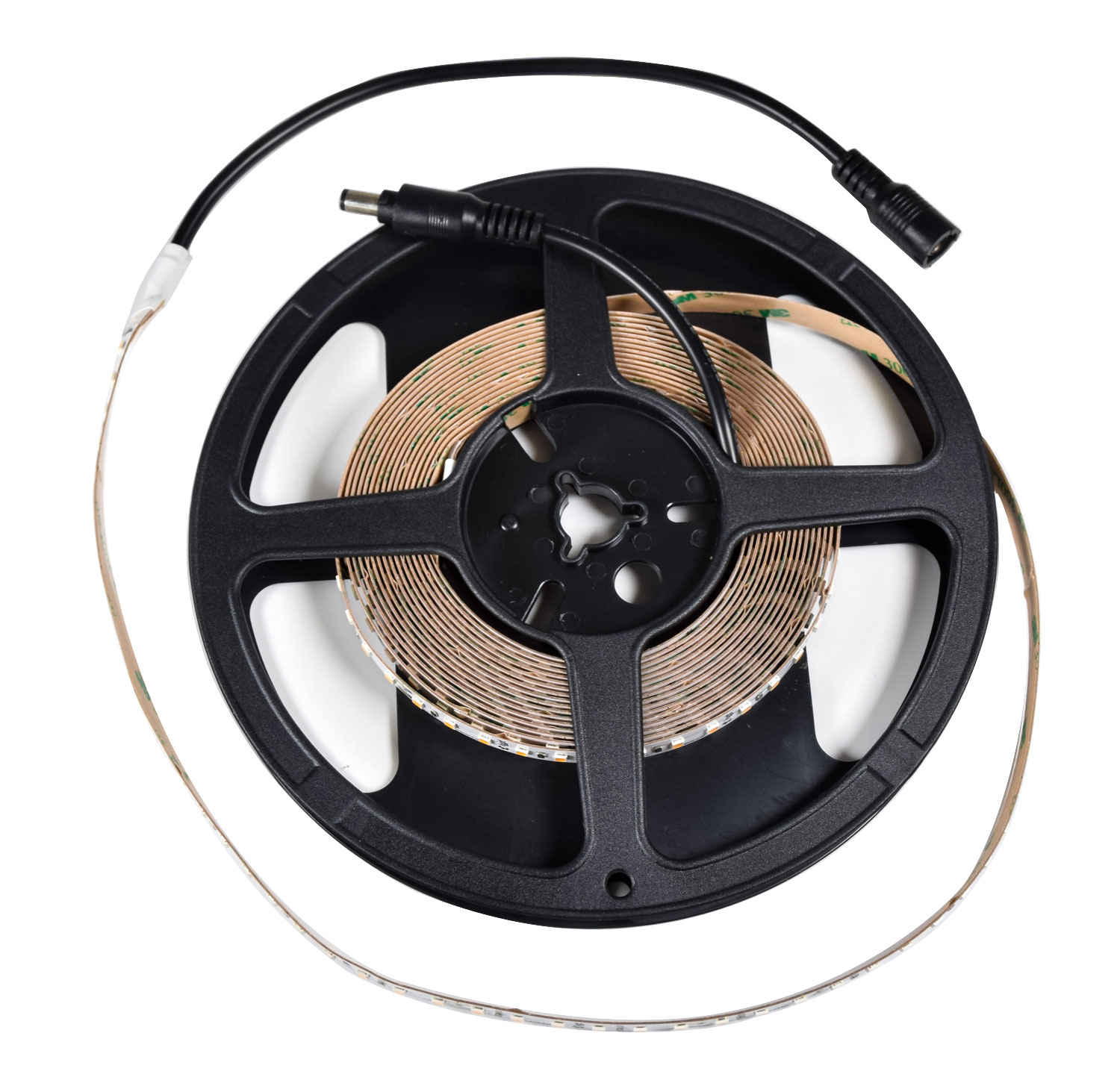

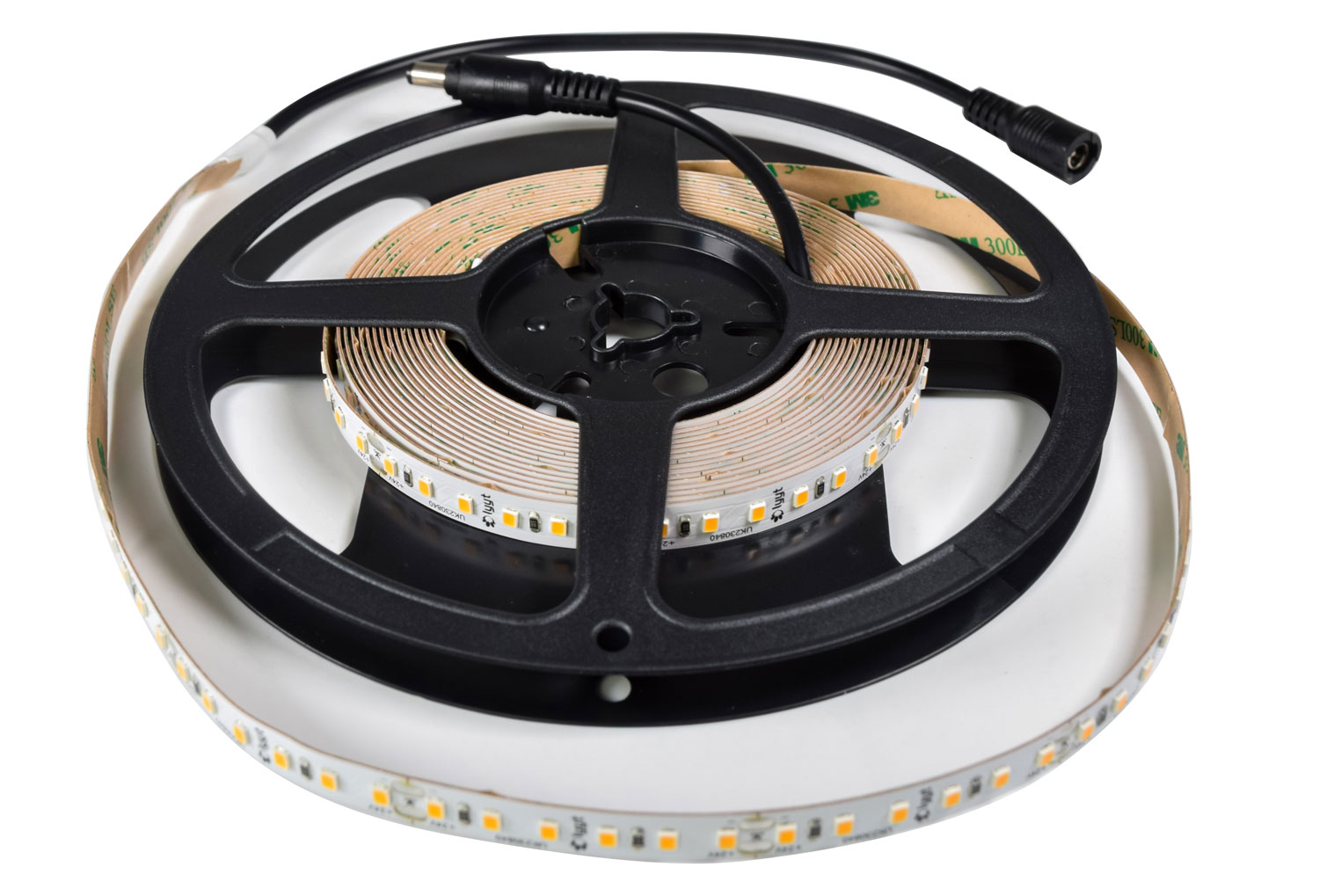

2.1mm DC plug and socket fitted

Voltage 24Vdc
No. of LEDs 120/m
Beam angle 120°

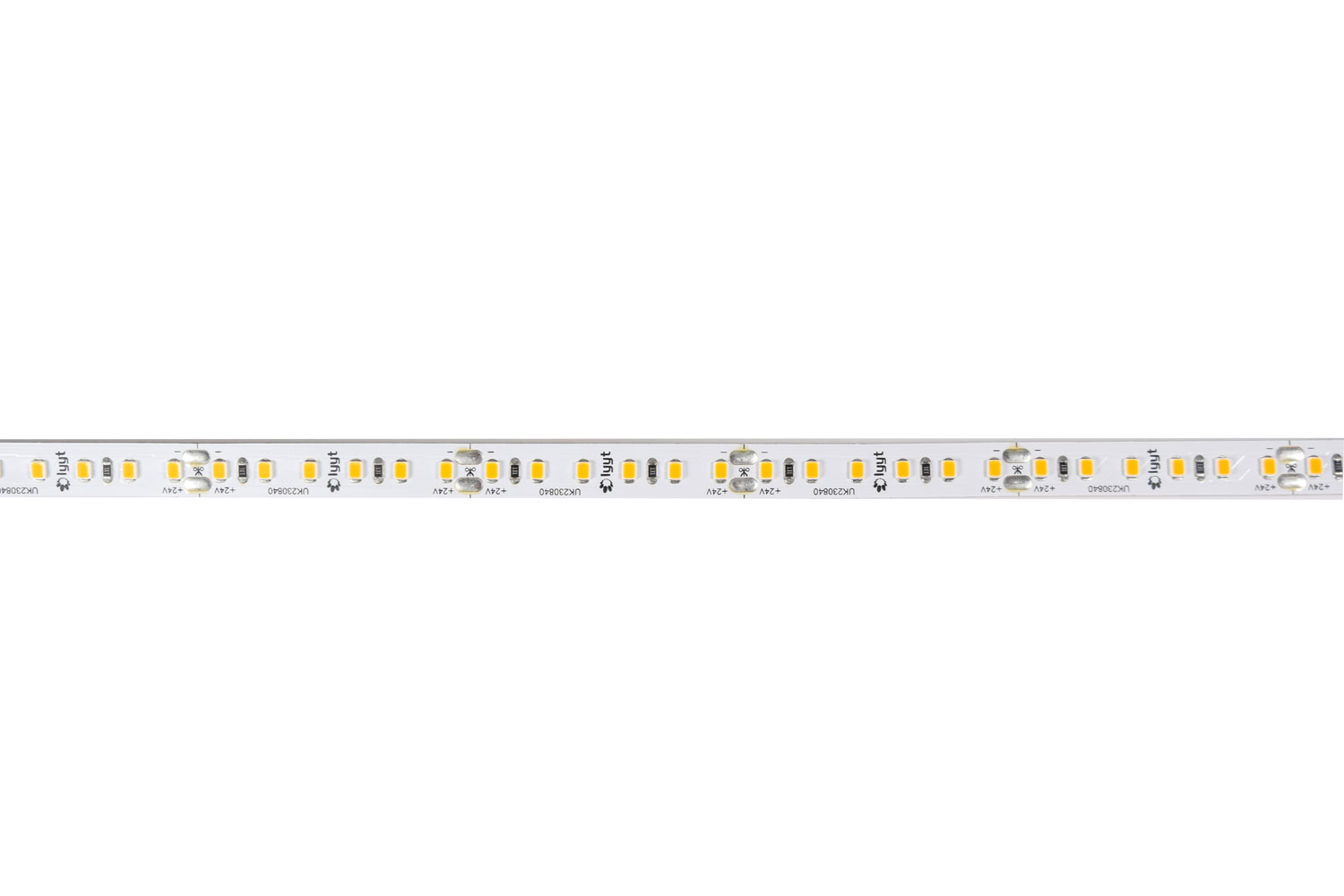

Cut intervals 5cm
Reel length 5m
LED : type 2835 Sanan

LED : spacing 6mm
IP rating IP20
Current 533mA/m
Power consumption per metre 12.8W/m
Cross-section 10 x 1mm
Weight 230g

Versions

	156.786UK	156.788UK
Colour temperature	3000K	6000K
Luminous flux (Lumens per metre)	1084lm/m	1246lm/m

In the box

The box for this item contains :

1 x 24V IP20 Hi Output LED Tape 5m

Downloads

Instruction manual
For 156.786UK (230KB)

UK Declaration of conformity
For 156.786UK (265KB)

EU Declaration of conformity
For 156.786UK (253KB)
