6.5" Speakers 80W - Pair

170.350UK CX-8086B

A pair of speaker enclosures made from premium Birch ply with multi-angle design for arraying and wedge monitoring. Surface mounting via the included bracket or flying points afford convenient inst...

  • Full range 2-way enclosure set
  • 16.5cm (6.5") high-power woofer
  • 2.5cm (1") compression driver with PEI diaphragm
Description Version Packed
170.350UK
CX-8086 speakers 6.5" 80W pair - black
Black Box Label

6.5" Speakers 80W - Pair

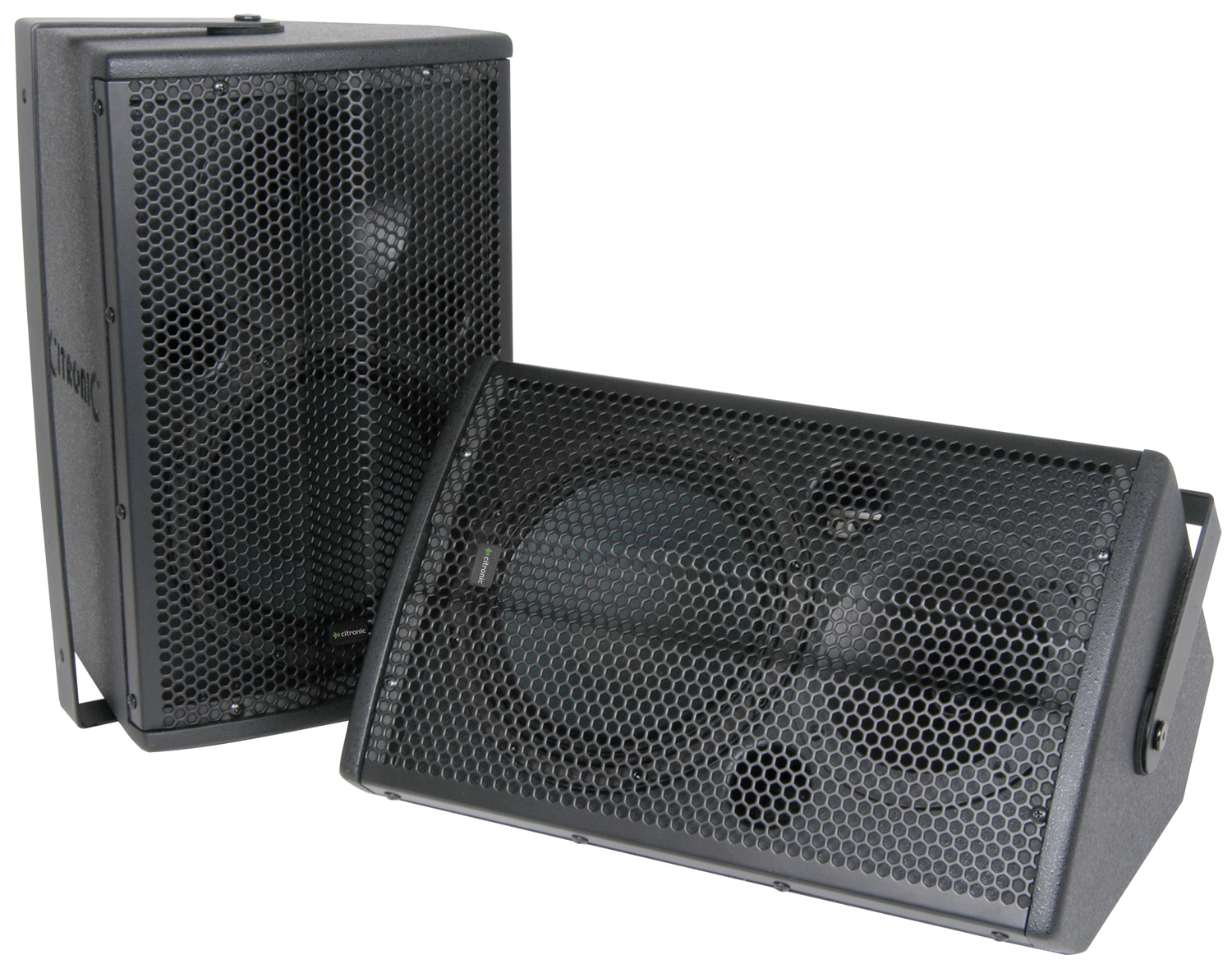

A pair of speaker enclosures made from premium Birch ply with multi-angle design for arraying and wedge monitoring. Surface mounting via the included bracket or flying points afford convenient installation in bars, restaurants and meeting rooms. Custom designed drivers project full range output with a wide dispersion for excellent coverage to listeners.

  • Full range 2-way enclosure set
  • 16.5cm (6.5") high-power woofer
  • 2.5cm (1") compression driver with PEI diaphragm
  • 140° x 140° dispersion improves coverage
  • Computer designed for optimal efficiency
  • Available in durable black or white textured paint finish
  • Supplied with mounting brackets
  • Supplied in pairs
  • Woofer 16.5cm (6.5")
  • Tweeter 2.5cm (1") PEI compression driver
  • Power rms 80W each
  • Connector Speakon® NL4
  • Crossover frequency 3.2kHz
  • Dispersion 140° x 140°
  • Frequency response 80Hz - 18kHz
  • Impedance 8 ohms
  • Sensitivity 90dB
  • THD <3%

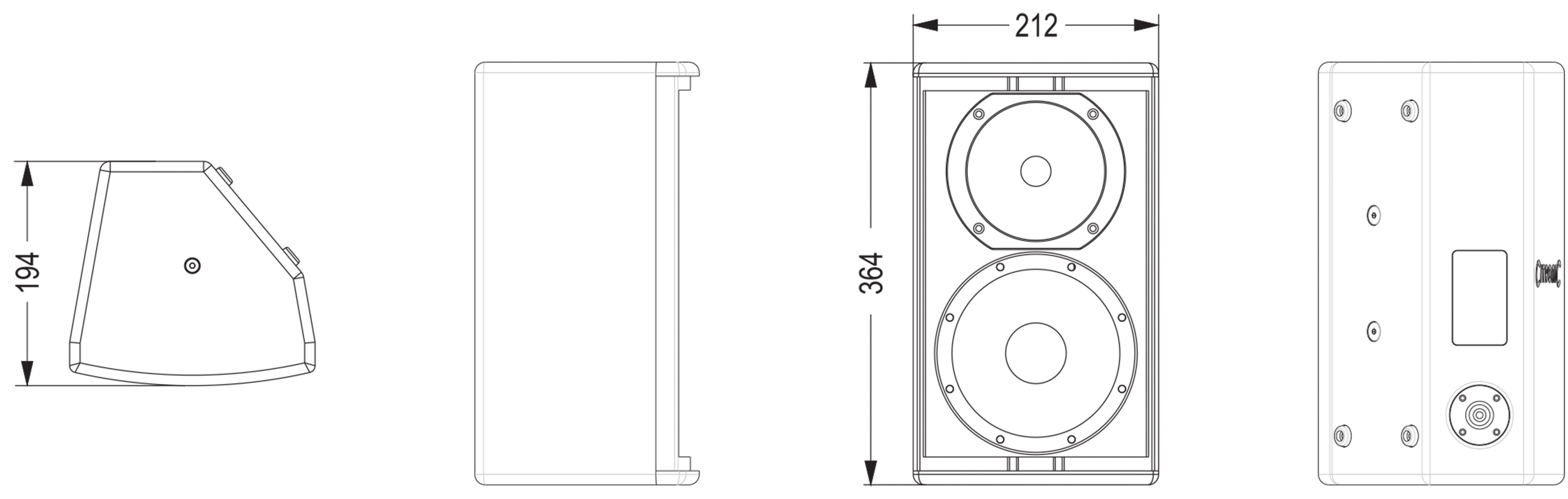

  • Dimensions 212 x 194 x 364mm (each)
  • Weight 6kg (each)

Versions

  170.350UK
Colour Black
