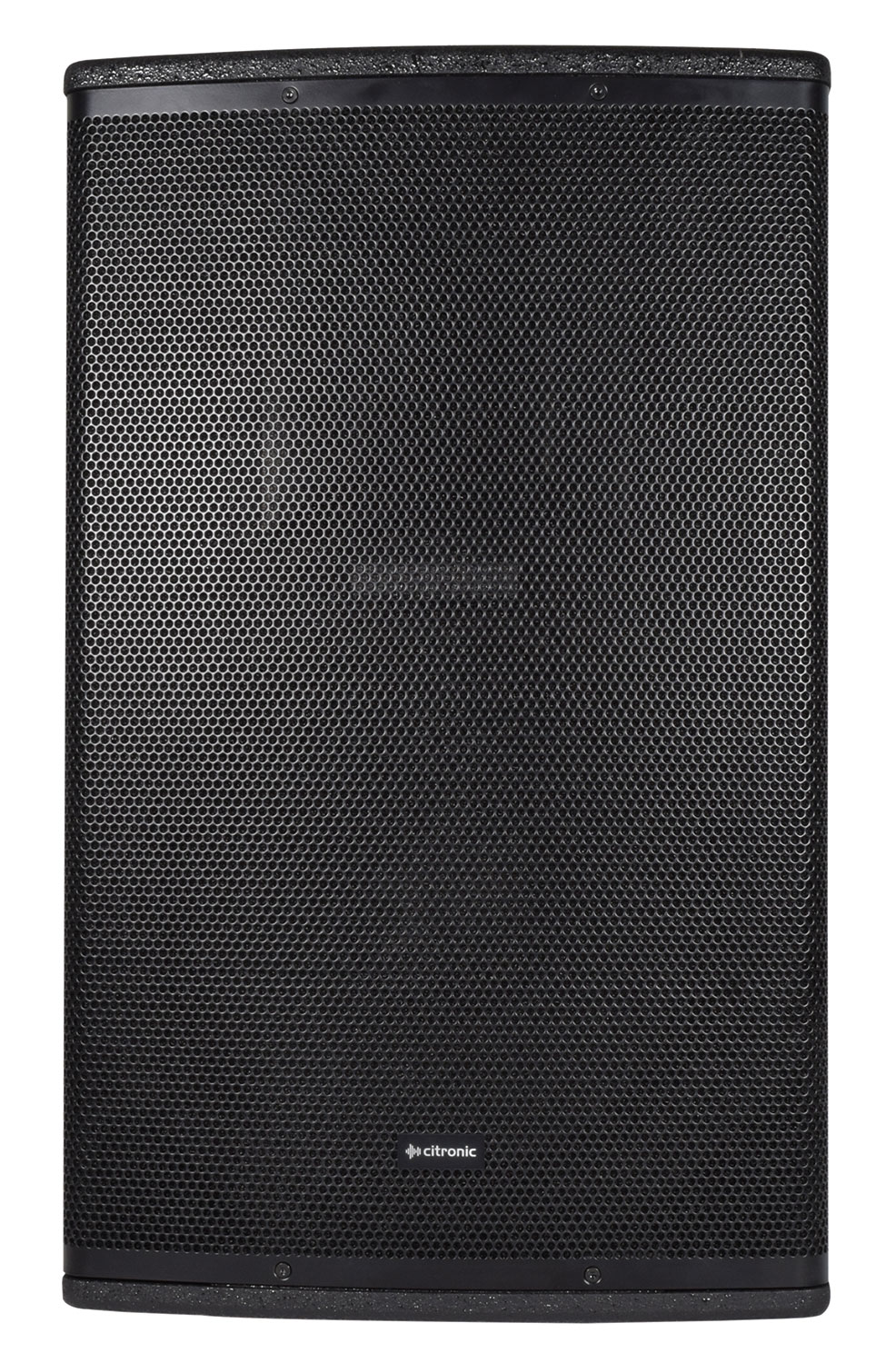

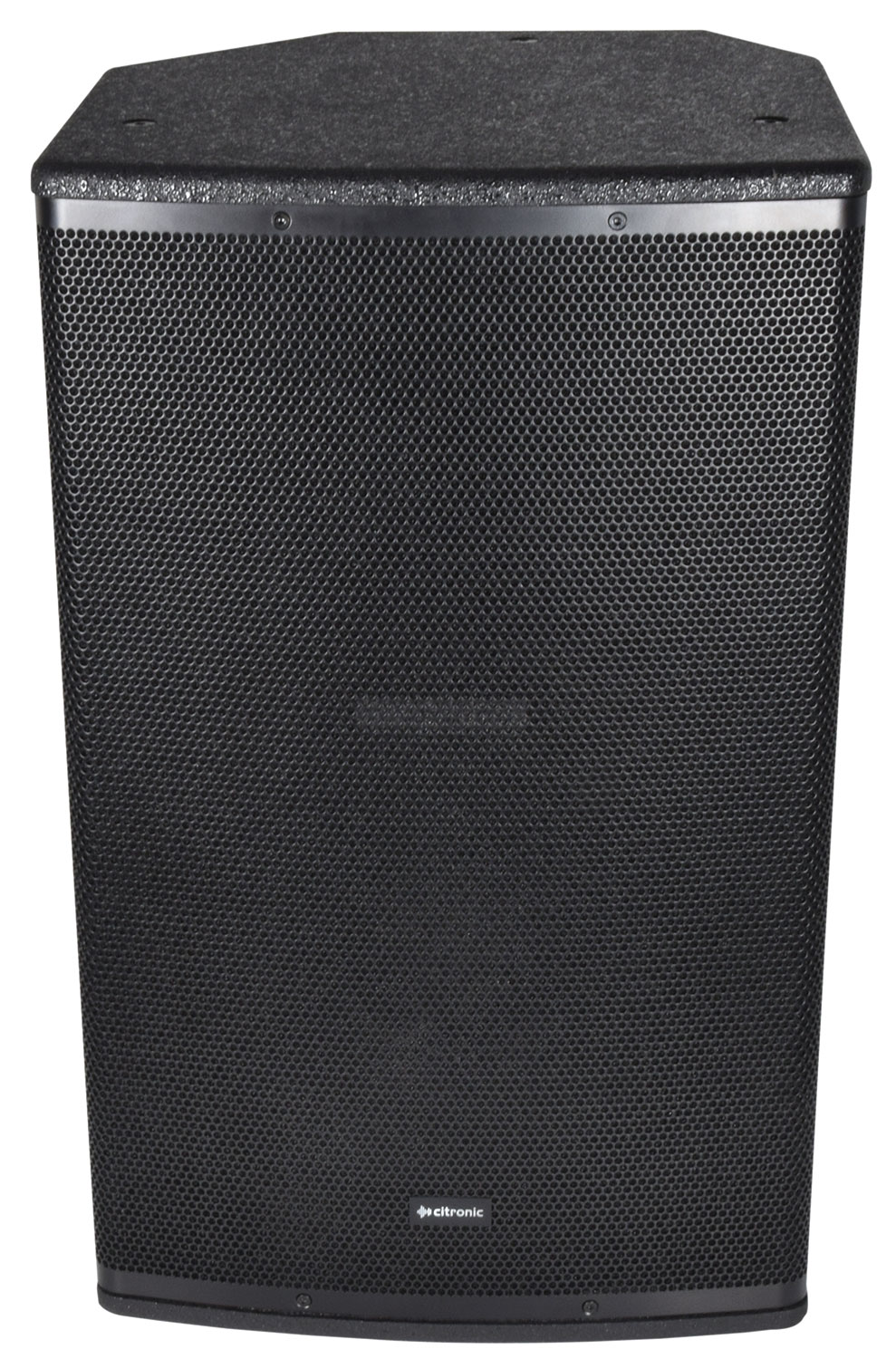

Premium full-range passive speaker cabinets with a polyurea coated wooden enclosure and powder-coated steel grille. A high power-handling main driver and efficient titanium diaphragm HF compression...

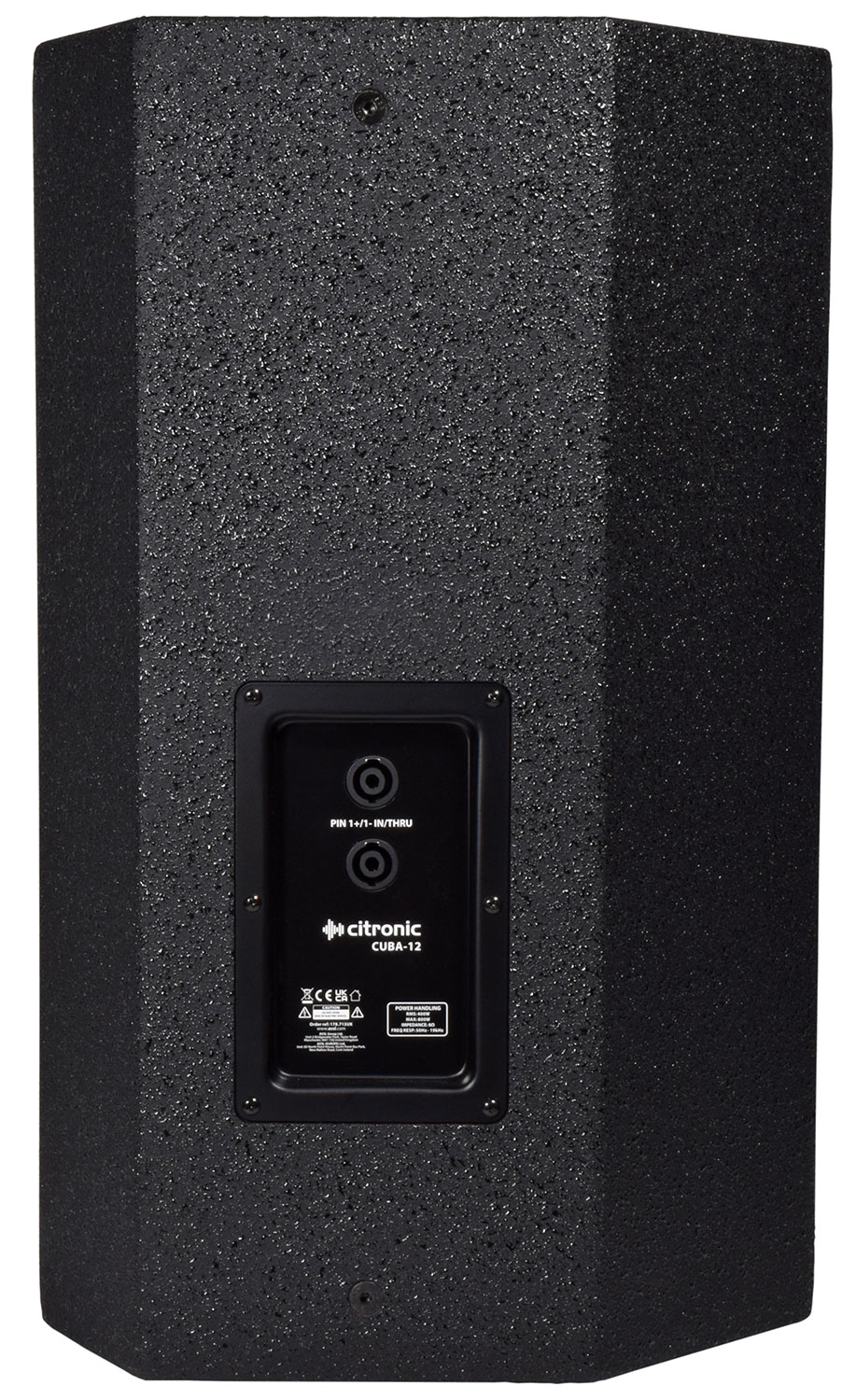

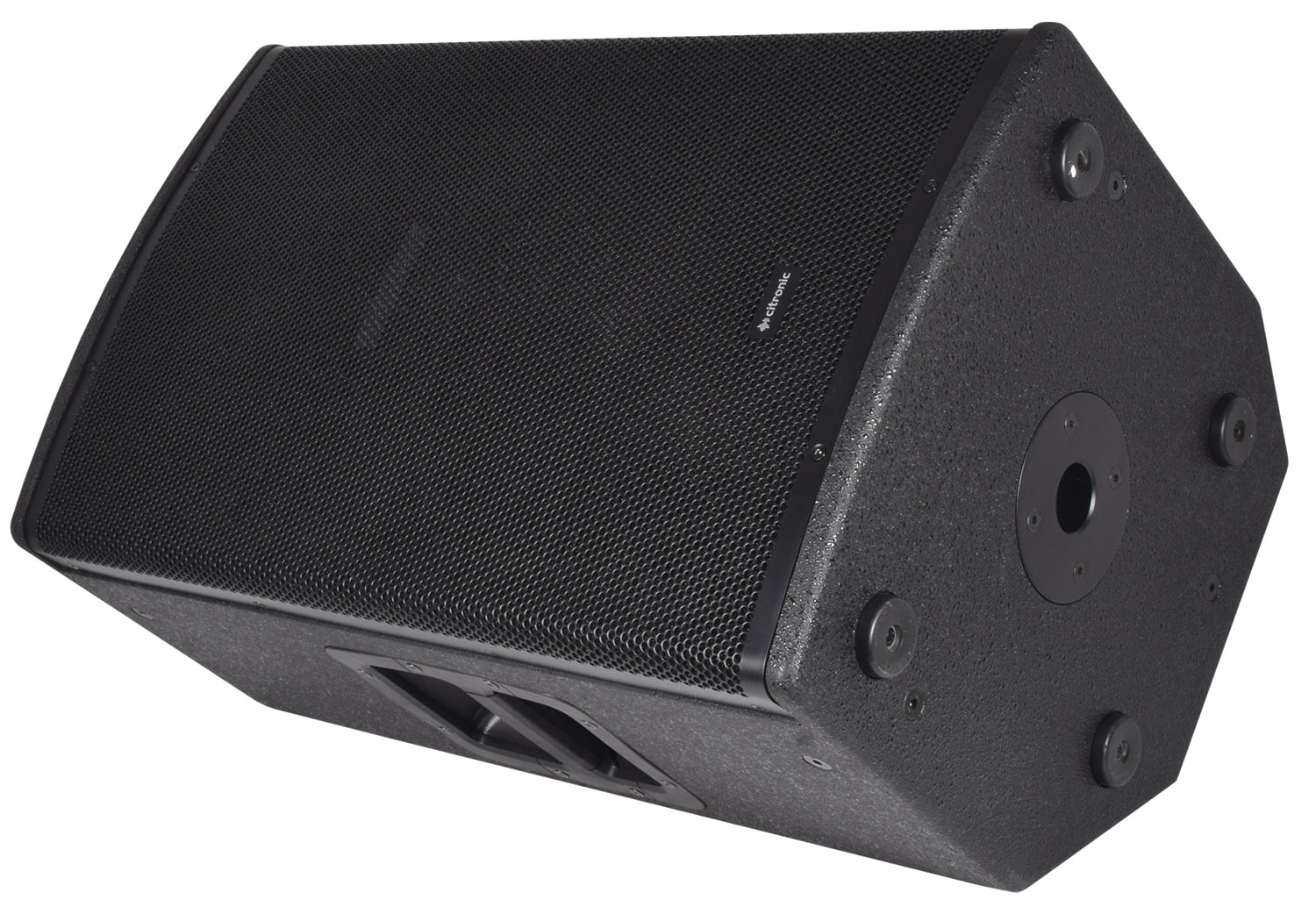

Premium full-range passive speaker cabinets with a polyurea coated wooden enclosure and powder-coated steel grille. A high power-handling main driver and efficient titanium diaphragm HF compression driver combine with the tuned enclosure to deliver a balanced output of all frequencies. The rear panel has 2 parallel inputs for Speakon connection, also enabling linking onto additional speakers. Each cabinet has 2 side handles and a 35mm pole-mount socket for stand mounting. The rear of the cabinet has 2 different bevels for angled placement at ground level or for suspended arraying, multiple M8 flying points are inset on each cabinet. Recommended for use with Citronic PLX, D and H-series amplifiers for a wide range of professional high power sound reinforcement situations.
| 178.709UK | 178.711UK | 178.713UK | 178.716UK | 178.741UK | |
|---|---|---|---|---|---|
| Colour | Black | Black | Black | Black | White |
| Main driver | 200mmØ (8") | 250mmØ (10") | 300mmØ (12") | 380mmØ (15") | 250mmØ (10") |
| Voice coil | 50mmØ (2") | 50mmØ (2") | 64mmØ (2.5") | 64mmØ (2.5") | 50mmØ (2") |
| HF driver | 35mmØ (1.35") Ti compression driver | 35mmØ (1.35") Ti compression driver | 35mmØ (1.35") Ti compression driver | 44mmØ (1.75") Ti compression driver | 35mmØ (1.35") Ti compression driver |
| Power handling : rms | 250W | 270W | 400W | 450W | 270W |
| Power handling : max | 500W | 540W | 800W | 900W | 540W |
| Frequency response | 60Hz-20kHz | 60Hz-20kHZ | 45Hz-20kHZ | 45Hz-20kHZ | 60Hz-20kHz |
| Sensitivity | 95dB | 95dB | 98dB | 99dB | 95dB |
| Max. SPL | 121.0dB | 122.5dB | 123.0dB | 124.0dB | 122.5dB |
| Dimensions | 435 x 265 x 265mm | 507 x 313 x 307mm | 625 x 385 x 380mm | 708 x 434 x 430mm | 507 x 313 x 307mm |
| Weight | 10.0kg | 12.5kg | 18.0kg | 23.5kg | 12.5kg |
Impedance is the effective resistance of an electric circuit or component to alternating current, arising from the combined effects of resistance and reactance. Here we explain the features of low impedance and how it is implemented in a speaker system.
Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems
A summary explaining the key differences between RMS, Max and Peak power ratings.
The box for this item contains :
