QA Series Power Amplifiers
172.020UK

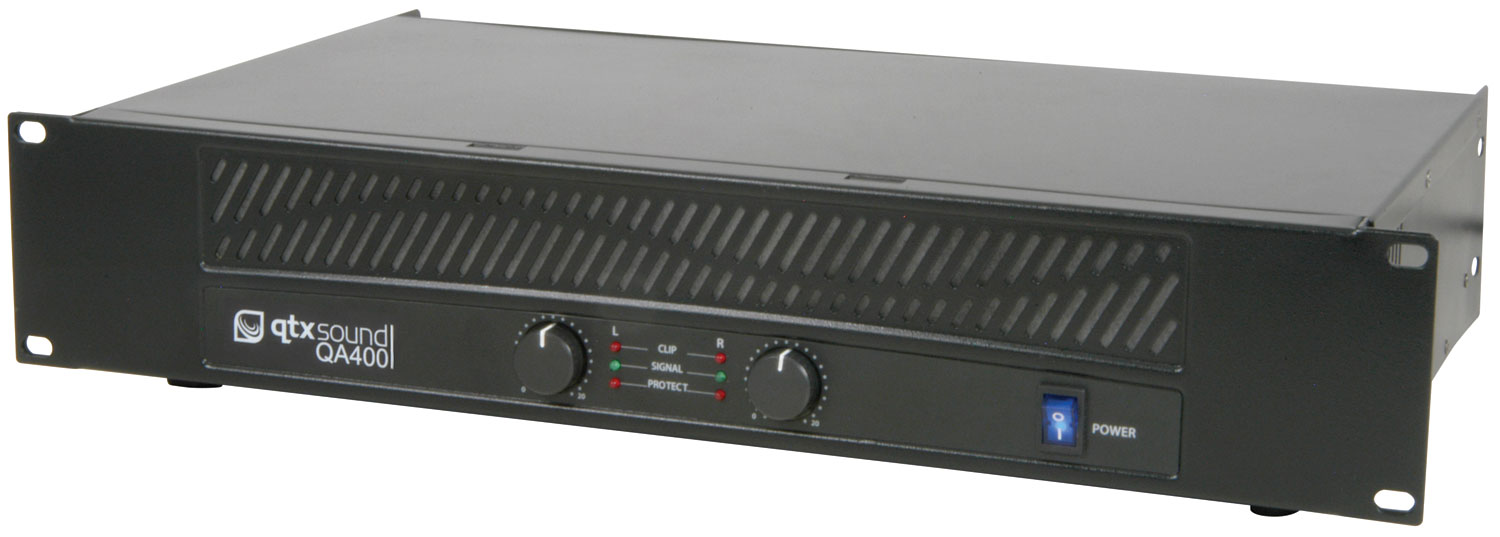

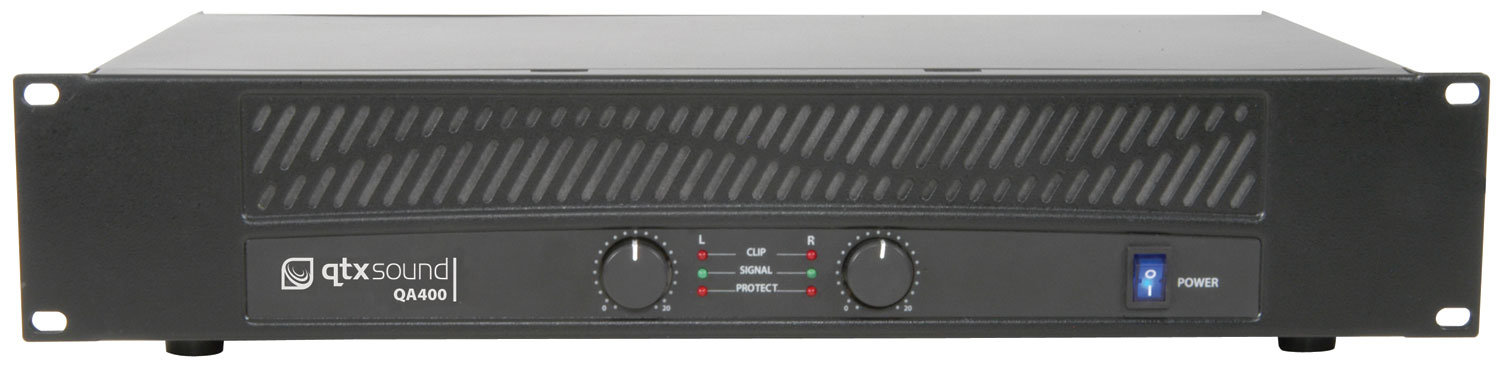

QA400
Professional dual channel power amplifiers delivering high quality, dependable performance at an accessible price. Design of these workhorse amplifiers has been focused upon high power delivery wit...
- High power delivery
- Overheat/overload protection
- Multiple input and output connection types
QA Series Power Amplifiers
Professional dual channel power amplifiers delivering high quality, dependable performance at an accessible price. Design of these workhorse amplifiers has been focused upon high power delivery without over-complicated features adding excessive costs. Yet still, these units are furnished with multiple connection possibilities and self protection circuitry to ensure that they will deliver, whatever the application.
- High power delivery
- Overheat/overload protection
- Multiple input and output connection types
- Balanced and unbalanced inputs
- 2U 19" rack mountable
- Power supply 110/240Vac, 50/60Hz (IEC)
- THD 0.25%
- SNR 90dB

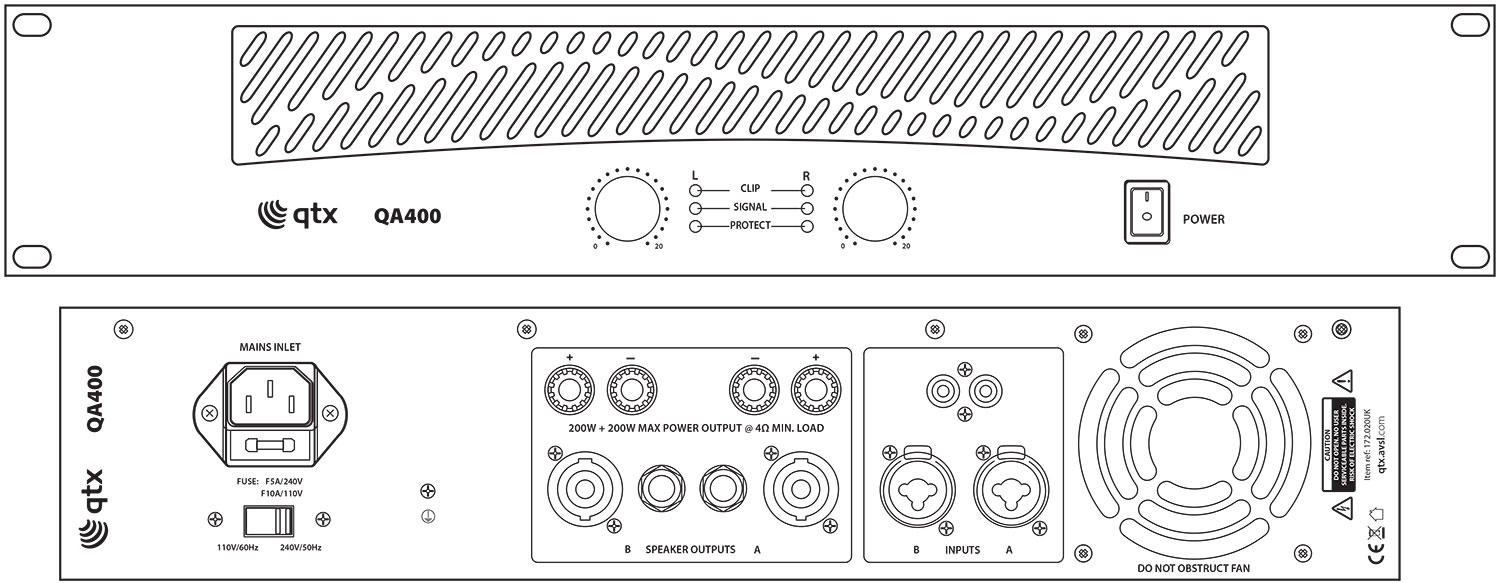

- Inputs Combo (6.3mm jack + XLR) and RCA
- Outputs SPK, 6.3mm jack and 4mm binding posts
Versions
| 172.020UK | 172.025UK | |
|---|---|---|
| Power max. @ 4 Ohms | 2 x 200W | 2 x 500W |
| Fuse rating | T5A (240V) / T10A (110V) | T5A (240V) / T10A (110V) |
| Power rms @ 4 Ohms | 2 x 100W | 2 x 250W |
| Power rms @ 8 Ohms | 2 x 70W | 2 x 170W |
| Dimensions | 88 x 482 x 270mm | 88 x 482 x 340mm |
| Weight | 6.8kg | 9.1kg |
