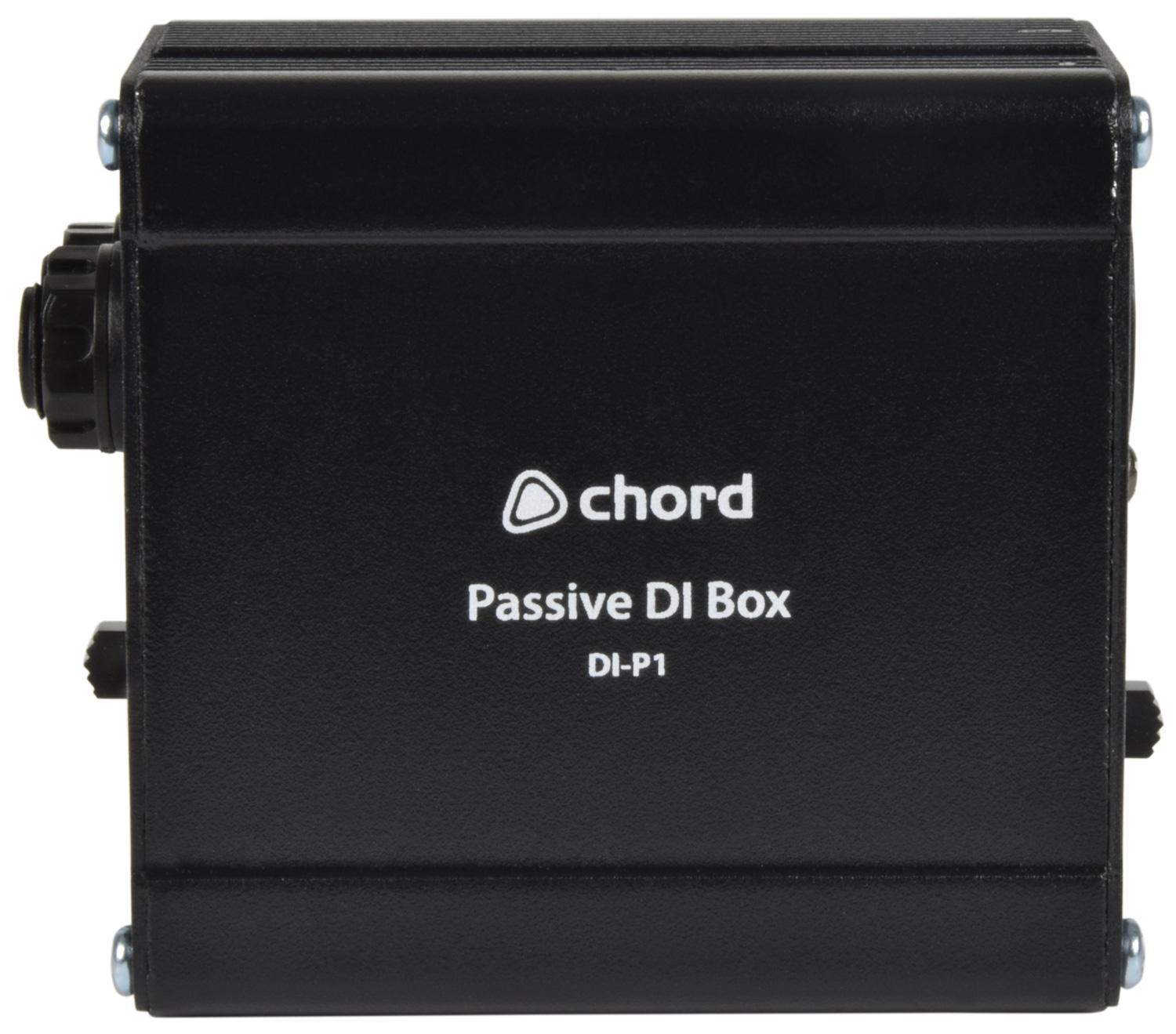

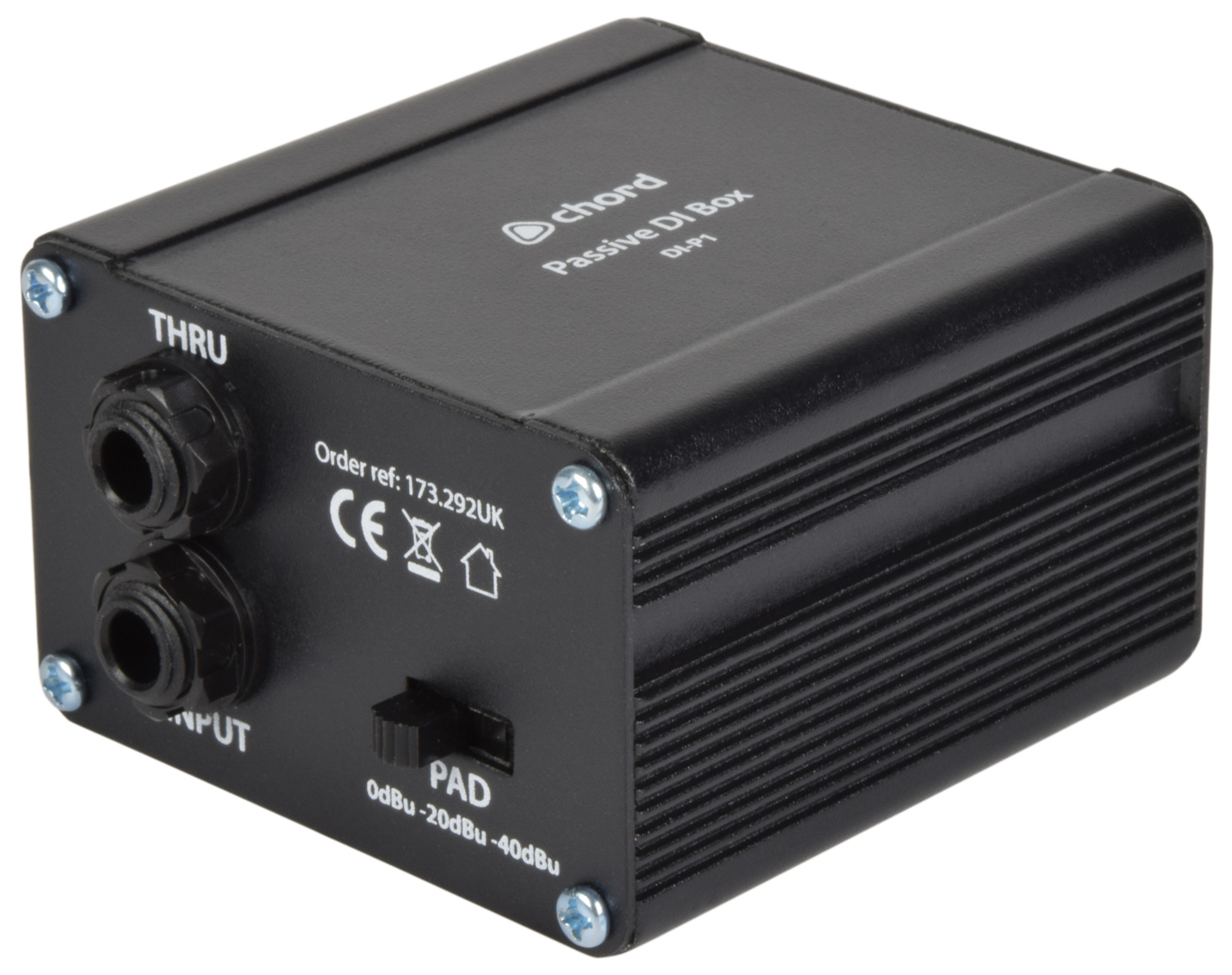

Passive Direct Injection Box

173.292UK DI-P1

Passive DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Equipped with 3 pad settings, RF/mains filter and selector ...

  • Ground float option for ground lift with RF/mains filter
  • Ground lift option isolates signal ground without filter
  • 3 pad settings for level matching
Full description Find retailer
Description Version Packed
173.292UK
Passive Direct Injection Box 		Box Label

Passive Direct Injection Box

Passive DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Equipped with 3 pad settings, RF/mains filter and selector for ground lift with or without filter.

  • Ground float option for ground lift with RF/mains filter
  • Ground lift option isolates signal ground without filter
  • 3 pad settings for level matching

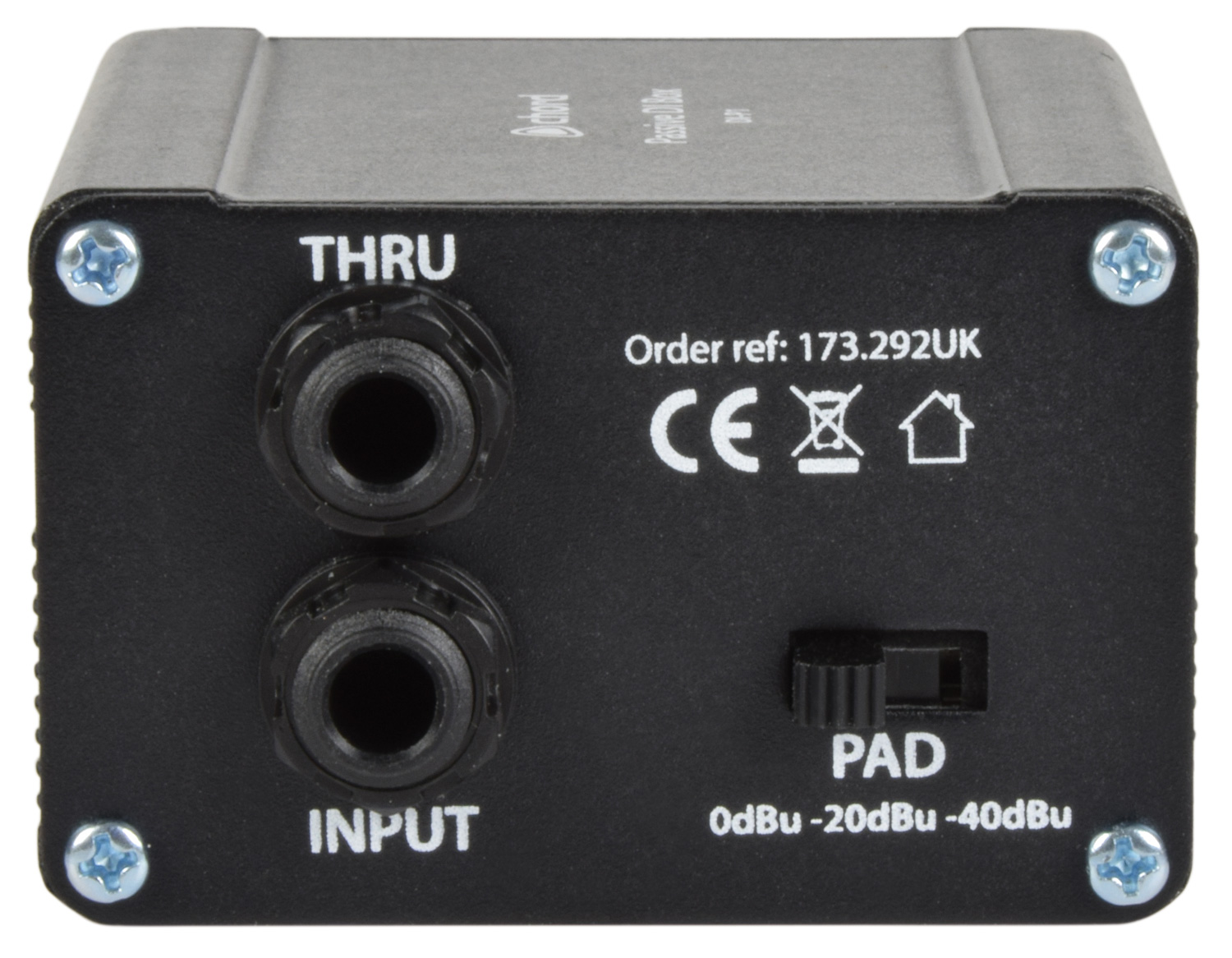

  • Input 6.3mm jack (unbalanced)

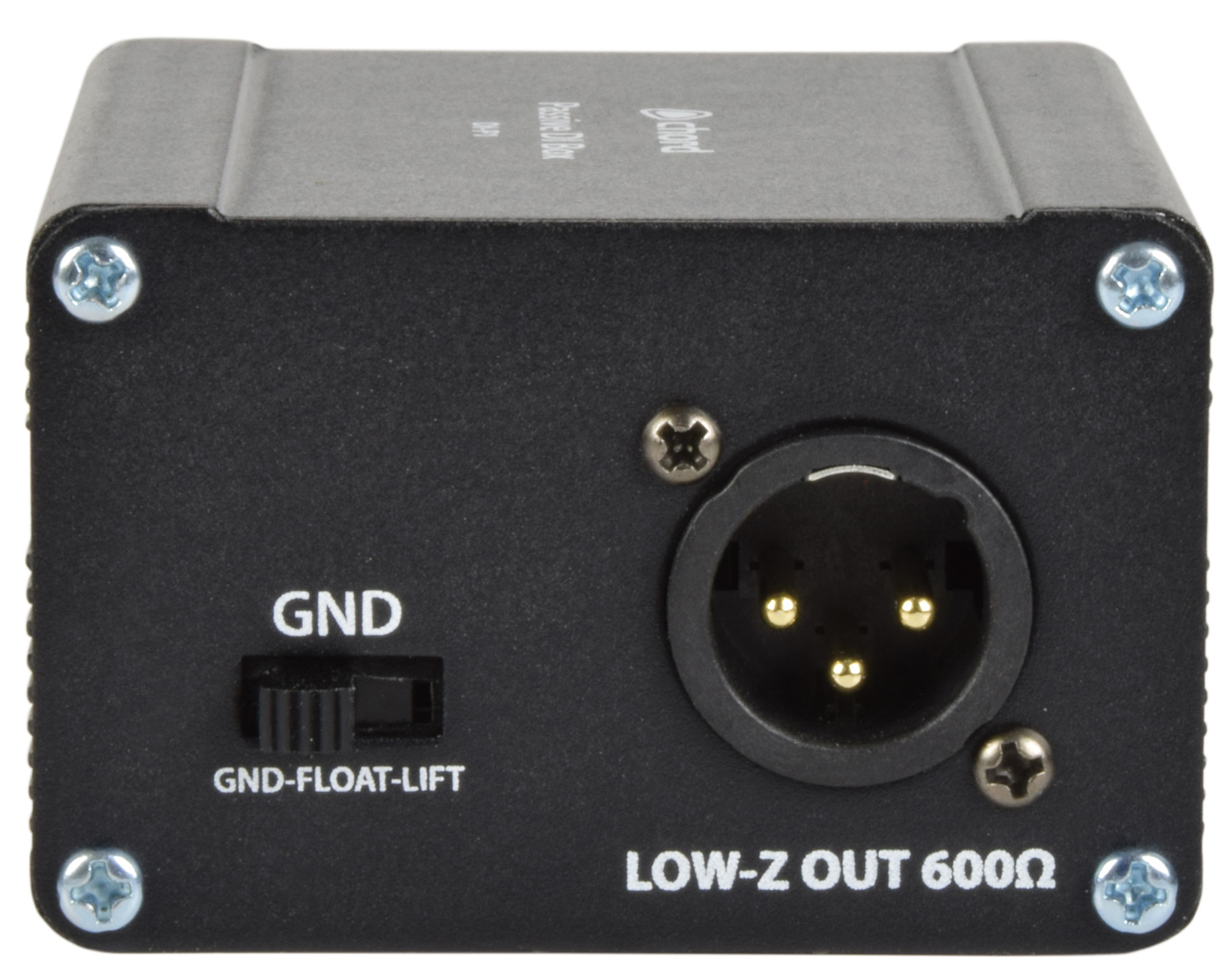

  • Outputs XLRM (balanced), 6.3mm jack through (unbalanced)
  • Input impedance >100k Ohms
  • Output impedance 600 Ohms
  • Controls 0/-20/-40dBu pad & Ground-Float-Lift switch

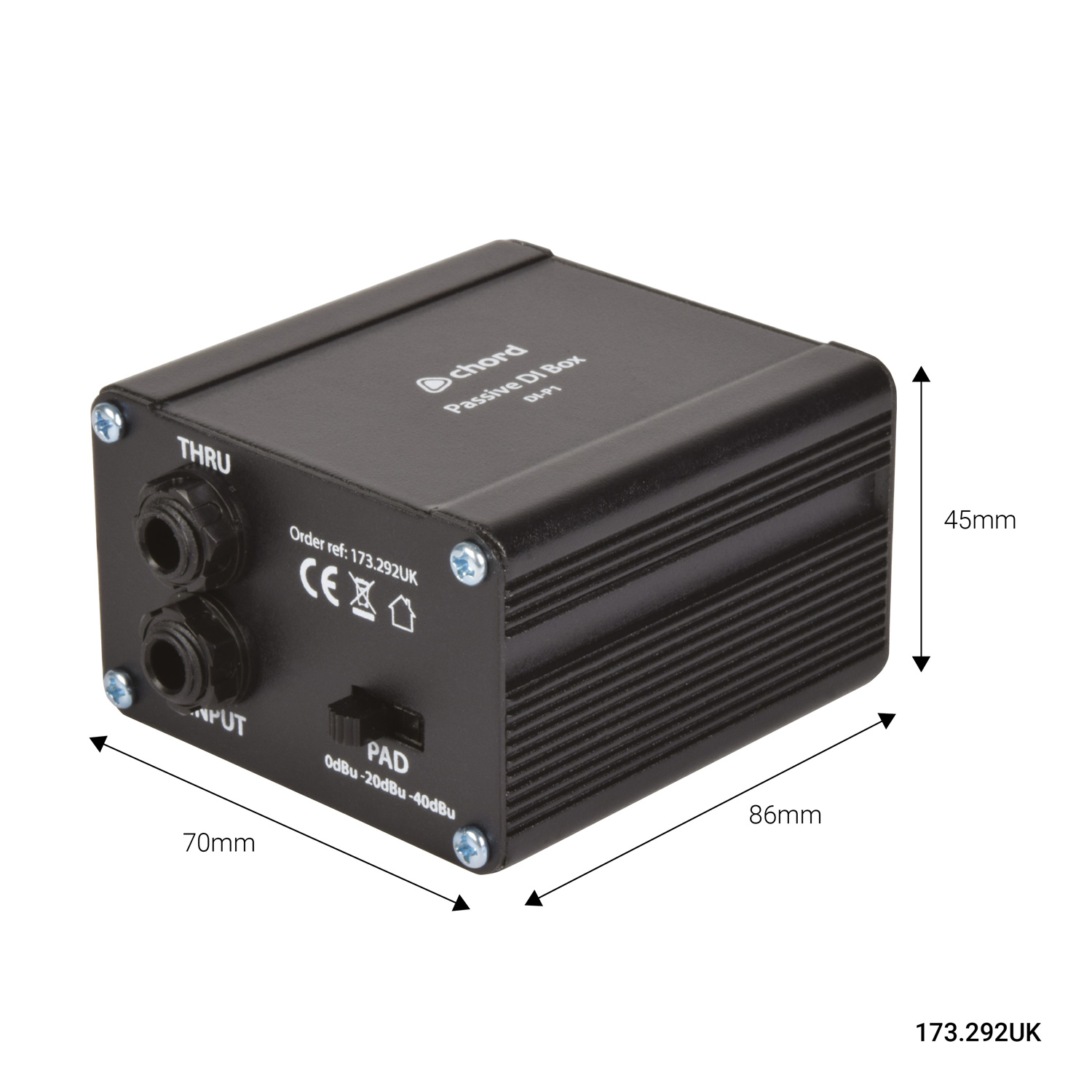

  • Dimensions 86 x 70 x 45mm
  • Weight 234g

In the box

The box for this item contains :

  • Passive DI box

Downloads

Instruction manual
For 173.292UK (146KB)
UK Declaration of conformity
For 173.292UK (242KB)
EU Declaration of conformity
For 173.292UK (233KB)
