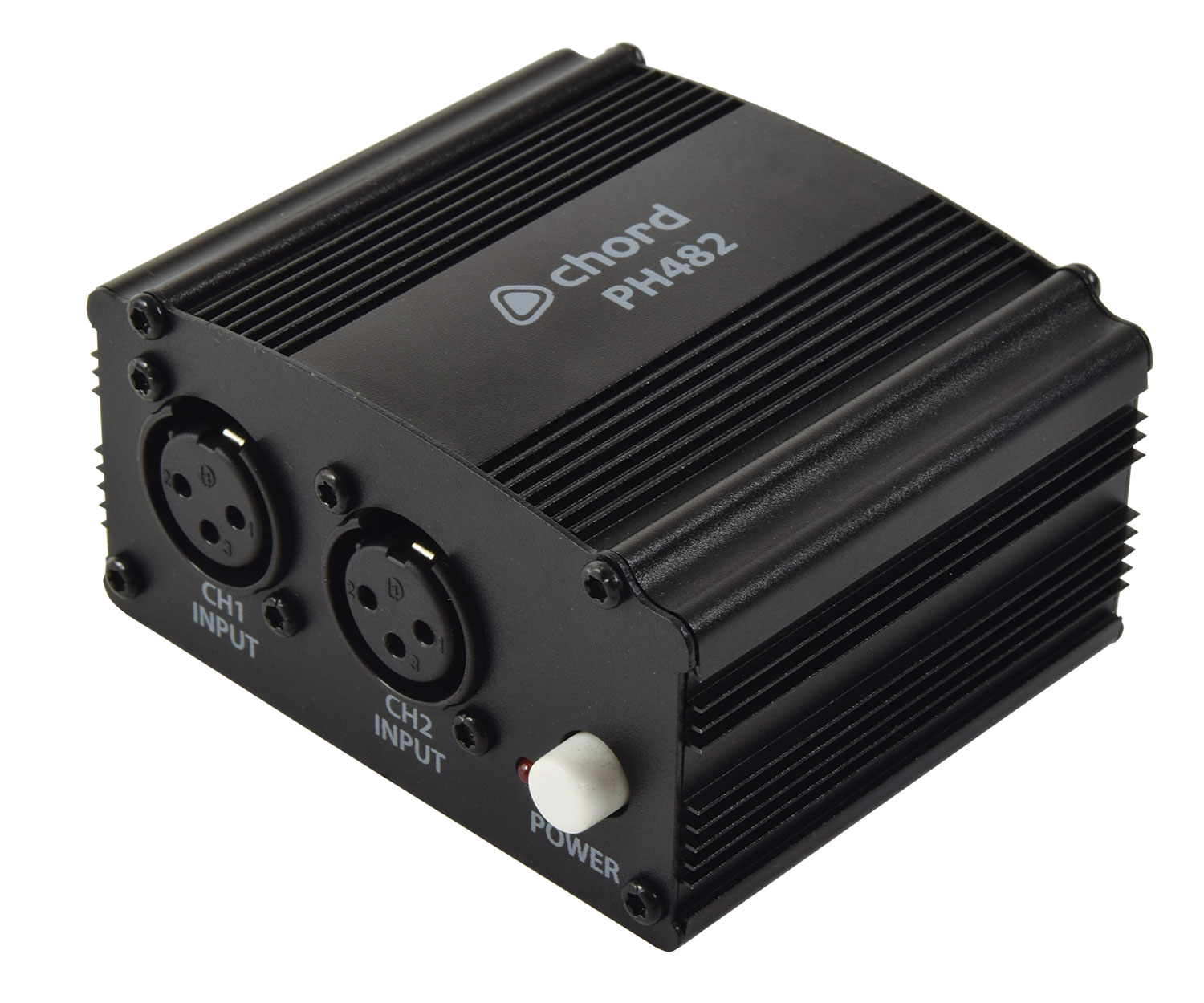

Phantom Power Units

173.482UK PH482

Single or dual channel phantom power units providing +48V for use with condenser microphones.

  • Supplied with UK 5Vdc 1A power adaptor
Description Version Packed
173.481UK
Single Channel 48V Phantom Power Unit
1-channel Box Label
173.482UK
Dual Channel 48V Phantom Power Unit
2-channel Box Label

Phantom Power Units

Single or dual channel phantom power units providing +48V for use with condenser microphones.

  • Supplied with UK 5Vdc 1A power adaptor
  • Power supply 5Vdc, 1000mA (included)
  • Phantom power +48Vdc

Versions

  173.481UK 173.482UK

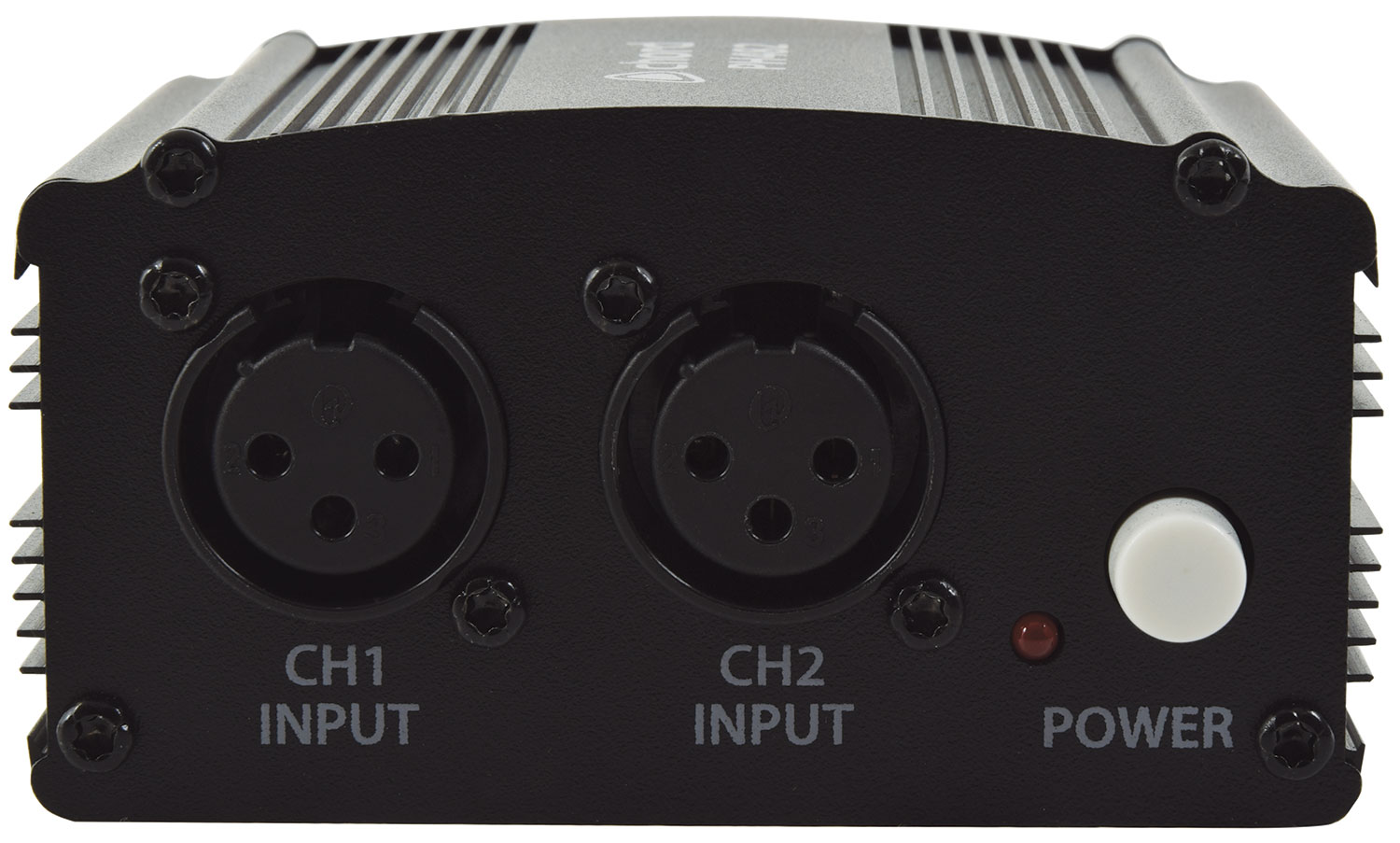

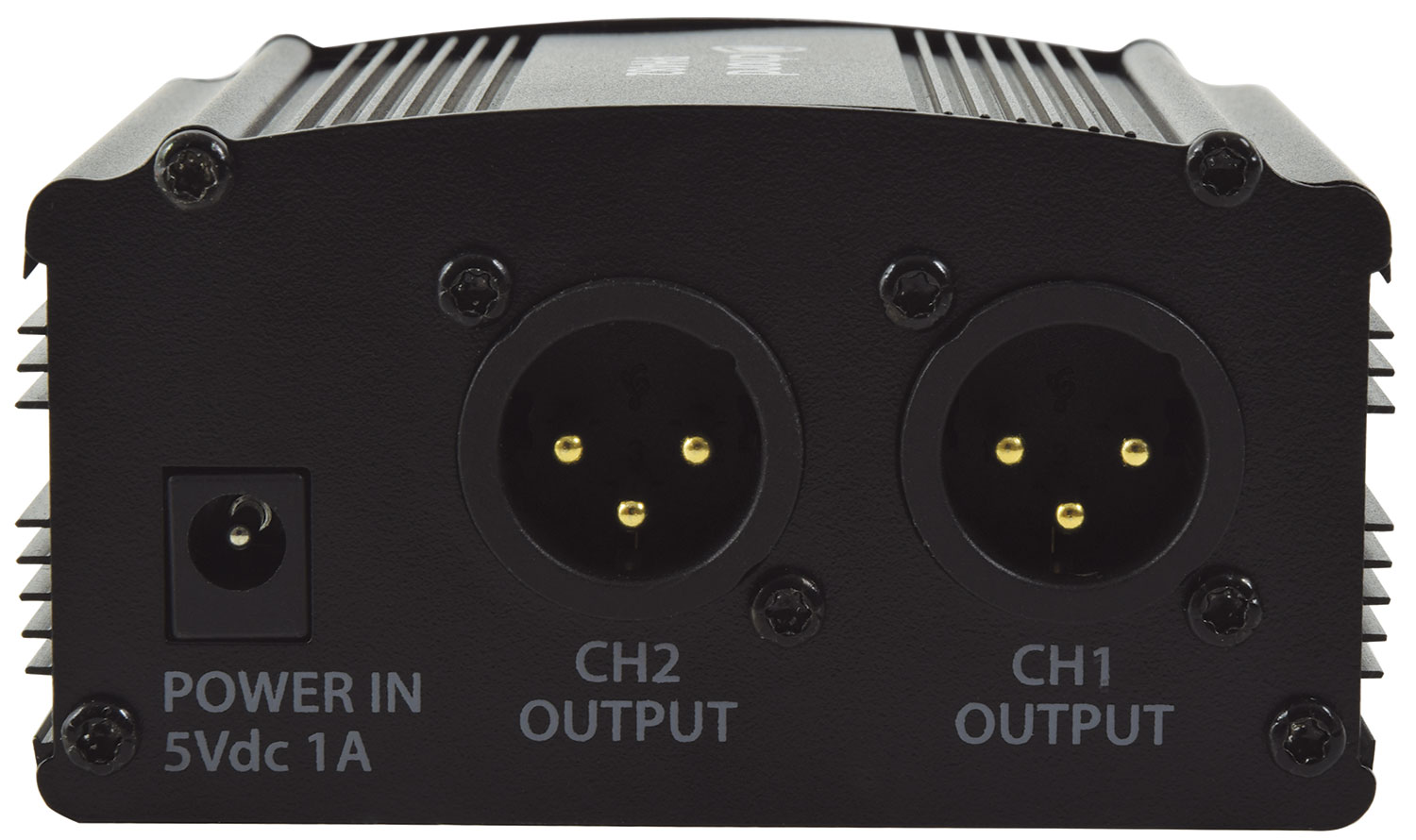

Connections XLRF in, XLRM out 2 XLRF in, 2 XLRM out
Dimensions 86 x 60 x 46mm 86 x 78 x 46mm
Weight 146g 184g

Support : articles

Dynamic vs condenser microphones

The way that a microphones picks up sound determines how useful the resulting audio output is for different applications. There are 2 main types of capsule used in microphones – dynamic and condenser.

Friday, 3rd March 2017

In the box

The box for this item contains :

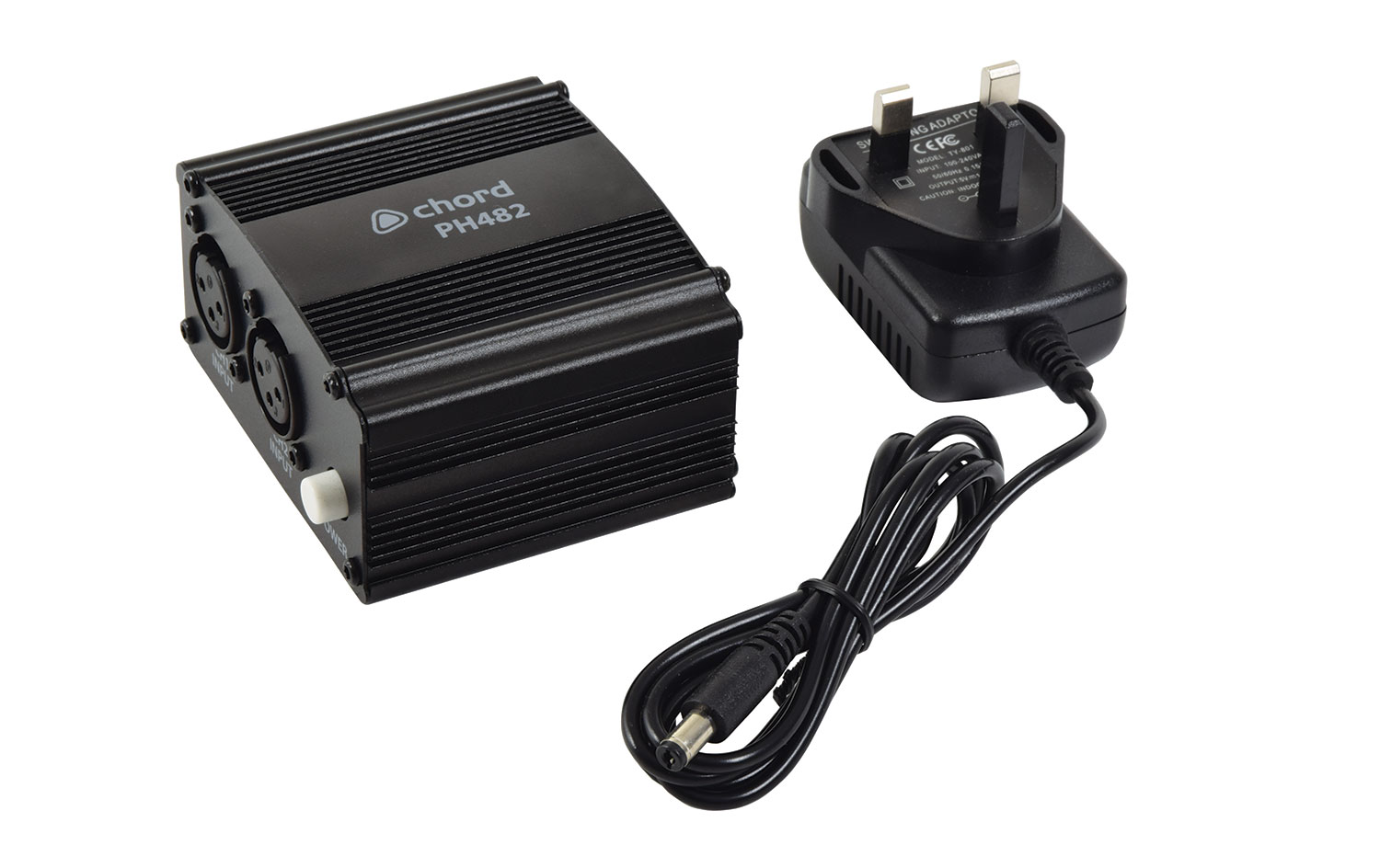

  • Phantom power supply unit
  • 5Vdc 1A UK power adaptor

Downloads

UK Declaration of conformity
For 173.482UK (248KB)
EU Declaration of conformity
For 173.482UK (238KB)
