AVSL : Product : Loudspeakers : ABS Cabs : Passive : 178.212UK

QR Series Passive Moulded PA Speaker Boxes

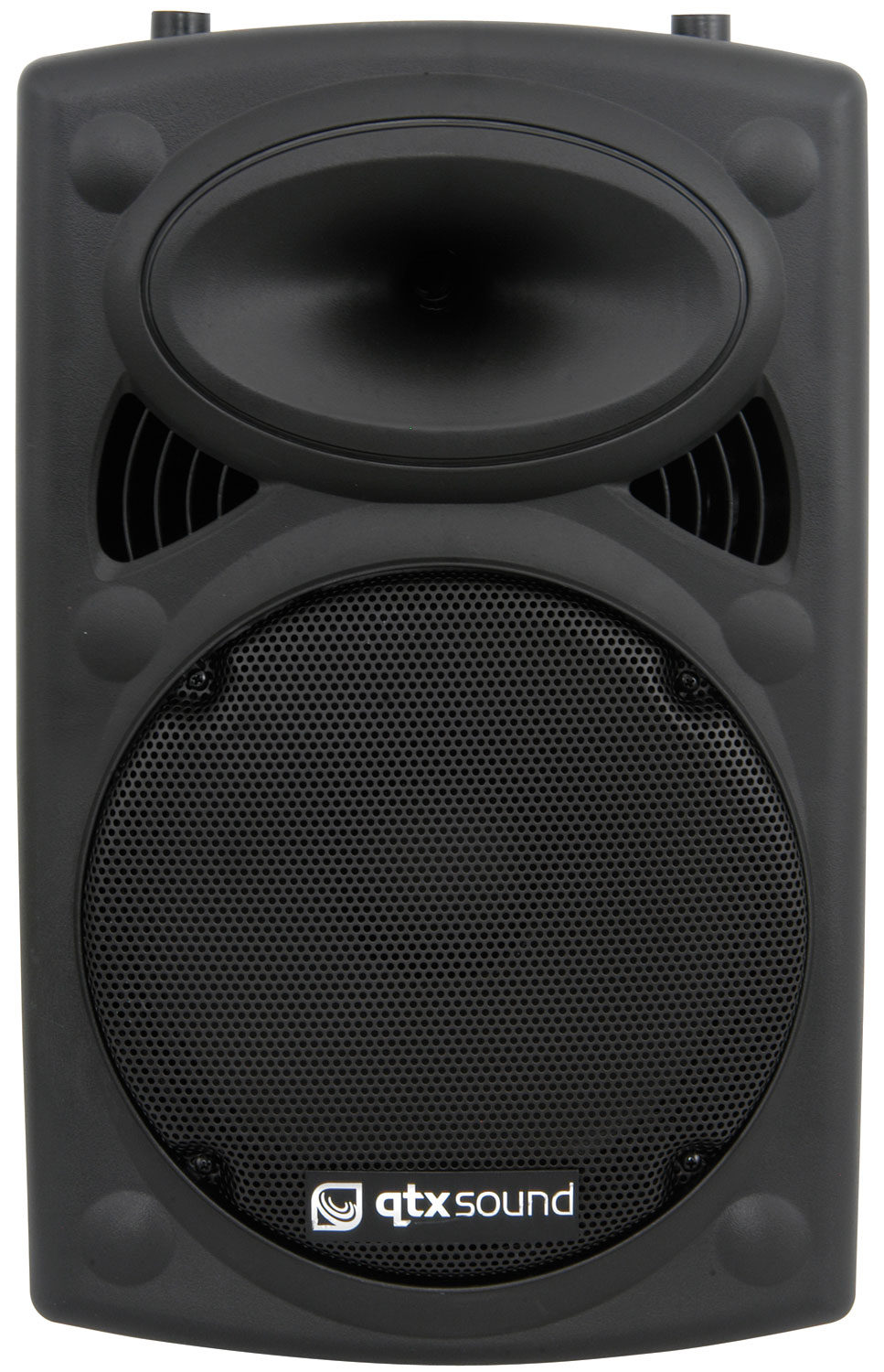

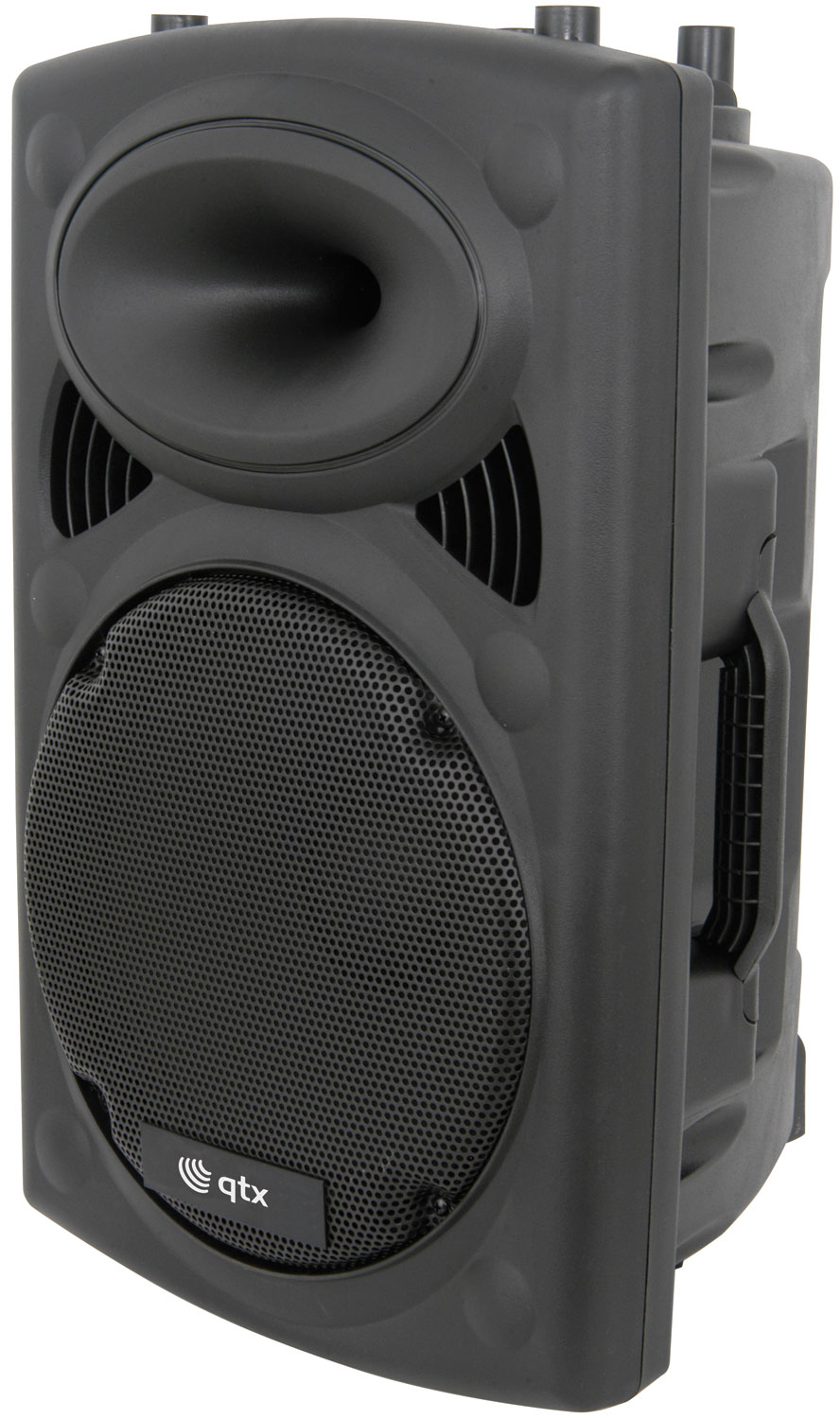

178.212UK QR12

Compact & lightweight speaker cabinets designed for multi-purpose sound reinforcement. These shockproof moulded enclosures feature M8/M6 fixing points, allowing them to be arrayed in various combin...

SPK connectors
Rigid steel grille and easy-carry handle
Multiple mounting points

Full description Find retailer

	Description	Version	Packed
	178.210UK QR8 Passive ABS Speaker 8in	8"	Box Label
	178.211UK QR10 Passive ABS Speaker 10in	10"	Box Label
	178.212UK QR12 Passive ABS Speaker 12in	12"	Box Label
	178.213UK QR15 Passive ABS Speaker 15in	15"	Box Label

Accessories

	Description	Version	Packed
	127.081UK QR12 slip cover for QR12, QR12A or QR12PA speaker	QR12/QR12A/QR12PA	Poly Bag
	902.521UK 12" driver for QR12 (178.212UK)	12" for QR12	Box Label
	902.503UK HF Compression Driver for QR12/QR15/QS12+A/QS15+A		Box Label
	902.557UK CROSSOVER NETWORK FOR QR12	for QR12	Box Label

QR Series Passive Moulded PA Speaker Boxes

Compact & lightweight speaker cabinets designed for multi-purpose sound reinforcement. These shockproof moulded enclosures feature M8/M6 fixing points, allowing them to be arrayed in various combinations to suit most applications from small halls to large nightclubs.

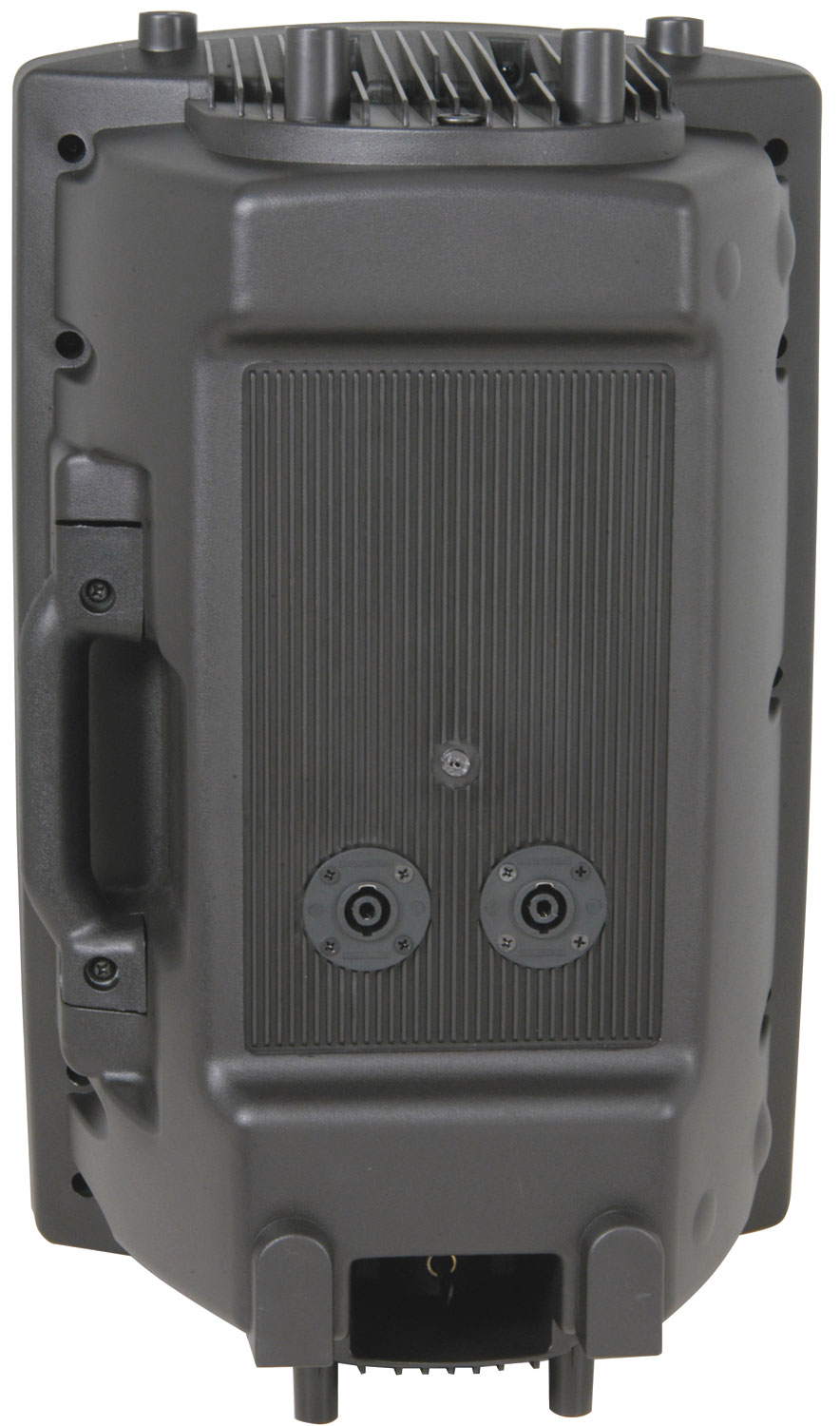

SPK connectors
Rigid steel grille and easy-carry handle
Multiple mounting points

Titanium compression driver
Lightweight moulded enclosure
35mm internal pole-mounting

Impedance 8 ohms
Pole mounting 35mm integral top-hat

Versions

	178.210UK	178.211UK	178.212UK	178.213UK
Model	QR8	QR10	QR12	QR15
Power rms	100W	150W	200W	250W
Power max.	200W	300W	400W	500W
Woofer	200mm (8'')	250mm (10'')	300mm (12'')	380mm (15'')
Frequency response	55Hz - 20kHz	50Hz - 20kHz	48Hz - 20kHz	45Hz - 20kHz
SPL @ 1W/1m	93dB	95dB	98dB	101dB
Connector	1 x SPK	2 x SPK	2 x SPK	2 x 4 wire SPK
Dimensions : W(front/rear) x H x D	290/150 x 400 x 220mm	320/180 x 470 x 260mm	350/180 x 570 x 300mm	430/250 x 680 x 360mm
Weight	4.9kg	6.4kg	9.8kg	14.2kg
