CS Series Wooden Installation Speakers

178.675UK CS-810W

Passive speaker cabinets with smooth and even frequency response for accurate delivery of music and vocal material. Birch plywood cabinets with polyurethane texture coated finish and acoustic foam ...

  • Premium birch plywood construction
  • Titanium diaphragm HF compression driver
  • Balanced full-range sound reproduction
Description Version Packed
178.671UK
CS-610B Passive Speaker Black
6" Black Box Label
178.674UK
CS-810B Passive Speaker Black
8" Black Box Label
178.675UK
CS-810W Passive Speaker White
8" White Box Label
178.677UK
CS-1035B Passive Speaker Black
10" Black Box Label
178.678UK
CS-1035W Passive Speaker White
10" White Gift Box

CS Series Wooden Installation Speakers

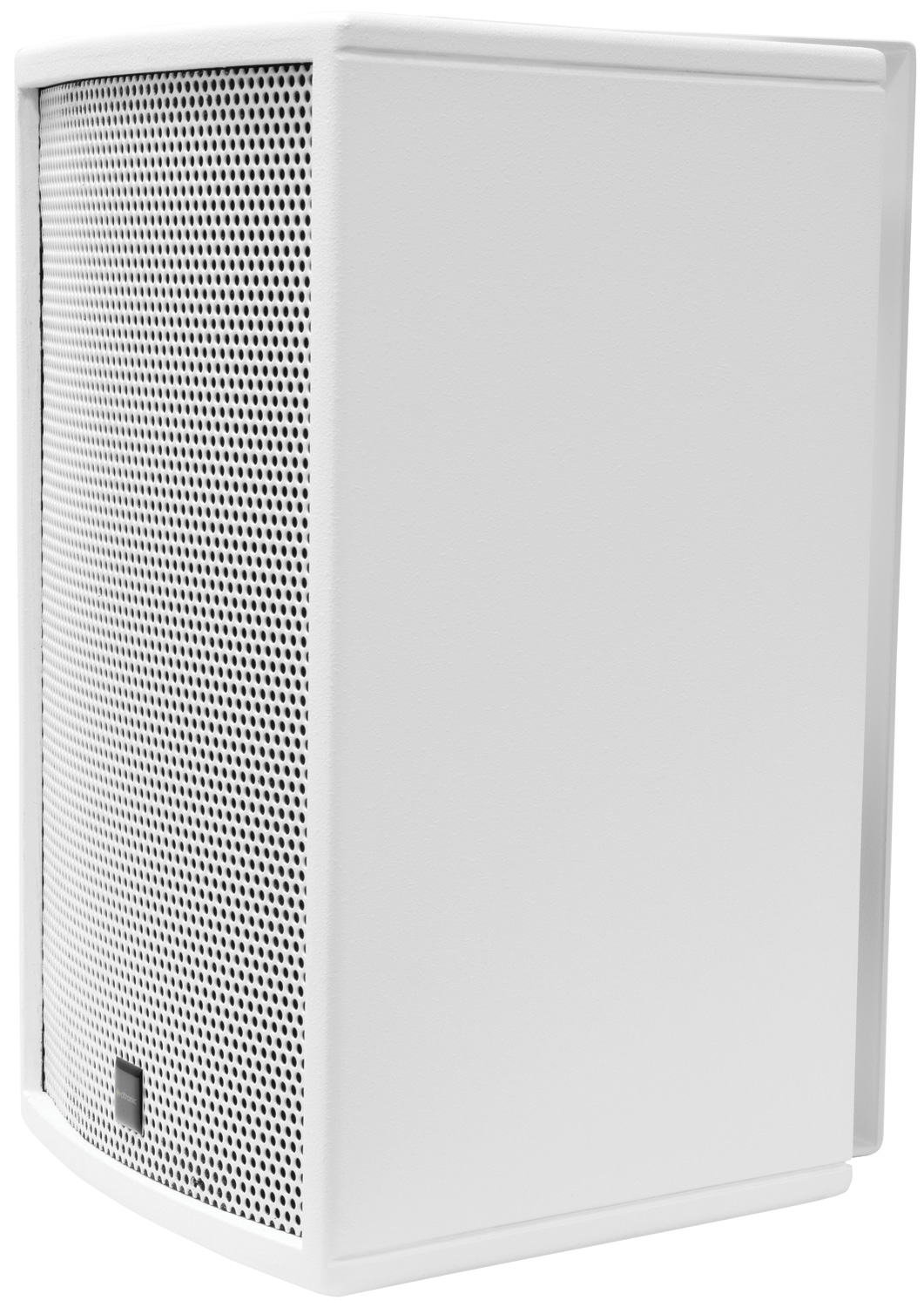

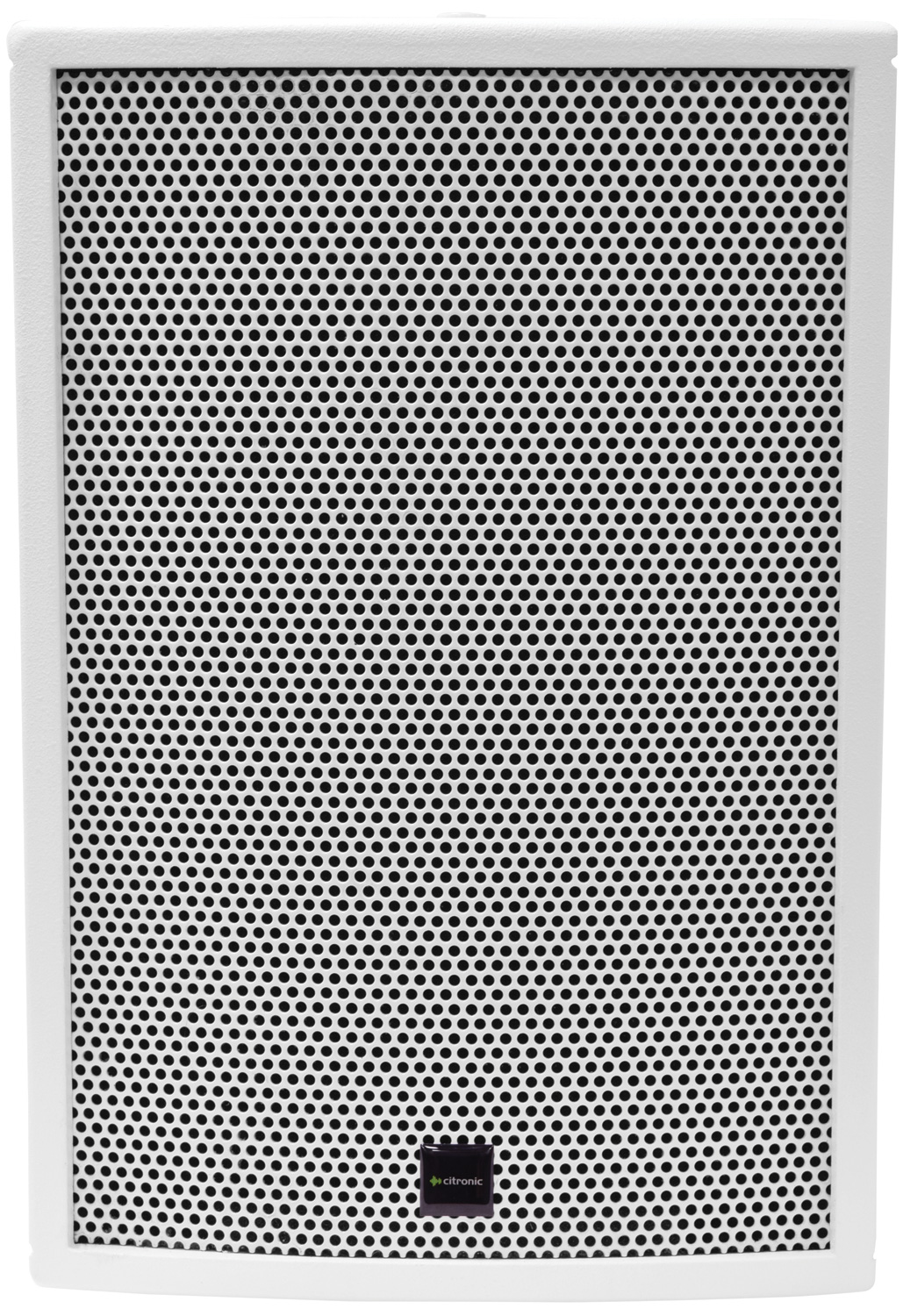

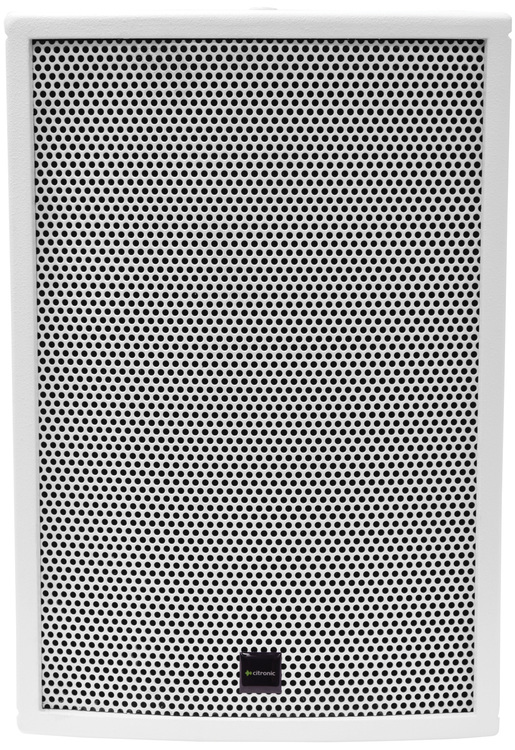

Passive speaker cabinets with smooth and even frequency response for accurate delivery of music and vocal material. Birch plywood cabinets with polyurethane texture coated finish and acoustic foam backed steel grilles. Fitted with steel U brackets and mounting hardware for convenient and neat installation. Understated minimalist design with premium quality performance.

  • Premium birch plywood construction
  • Titanium diaphragm HF compression driver
  • Balanced full-range sound reproduction

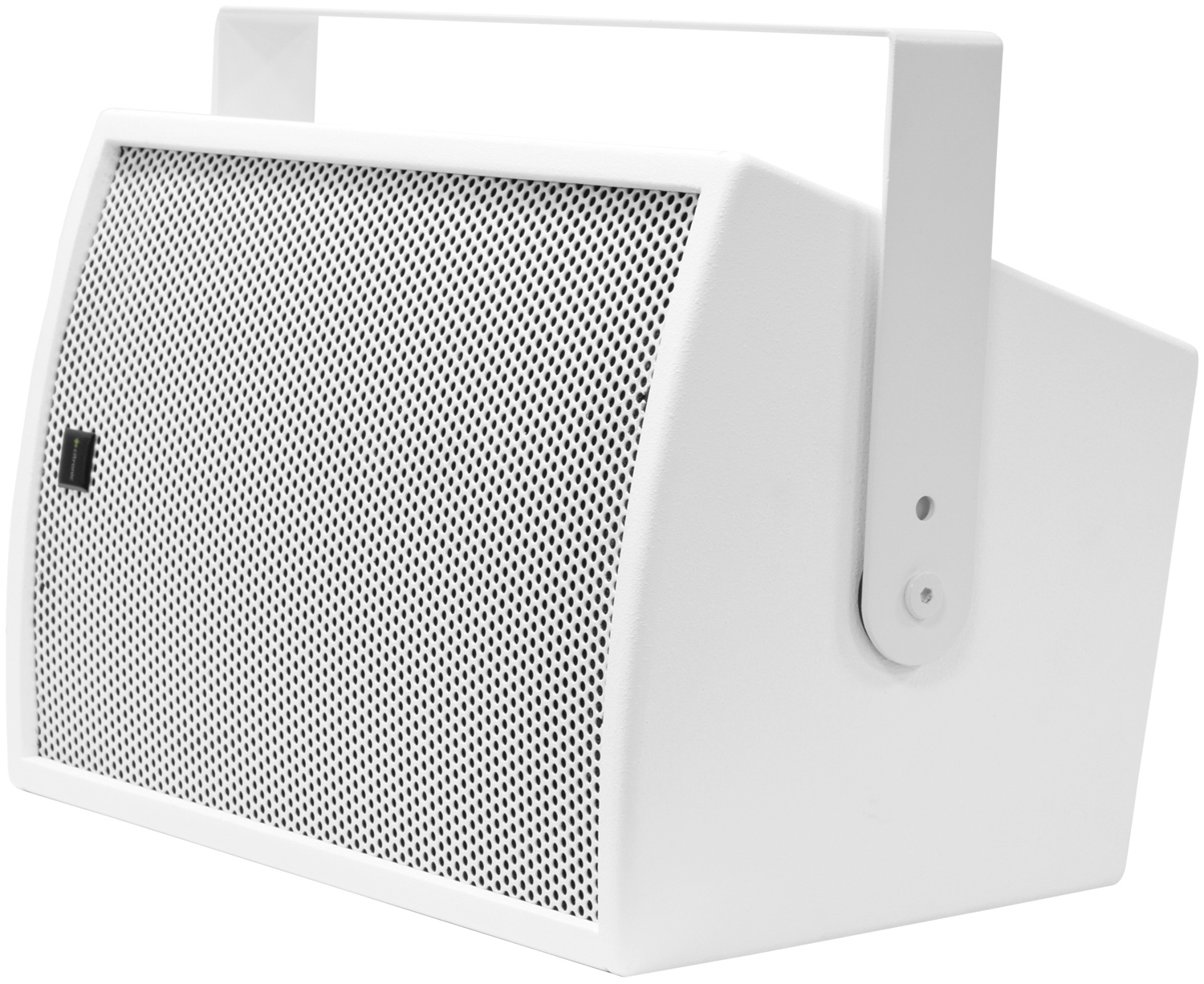

  • Supplied with adjustable U-brackets

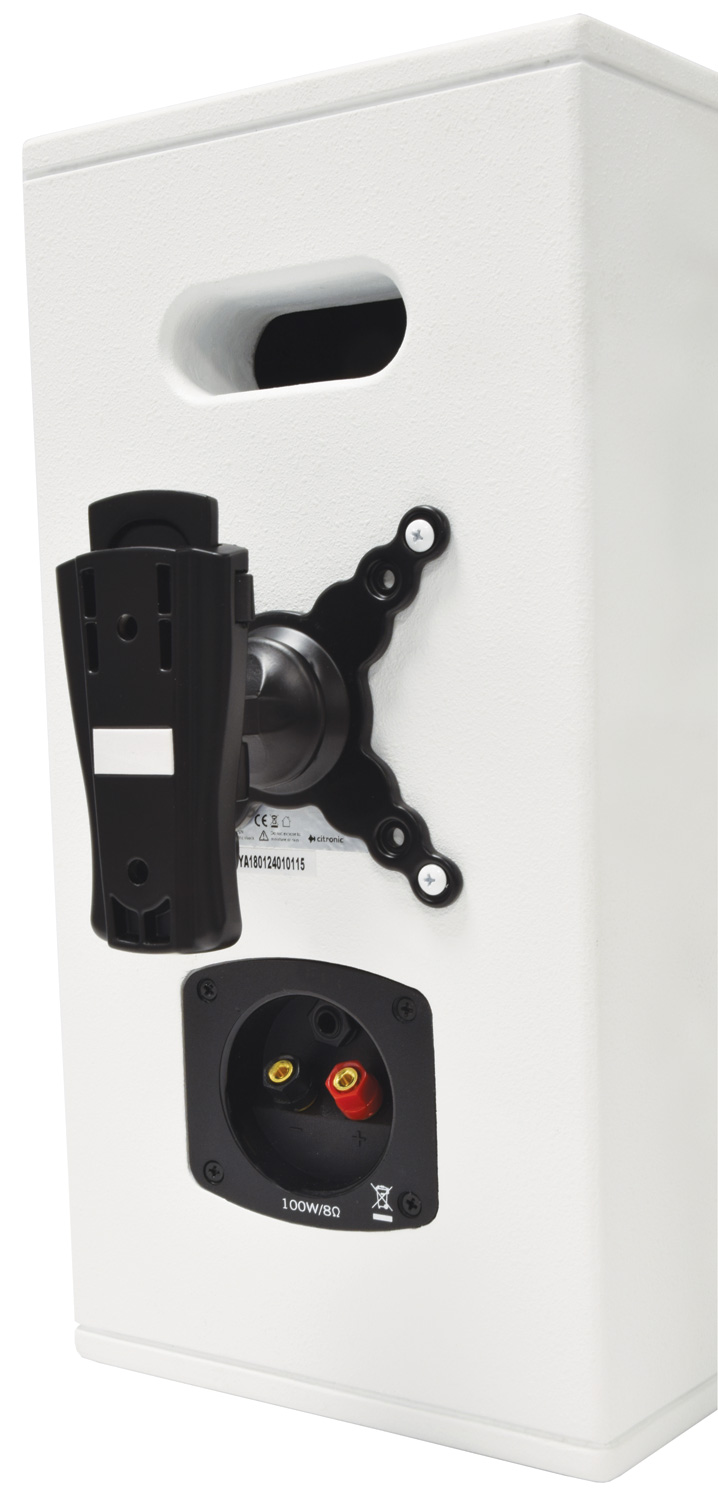

  • CS-610 and CS-810 VESA mount compatible
  • 10", 12" and 15" models fitted with 35mm pole mount socket
  • Supplied singly
  • Impedance 8 Ohms
  • Housing material Birch Plywood

Versions

  178.671UK 178.674UK 178.675UK 178.677UK 178.678UK

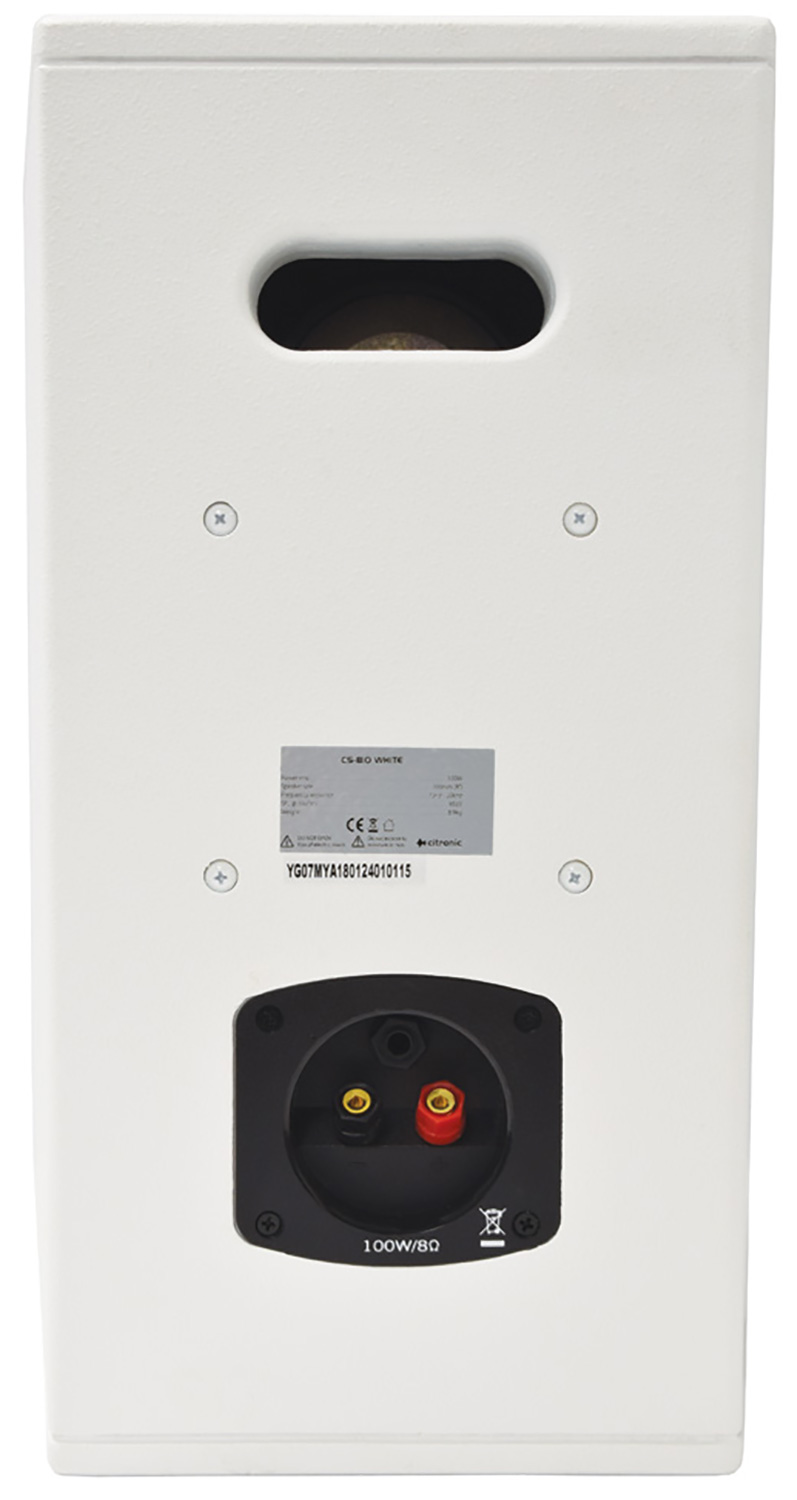

Input connections 6.3mm jack & 4mm binding posts 6.3mm jack & 4mm binding posts 6.3mm jack & 4mm binding posts 2 x SPK sockets 2 x SPK sockets
Crossover frequency 3.5kHz (12dB/oct) 3.5kHz (12dB/oct) 3.5kHz (12dB/oct) 3.5kHz (12dB/oct) 3.5kHz (12dB/oct)
Model CS-610B CS-810B CS-810W CS-1035B CS-1035W
Power : rms 100W 100W 100W 350W 350W
Configuration 150mm (6") & 0.5" dome tweeter 200mm (8") & CD horn 200mm (8") & CD horn 250mm (10") & CD horn 250mm (10") & CD horn
Dispersion 120° x 30° (H x V) 120° x 120° (H x V) 120° x 120° (H x V) 120° x 120° (H x V) 120° x 120° (H x V)
Finish Black Black White Black White
Hardware U bracket + VESA75 threaded inserts 4mm U bracket + VESA100 threaded inserts 4mm U bracket + VESA100 threaded inserts 4mm U bracket + 35mm pole mount socket U bracket + 35mm pole mount socket
Frequency response 80Hz - 20kHz 70Hz - 20kHz 70Hz - 20kHz 75Hz - 20kHz 75Hz - 20kHz
SPL @ 1W/1m 93dB 93dB 93dB 95dB 95dB

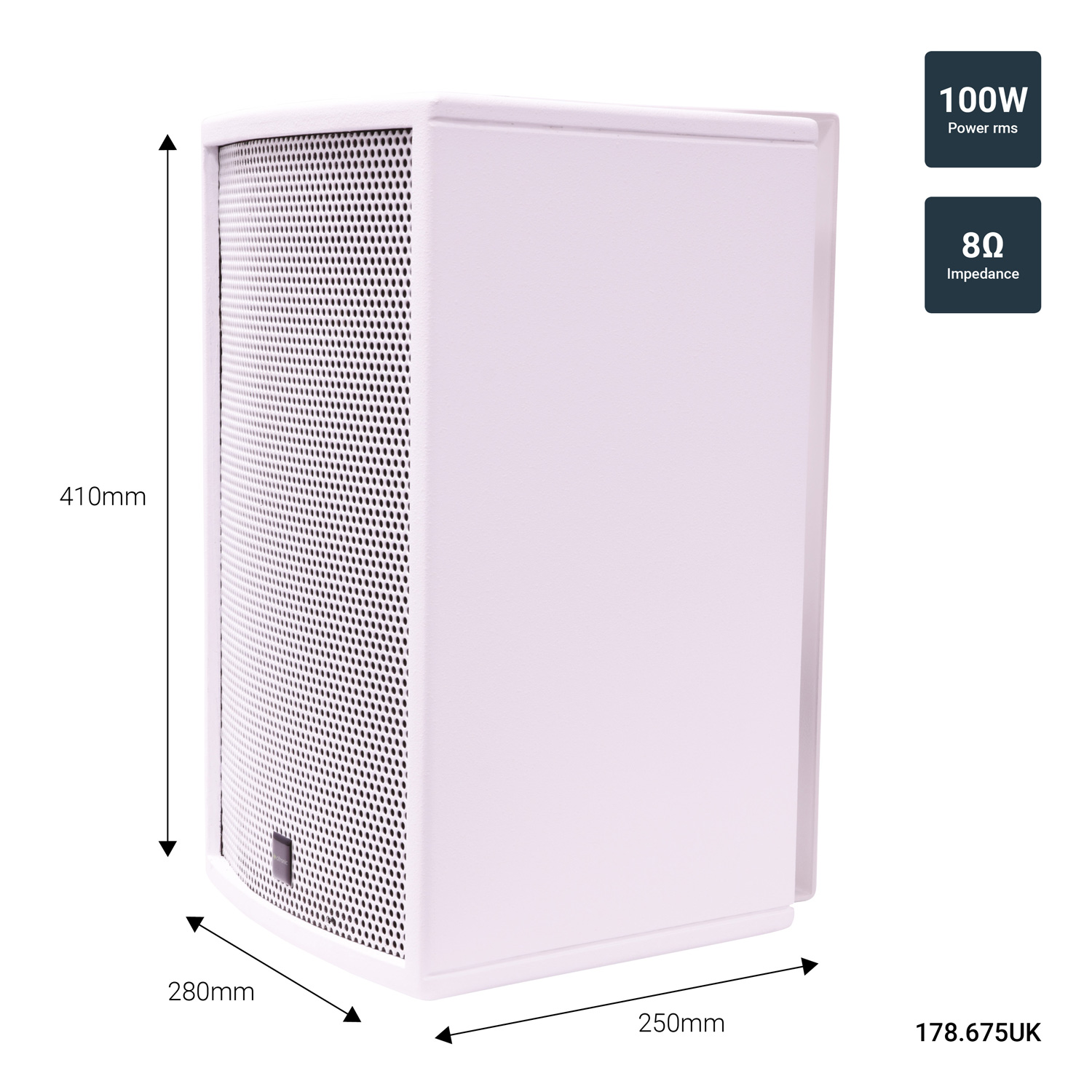

Dimensions 300 x 225 x 215mm 410 x 280 x 250mm 410 x 280 x 250mm 470 x 325 x 310mm 470 x 325 x 310mm
Weight 5.0kg 8.9kg 8.9kg 15.6kg 15.6kg

Support : articles

Low impedance speakers

Impedance is the effective resistance of an electric circuit or component to alternating current, arising from the combined effects of resistance and reactance. Here we explain the features of low impedance and how it is implemented in a speaker system.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • 1 x CS series wooden speaker cabinet
  • 1 x Adjustable U bracket

Downloads

UK Declaration of conformity
For 178.675UK (243KB)
EU Declaration of conformity
For 178.675UK (233KB)
