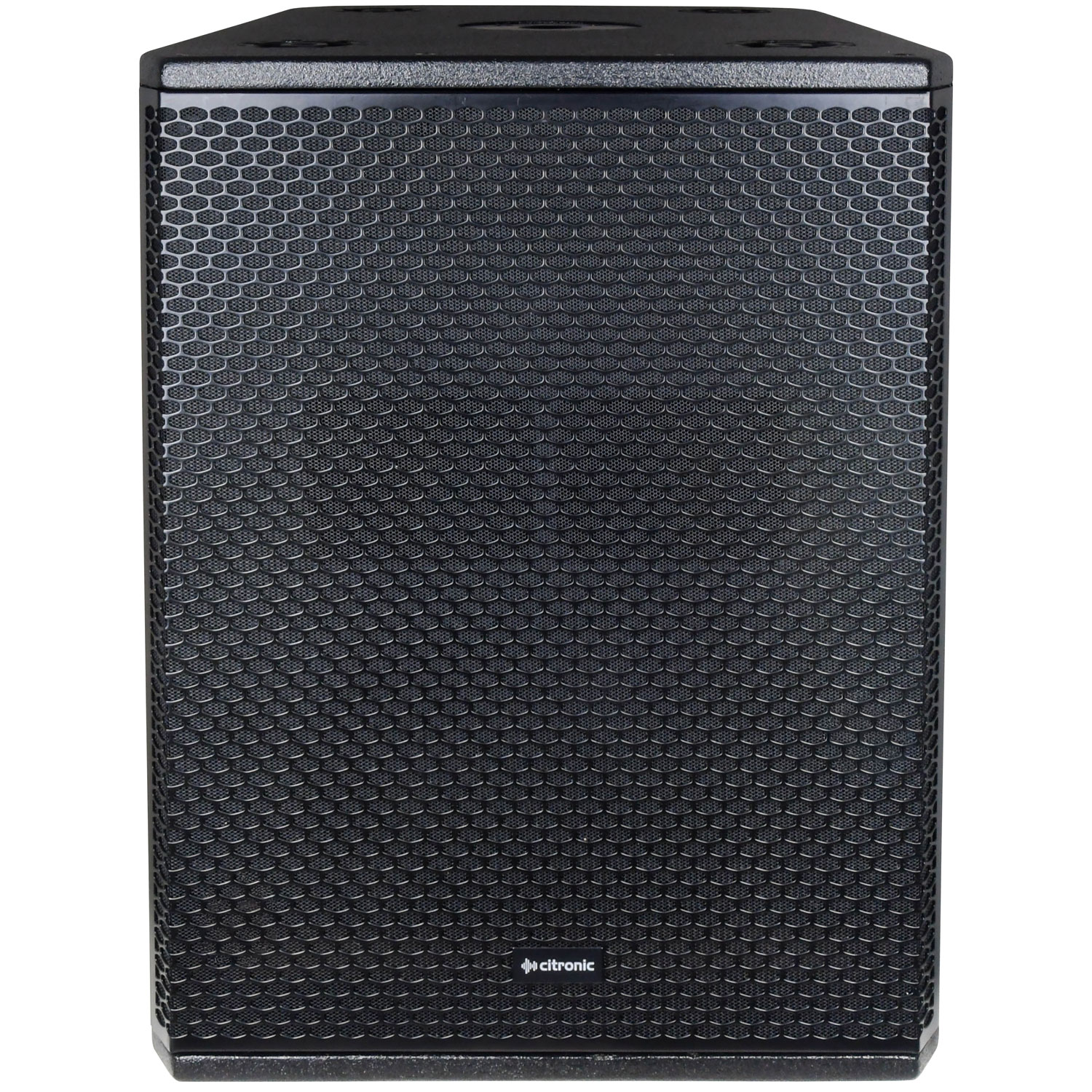

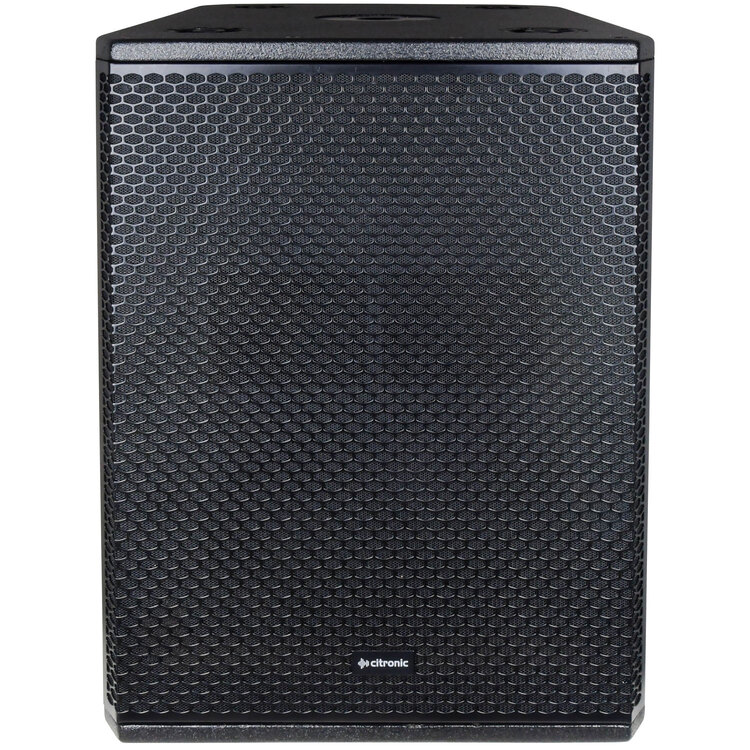

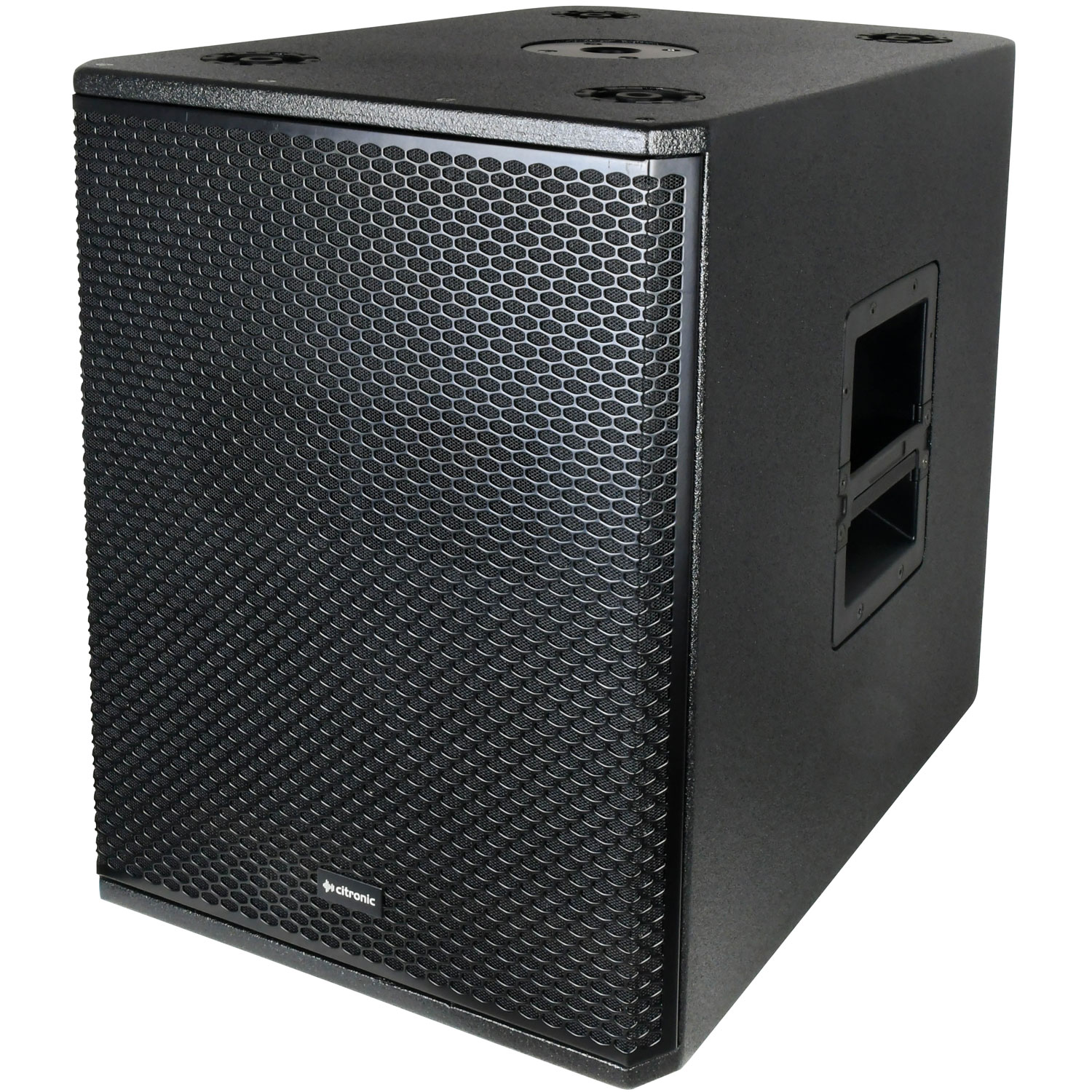

CORVA High Power Passive Subwoofers

CORVA passive subwoofers are designed to provide uncompromising low end in high power sound reinforcement applications. Each plywood enclosure is reinforced and loaded with a custom-designed heavy-duty sub driver with exceptional power handling to provide low frequency content with strong depth and dynamics. For larger venues and high energy sound environments, CORVA passive sub cabinets have the capability to deliver the necessary sound pressure levels.

• Custom high power sub driver
• Double carry handles each side
• Ported 18mm plywood cabinet
• 35mm pole mount socket on top.

• Weight 27.0kg
• Dimensions 550 x 492 x 382mm
• SPL max. 127dB
• Sensitivity 96dB (1W/1m)
• Frequency response 50-150Hz
• Magnet 2.84kg (100oz)
• Voice coil 100mmØ (4")
• Power handling max. 1400W
• Power handling RMS 700W
• Driver 300mmØ (12")
• Construction 18mm ply - polyurea coated, steel grille - powder coated
• Impedance 8 ohms

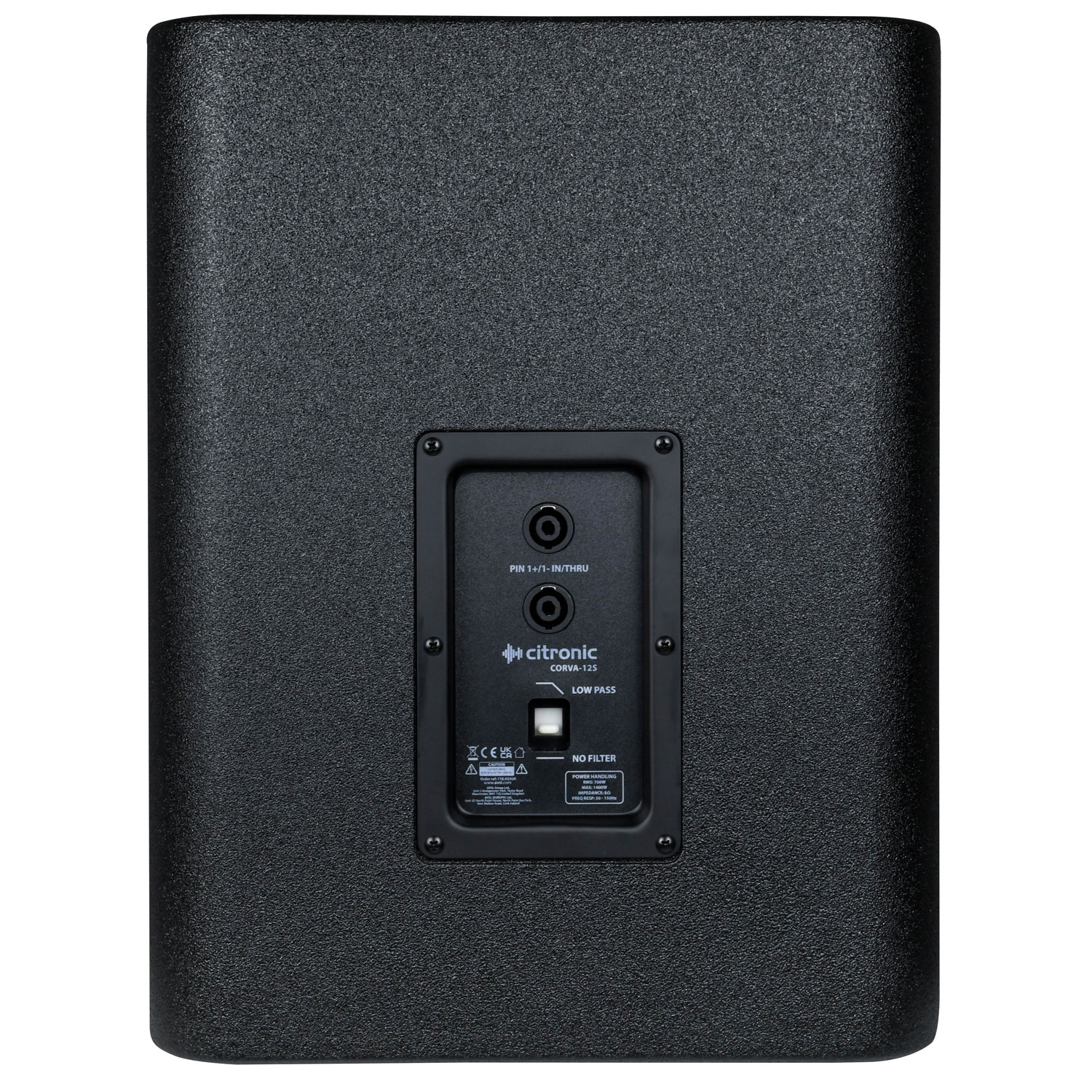

• Connection 2 x parallel SPK socket
