CASA Passive Sub Cabinets

178.129UK CASA-18B

Lightweight subwoofer cabinets with minimal footprint and very capable power handling. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to a...

  • Compact and lightweight design
  • 15mm MDF cabinets with hard-wearing paint finish
  • 2 x side carry handles
Description Version Packed
178.121UK
CASA-10B Passive Sub 300Wrms
10" 300W Box Printed
178.123UK
CASA-12B Passive Sub 400Wrms
12" 400W Box Printed
178.126UK
CASA-15B Passive Sub 500Wrms
15" 500W Box Printed
178.129UK
CASA-18B Passive Sub 600Wrms
18" 600W Box Printed

CASA Passive Sub Cabinets

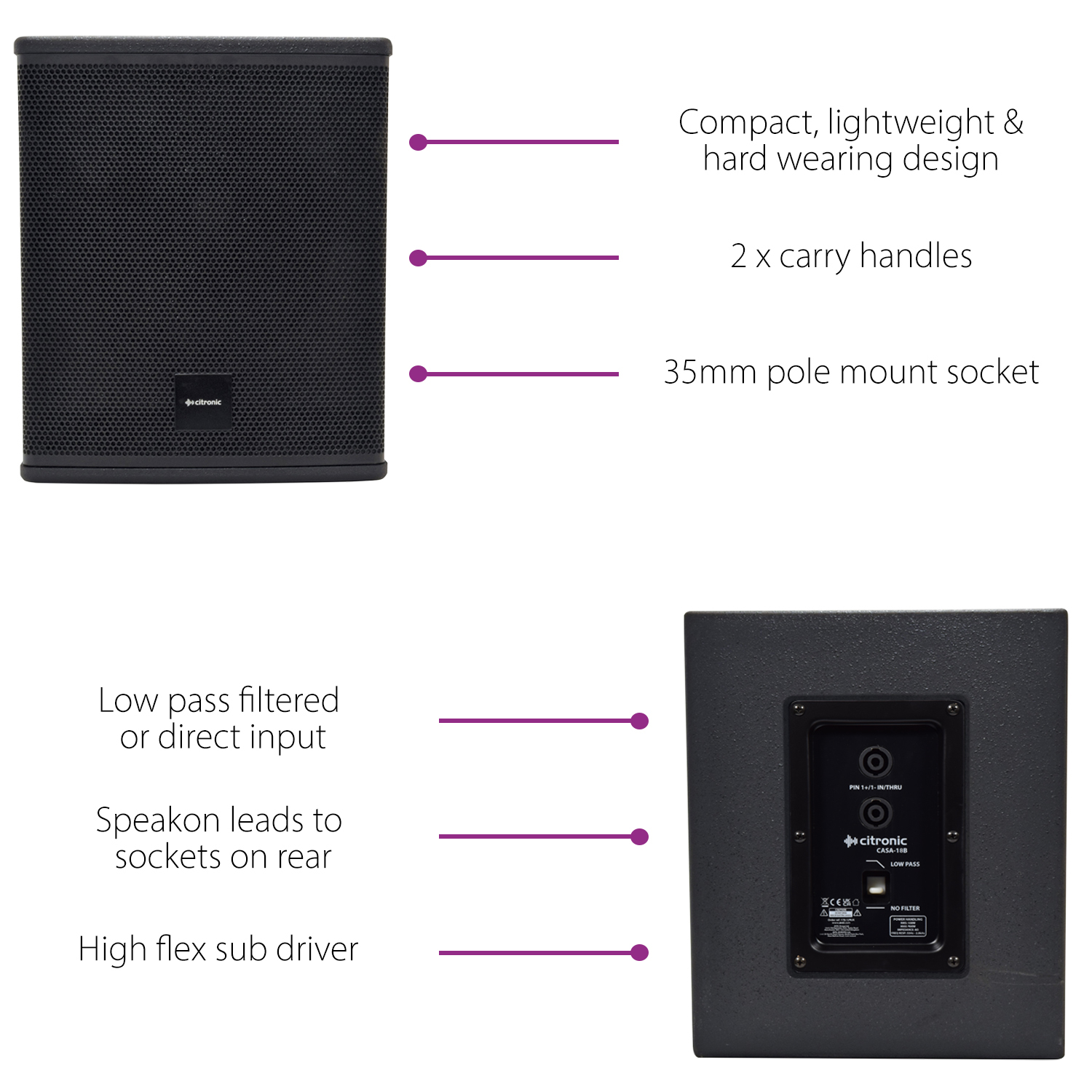

Lightweight subwoofer cabinets with minimal footprint and very capable power handling. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to accommodate a mounting pole. The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system. Output from a power amplifier is via Speakon leads to sockets on the rear panel. Designed as a perfect match for the CASA range of PA cabinets and equally at home as part of any high energy sound reinforcement setup.

  • Compact and lightweight design
  • 15mm MDF cabinets with hard-wearing paint finish

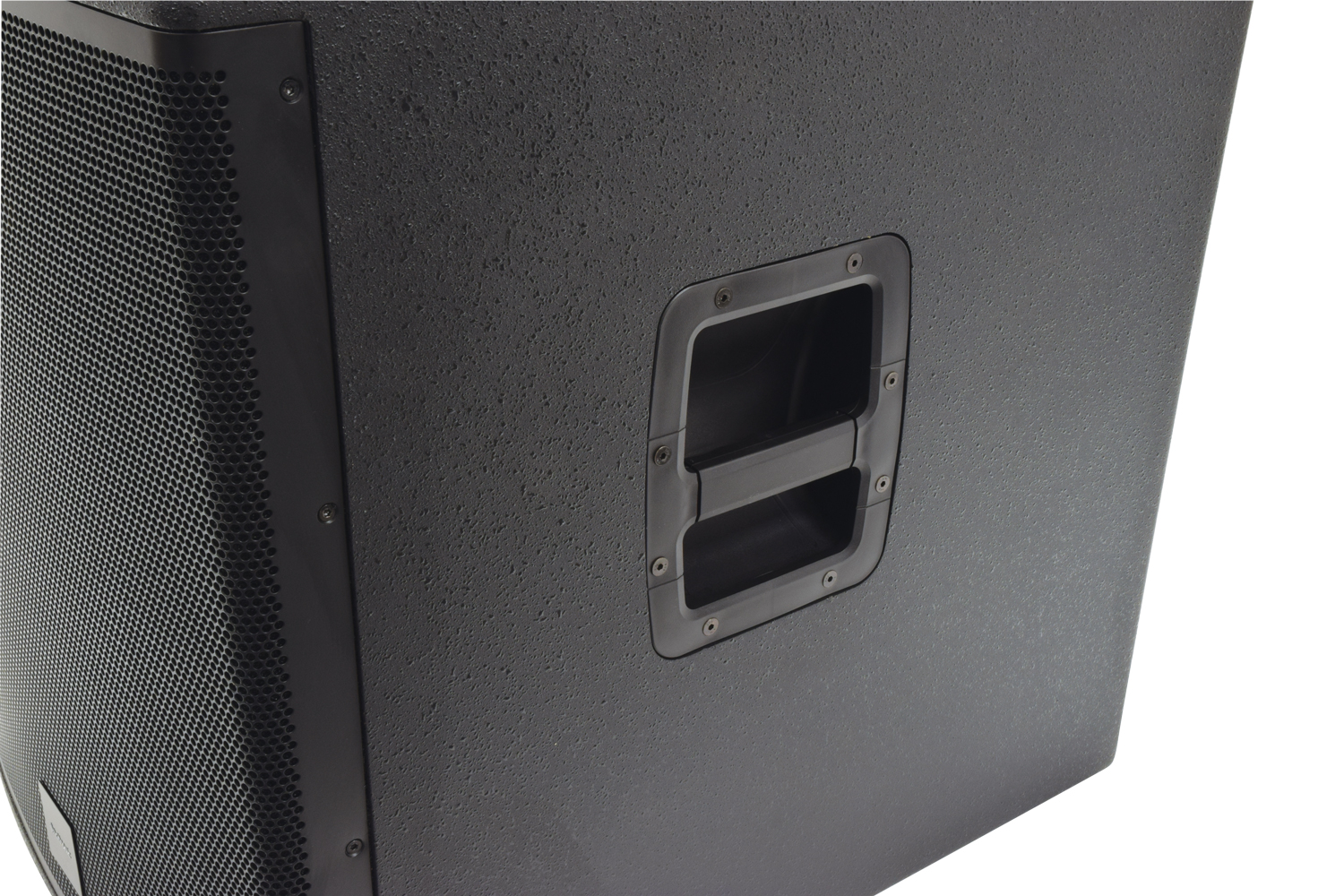

  • 2 x side carry handles
  • Low pass filtered or direct input

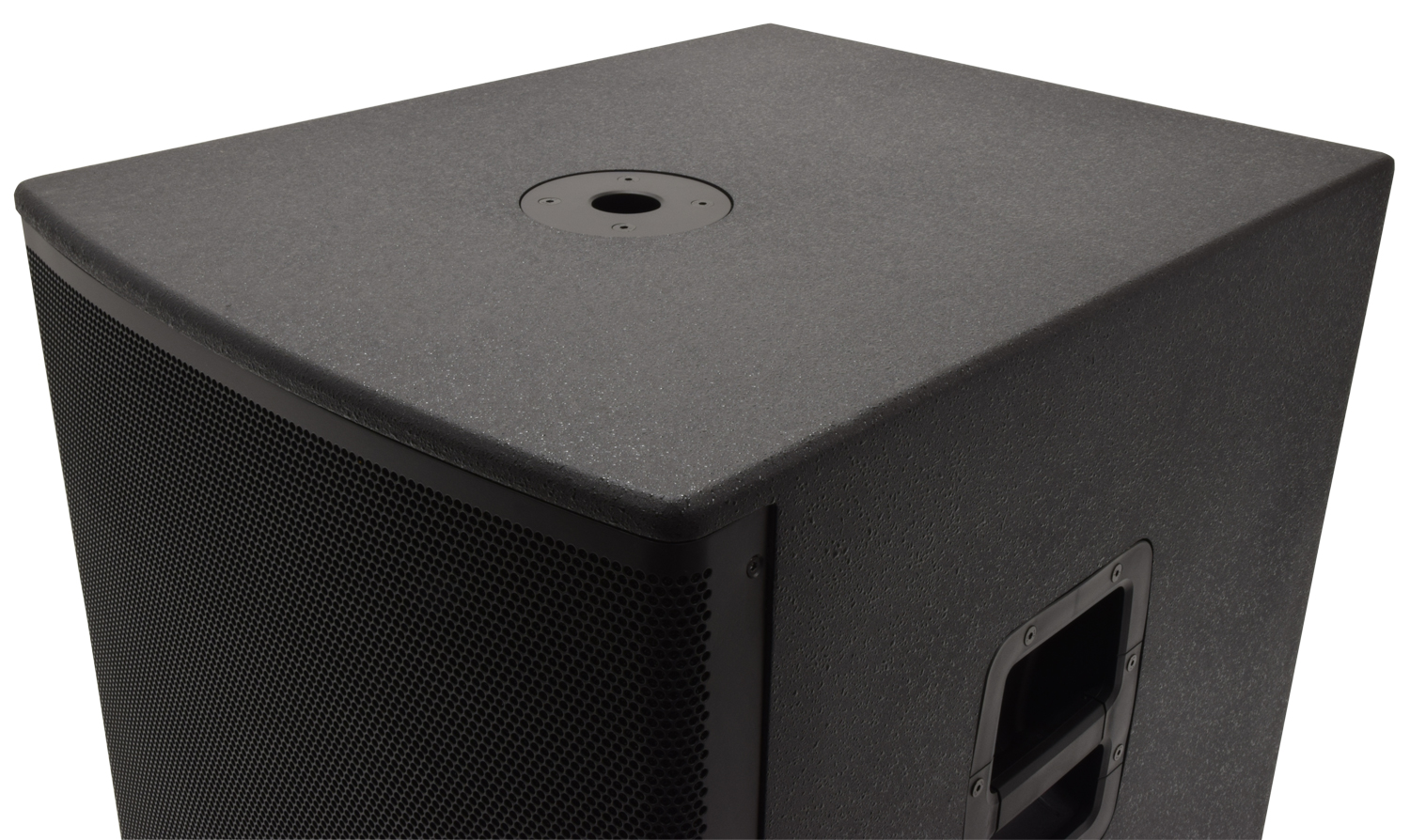

  • 35mm pole mount socket

Specification : Common

  • Construction 15mm MDF with durable texture paint finish
  • Hardware 2 x side carry handles + 35mm pole mount socket

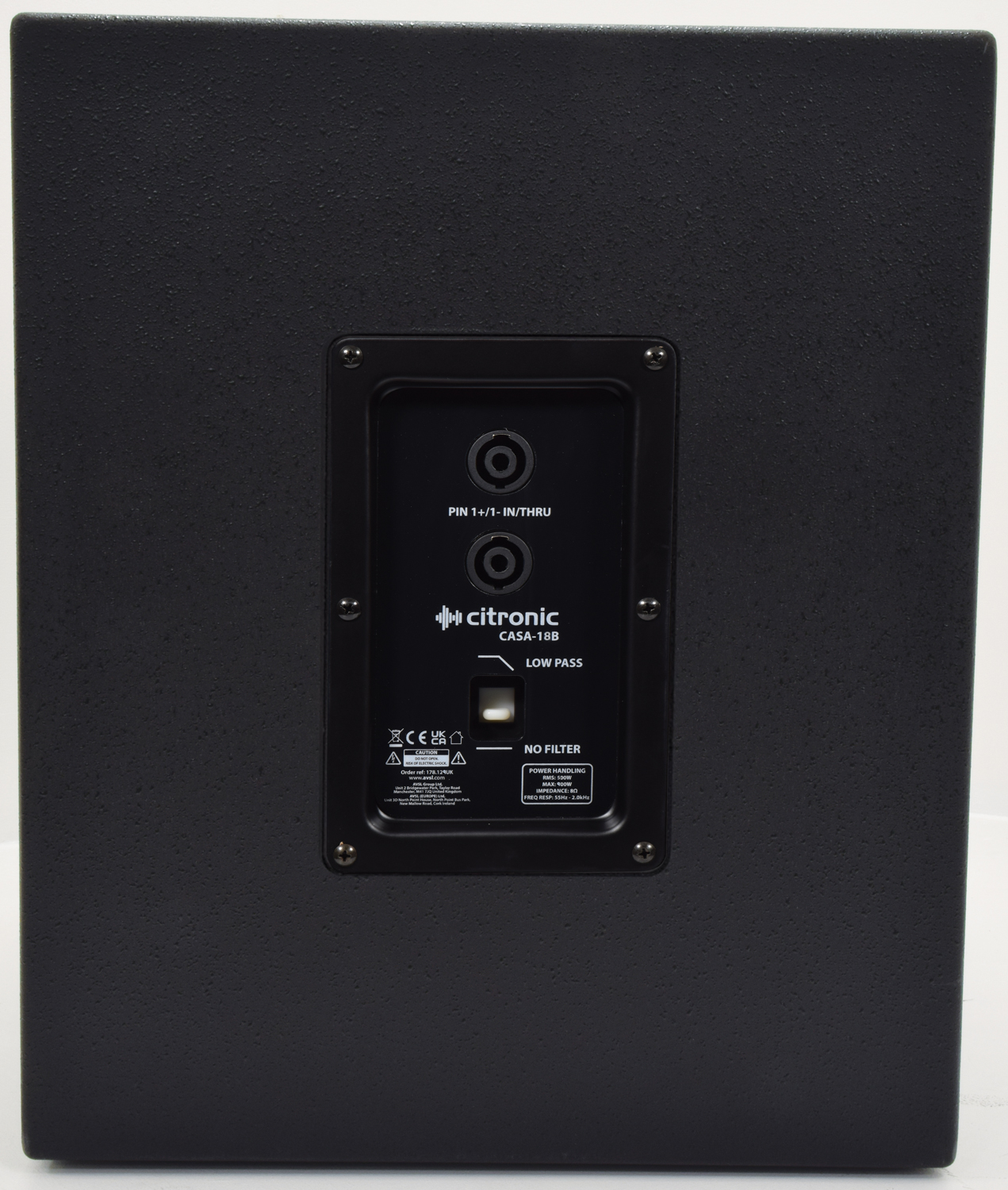

  • Connection 2 x SPK socket
  • Impedance 8 Ohms

Specification : Versions

  178.121UK 178.123UK 178.126UK 178.129UK
Sub driver 250mmØ (10") 300mmØ (12") 375mmØ (15") 450mmØ (18")
Voice coil 50mmØ (2") 62mmØ (2.5") 75mmØ (3") 75mmØ (3")
Power handling : rms 300W 400W 500W 600W
Power handling : max 500W 700W 900W 1100W
SPL max. 120.0dB 122.0dB 123.5dB 127.0dB
Frequency response 60Hz - 2.0kHz 55Hz - 2.0kHz 50Hz - 2.0kHz 45Hz - 1.8kHz
Dimensions 431 x 407 x 338mm 480 x 450 x 380mm 564 x 540 x 448mm 645 x 605 x 510mm
Weight 12kg 14kg 21kg 30kg

Trade information

  178.121UK 178.123UK 178.126UK 178.129UK
Barcode / EAN 5015972217849 5015972217856 5015972217863 5015972217870
Package type Box Printed Box Printed Box Printed Box Printed
Package dimensions 505 x 515 x 410mm 515 x 550 x 450mm 635 x 635 x 520mm 695 x 705 x 585mm
Package weight 15.00kg 19.00kg 26.00kg 32.00kg
Package quantity 1 unit 1 unit 1 unit 1 unit
Carton dimensions 505 x 515 x 410mm 515 x 550 x 450mm 635 x 635 x 520mm 695 x 705 x 585mm
Carton weight 15.00kg 19.00kg 26.00kg 32.00kg
Carton quantity 1 package 1 package 1 package 1 package

In the box

The box for this item contains :

  • CASA series passive sub cabinet
