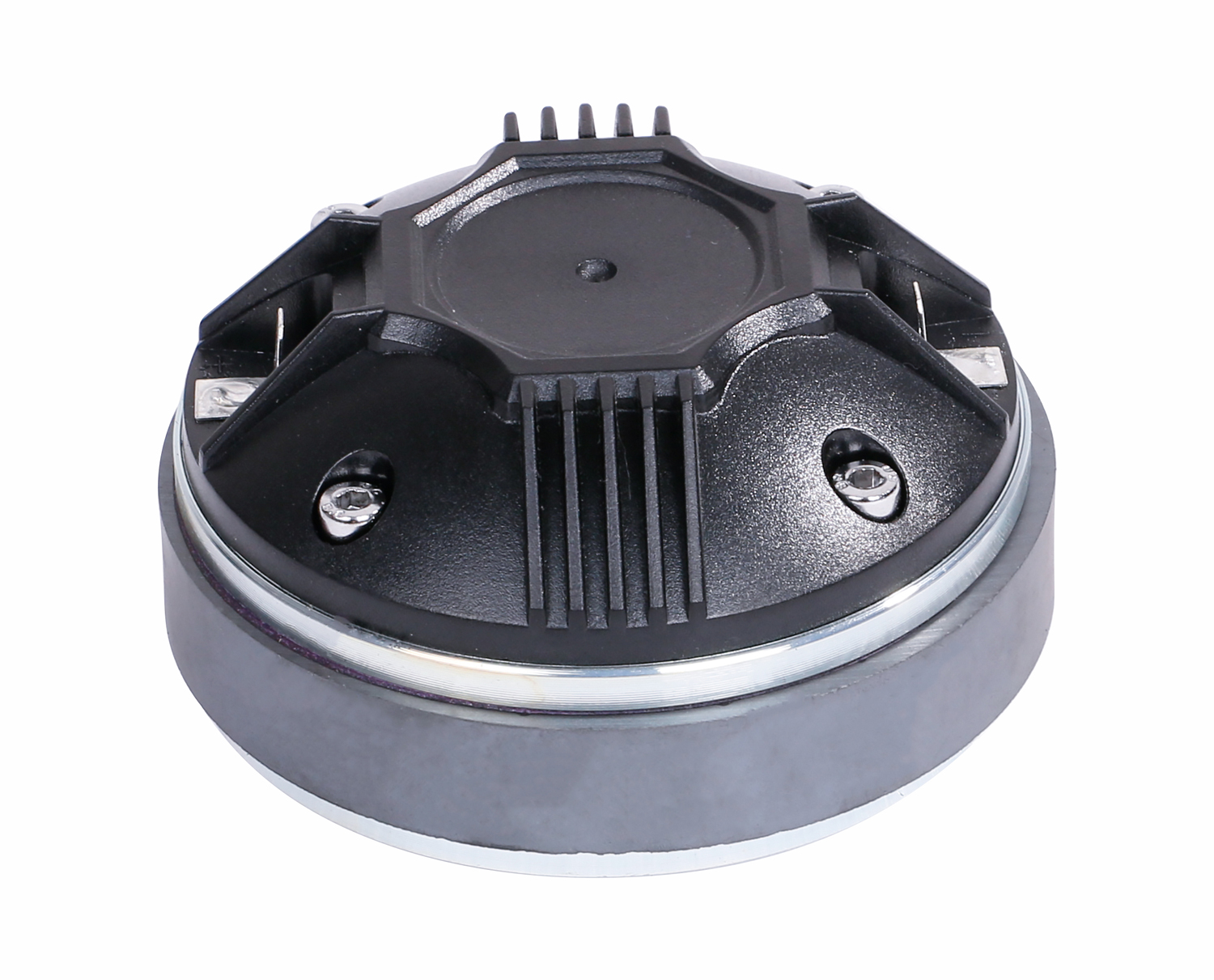

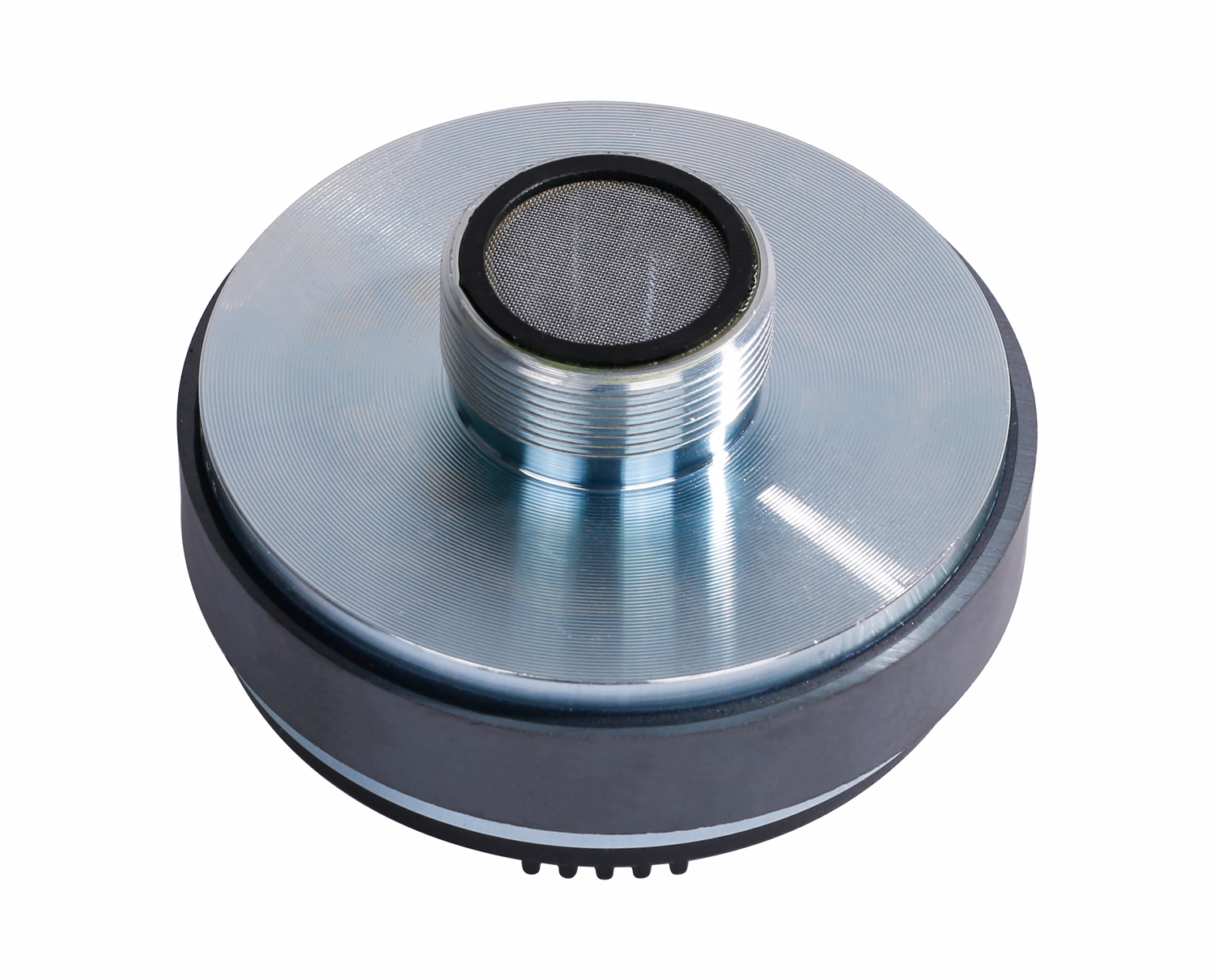

High frequency titanium compression drivers
34mm (1.35") 40Wrms
902.103UK
HF2CASA-8A-10A
High frequency titanium compression drivers with standard 34mmØ threaded exit. Designed to couple with tweeter flares in full-range PA speakers for accurate and powerful high frequency reproduction. more
- Direct replacements for CASA series full range active cabinets
High frequency titanium compression drivers
High frequency titanium compression drivers with standard 34mmØ threaded exit. Designed to couple with tweeter flares in full-range PA speakers for accurate and powerful high frequency reproduction.
- Direct replacements for CASA series full range active cabinets
- Weight 910g
- Dimensions 65 x 90mmØ
- Sensitivity @ 1W/1m 110dB
- Diaphragm Titanium
- Magnet Ceramic
- Voice coil 34.4mmØ (1.35")
- Frequency response 600Hz - 20kHz
- Power handling : max 80W
- Power handling : rms 40W
- Throat 25mmØ (1")
- Impedance 8 Ohms
- Thread 34mmØ
In the Box
- HF compression driver (suitable for CASA series cabinet)
