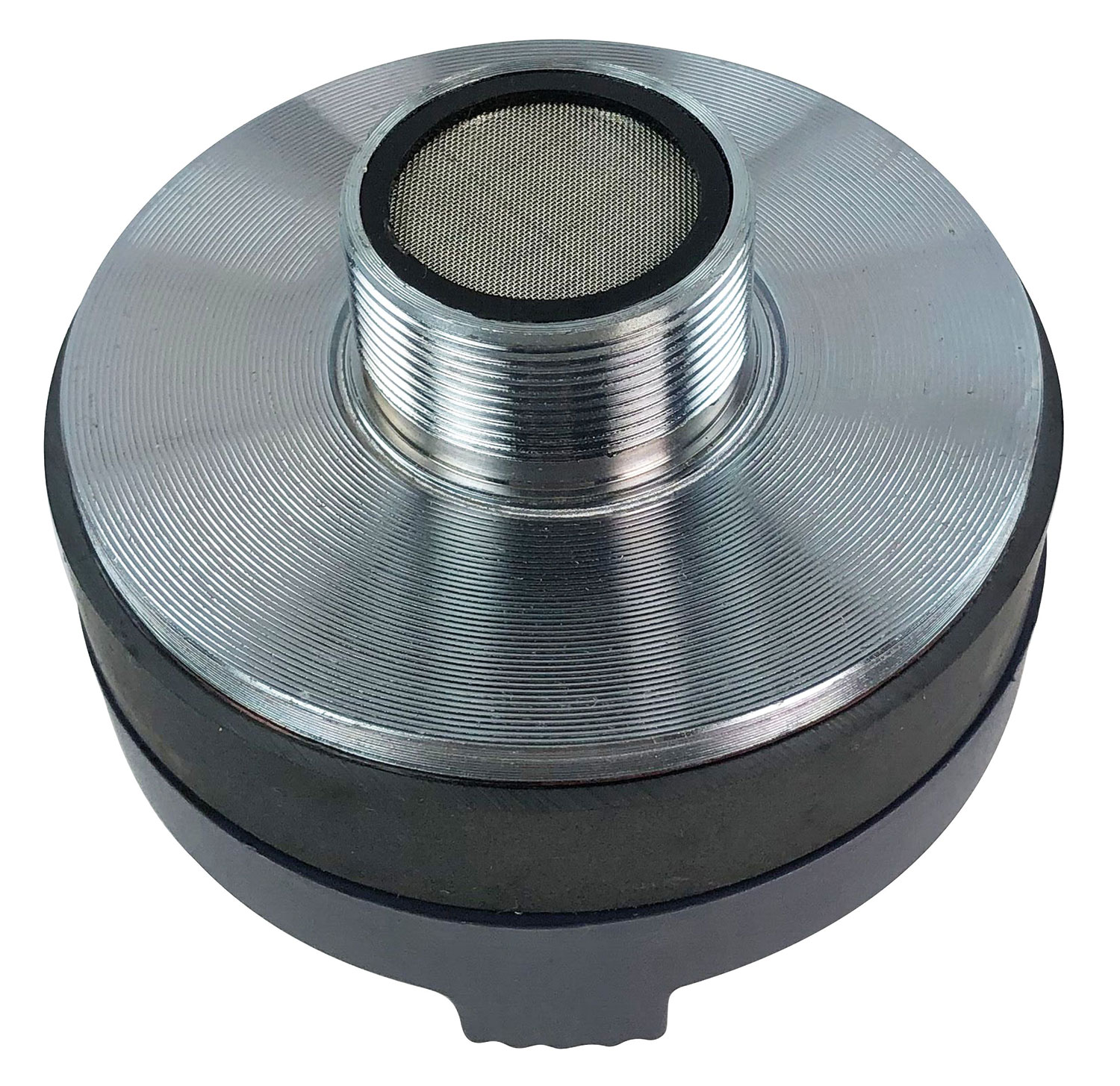

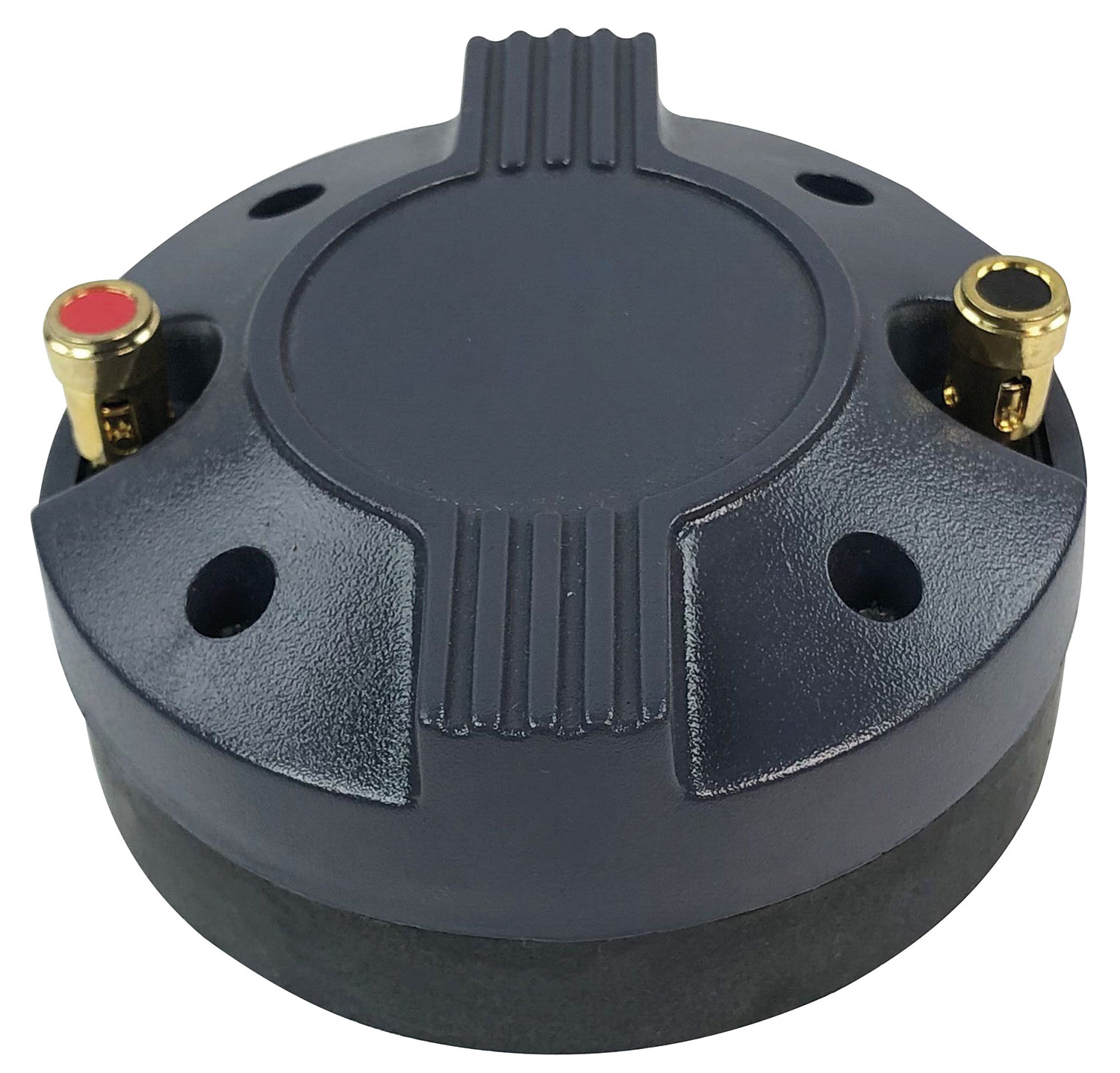

High frequency titanium compression drivers
34mm (1.35") 35Wrms
902.111UK
HFCASA-12A
High frequency titanium compression drivers with standard 34mmØ threaded exit. Designed to couple with tweeter flares in full-range PA speakers for accurate and powerful high frequency reproduction. more
- Direct replacements for CASA series full range active cabinets
High frequency titanium compression drivers
High frequency titanium compression drivers with standard 34mmØ threaded exit. Designed to couple with tweeter flares in full-range PA speakers for accurate and powerful high frequency reproduction.
- Direct replacements for CASA series full range active cabinets
- Weight 910g
- Dimensions 61 x 89mmØ
- Sensitivity 110dB (1W/1m)
- Diaphragm Titanium
- Magnet Ceramic
- Voice coil 34.4mmØ (1.35")
- Frequency response 600Hz-20kHz
- Power handling max. 70W
- Power handling RMS 35W
- Throat 25mmØ (1")
- Impedance 8 ohms
- Thread 34mmØ
In the Box
- HF compression driver (suitable for CASA series cabinet)
