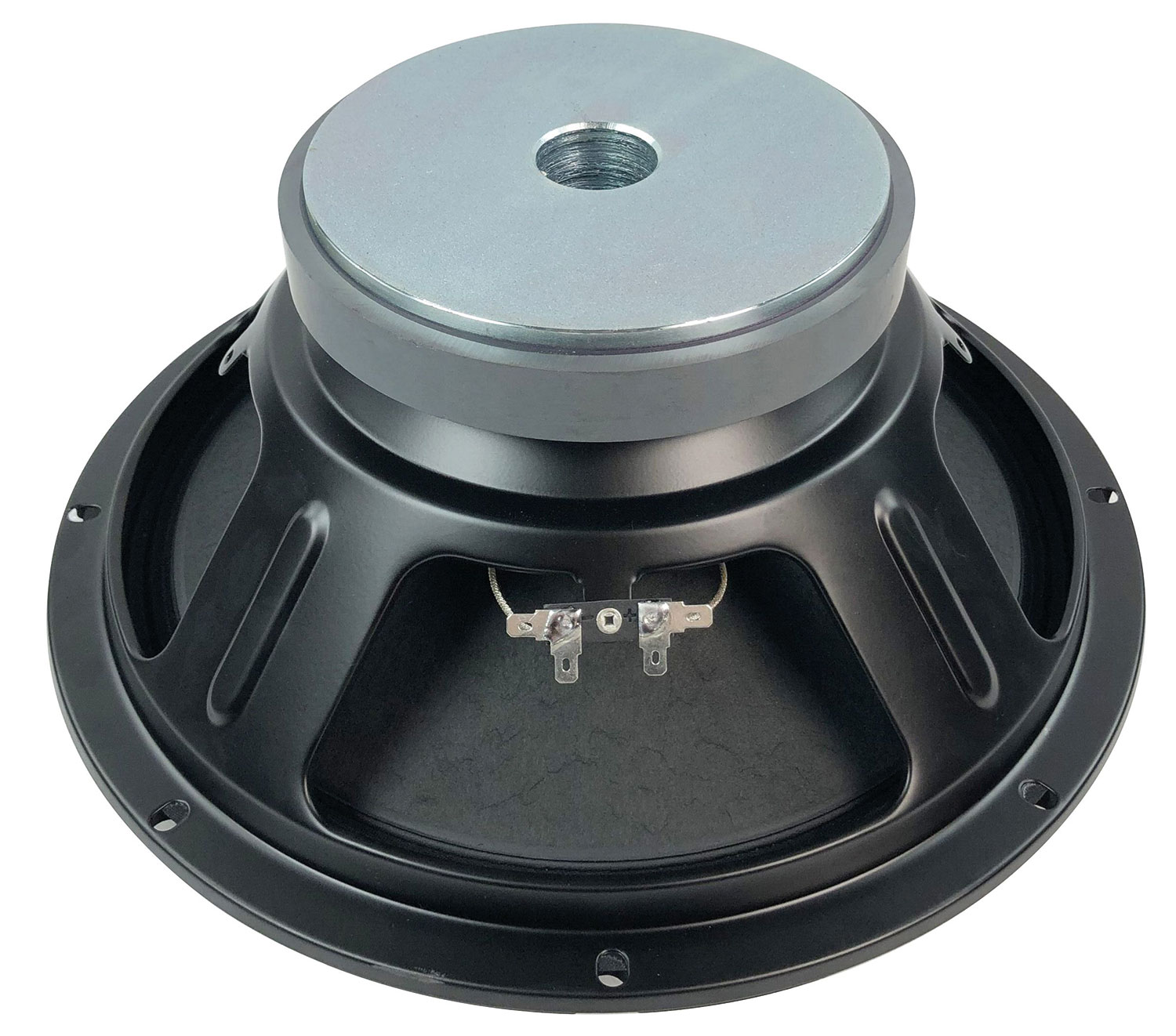

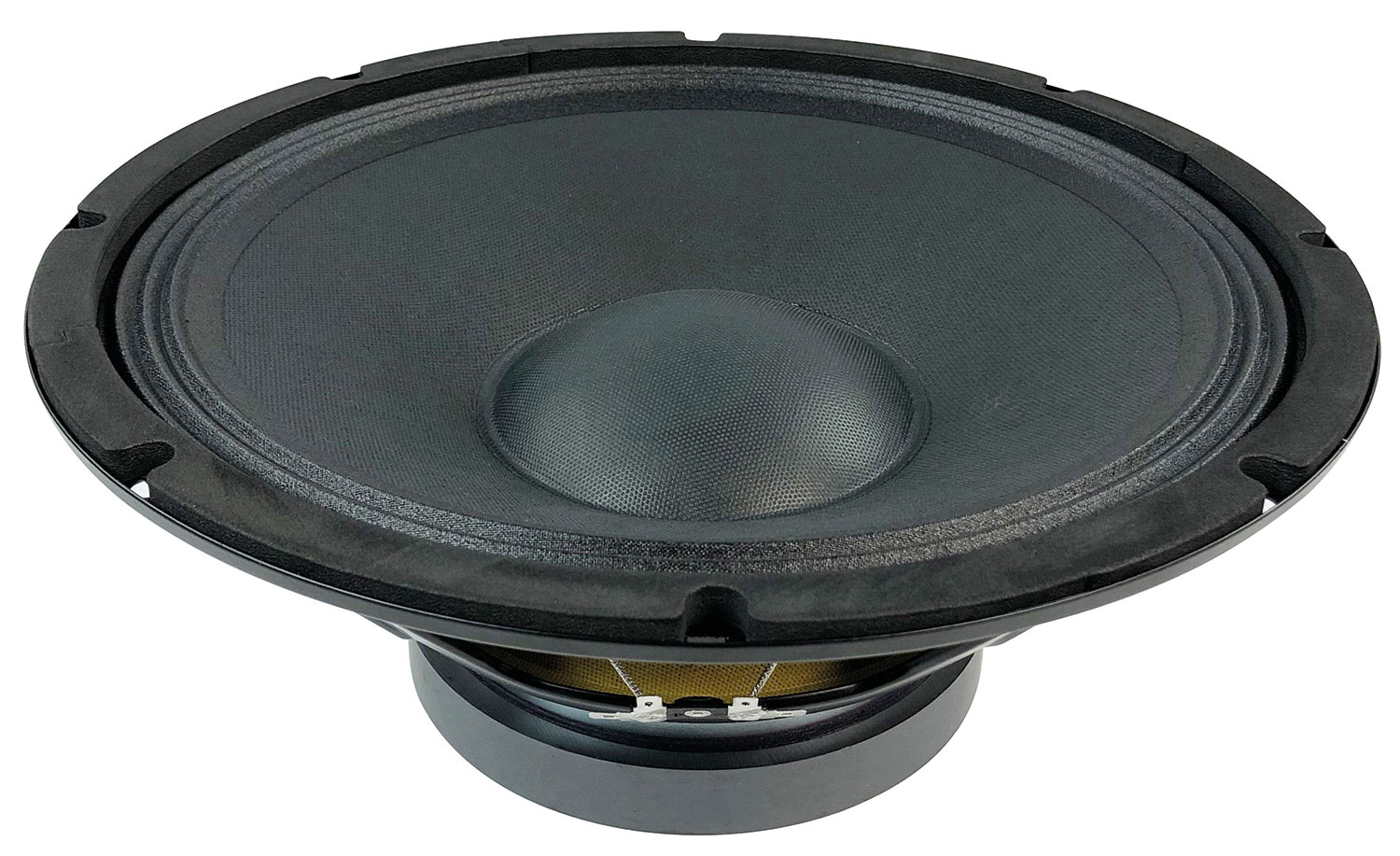

8 Ohm Woofers for Full-Range PA Cabinets
12" 8ohm 300W
902.106UK
LFCASA-12
Replacement 8 Ohm main drivers with high power handling and balanced response. Designed for efficient delivery of low frequencies in full-range PA cabinets. more
- Direct replacements for CASA or CUBA series full range passive cabinets
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
902.104UK
8" Driver 8 Ohm 200W |
8" 8ohm 200W | Box Label |
|
902.105UK
10" Driver 8 Ohm 250W |
10" 8ohm 250W | Box Label |
|
902.106UK
12" Driver 8 Ohm 300W |
12" 8ohm 300W | Box Label |
|
902.101UK
12" Driver 8 Ohm 350W |
12" 8ohm 350W | Box Label |
|
902.107UK
15" Driver 8 Ohm 400W |
15" 8ohm 400W | Box Label |
8 Ohm Woofers for Full-Range PA Cabinets
Replacement 8 Ohm main drivers with high power handling and balanced response. Designed for efficient delivery of low frequencies in full-range PA cabinets.
- Direct replacements for CASA or CUBA series full range passive cabinets
- Power handling : rms 300W
- Power handling : max 600W
- Frequency response 50Hz - 3kHz
- Voice coil 64mmØ (2.5")
- Magnet 1.42kg (50oz)
- Sensitivity 96dB
- Dimensions 160 x 310mmØ
- Weight 4.80kg
- Construction Reinforced paper cone with steel frame basket
- Impedance 8 Ohms
In the Box
- 8 Ohm low frequency driver for CASA series cabinet
